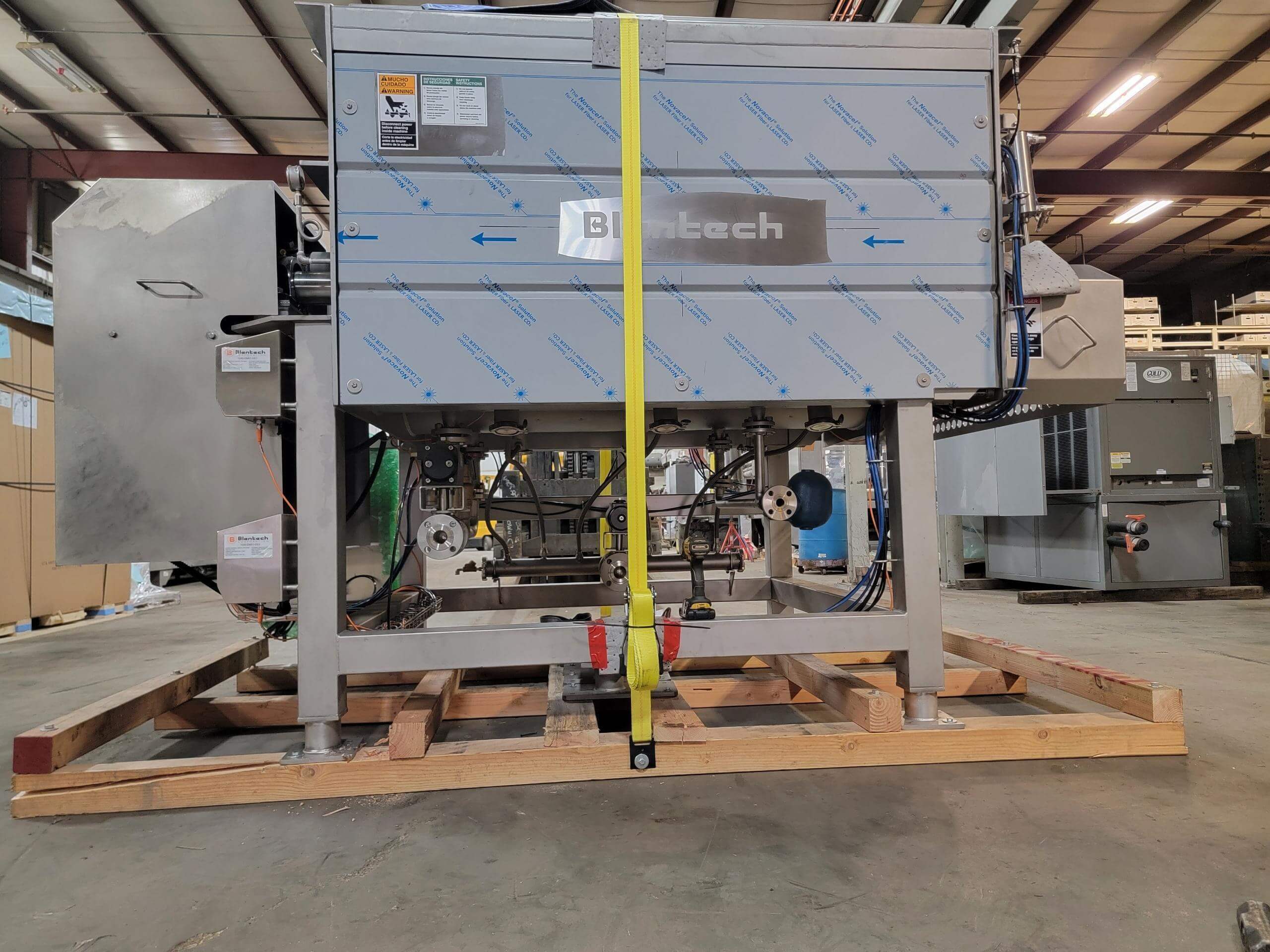

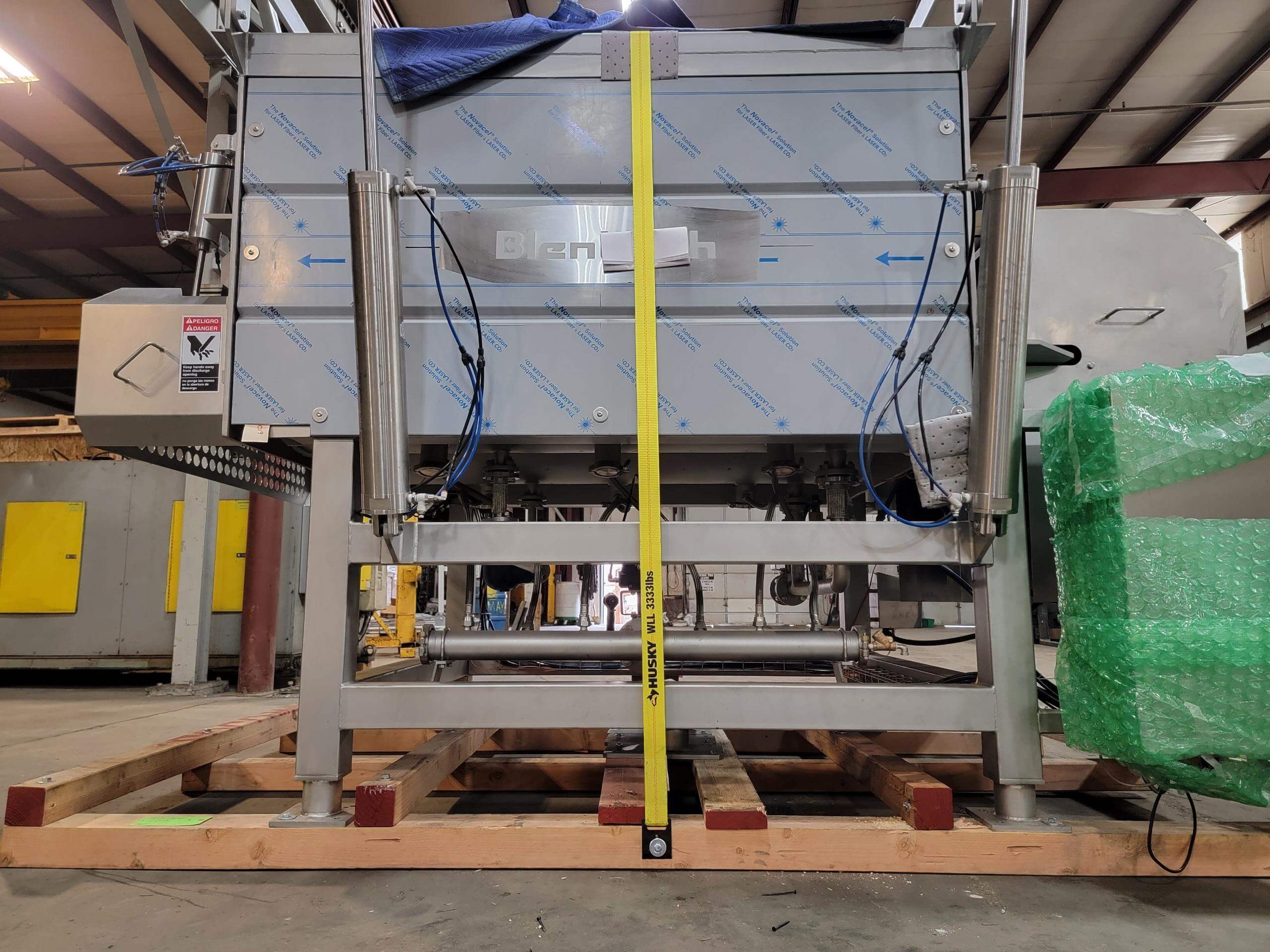

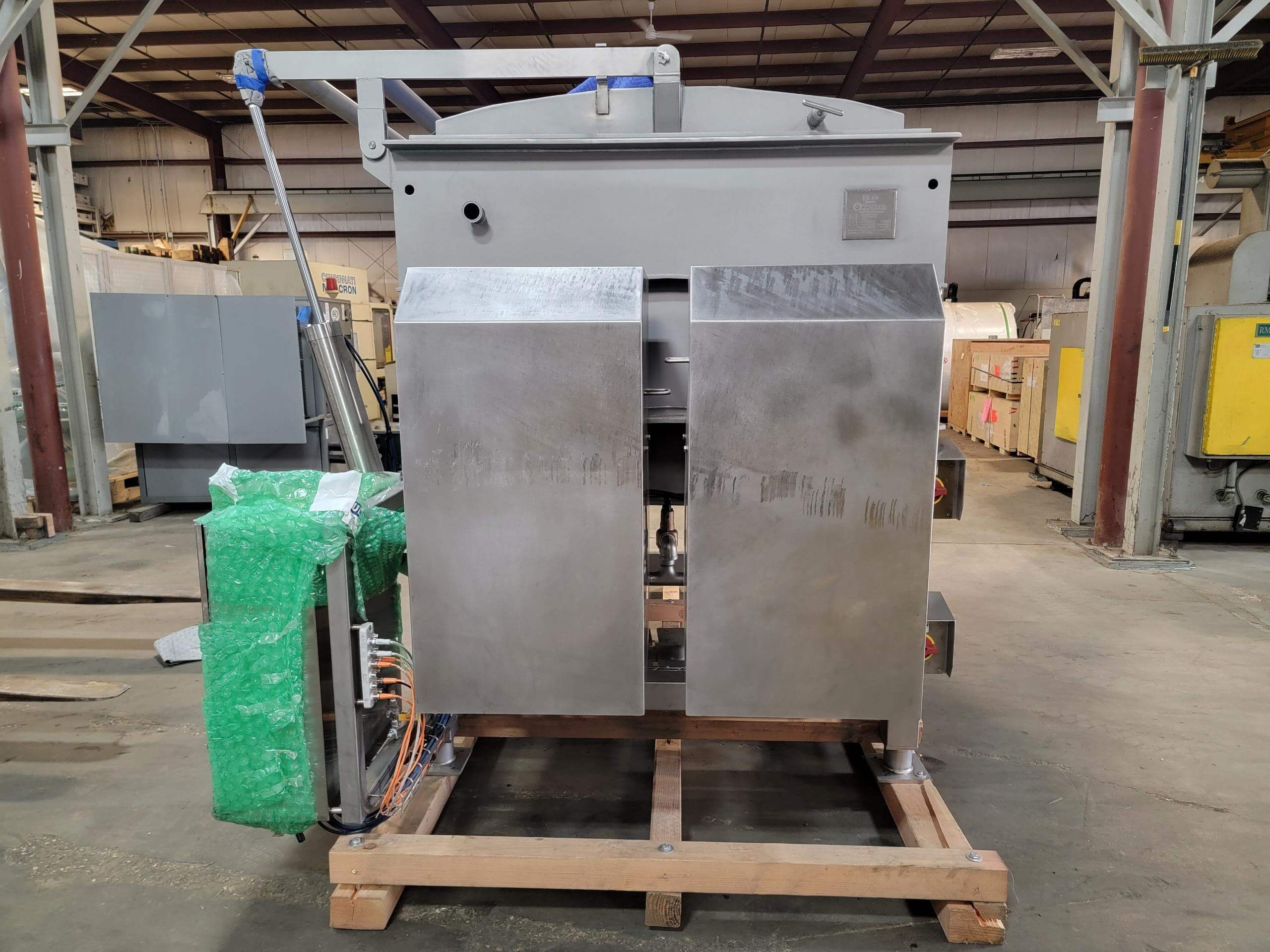

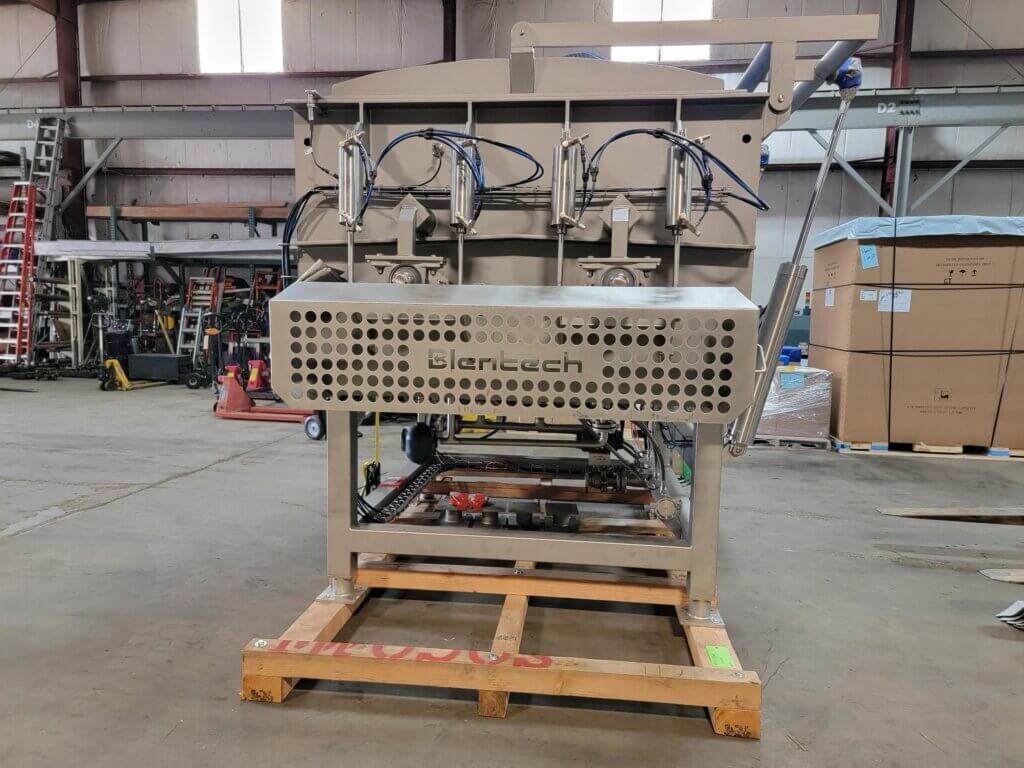

Blentech DM-28072 Blender.

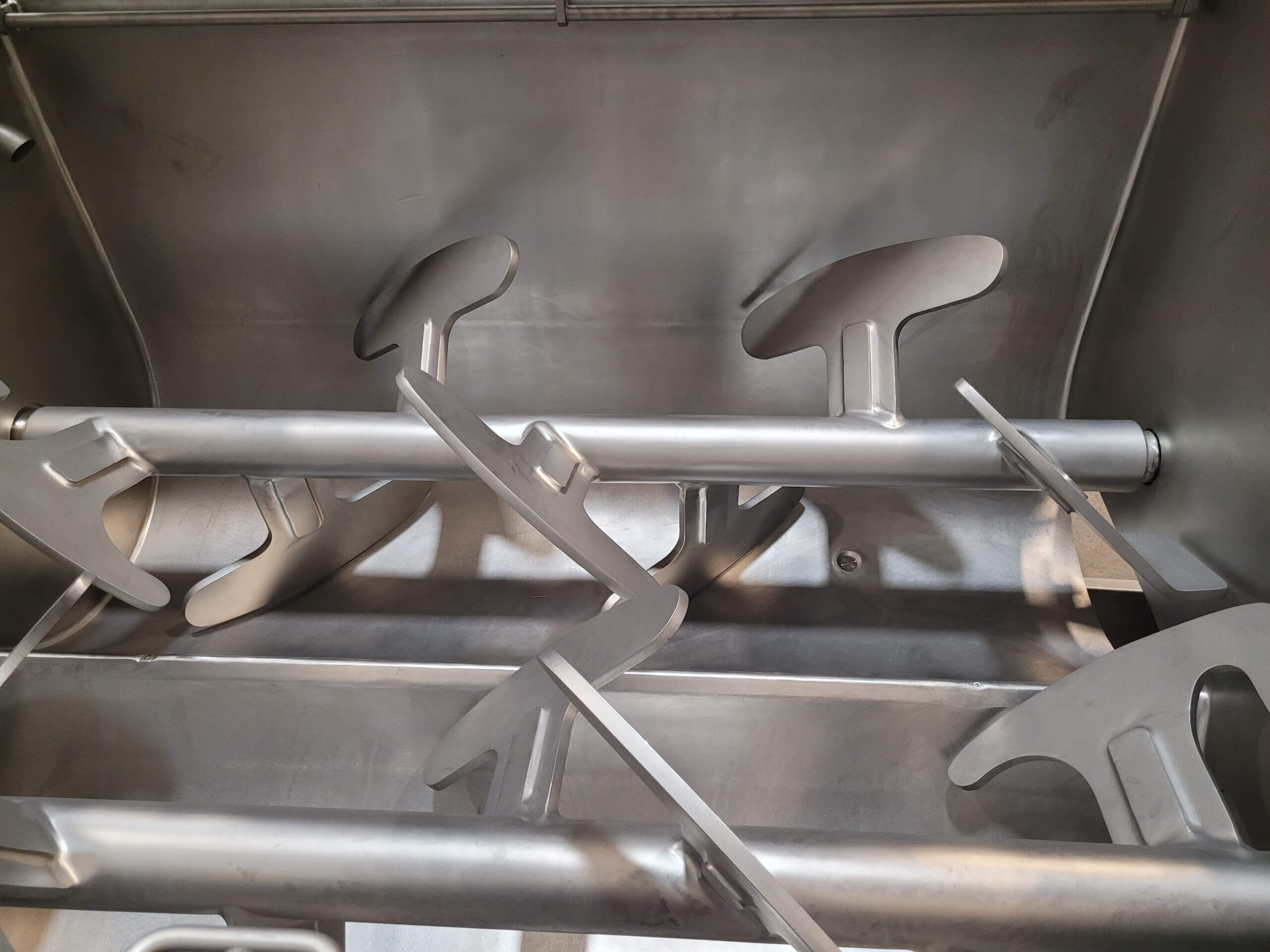

Dual Agitator Mixer:
432 gal/1,636 L Dual paddle mixer including the following features:
• Air-operated gasketed cover.

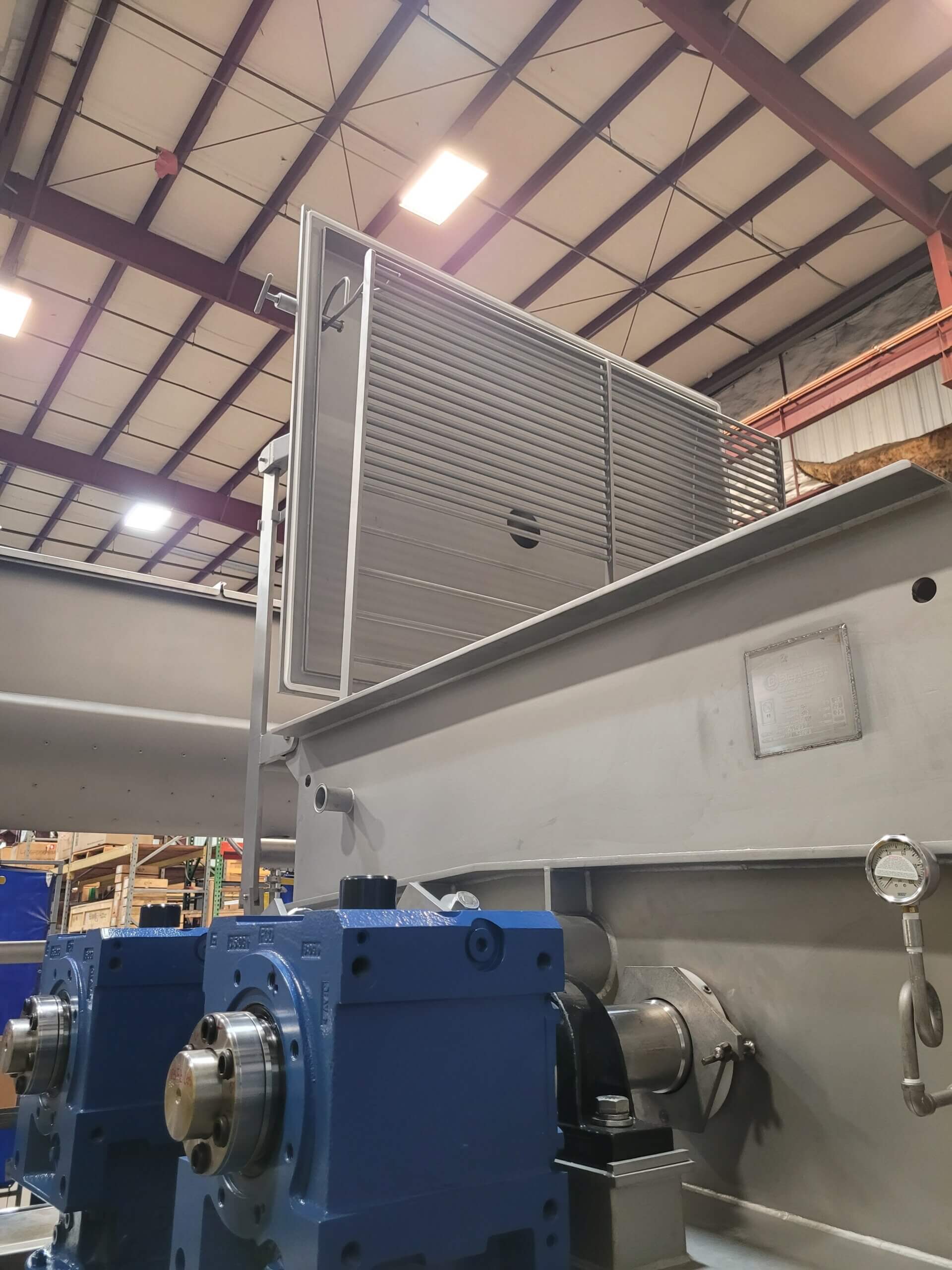

• Stainless steel safety grate interlocked with the drivemotor.

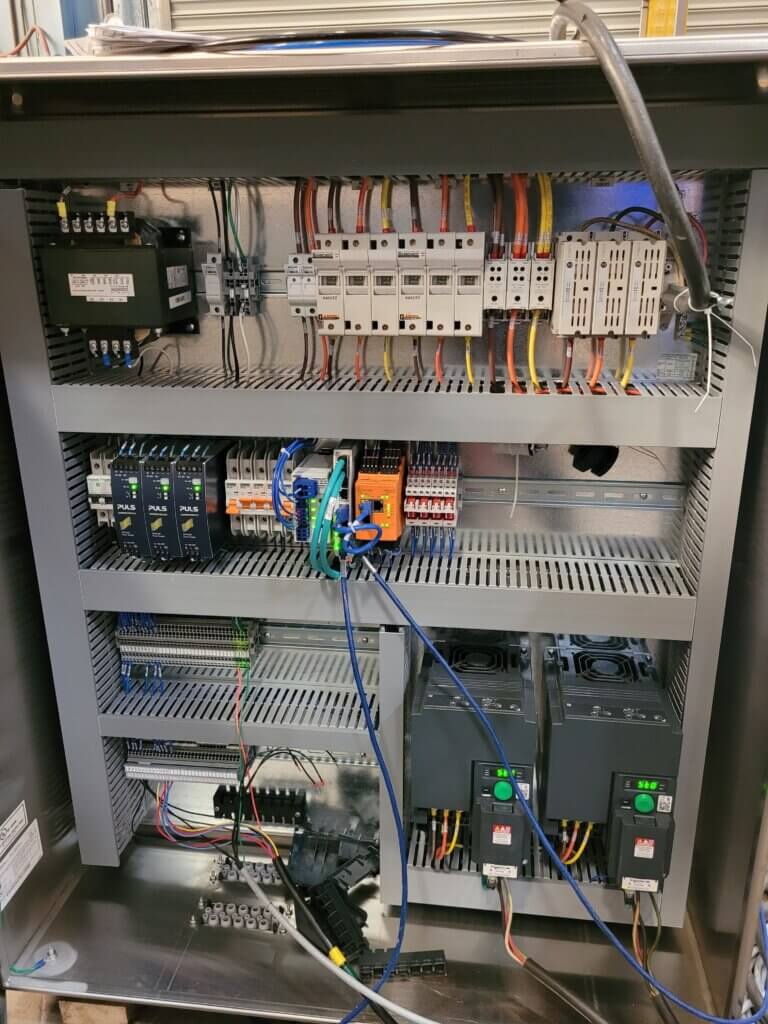

• 2 X 10 HP direct drive motors with VFD.

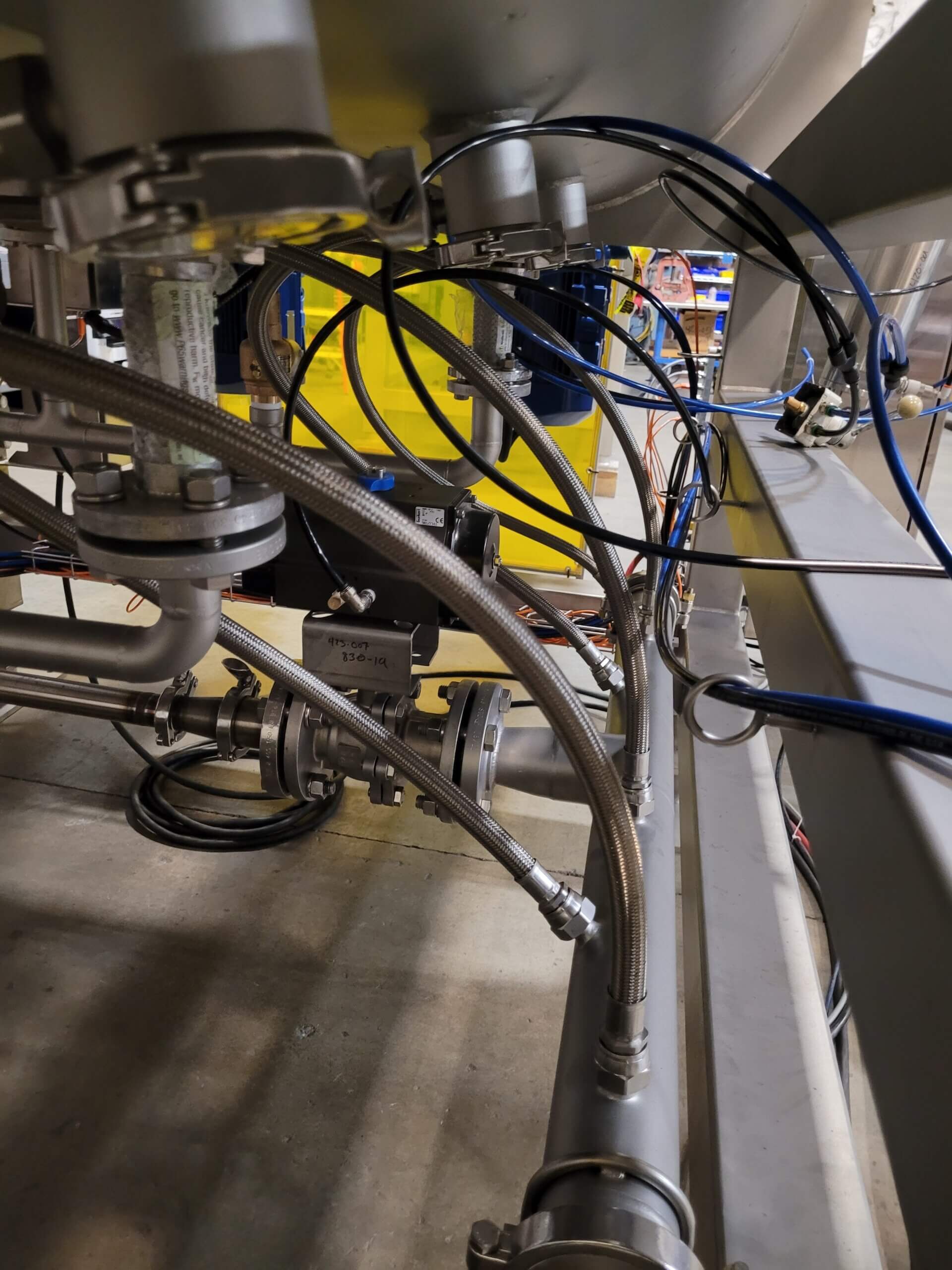

• Direct Steam Injection system.
• Body with 15 psig non-ASME Code steam jacket. Covered with stainless steel heat
shield. Jacket capped, Steam train can be quoted at a later time.
• Pillow block bearing on both ends.
• Dual, air operated, gasketed discharge doors.
• Corrosion resistant air cylinders with pilot operated check valve.
• LipSeal shaft seal on drive end with stellite hard faced agitator shafts.
• Removable interlocked discharge guard with safety warning signs.
• AutoChef Basic Package.
• Temperature Probe Package.
• Sanitary with no additional mechanical polish.
• T-304 stainless steel material of construction.
• TSSA/CSA compliant.
• 575 V, 3Ph, 60 Hz
• Estimated shipping dimensions: 100″ W X 150″ L X 160″H
Includes these additional features:
AutoChef 2.0 Package Upgrade • Improve batch-to-batch consistency with recipes
• Individual operator login credentials for access control
and language preference
• Batch reporting giving you individualized process
feedback down to the operator level
• Optimized reduce downtime with Blentech remote
support for rapid troubleshooting
• Proven technology, deployed globally
60 PSIG Steam Jacket Increase surface temperatures up to 307°F/153°C for cook time
reduction. Includes TSSA, thermal expansion feet and steam train
– pressure release, on/off steam control and steam trap all
connected to common inlet and outlet.
Right Angle Drive Upgrade Upgrade gear motors on DM-28072 from parallel drive to right
angle drive.
