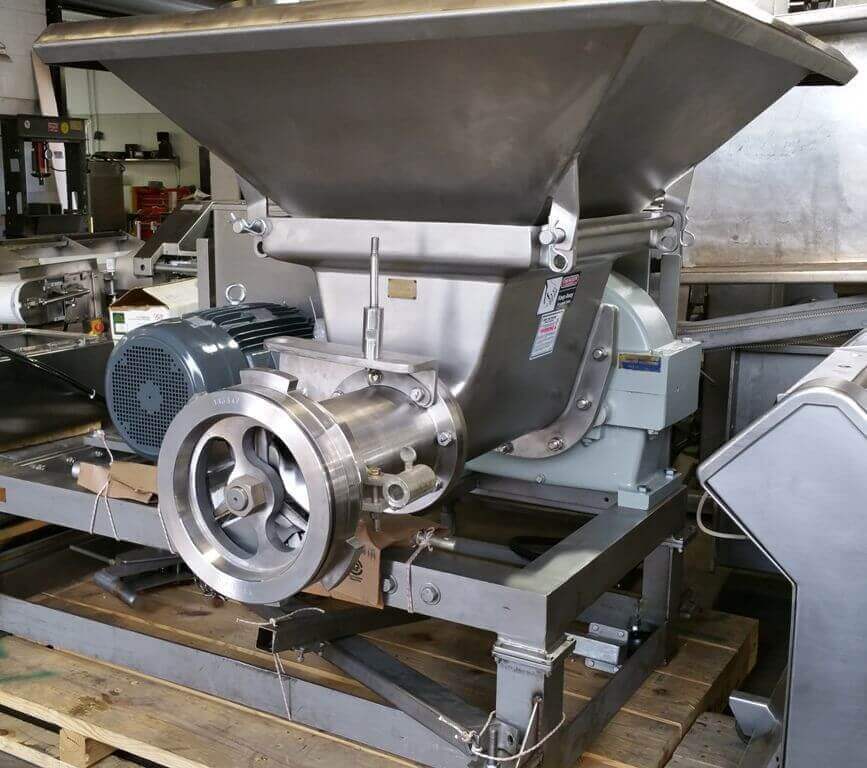

WEILER 1109 Frozen Block Grinder. Side mount motor configuration. The right-angle extension hopper is set up to grind frozen blocks. The extended hopper, barrel, and end ring are all made of new tinned metal—frame and covers made of stainless steel. The 100 HP TEFC motor and 1398-5HB gearbox are made of stainless steel. 480V/3PH/60Hz.

Overview

From the world’s leader in high-performance grinding technology comes a versatile grinder that helps mid-volume processors grind frozen and pre-broken blocks quickly and easily. The Weiler® 1109-16123 is known in our industry for its flexibility and high-capacity performance. It was made to work with a wide range of raw materials. This traditional Weiler grinding technology is built to last in the most demanding environments. It maximises your return on investment (M&M) and gives you a meagre cost of ownership.

Benefits

Best for medium volume frozen block and pre-broken block grinding

Traditional, tried-and-true Weiler technology

Simple to use and quick and easy to clean up

Suitable for tough jobs in the food, pet food, and rendering industries



Features And Specifications

Average Grinding Rate (Frozen)*: 9,000 lb/h | 4,100 kg/h

Typical Grind Rate (Frozen Pre-Broken)* 12,000 lbs | 5,500 kg

Grind Plate 11 in | 280mm

Motor 150 hp | 110 kW

Raw materials coming in are 6 inches by 15 inches by 22 inches (150 x 380 x 570 mm).

560mm (Tempered Blocks)

Raw materials that come in (Pre-Broken Frozen Blocks)



4 x 4 x 4 (optimal) |100 x 100 x 100

The actual grind rate will depend on the application requirements, such as the reduction size, the raw material, and the temperature of the raw material.

Why Weiler?

First, Weiler grinders are known for being able to do a lot of different things. They can be used for many other things, both raw and frozen. People like the Weiler brand because it can change to meet customer needs. This is because you can change out many parts to change the size, performance, and speed.

Weiler grinders are also known for being able to last for a long time. They are built to last and work well in challenging situations. Since 1939, this company has been making high-quality machines. Many are still operating thanks to caring of M&M.

Last but not least, the cost of owning Weiler equipment is meagre. Even more so, when you buy a reconditioned machine from M&M that is fully functional, we can help you get a better grind for less money.

This model can have an extra-long hopper added to it. The extra length of the Weiler 1109B Long Grinder lets you control how finely your pre-broken frozen and fresh products are ground. Second, the screw and spiral flight head is made of stainless steel, which makes them more durable and long-lasting than nickel-plated alternatives. Third, we put in brand-new pulleys and rebuilt the stainless steel hopper with a 3-point setup.

Why Did M&M Build?

The first cost of new equipment is always more. We can save money by using frames and parts that can be used more than once. M&M keeps remanufacturing costs low by combining processes in our building. We have the tools, skills, and turn-around times to offer reasonable prices.

Also, M&M’s reconditioned equipment keeps its value the best over time. We not only take the time to make controls that work well, but we also use standard, high-quality, stainless steel parts that last a lifetime. Or longer.
