A.K. ROBINS BELT STEAM BLANCHER
A.K. ROBINS BELT STEAM BLANCHER

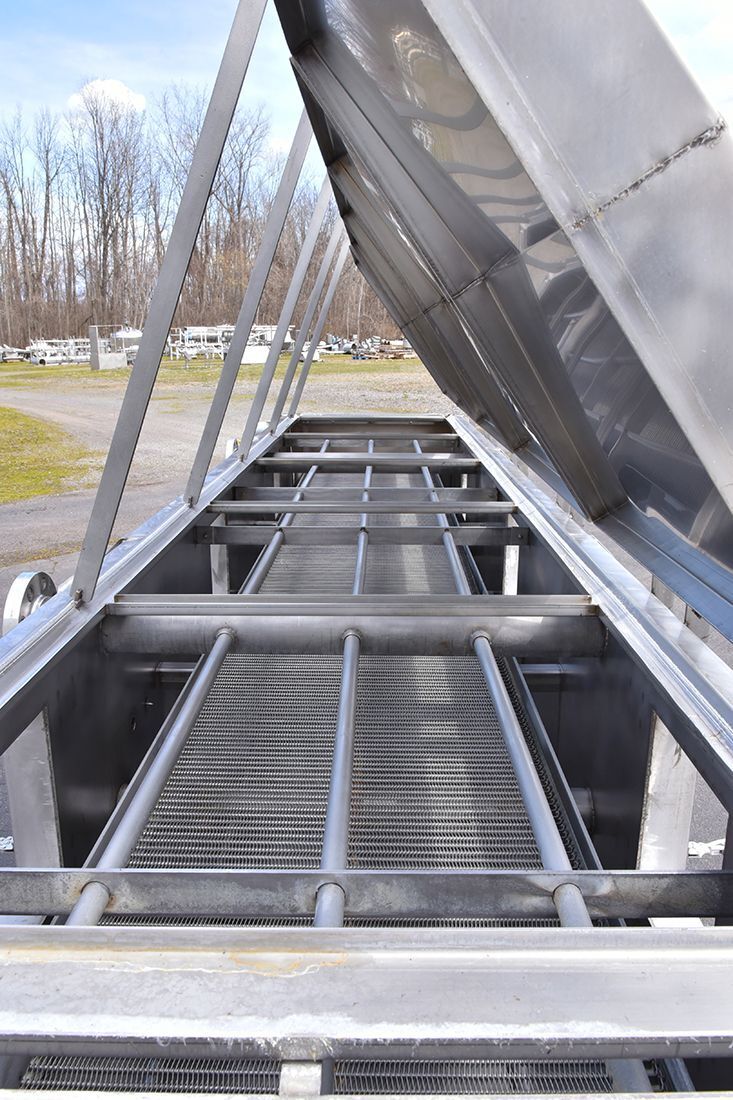

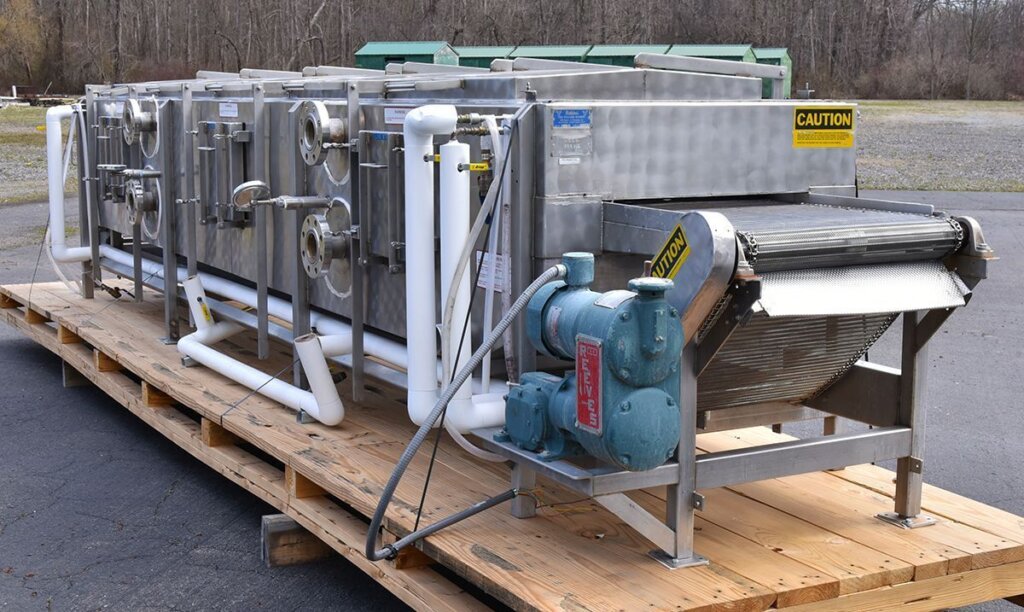

A.K. ROBINS 20ft BELT STEAM BLANCHER. All stainless steel construction, 20 foot long by 26 inch wide stainless steel wire mesh belt with fine 1/8 inch wide openings runs through the steam tunnel, 2 foot long open belt in-feed and discharge sections, with 16 foot length of travel in steam/steam vapor exposure, Top and bottom steam headers (over and above the belt), each with (2) zone input connections for live steam injection, Five (5) hinged top covers, each of which rests on all four sides in a system of hydrostatic-water-seal troughs, to prevent steam from escaping, Fully INSULATED body and covers, Vinyl flaps at each end to keep steam from escaping from the in-feed and discharge, Six (6) side clean out access for under-belt clean out access (3 per side), Steam stacks at each end, 3/4 HP 3PH mechanical variable speed drive geared for 18 to 80 inches per minute belt speed.
