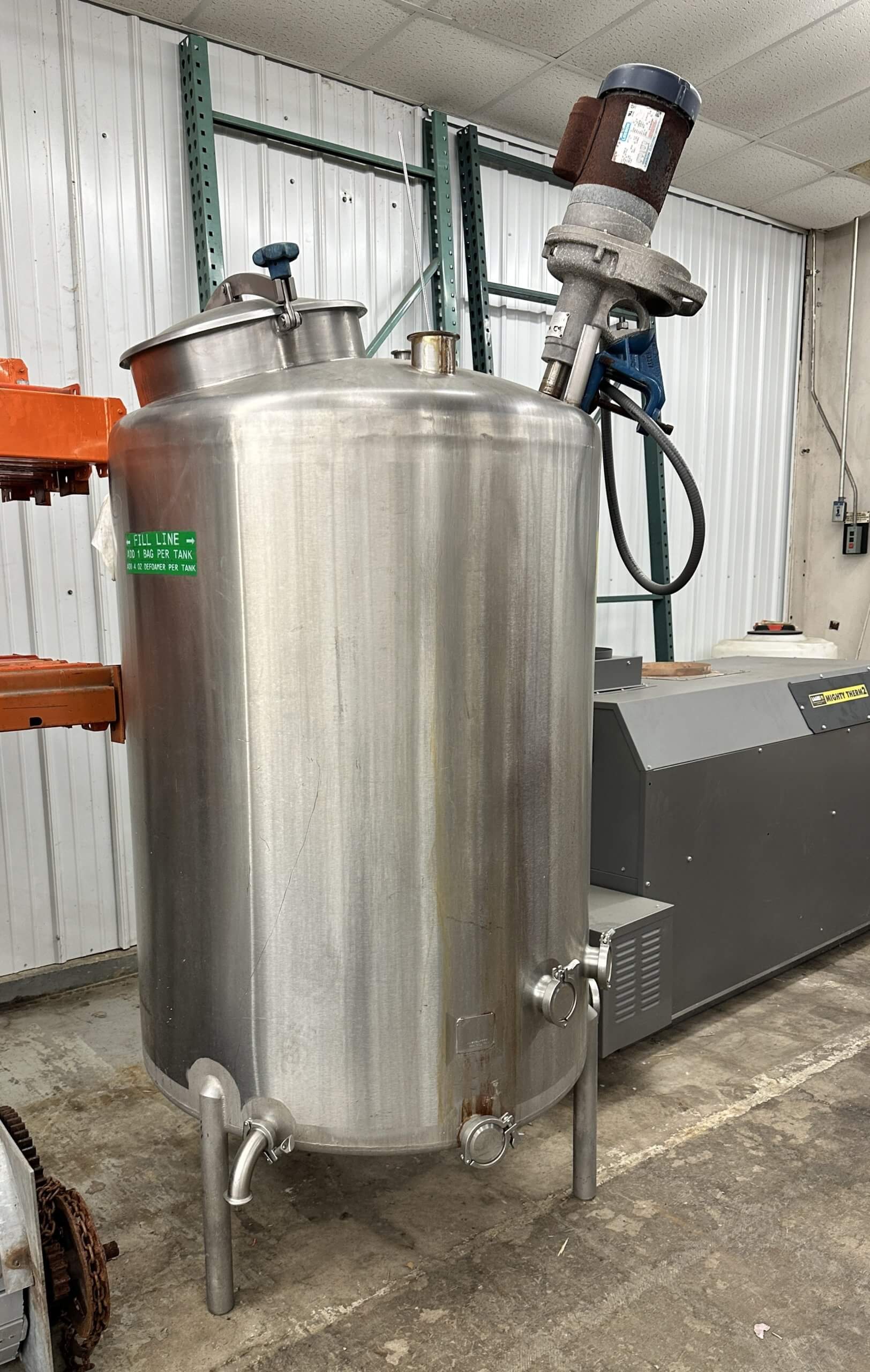

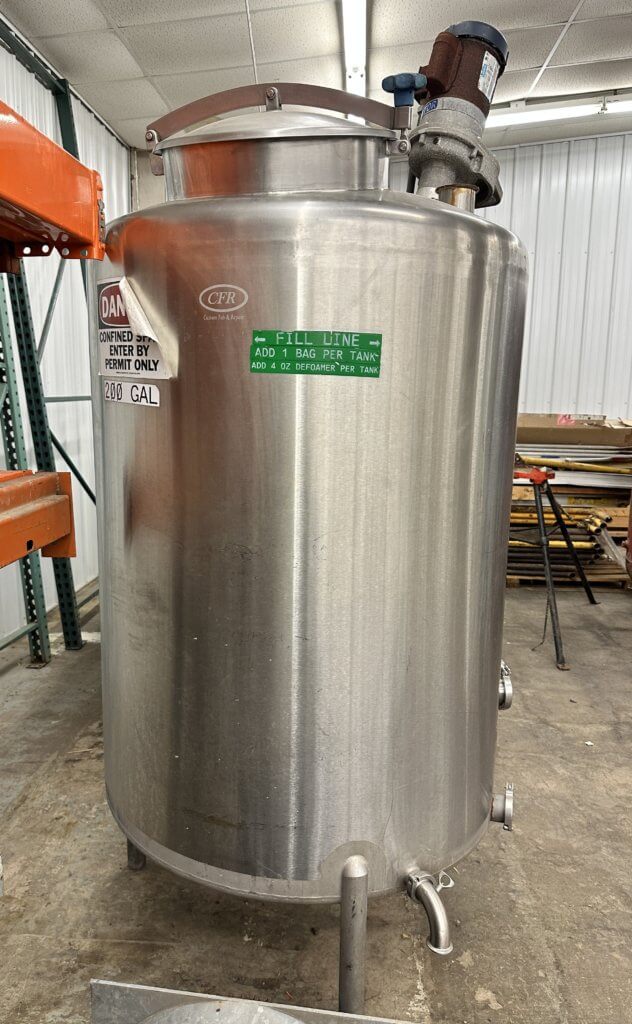

CFR Mix Tank

The unit has an outer diameter of 37 inches and a height of 48 inches, though you must add 18 inches to account for the mixer. It is supported by four 6.5-inch stainless steel welded legs. Please contact our team for specific details regarding any other dimensions not listed here.

This tank features a Leeson 3/4 hp motor. The motor operates at 1725 RPM and is compatible with 115/208V/1PH/60Hz power requirements. This single shaft vertical mixer is designed for industrial food-processing applications.

The CFR Mix Tank features fully welded 304 stainless steel construction. This robust design ensures durability for commercial operations in the dairy, sauce, or vegetable processing industries.

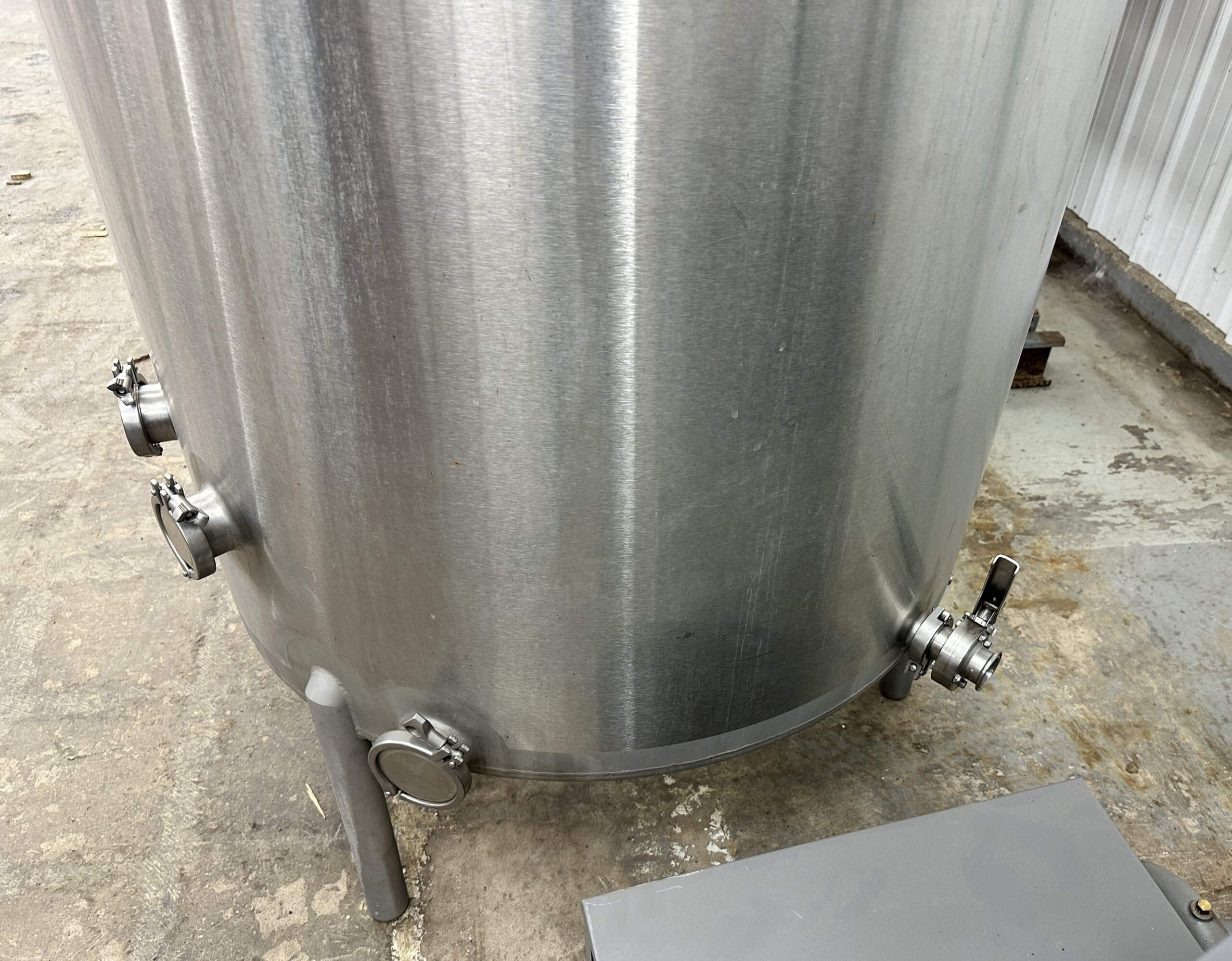

This unit includes a 10-inch top round access door and five bottom end outlets. One of these outlets is equipped with a hand valve to facilitate the movement of materials.

The tank has a 240-gallon capacity. This vertical mix tank is designed for industrial use in large-scale food production environments, such as those found in meat or bakery facilities.
