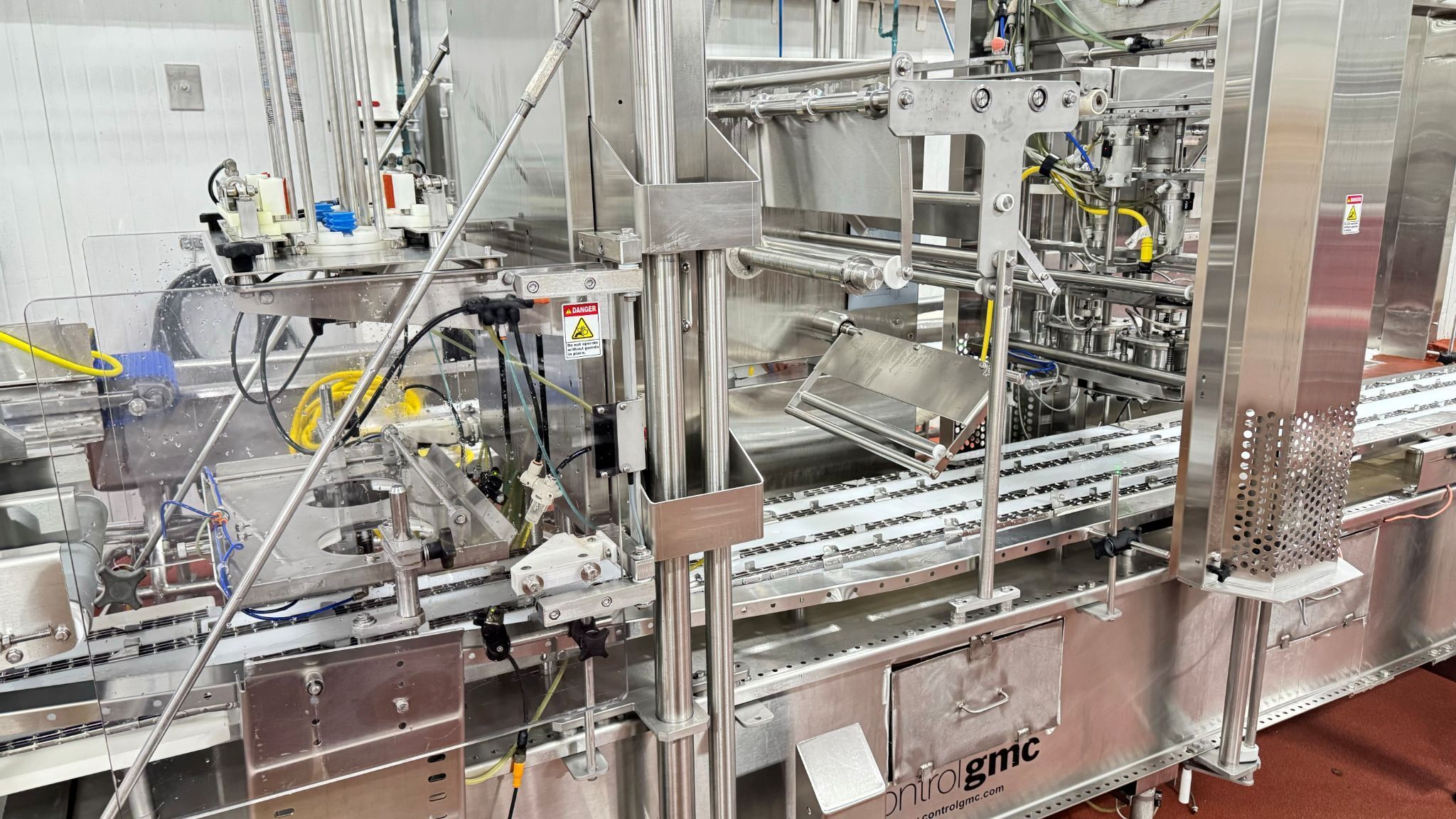

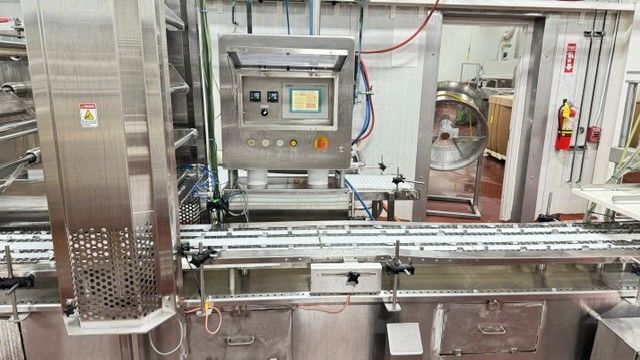

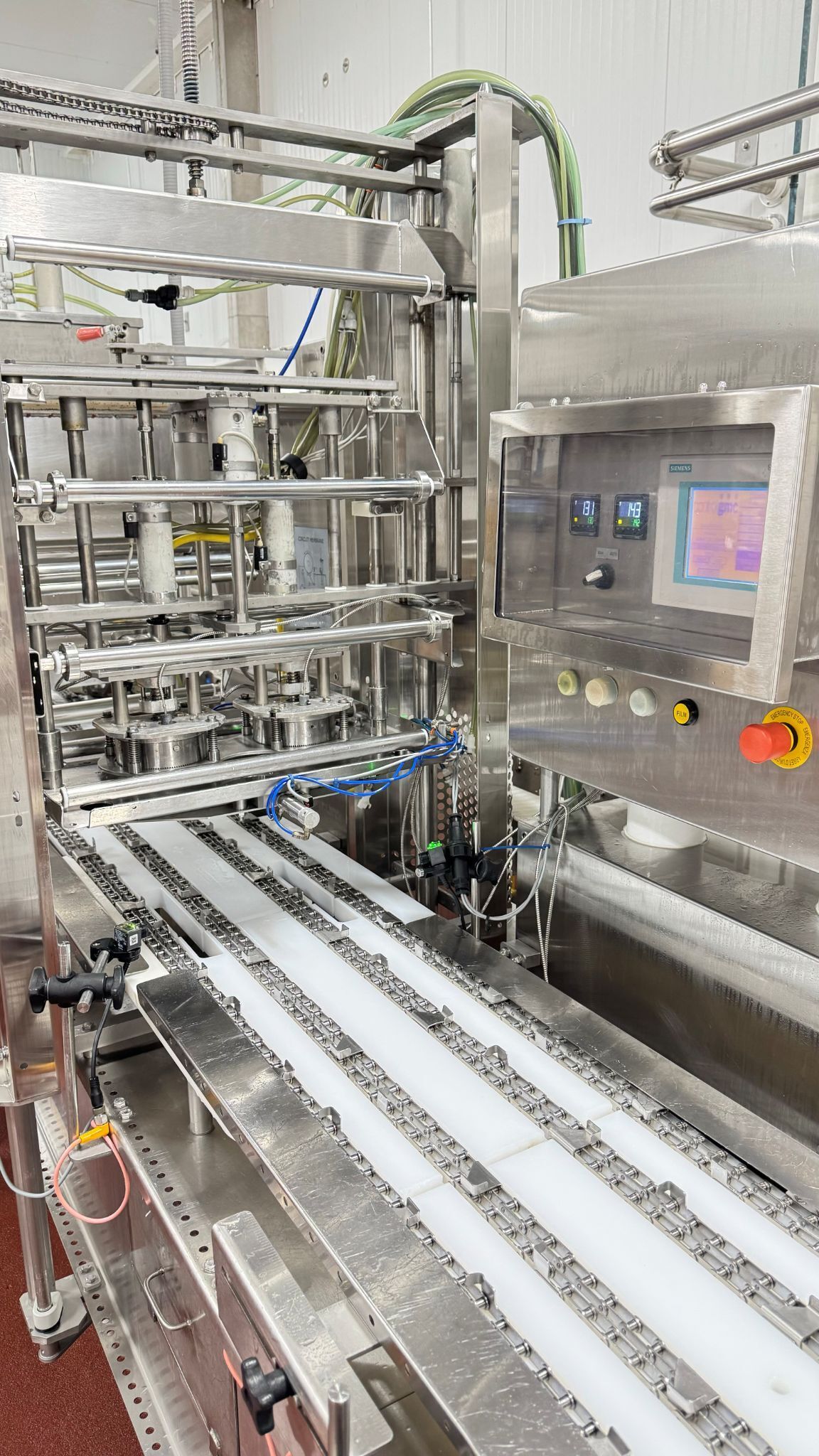

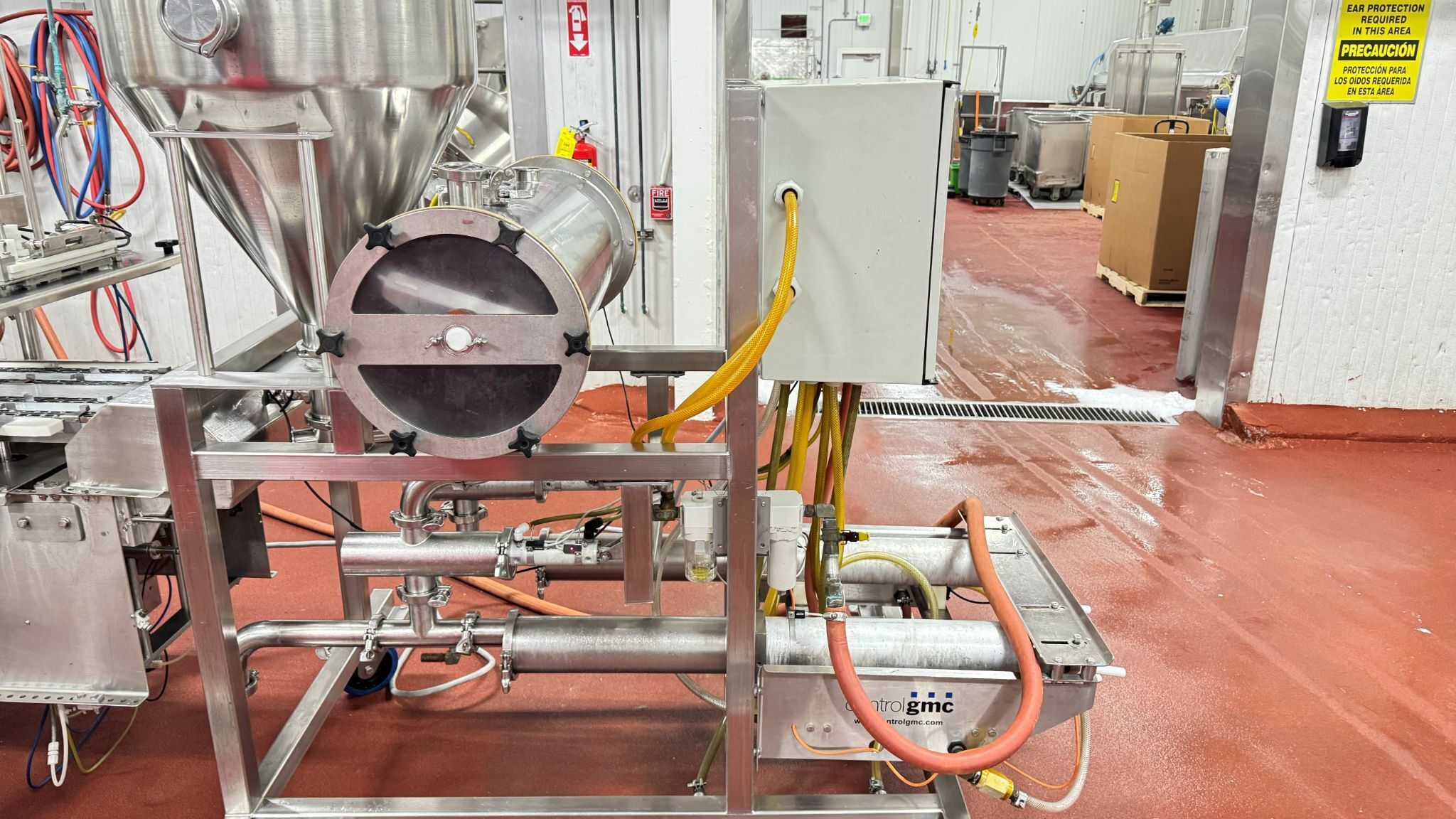

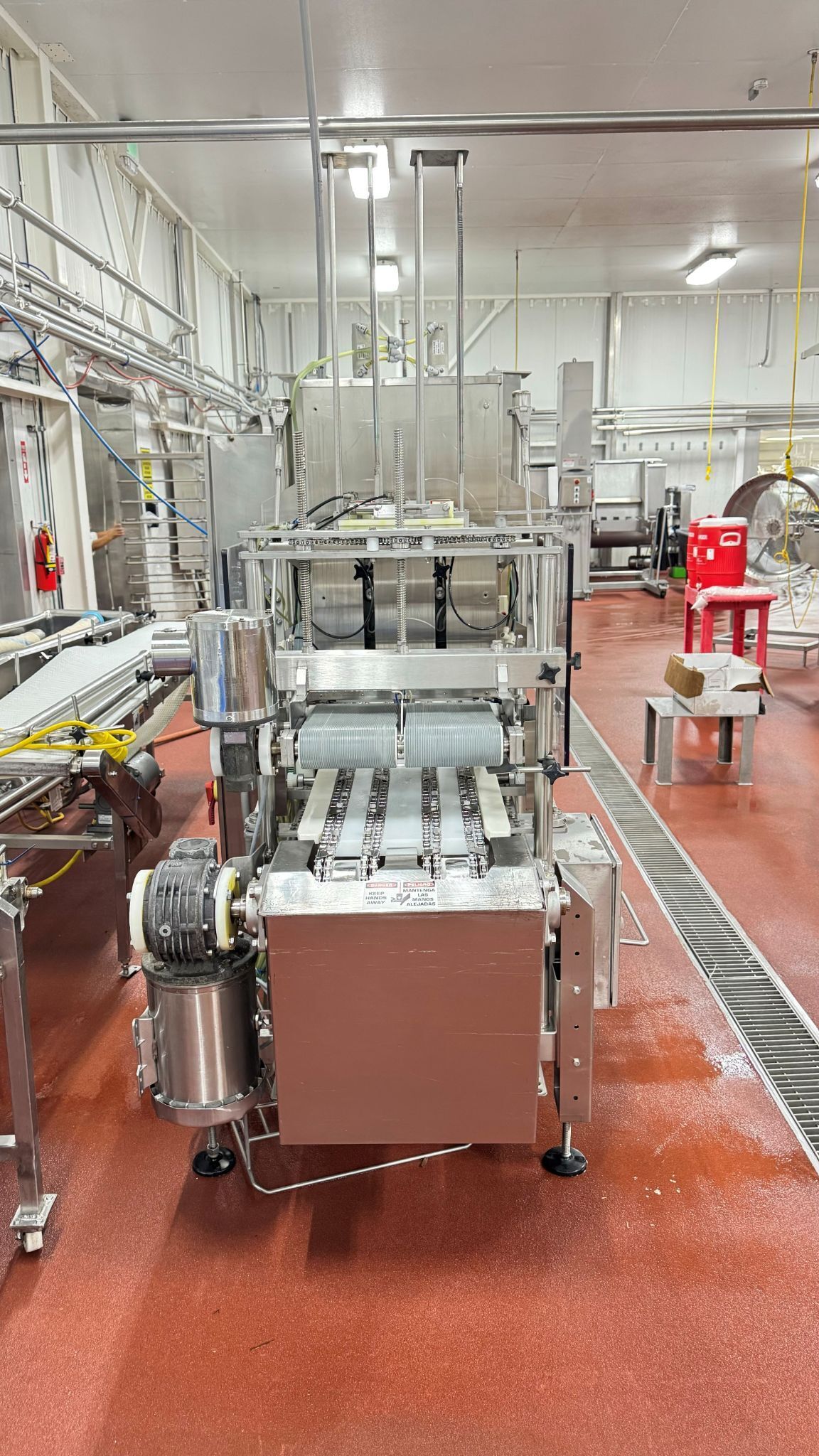

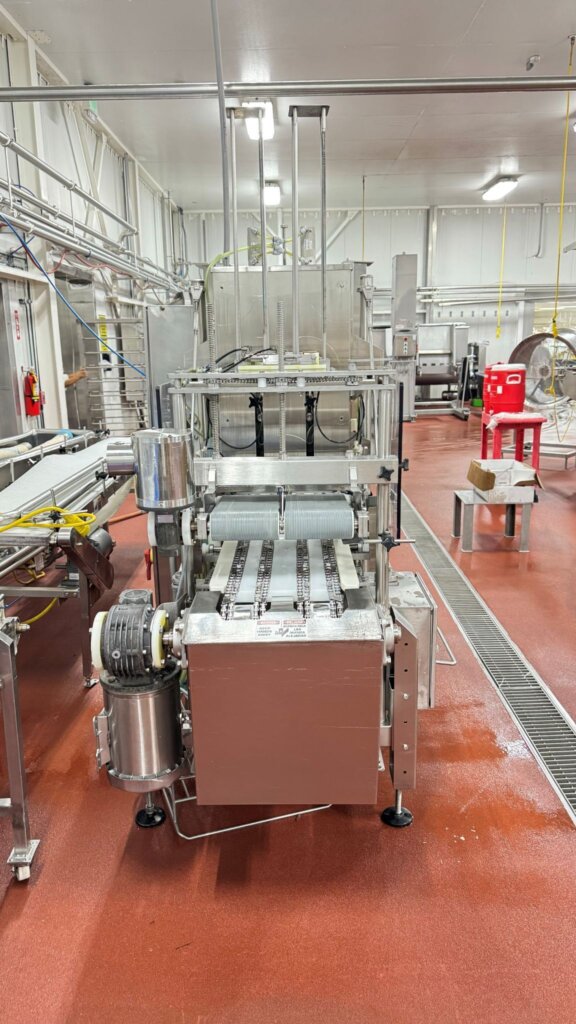

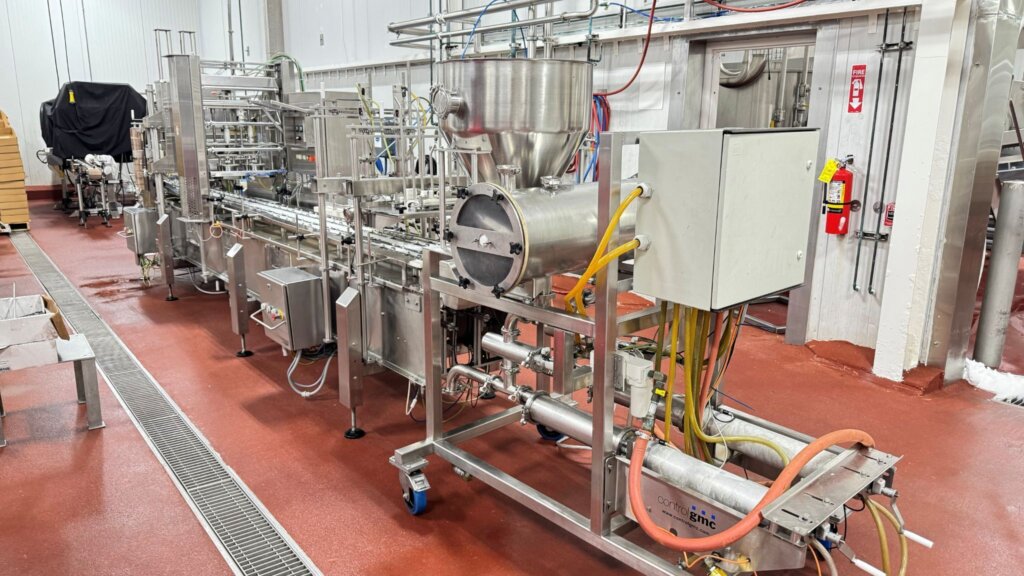

CONTROL GMC FDS4500 Dual-Lane Filling Line

CONTROL GMC FDS4500 Dual-Lane Filling Line. All stainless steel construction, Includes: Packaging line model FDS2500, Piston filler model DVM2000, Plastic film sealer model PL500, Volume Range: from 125 ml (4.2 oz) up to 7,000 ml (approx. 1.8 US gal or 240 oz / 6.8 kg), Maximum Speeds: Up to 100 one-pound tubs (per minute) or 80 five-pound buckets (per minute), Compressed Air: Up to 4 CFM @ 80 psi, Control GMC HMI, Automatic shutdowns, 240V/1PH/60HZ. 10 A

DVM2000 Piston Filler, all stainless steel construction, Maximum speed for 1lb tubs: Up to 40 containers per minute, Filling quantity span: 4oz to 5.2lb with digital indicator, Accuracy: ± 2 hundredths of a pound, Hoppers capacity: 200 lbs, Dosing chamber: 4″ diameter, Dispensing valve: 2″ diameter, Compressed air: Up to 6 CFM @ 100 PSI.

PL500 Plastic film sealer, all stainless steel construction, Maximum speed, for 1lb tubs: Up to 40 container per minute, Electrical supply: By the FDS2500, Compressed air: 2 CFM @ 80 PSI.

Specifications
