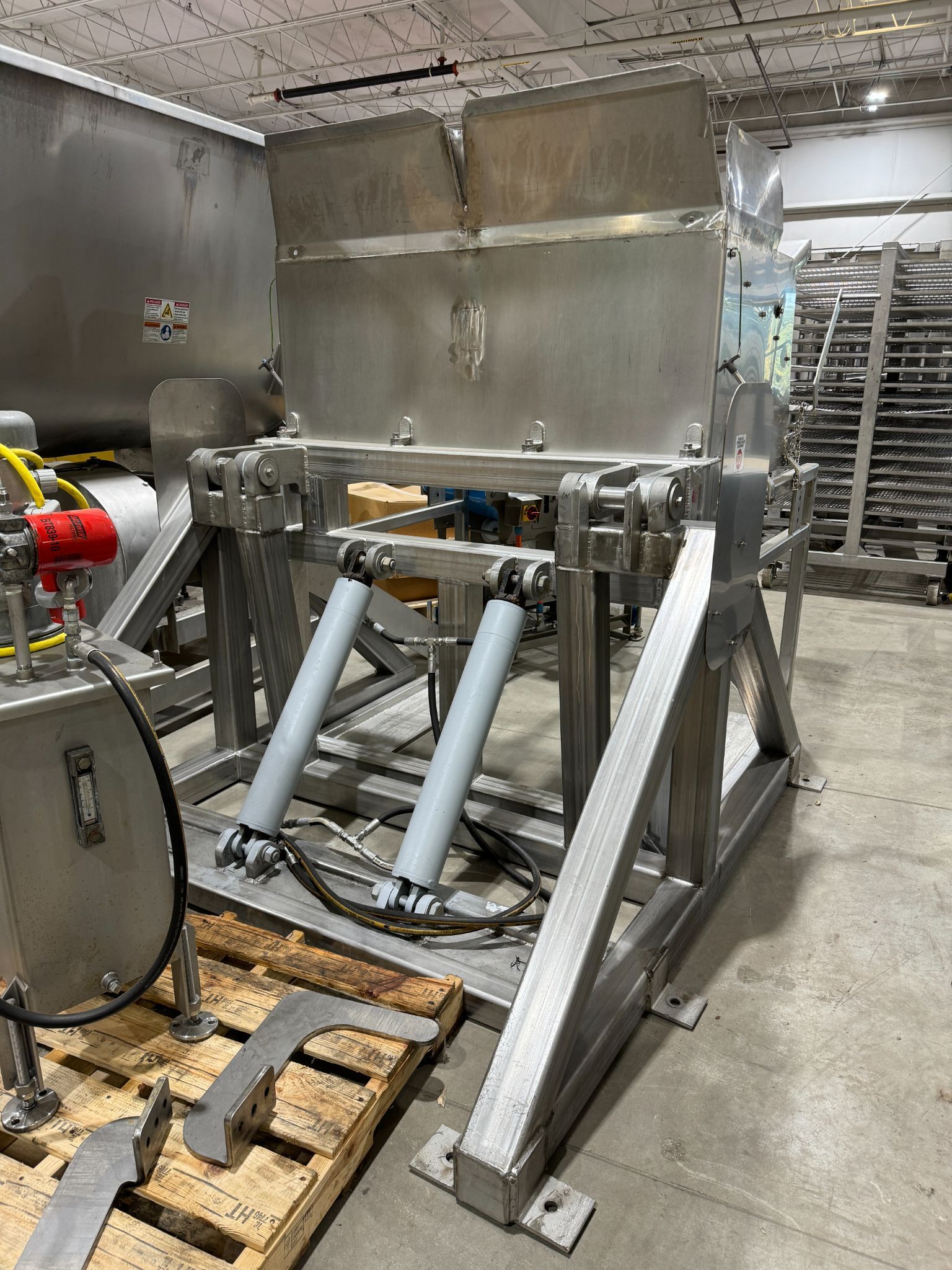

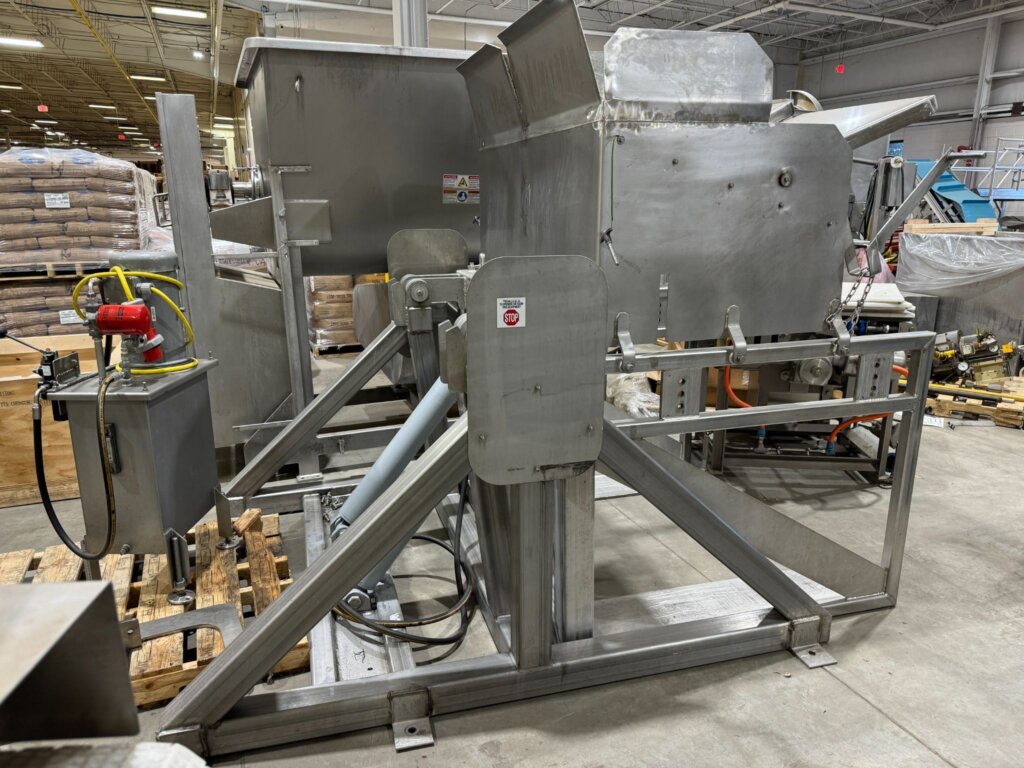

CUSTOM STAINLESS Tilt Vat Dumper

This unit features a 2,500 lbs lift capacity and is constructed from stainless steel. The machine includes a 48" pivot point to facilitate the lifting and tipping of vats into downstream equipment. These specifications make it suitable for heavy-duty industrial food processing applications where durability is required.

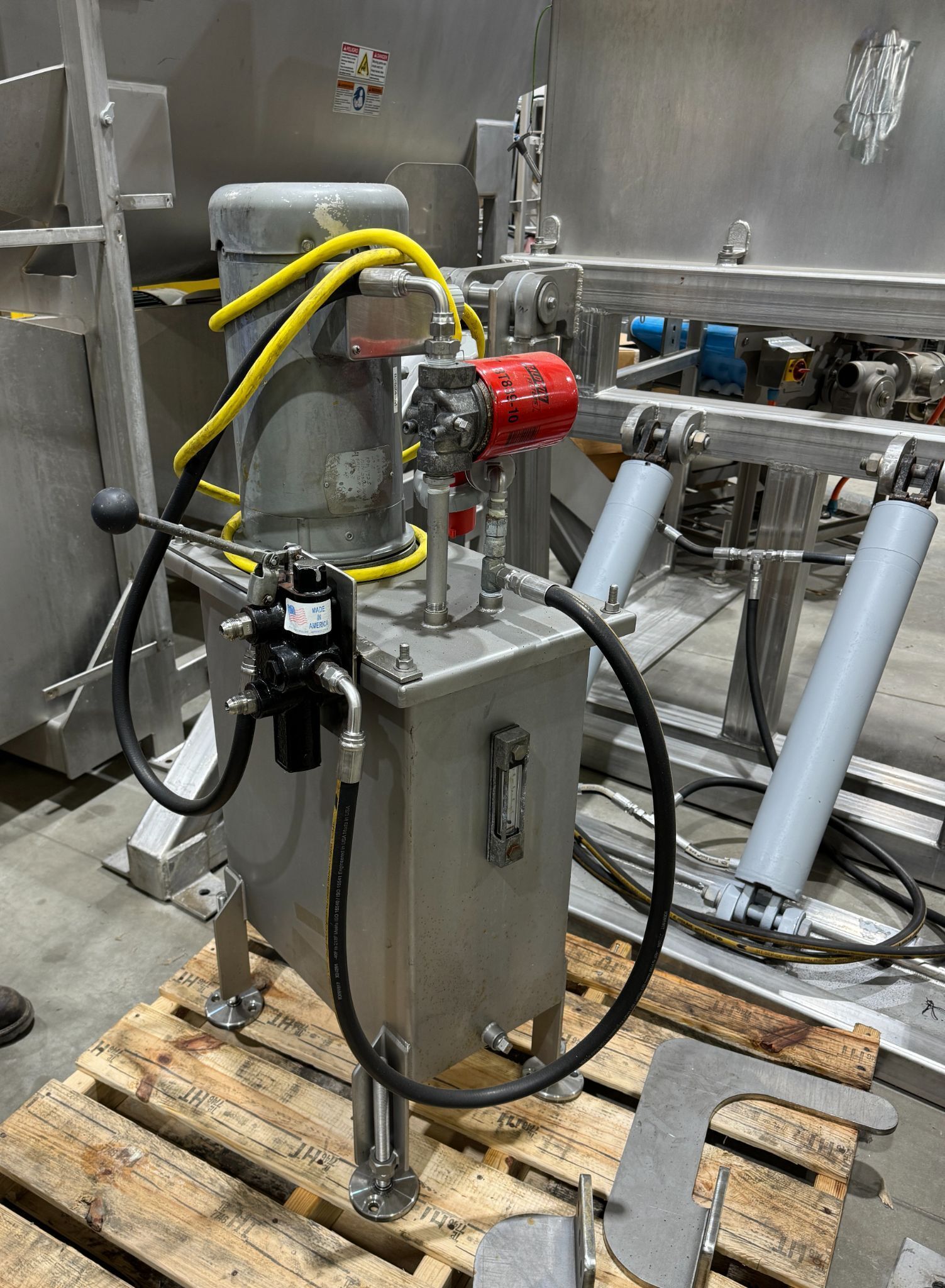

The machine operates on 480V/3PH/60HZ, drawing 14 Amps. It comes equipped with a 5 hp hydraulic power unit to drive its operation. Please contact our team if you need further technical details regarding the electrical configuration for your facility.

The carriage measures 50" x 50", while the overall outside dimensions are 110" x 55" x 75". These specifications help your facility manager determine if the unit fits your specific floor plan. Please contact us for more information regarding its footprint.

The machine is configured with dual discharge chutes to allow for either a full combo discharge or separate 400 - 600 Lbs. Dump buggies. This versatility allows food processors to customize their material flow based on specific production needs.

This equipment is suitable for a wide range of industrial applications including bakery, poultry, meat and pork processing, and dairy operations. It is designed to handle vats, bins, and totes in professional food manufacturing environments.
