Dieghton Food Processing Econline 200 Fry System

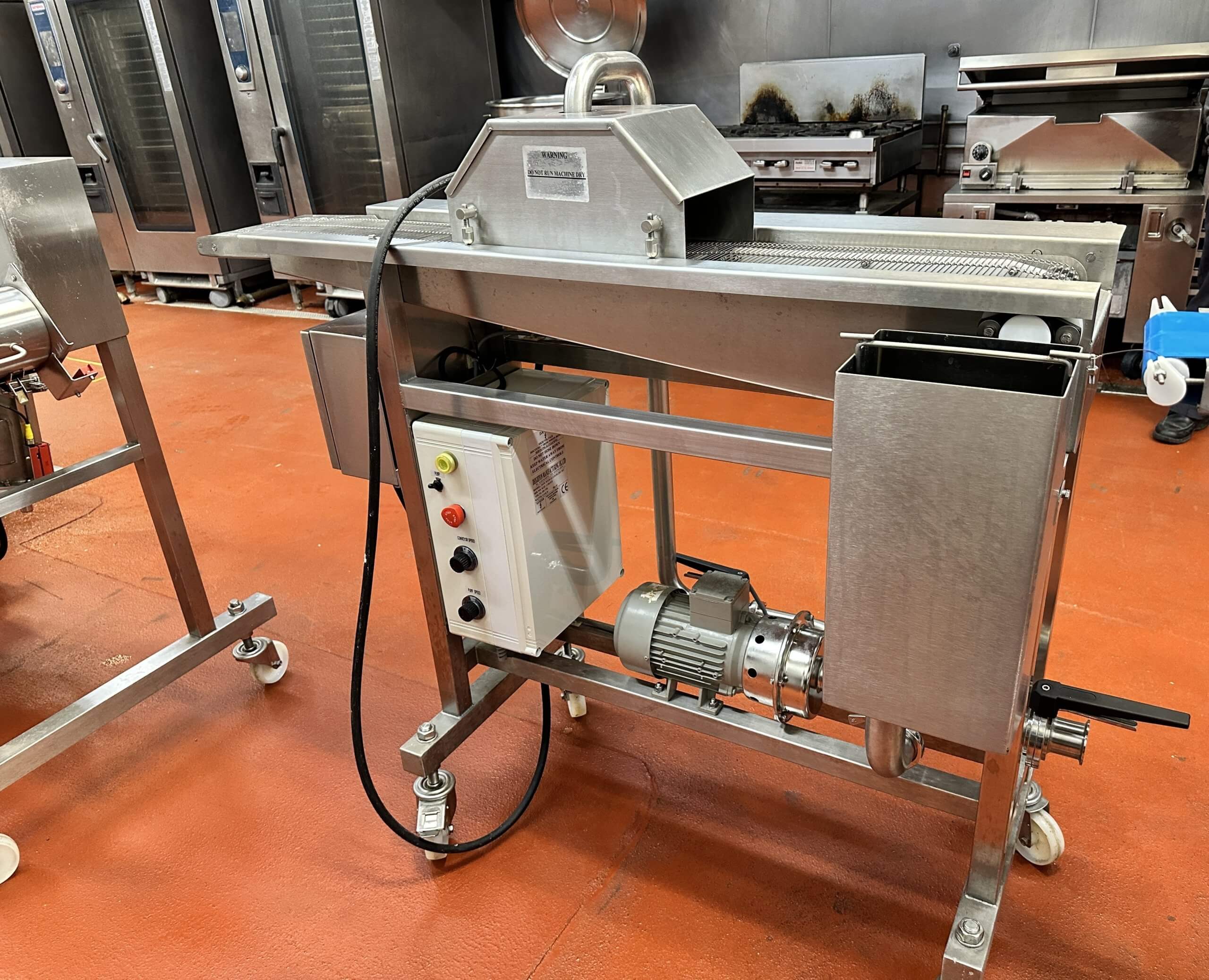

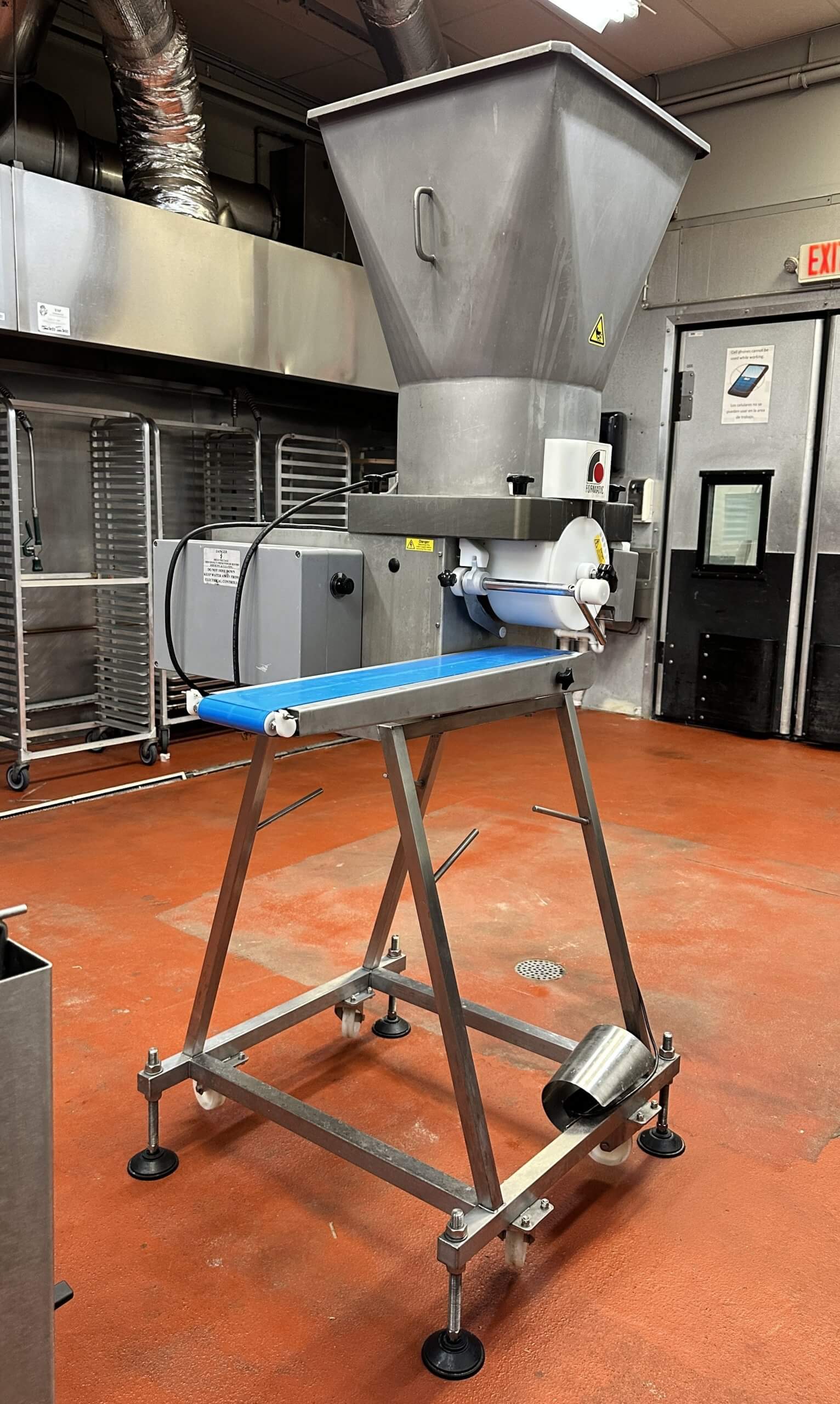

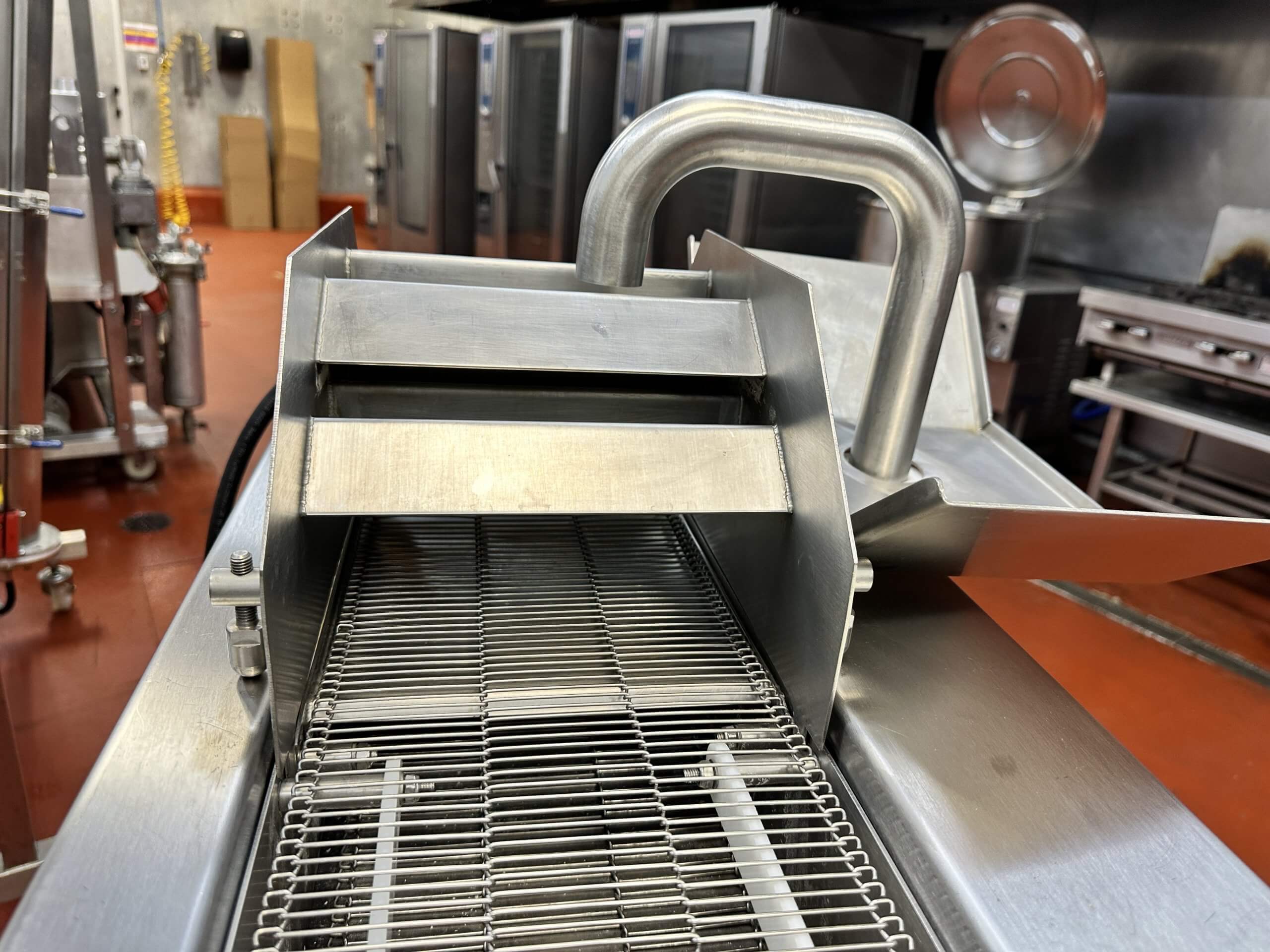

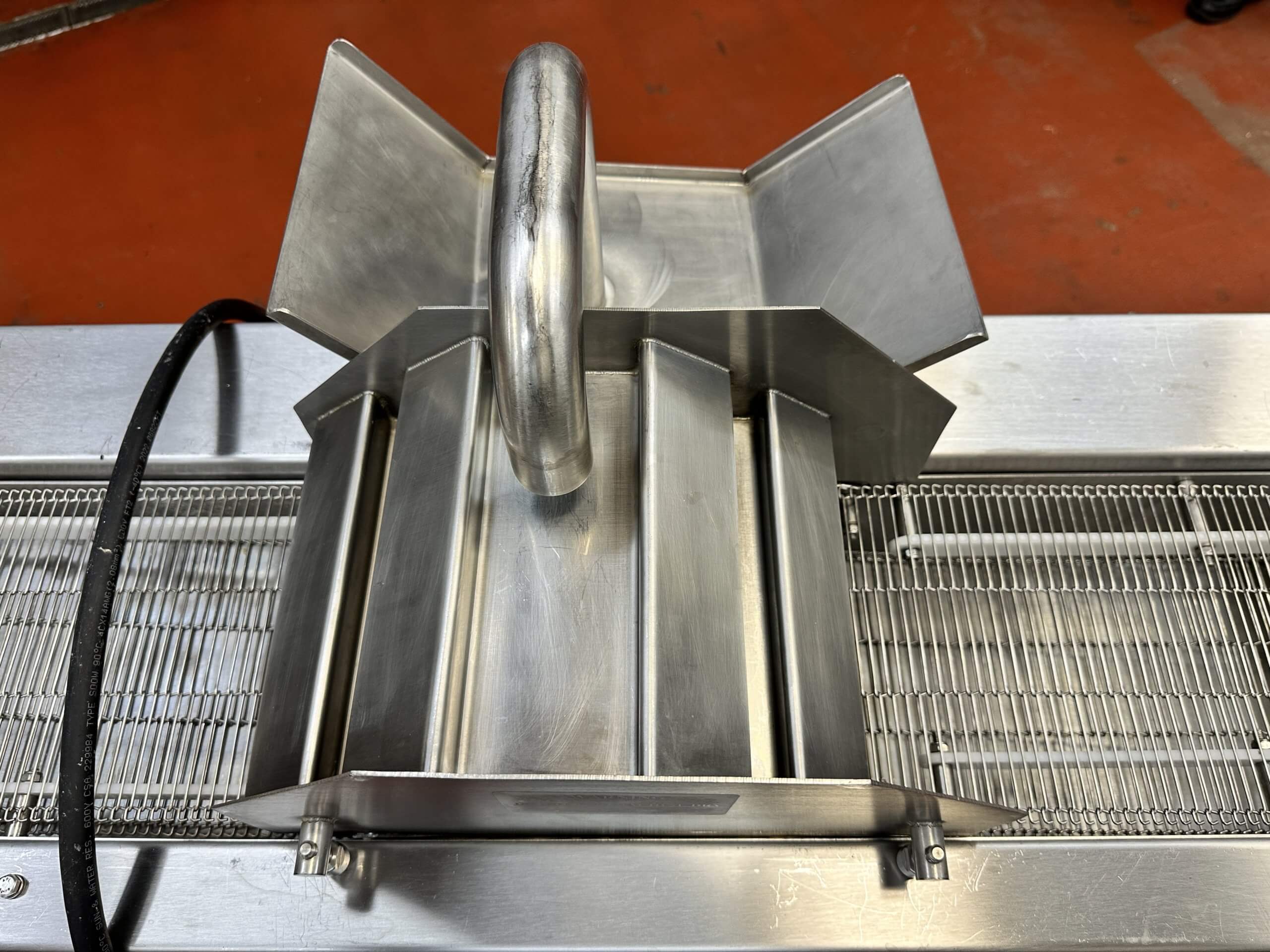

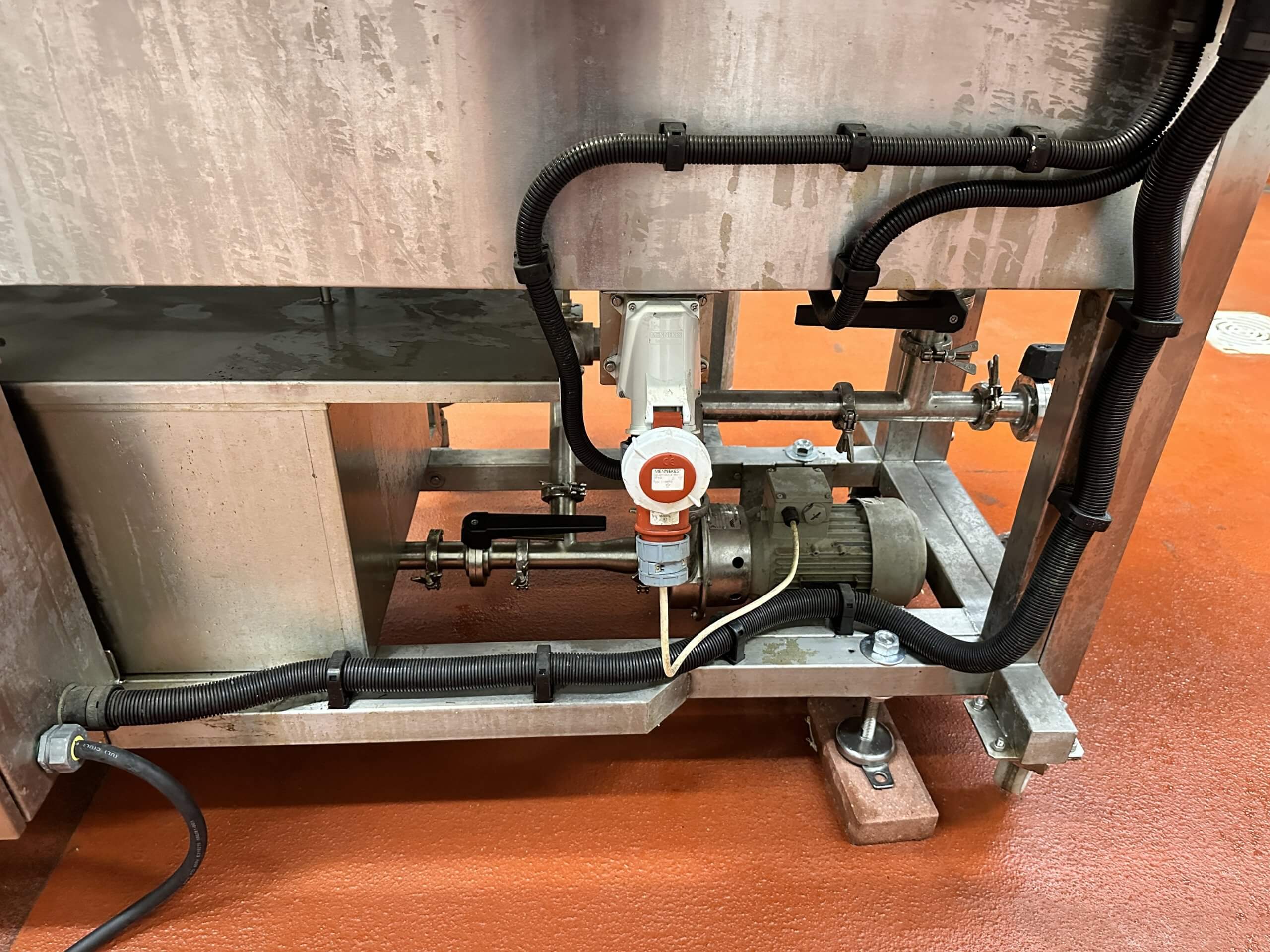

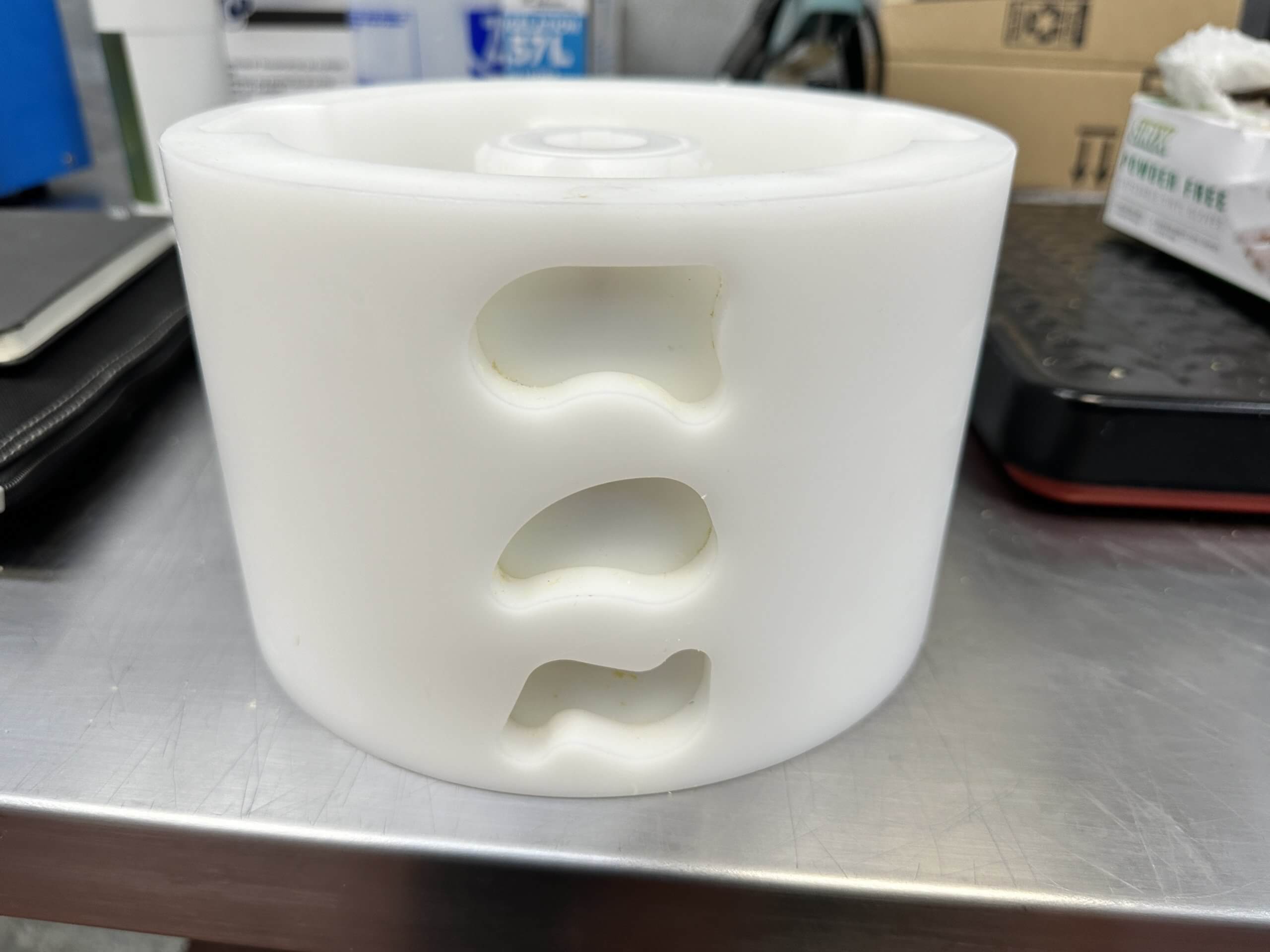

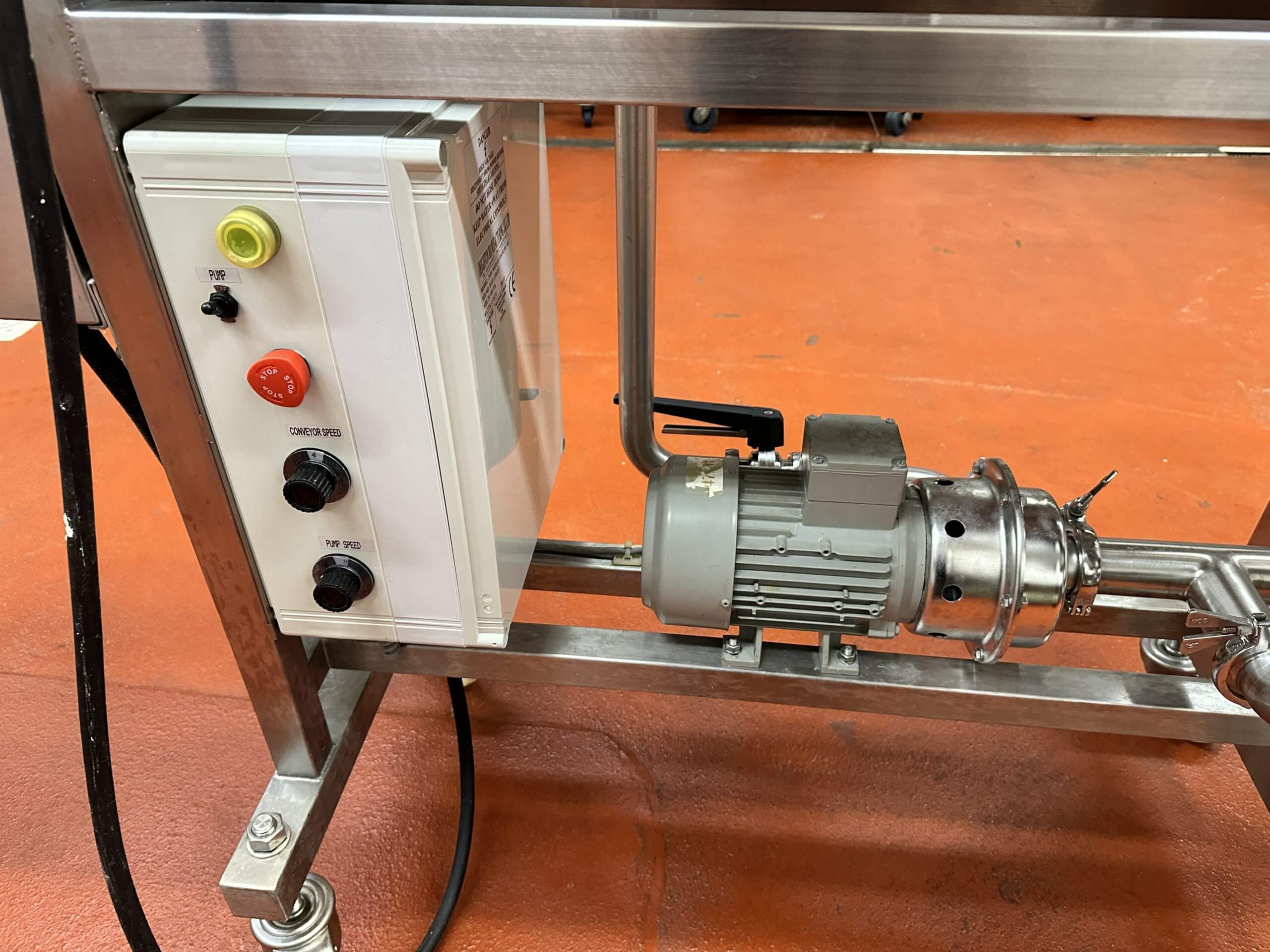

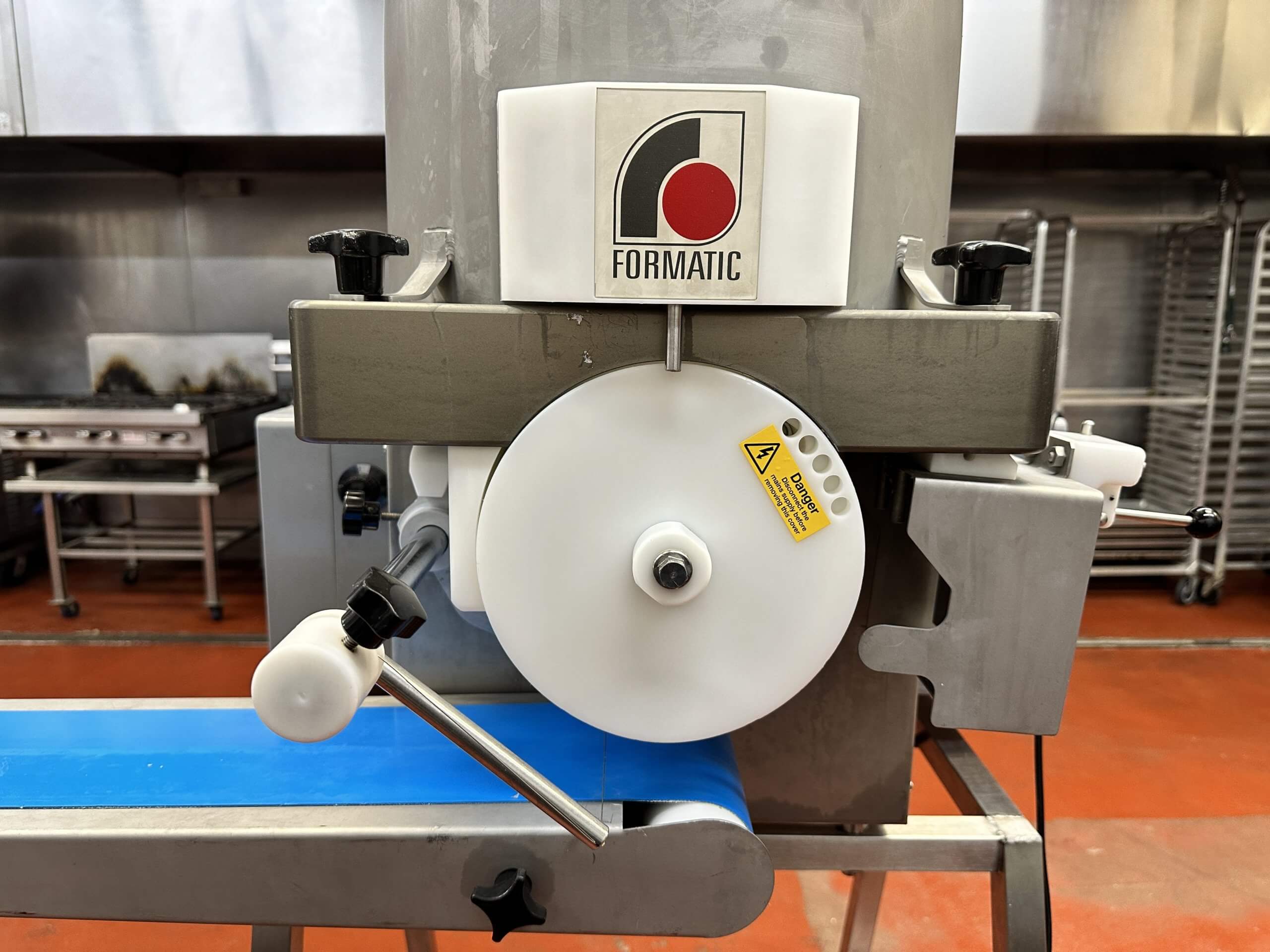

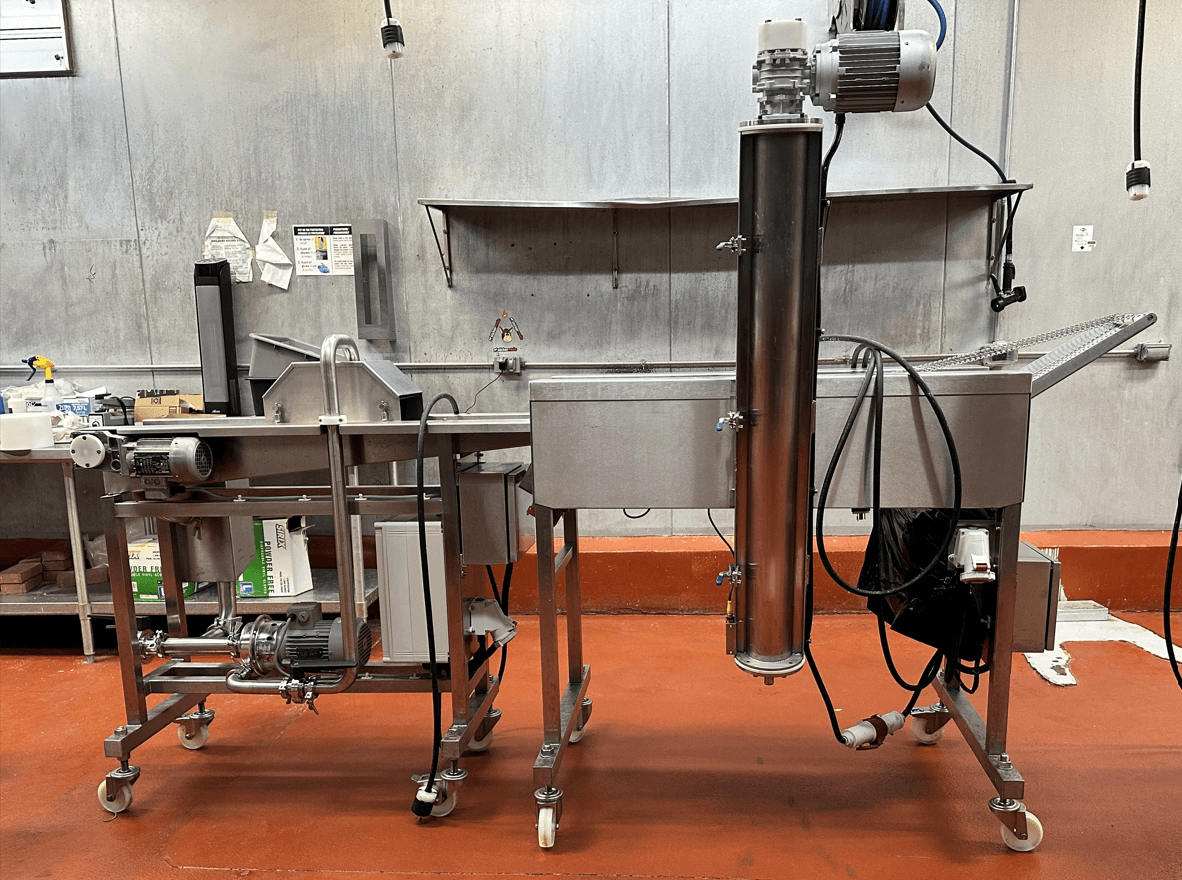

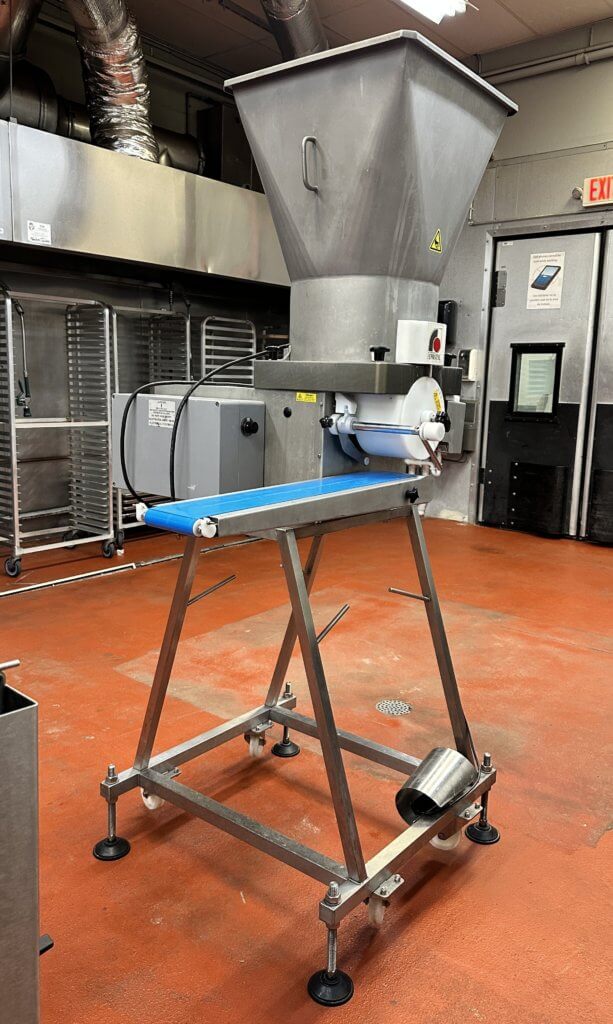

The system includes a Dieghton Machinery Former, Batter, Breader, and Fry line. Specific components consist of an R series 180 Formatic Former with 4" round and 2.5" nugget molders, an Econo Waterfall Batter applicator with a stainless steel recirculating pump, an Econ Breader applicator with a vertical breading recirculating conveyor, and an EconoFry Electric Fryer.

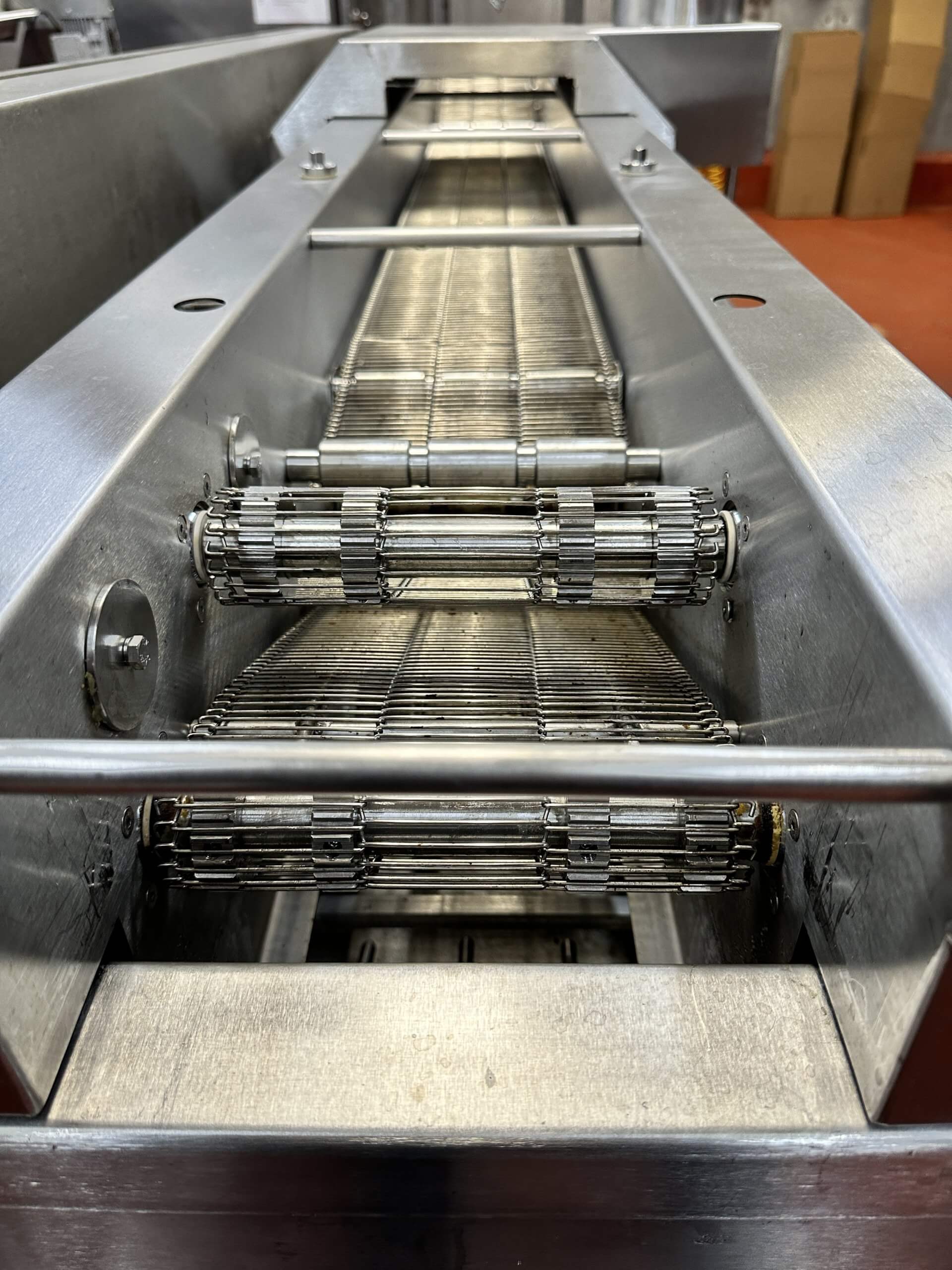

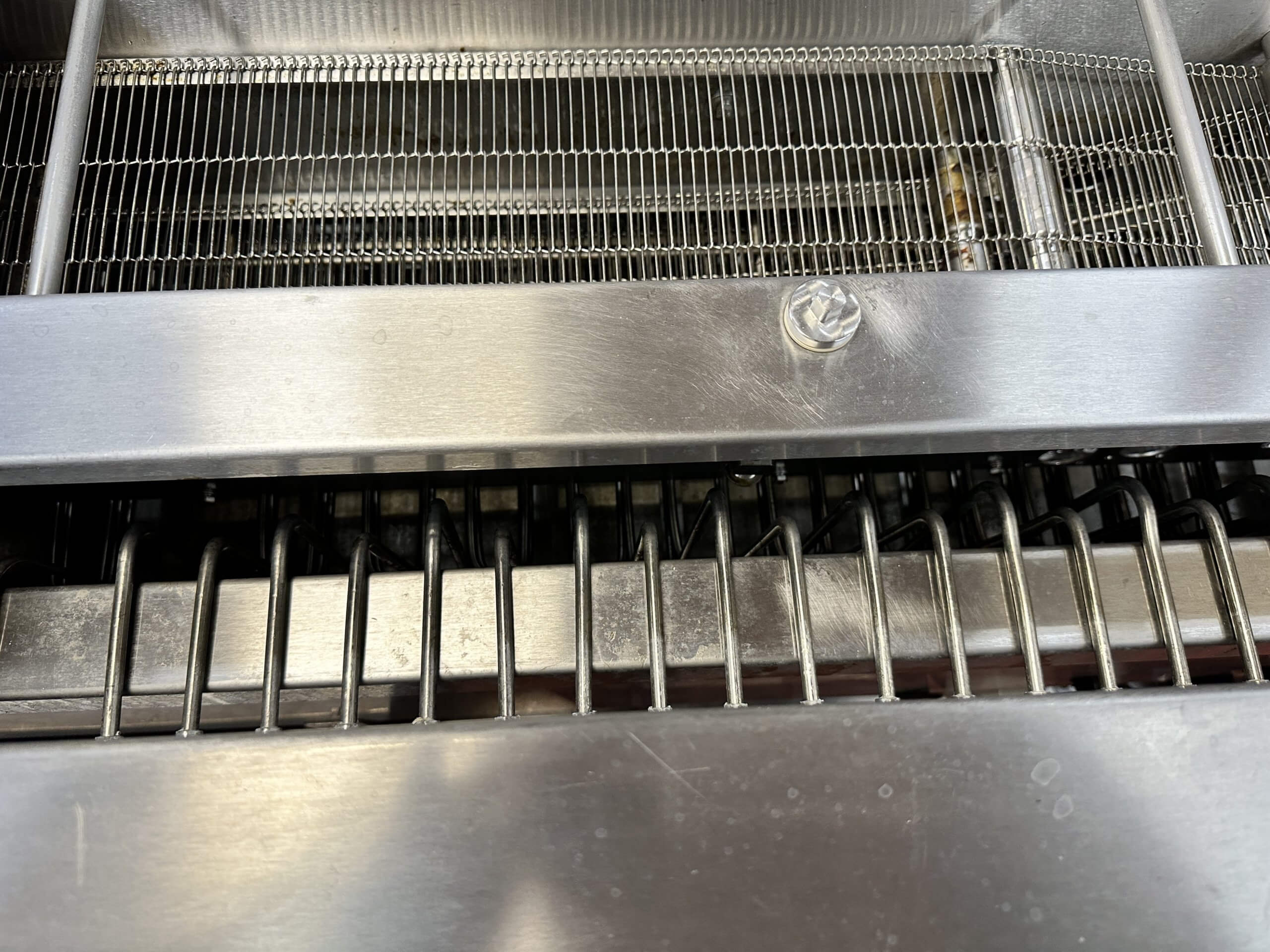

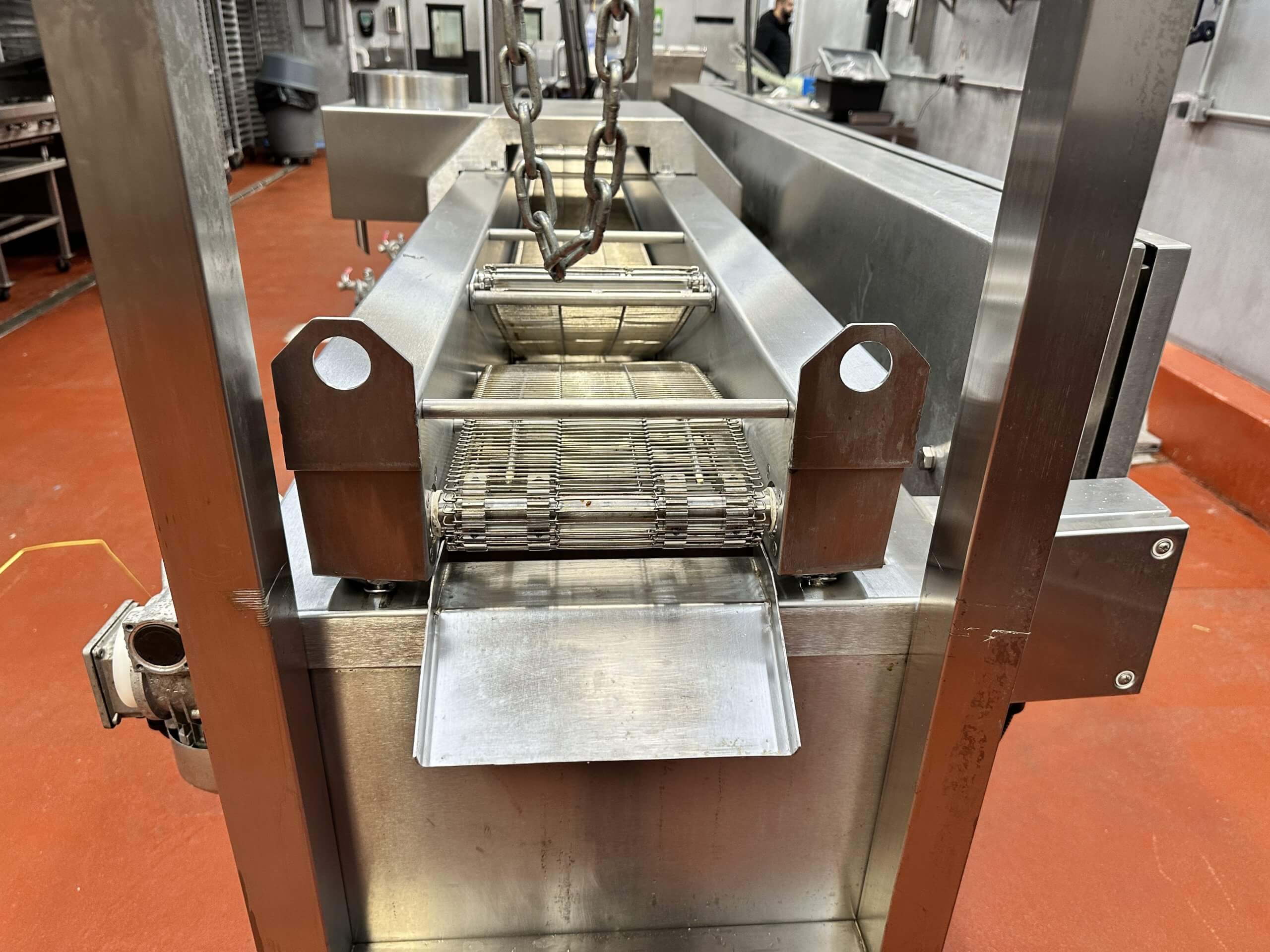

The system features a 200mm (7.87") conveyor belt throughout the entire line. The EconoFry Electric Fryer includes a 9' long in oil conveyor belt and a 7' long top submerge conveyor belt.

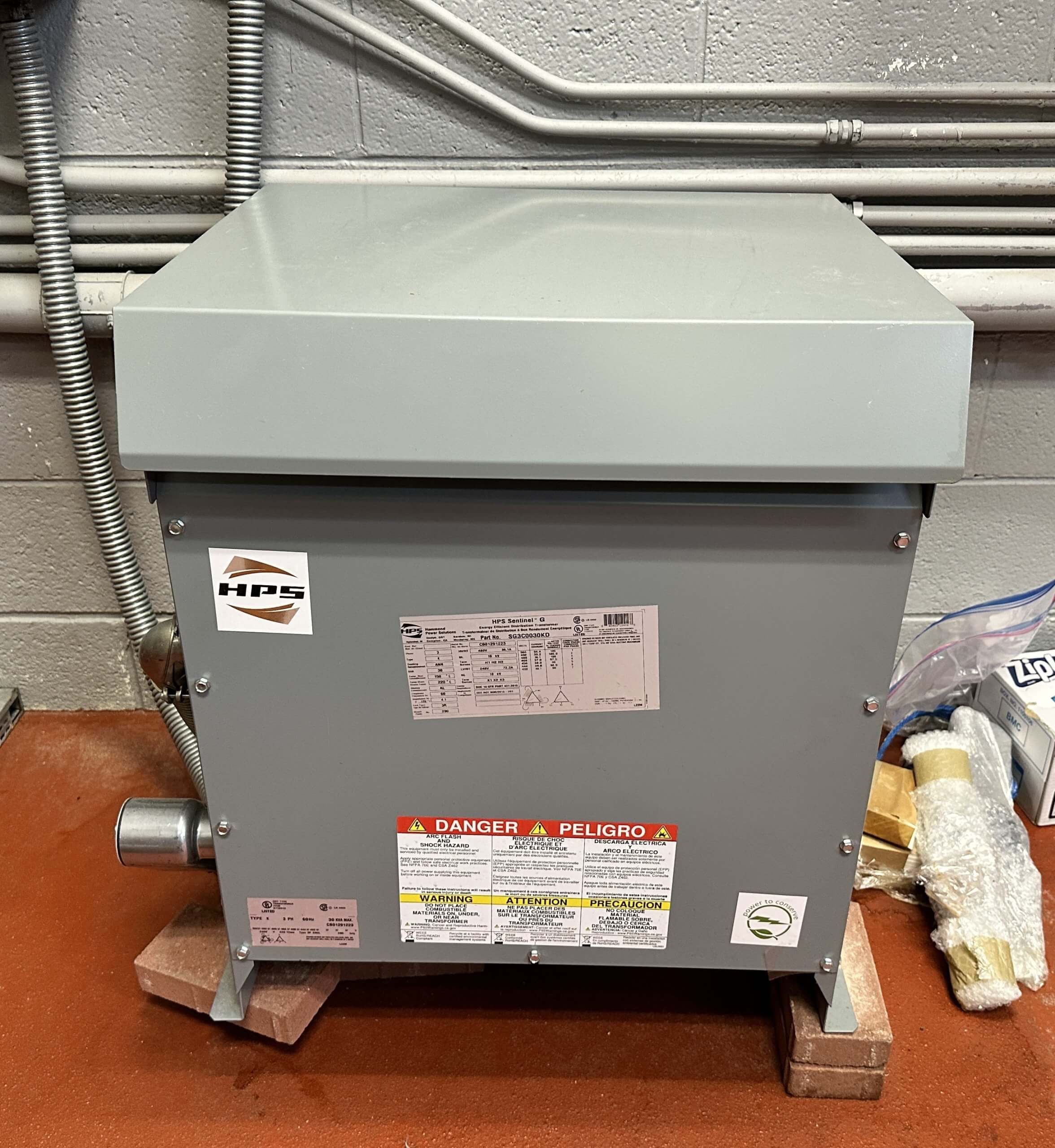

The equipment operates on 480V/3PH/60HZ, 110 Amps. It also includes an HPS Sentinel G step-up transformer to convert from 240 volts (requiring 240 Amps) to 480 volts.

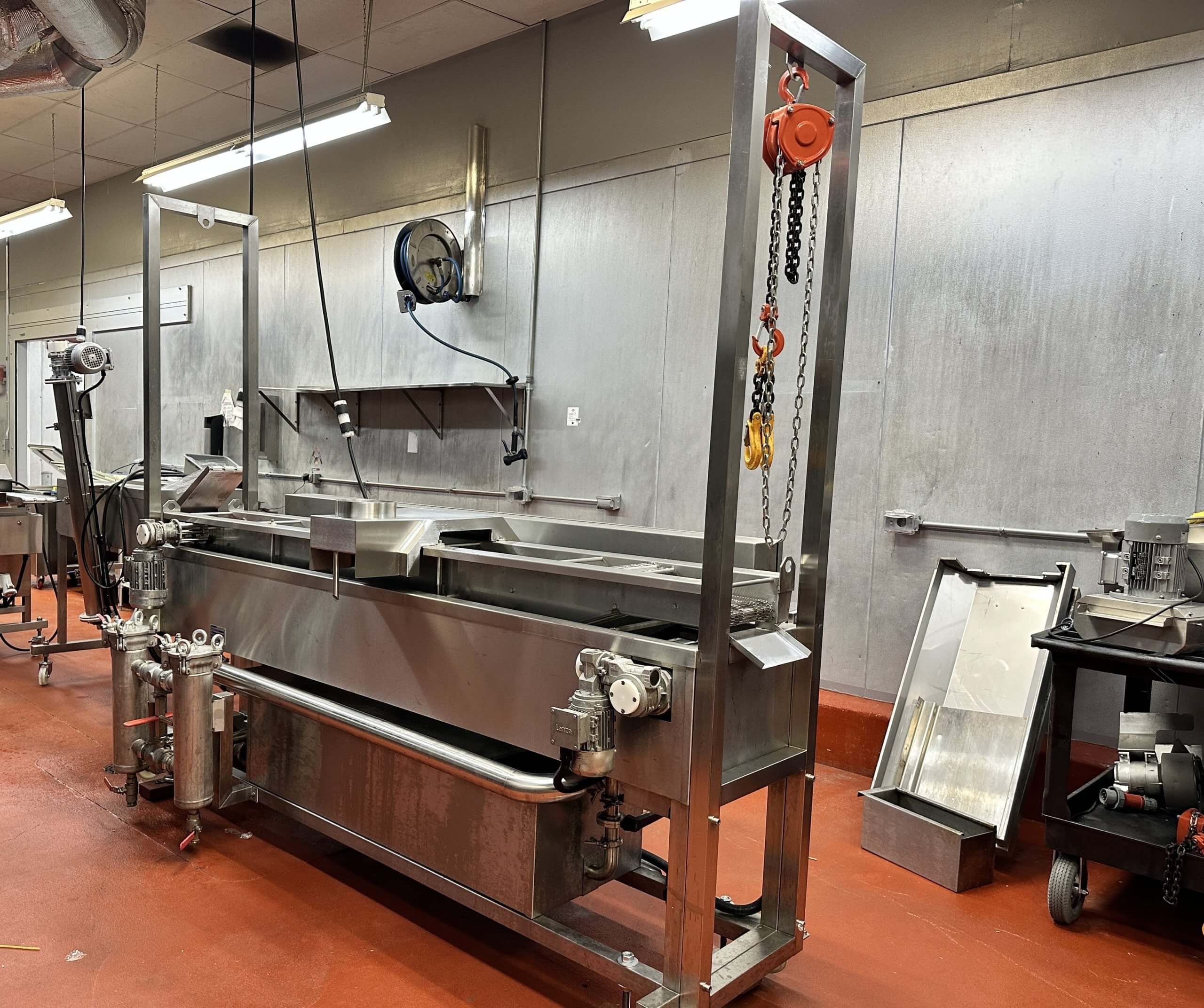

The fryer section includes a 180-liter oil storage tank with pumps and an inline filtration system. A built-in hoist is also included to assist with cleaning operations.

This industrial equipment is designed for high-volume coating lines for proteins, vegetables, and prepared foods. It is suitable for applications in the bakery, beef and pork, poultry, and seafood industries.
