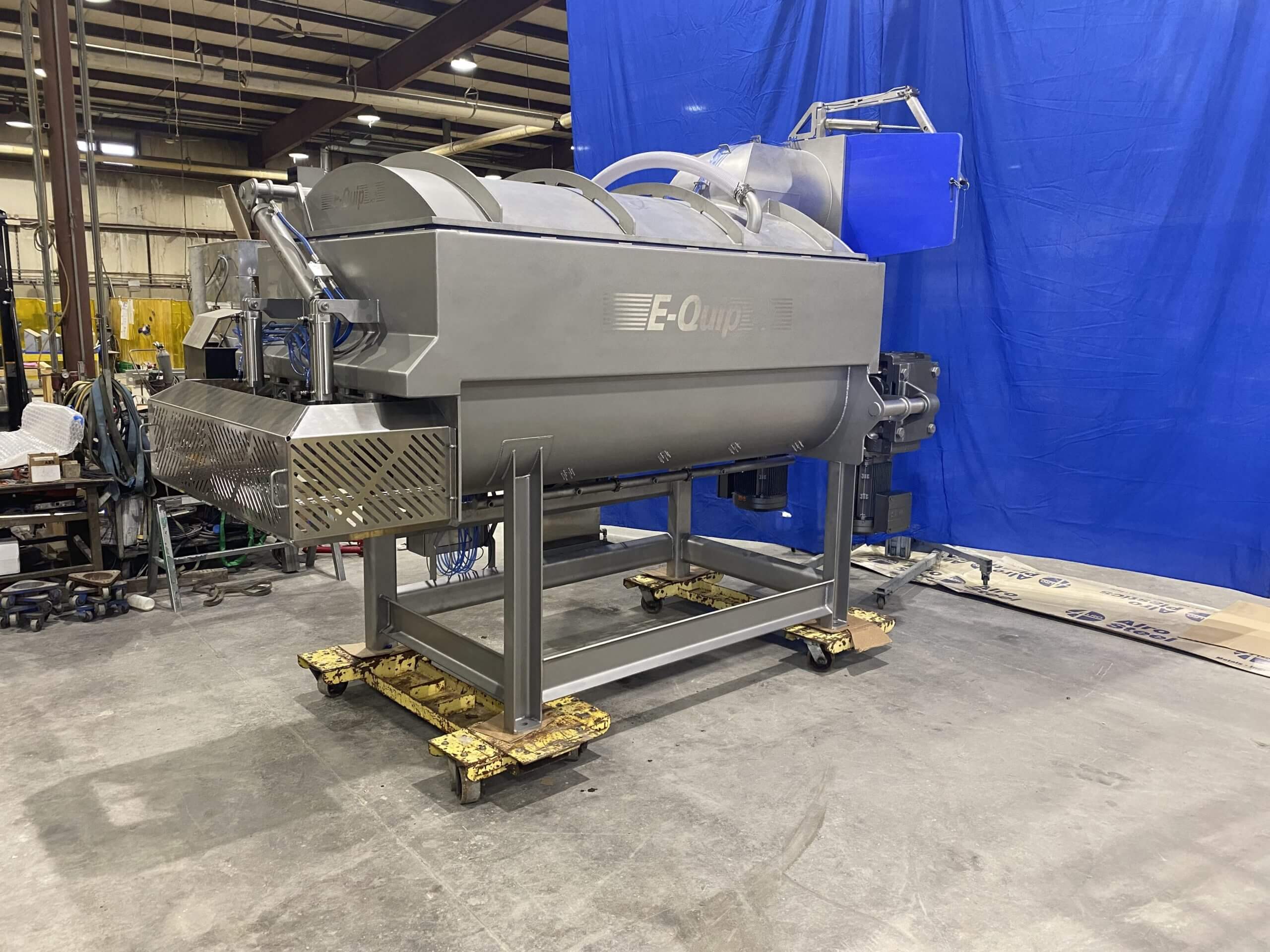

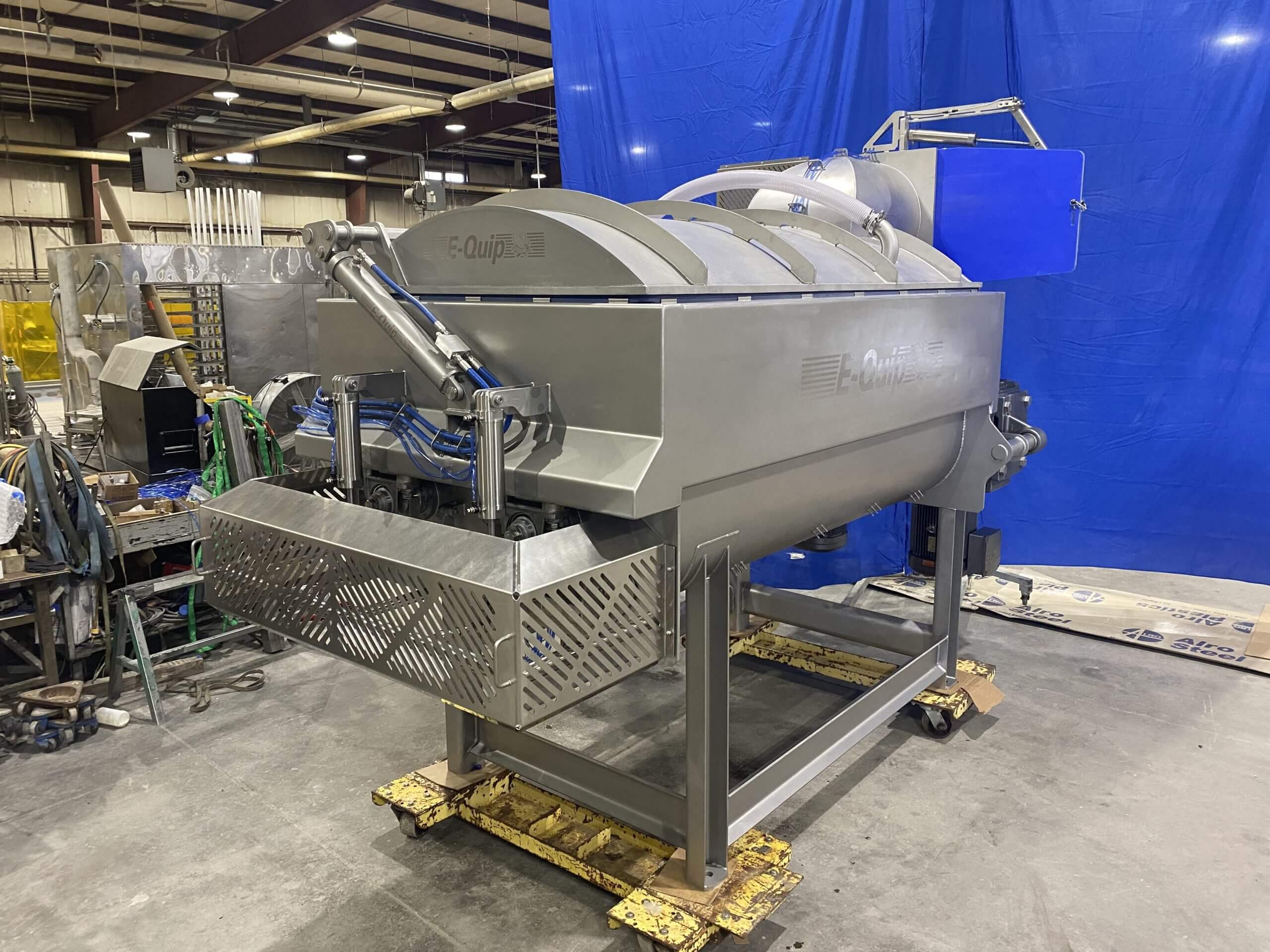

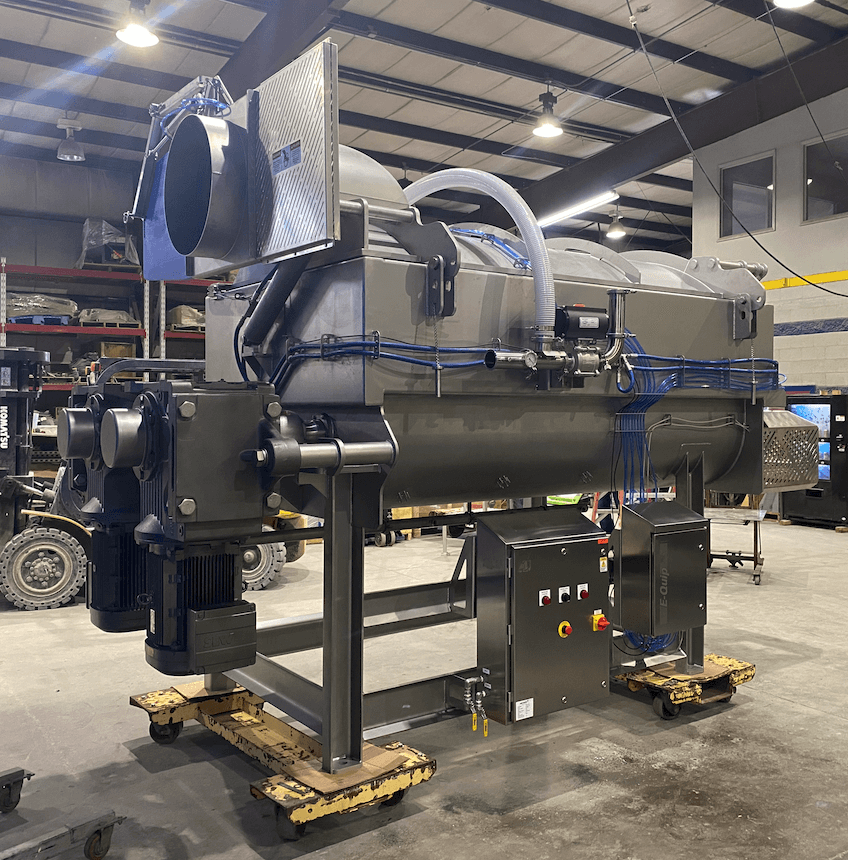

E-QUIP 307 Dual Shaft Paddle Mixer with Vacuum

The mixer features 304 stainless steel construction with interior welds that are ground smooth and finished with a glass bead. It includes solid main shafts, one-piece paddles, and a domed vacuum pivoting lid with removable seals. These specifications ensure the unit meets industrial standards for food processing environments.

This mixer has a 5,000 lbs. capacity based on 55lbs per cubic ft. It is designed for industrial food processing applications such as blending and homogenizing large batches. Please contact M&M Equipment Corp for specific details regarding your facility's production requirements.

The unit is equipped with two 25hp drives, a Busch 10hp vacuum pump, and a VFD for the blower. The electrical requirements are listed as 480v/3ph/60hz. A NEMA 4 stainless steel pneumatic valve enclosure is also mounted under the mixer.

The system includes a fourteen (14) point bottom injection system with changeable nozzle inserts and one header with flex lines. It also comes equipped with one CO2 basic manifold. Control for these injection points is integrated into the PLC and touch screen of the mixer control panel.

The E-QUIP 307 features dual end pneumatic discharge doors with mechanical locks and a safety guard with an interlock. Additionally, the unit includes bolt-in-place bar grating over the mixer and a pneumatically operated exhaust flap mounted to the exhaust port.
