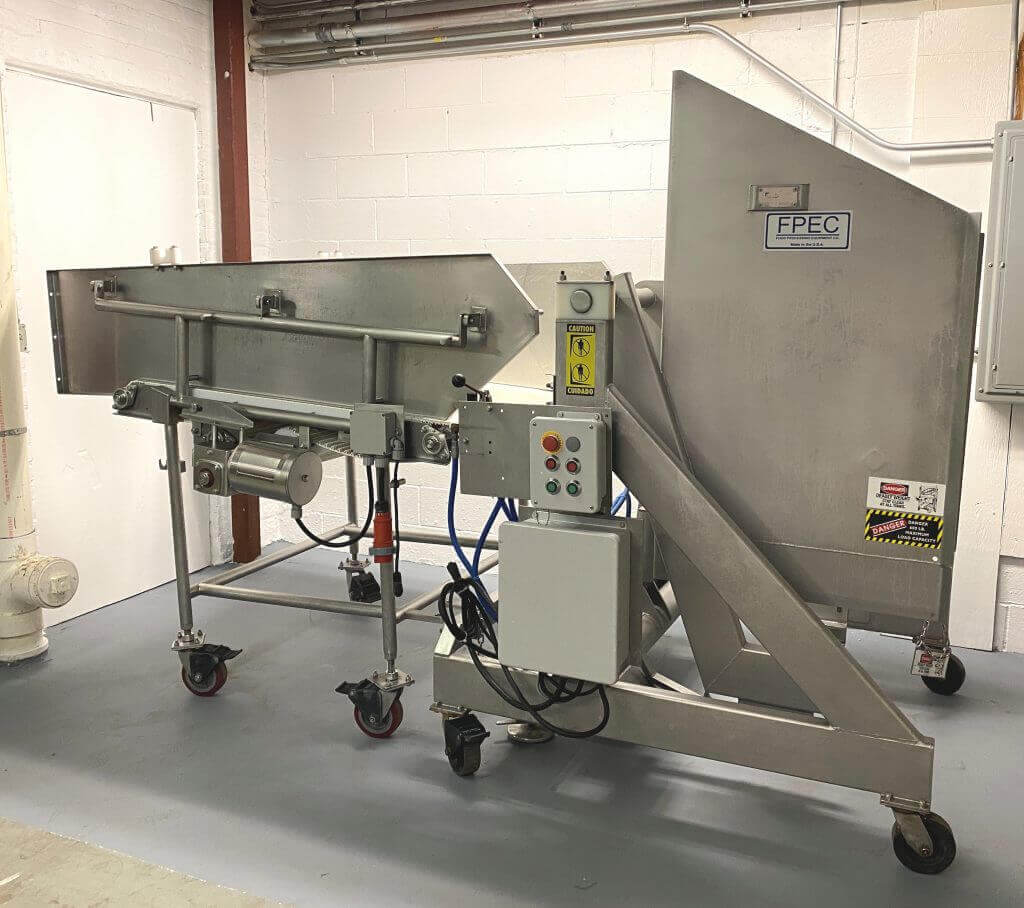

FPEC Dump Buggy Loader

This equipment works with both 400 and 600 Lb. Dump Buggies to facilitate product discharge. The unit features all stainless steel construction for heavy-duty use in food processing environments. Because it is designed for industrial applications, it supports the efficient handling of large volumes required in commercial production lines.

The unit measures 79" tall by 68" wide. It operates on a 240/480V/3PH/60HZ electrical supply. These specifications ensure it meets the demands of industrial food processing facilities. Please contact M&M Equipment Corp for further details regarding the specific power requirements for any optional components.

: Yes, this machine features an adjustable discharge height to accommodate various processing needs. It is powered by a self-contained hydraulic power unit with an oil reservoir built directly into the frame. This design allows for versatile integration into your production floor layout.

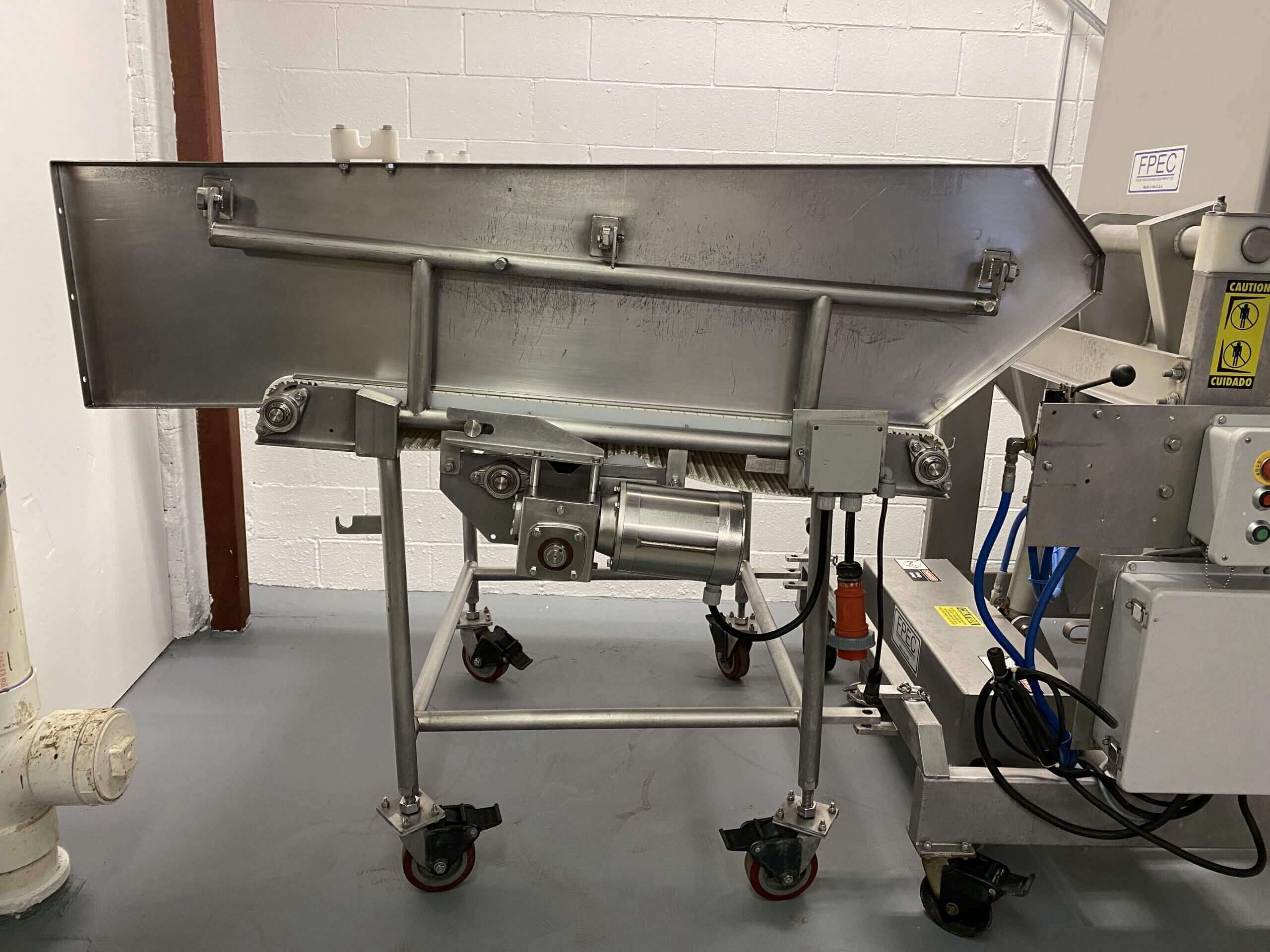

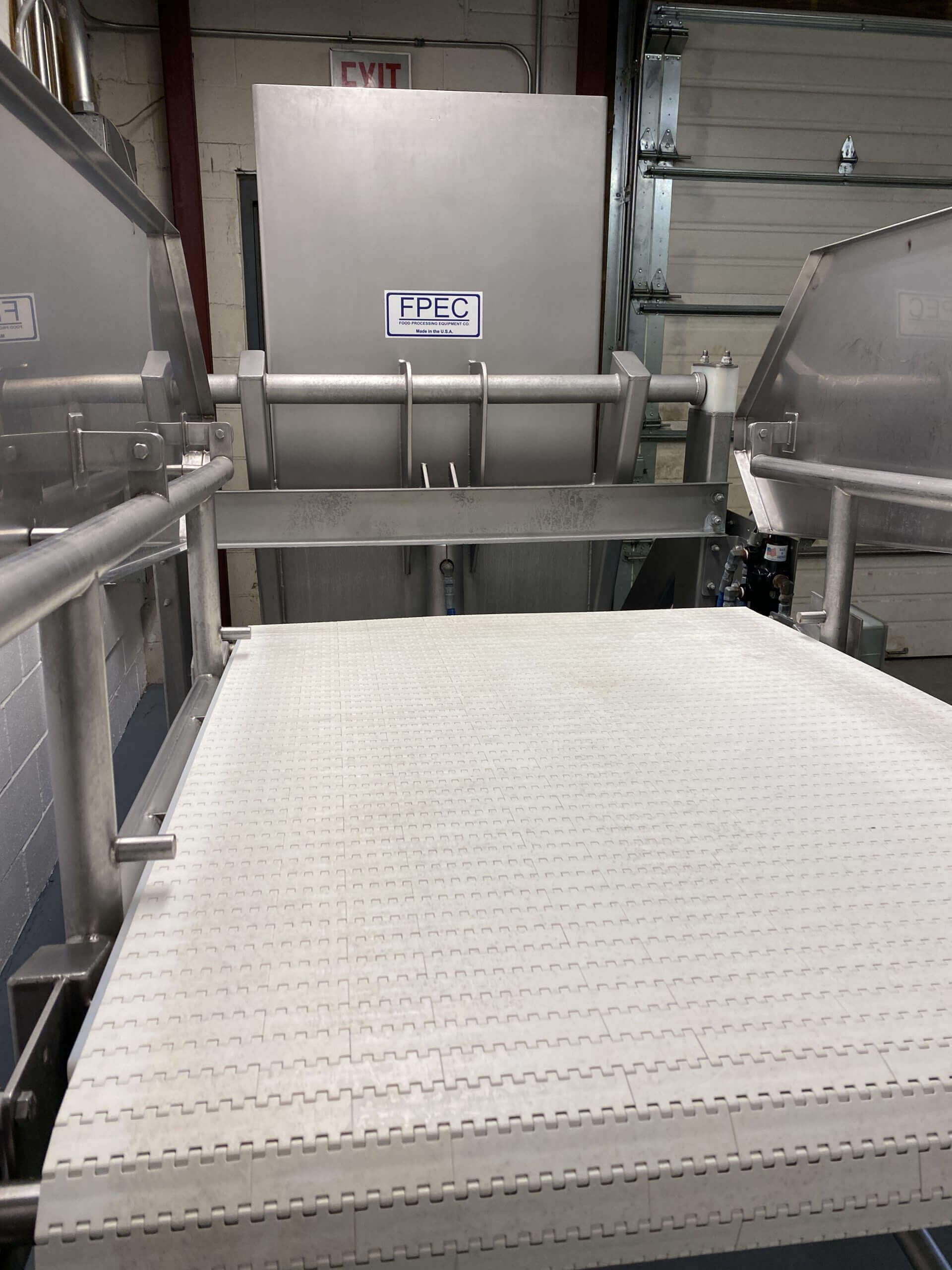

An optional 36" wide by 68" long plastic conveyor belt can mount directly to the Dumper. This addition includes 15" x 74" long folding sides, a Sterling stainless steel gearbox with a 100:1 ratio, and a Leeson 1/2 hp stainless steel motor. The optional conveyor also comes equipped with controls and a variable speed drive.

This unit is currently listed as closed. Please contact our team in Skokie, Illinois or request a quote online to discuss other available options for your facility. We can provide information on various models from manufacturers like FPEC and AMFEC that fit specific food processing applications.
