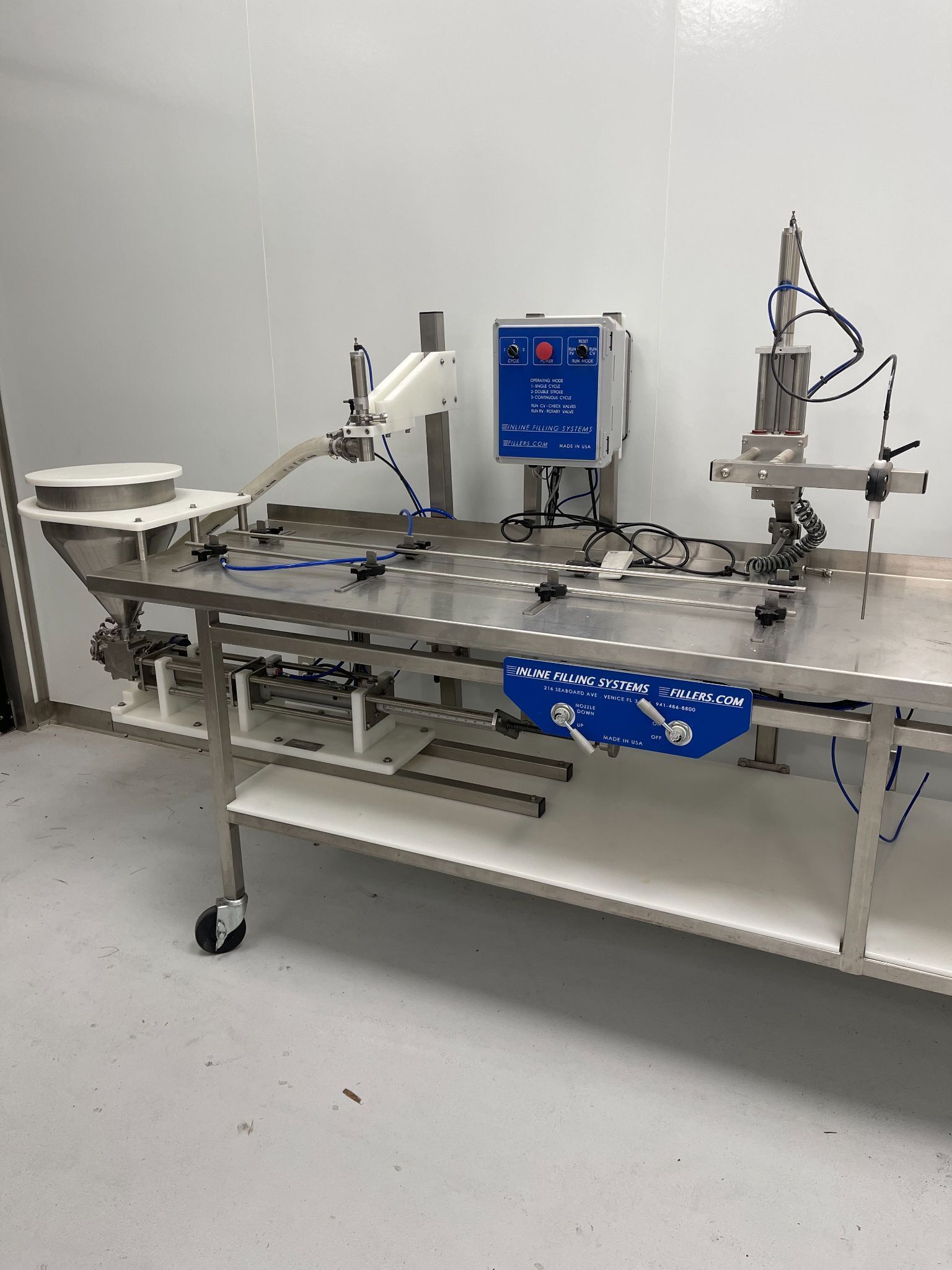

Inline Filling Systems Single Head Bench Top Semi-Automatic N₂ Gas Dosing Filler

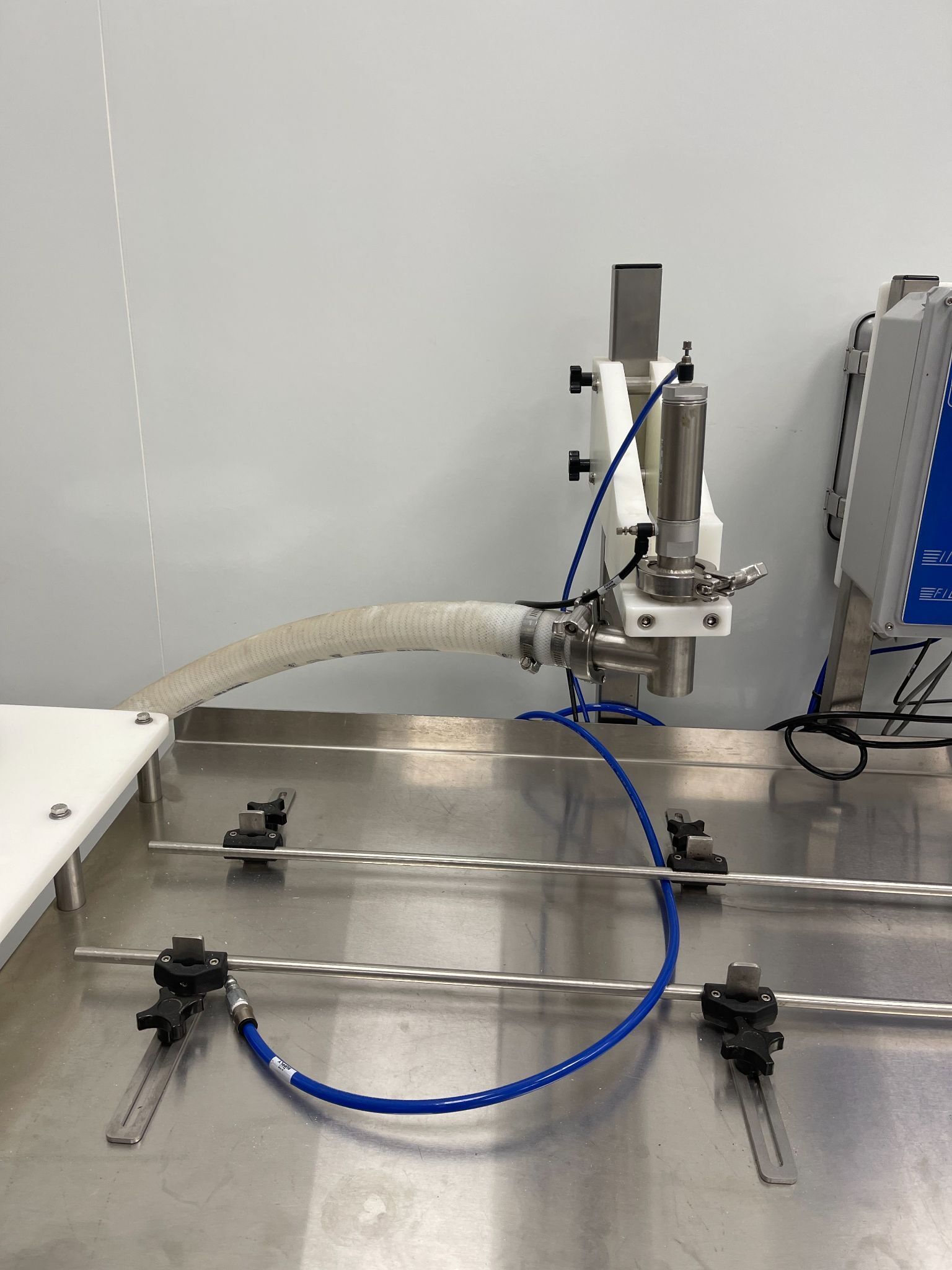

This filler features sanitary construction made from 316L stainless steel and Teflon. The unit includes high temperature (350°F) silicone sanitary hosing equipped with tri-clamp fittings. Additionally, the system is designed with a wash down enclosure for controls to meet commercial food processing standards.

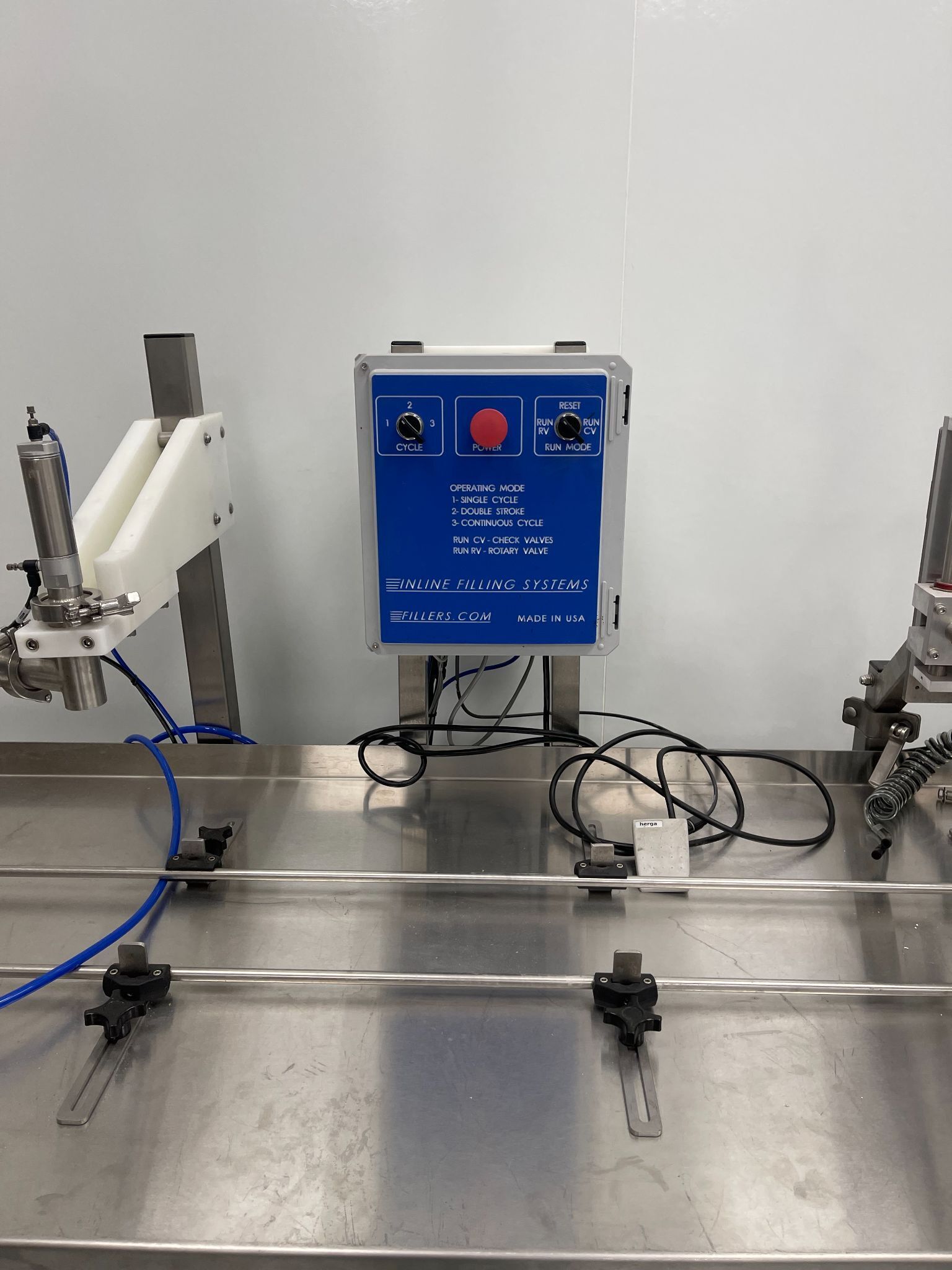

The machine supports both one-shot and continuous fill modes along with multiple stroke capability. It features electronically programmable filler controls to manage production. The system is designed for commercial food processors needing consistent portioning in applications like bakery, dairy, or meat processing.

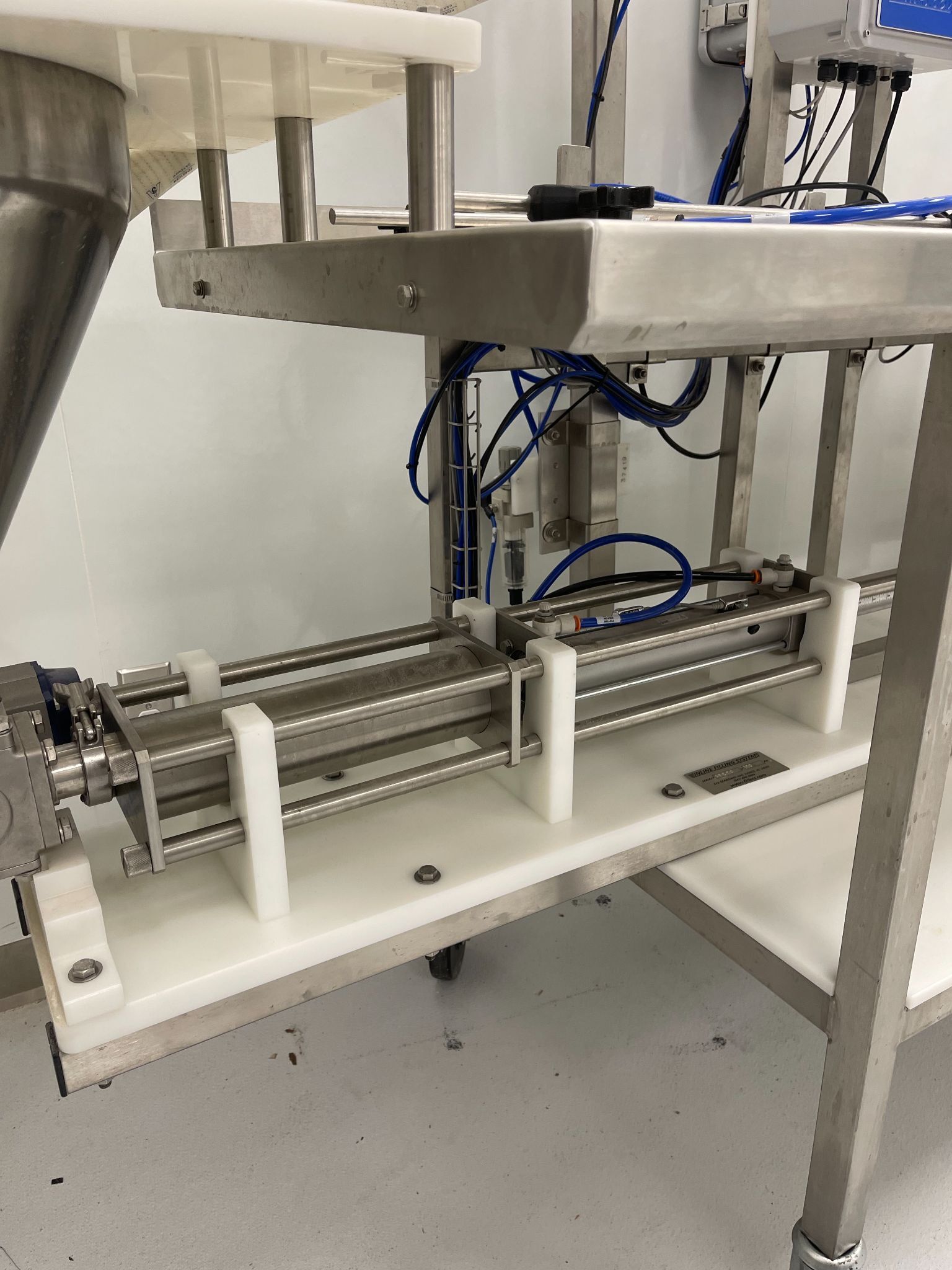

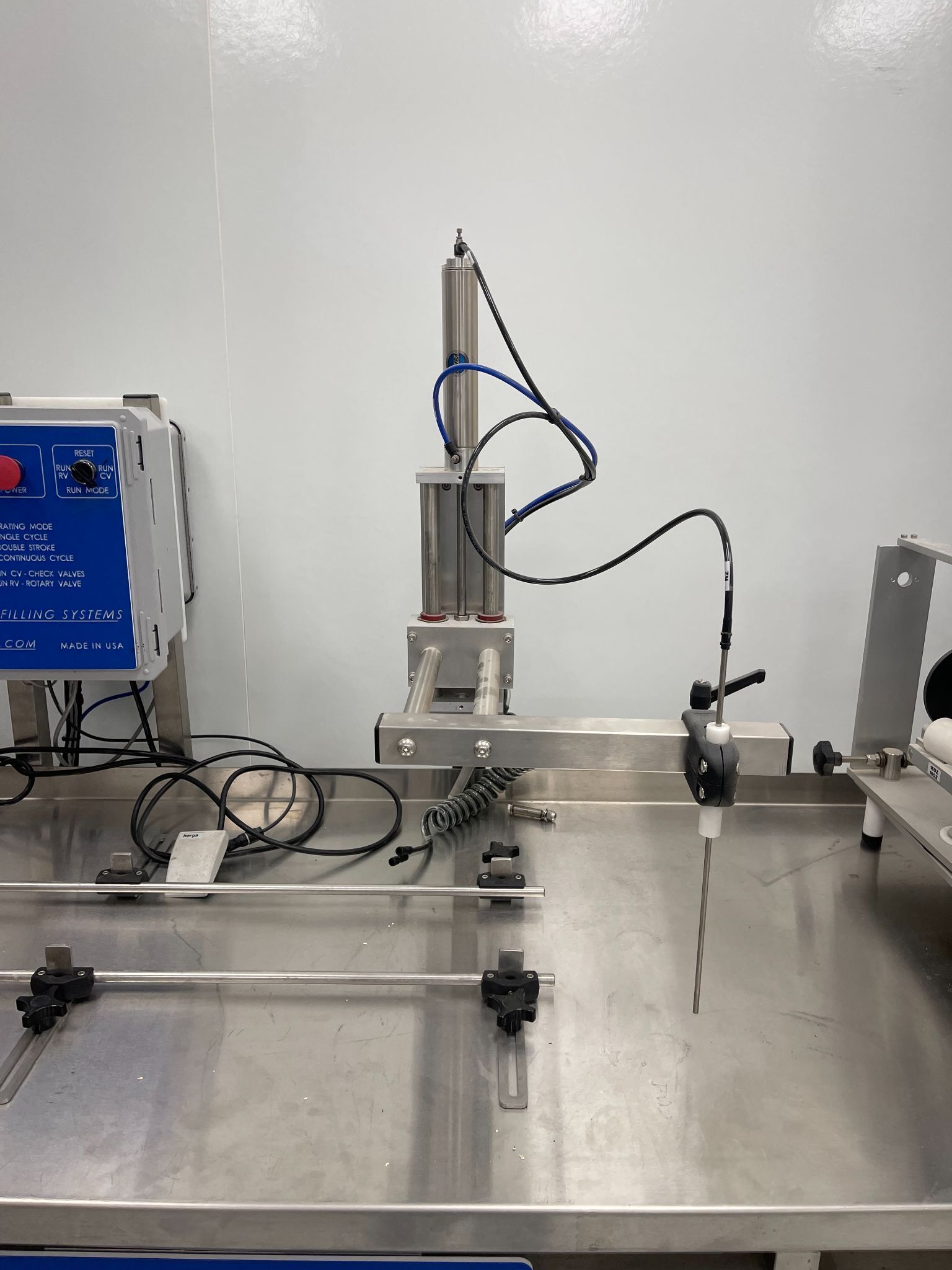

This model includes interchangeable piston and nozzle sizes ranging from 2 oz to 32 oz. It comes with a 32 oz piston set and an adjustable height mount for the positive shut-off nozzle. These components allow for versatile product placement into containers or onto production lines.

The system requires 110V/1PH/60HZ at 3 Amps to operate. It requires 6 cfm of air at 80 psi. These specifications ensure the machine functions correctly within a commercial food processing environment.

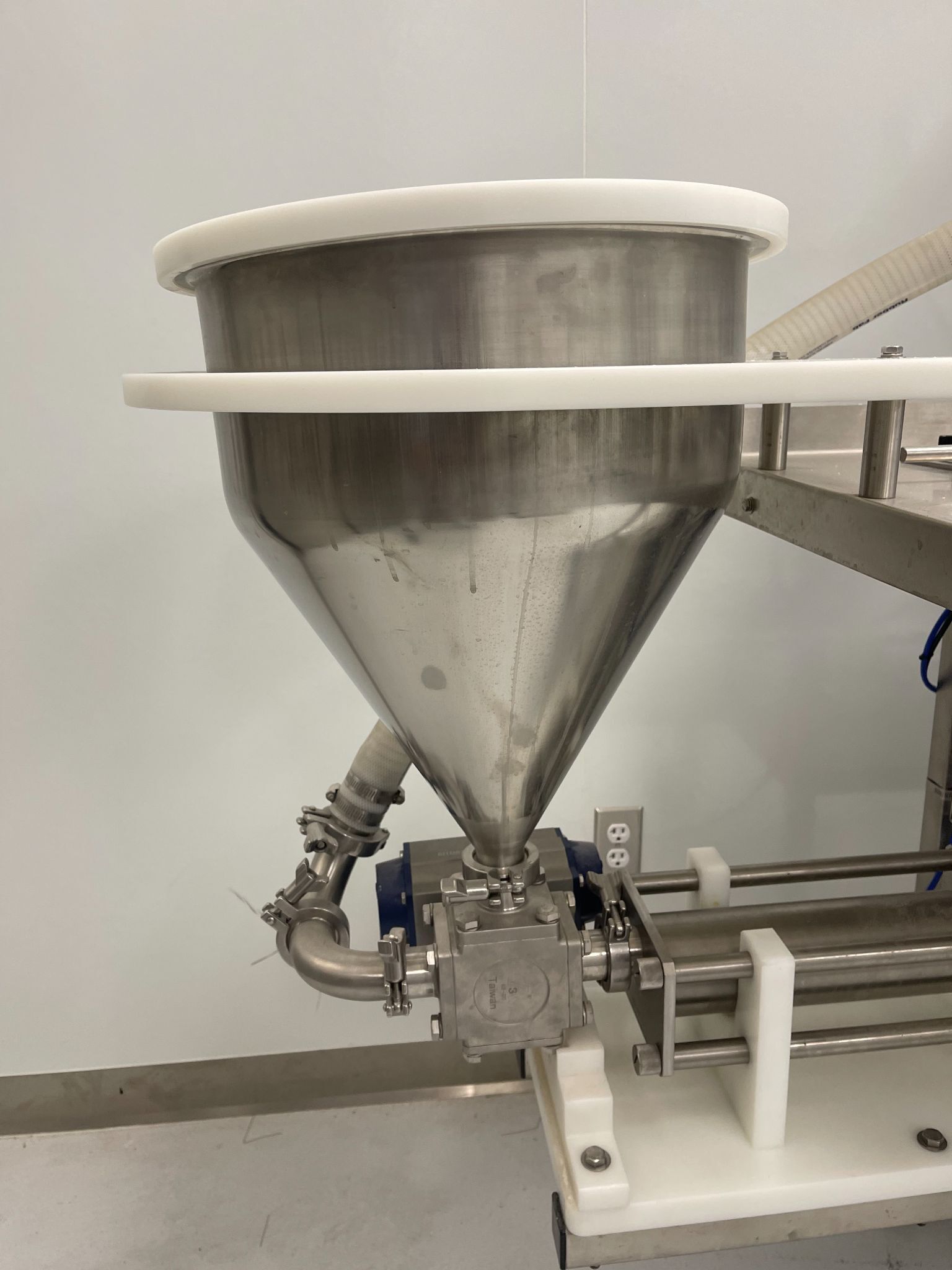

The unit comes equipped with a 6.4-gallon conical hopper and a stainless steel rail kit for the work table. An operator foot switch is also included to facilitate controlled operation. Please contact M&M Equipment Corp for a quote regarding this specific used item.
