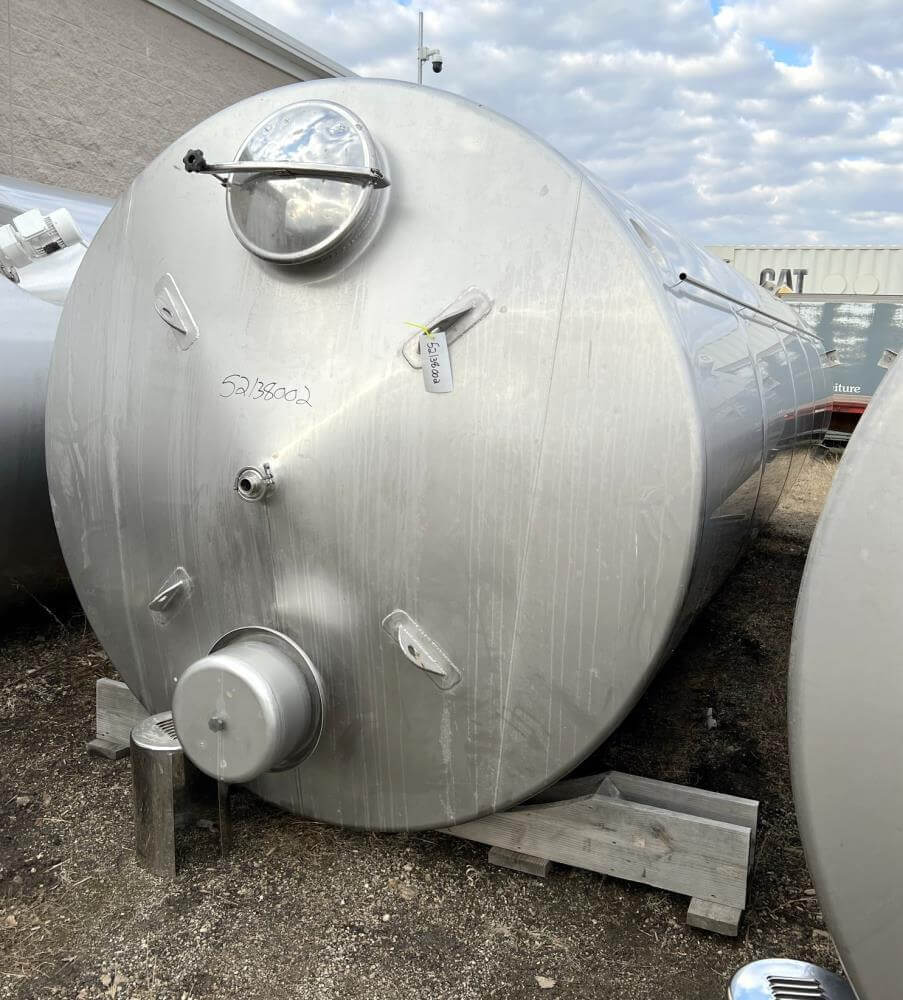

Insol 316 Stainless Steel Tank

This tank is constructed from 316 Stainless Steel and features a 25 Cubic Meter capacity, which is approximately 6525 Gallons. The unit includes a 3-blade prop agitator driven by a .75kW (1hp) motor. It is designed for industrial food processing applications including dairy, sauces, and vegetable processing.

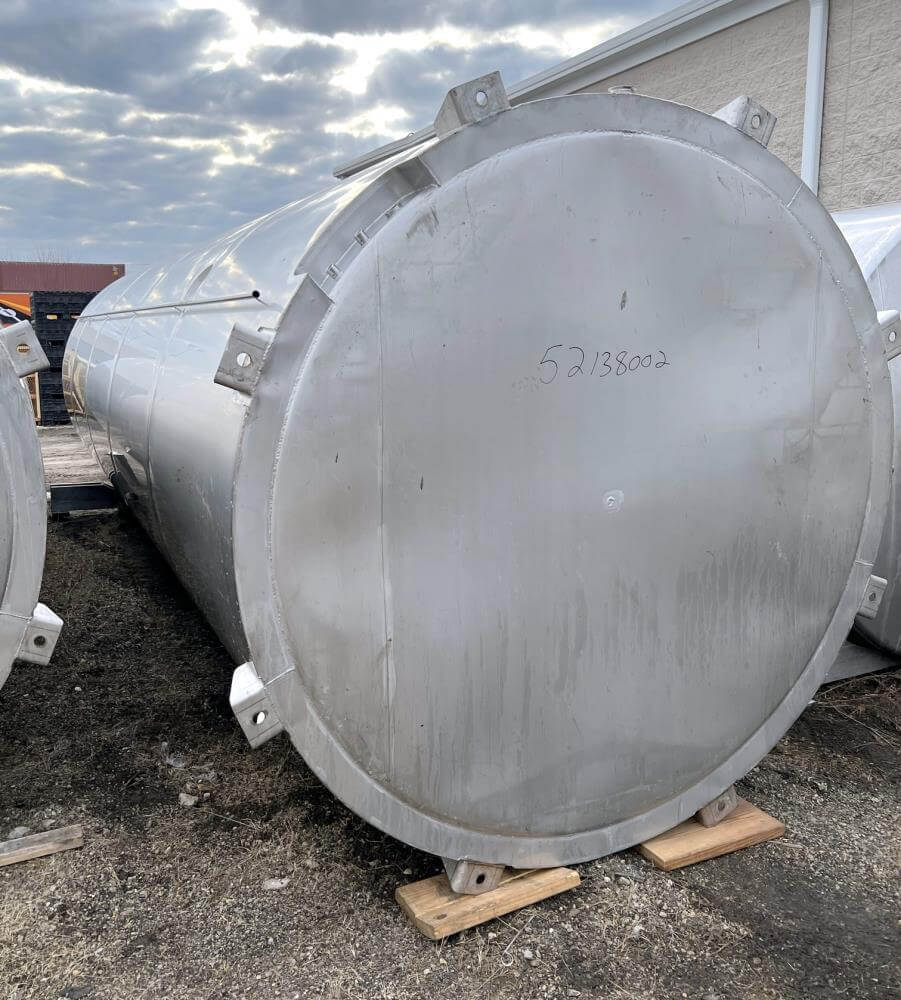

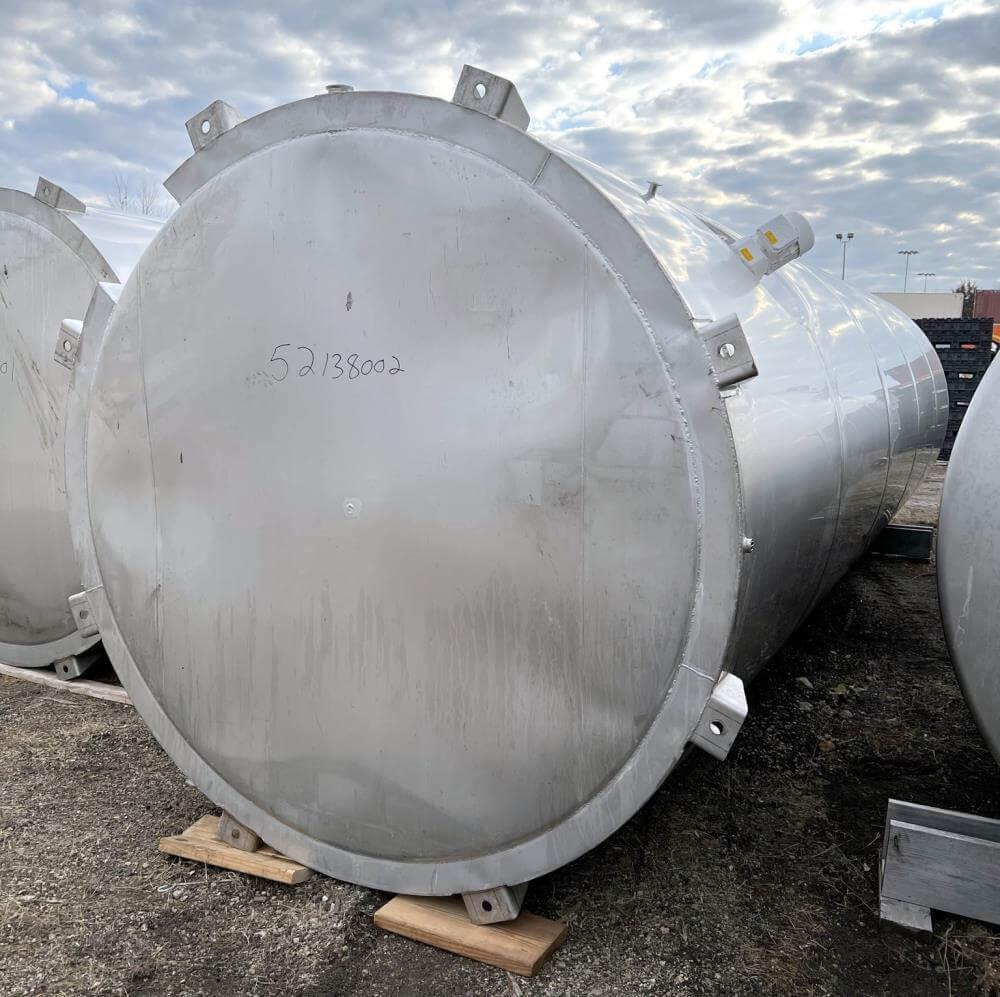

The tank has an approximate 84" diameter with a 272" straight side. The design features a 15 Degrees cone top and a 3% sloped bottom. Please contact M&M Equipment Corp for specific details regarding any other measurements not listed in the specifications.

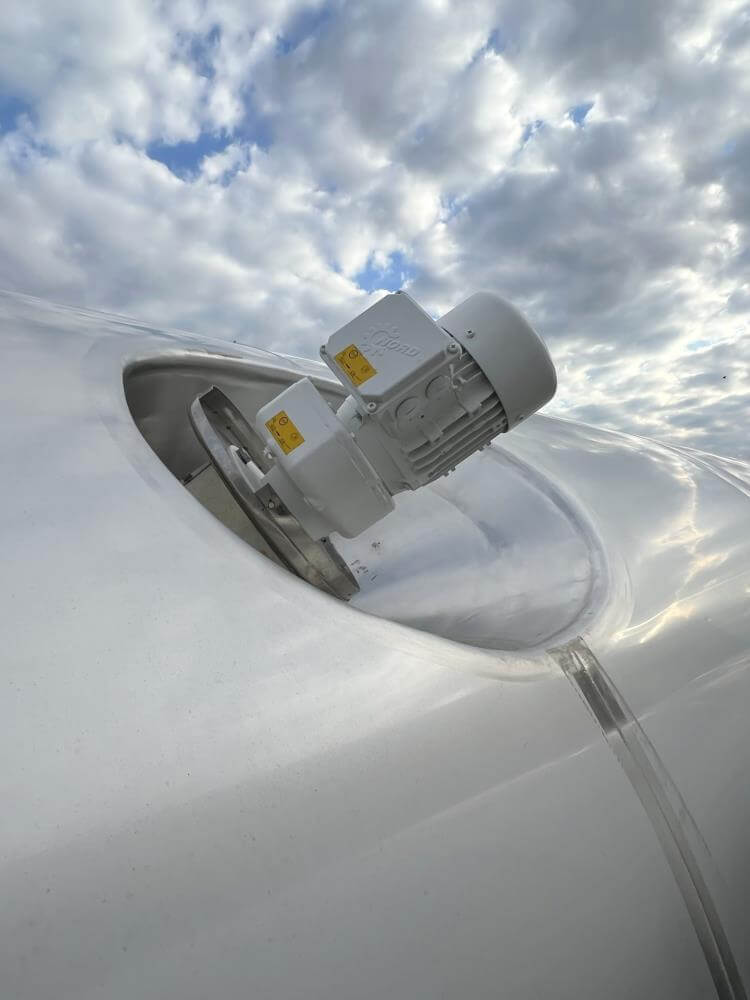

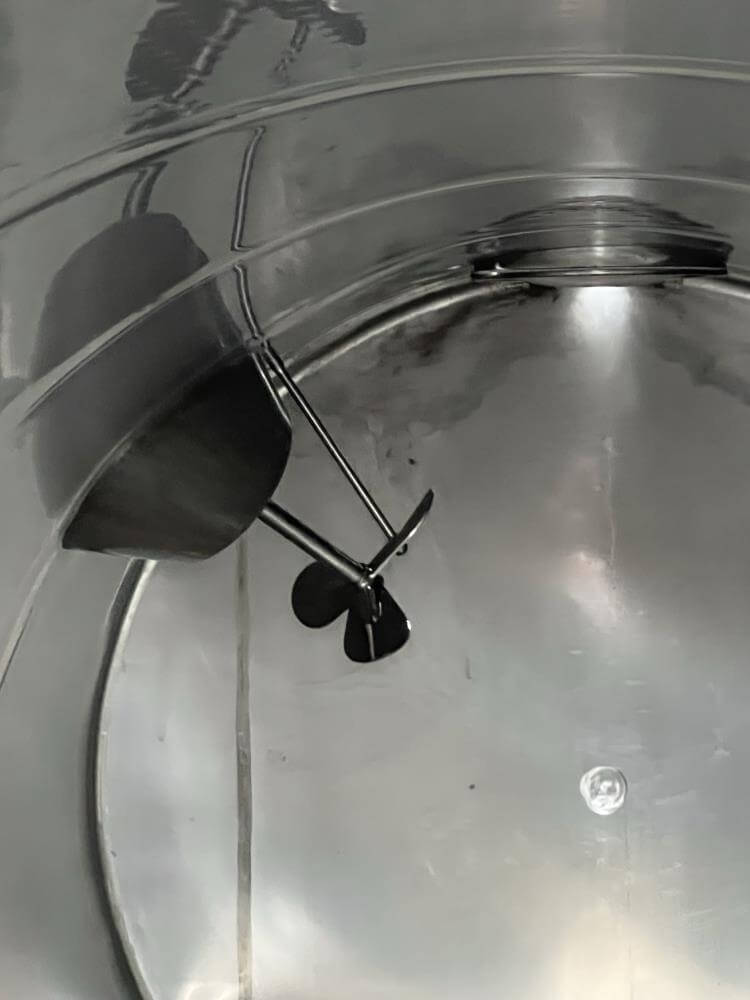

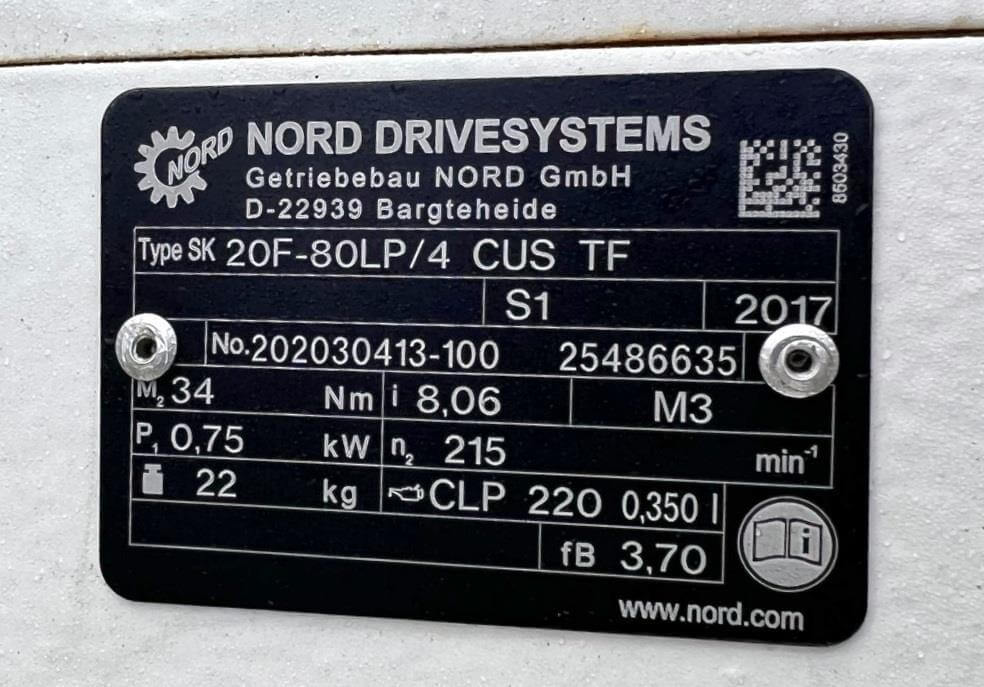

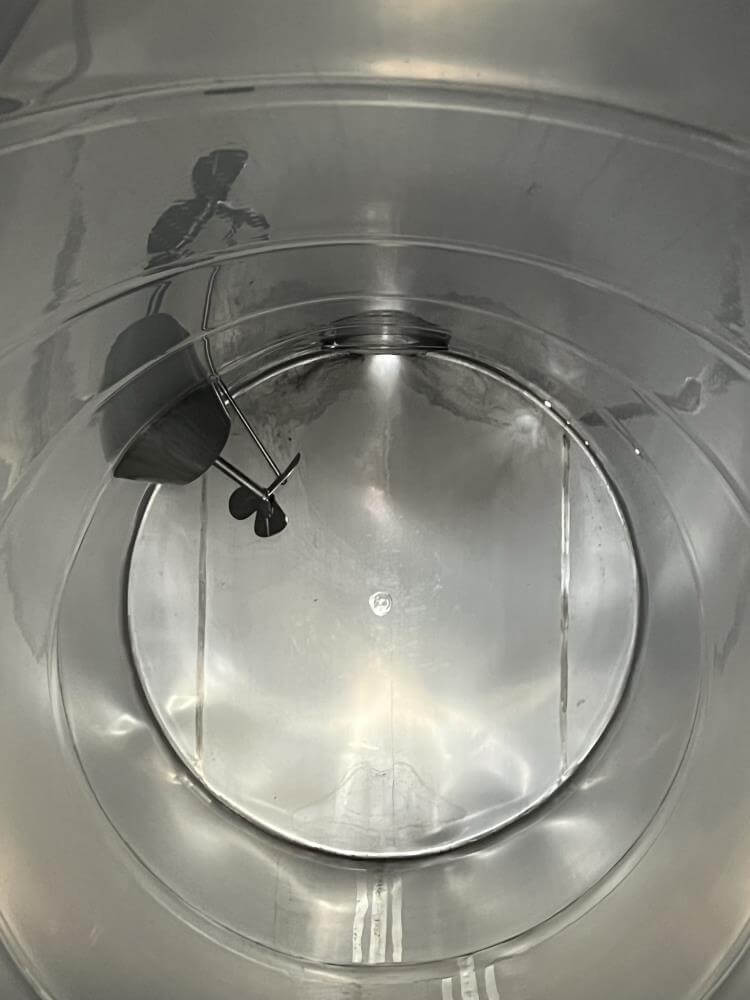

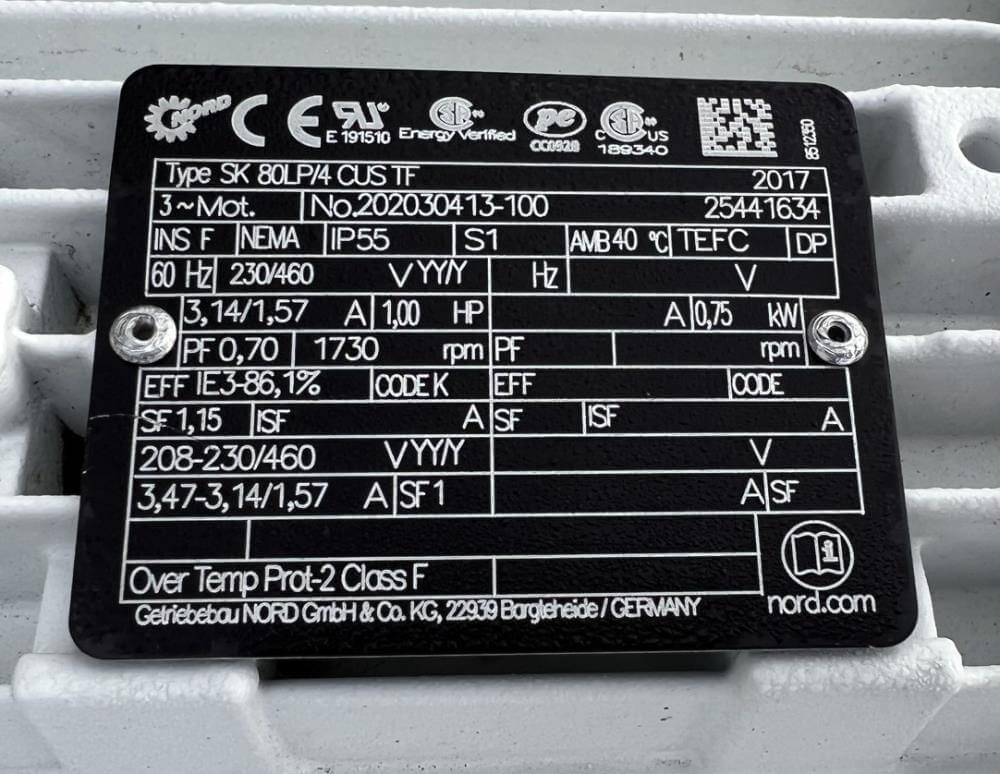

The system includes three cooling zones and is equipped with a 3-blade prop agitator. The motor driving the agitator operates at 1730 rpm with a 3/60/230/460 volt rating. One spray ball is included with this specific unit.

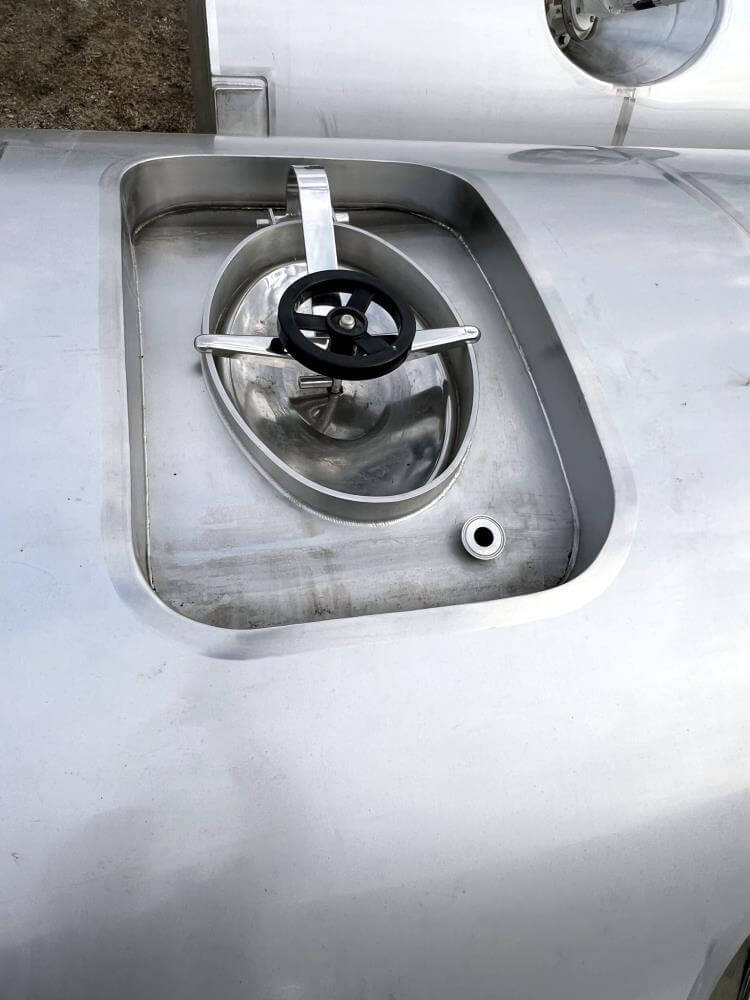

The top features a 16" manway with a cover and a vent measuring approximately 9" in diameter. For discharge and access, the unit includes a 2-1/2" side bottom discharge and a 16" long by 12" tall side bottom manway.

The empty weight of this unit is 7140 lbs. Because we maintain a rotating inventory of industrial equipment, please contact our team to discuss the current status and availability of item number 7913.
