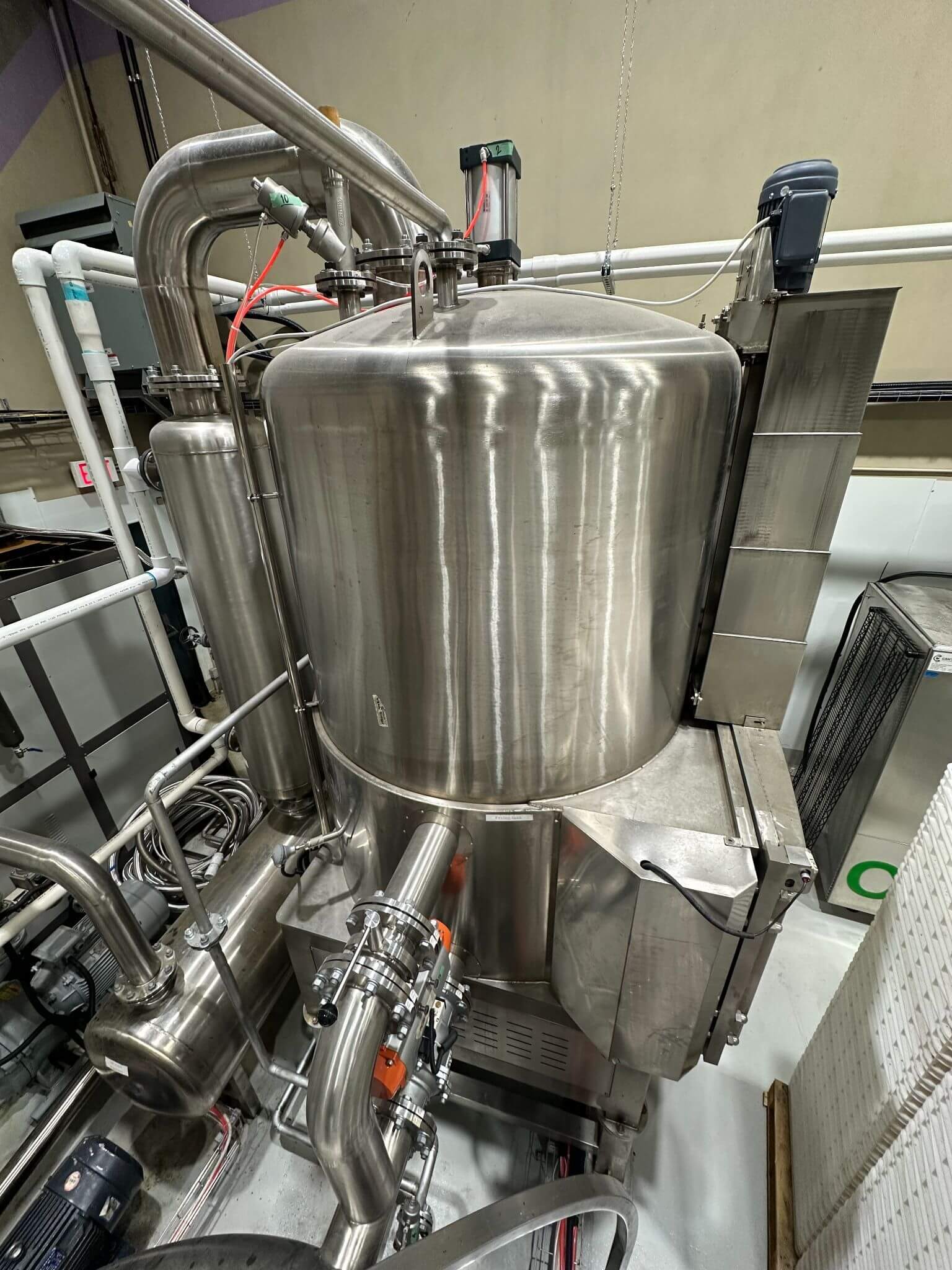

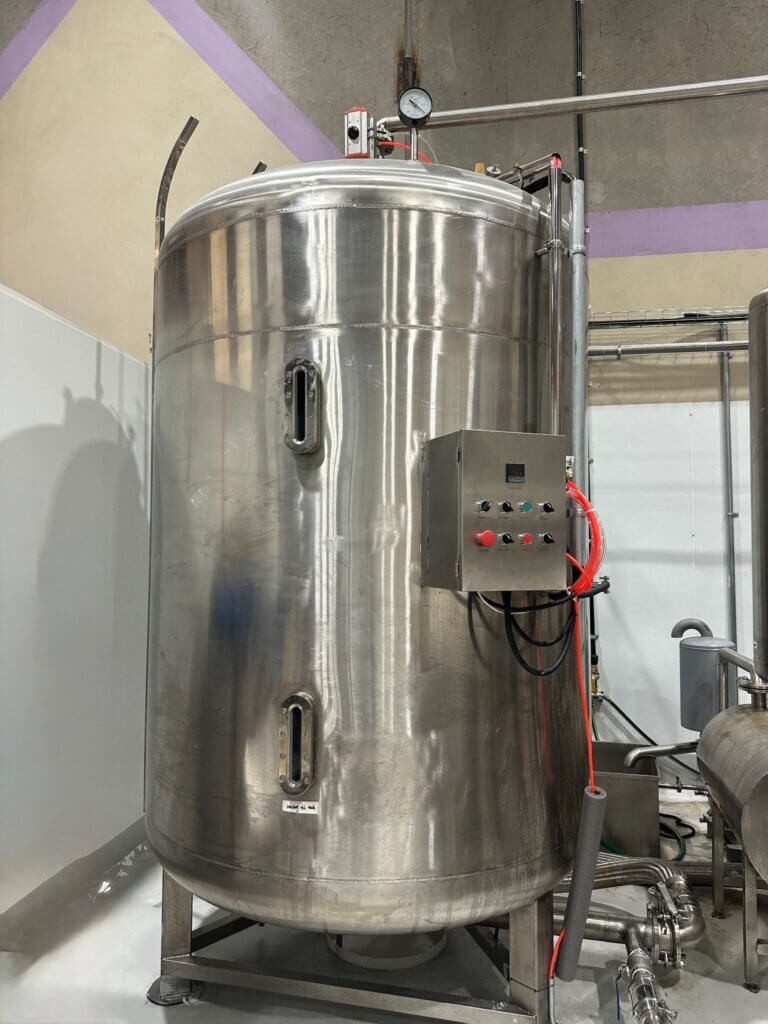

LXZK 300 Continuous Vacuum Fryer

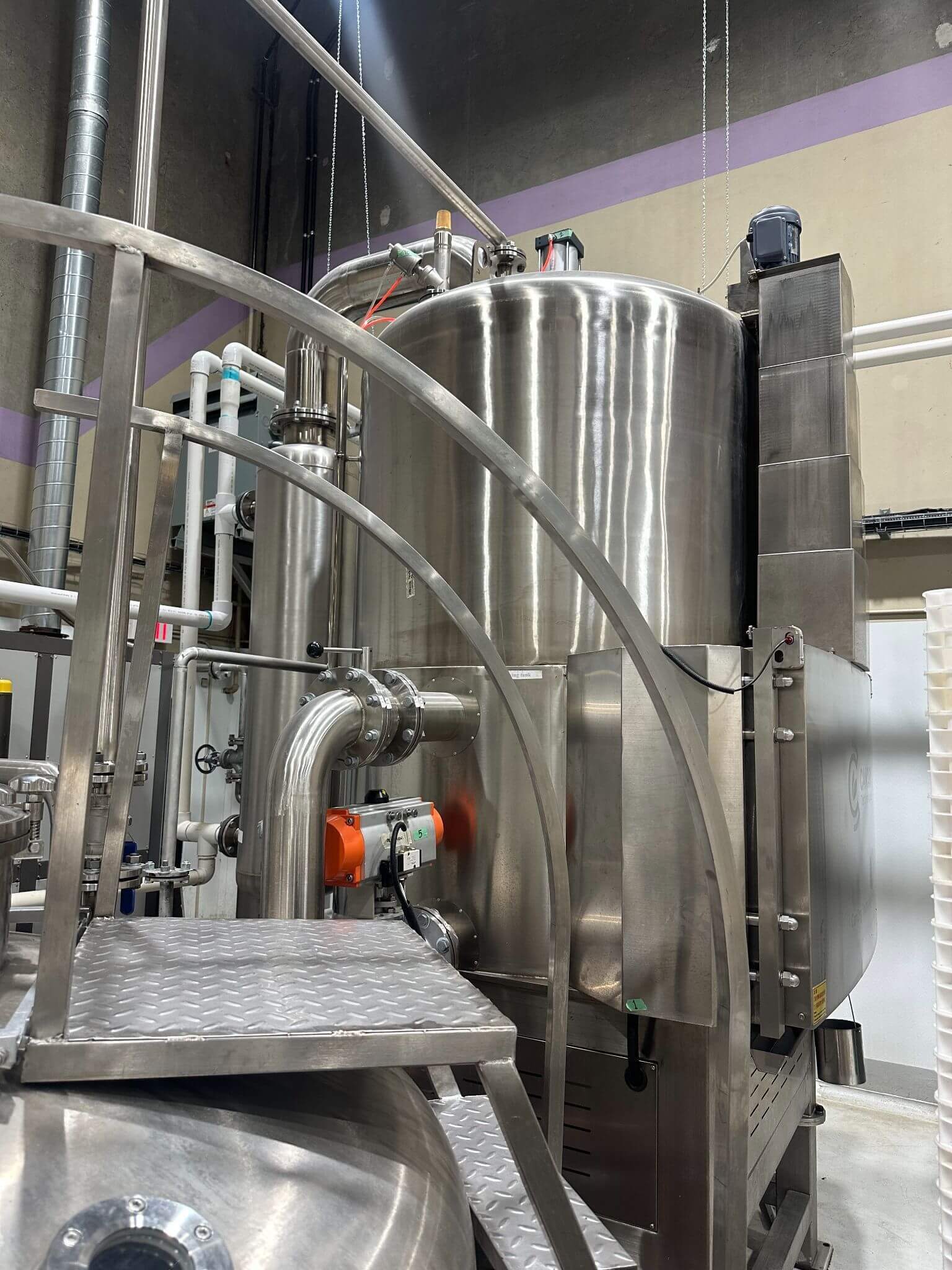

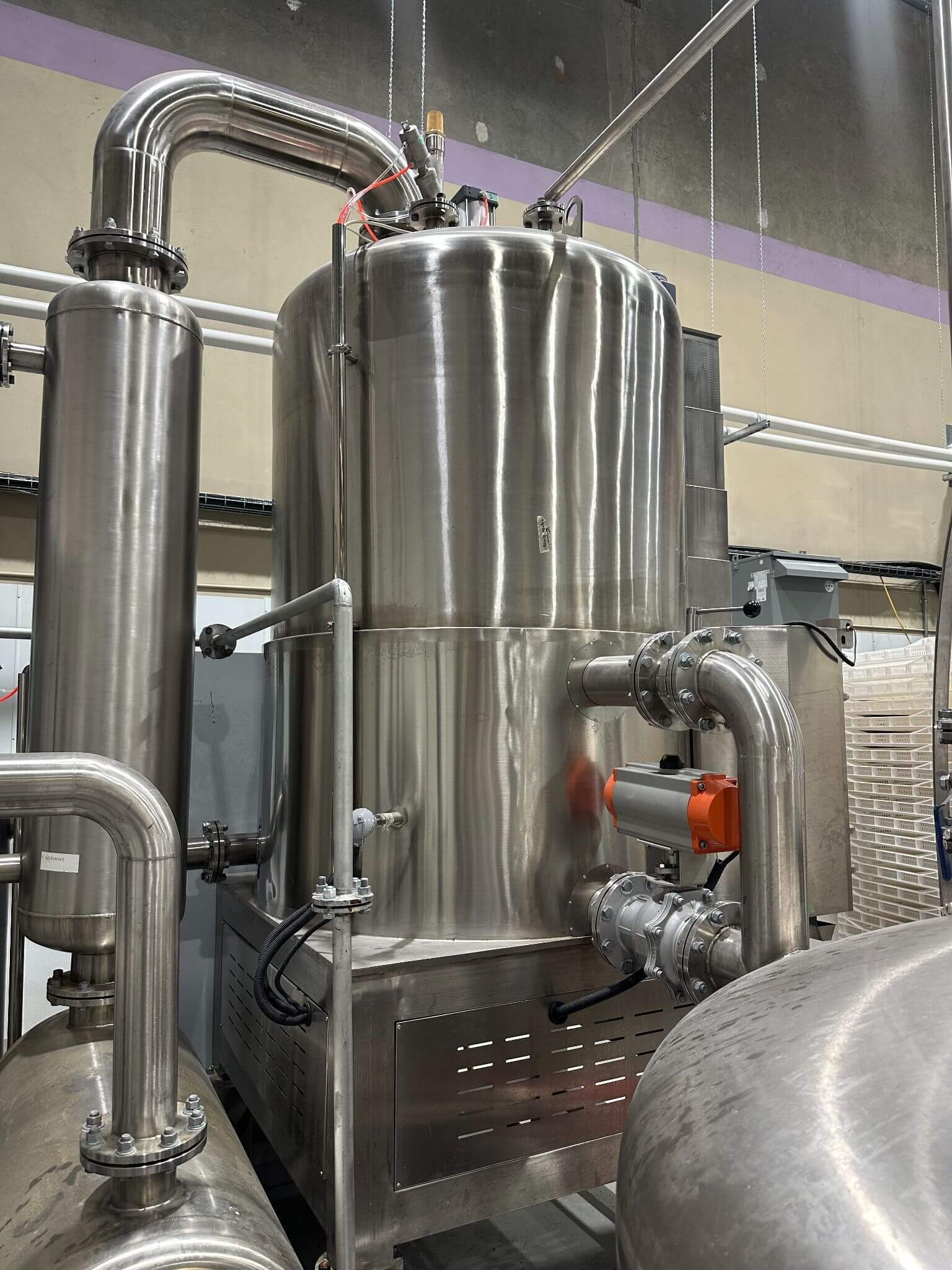

The frying tank features a volume of 630L. It can handle a loading capacity of 260–300 kg per batch. This industrial unit is designed to process products at scale within a commercial production environment.

The machine operates with a vacuum of -0.092 to -0.098 MPa (~-13.3 to -14.2 psi). It maintains a temperature range of 80–120°C (176–248°F) for consistent results during the frying process.

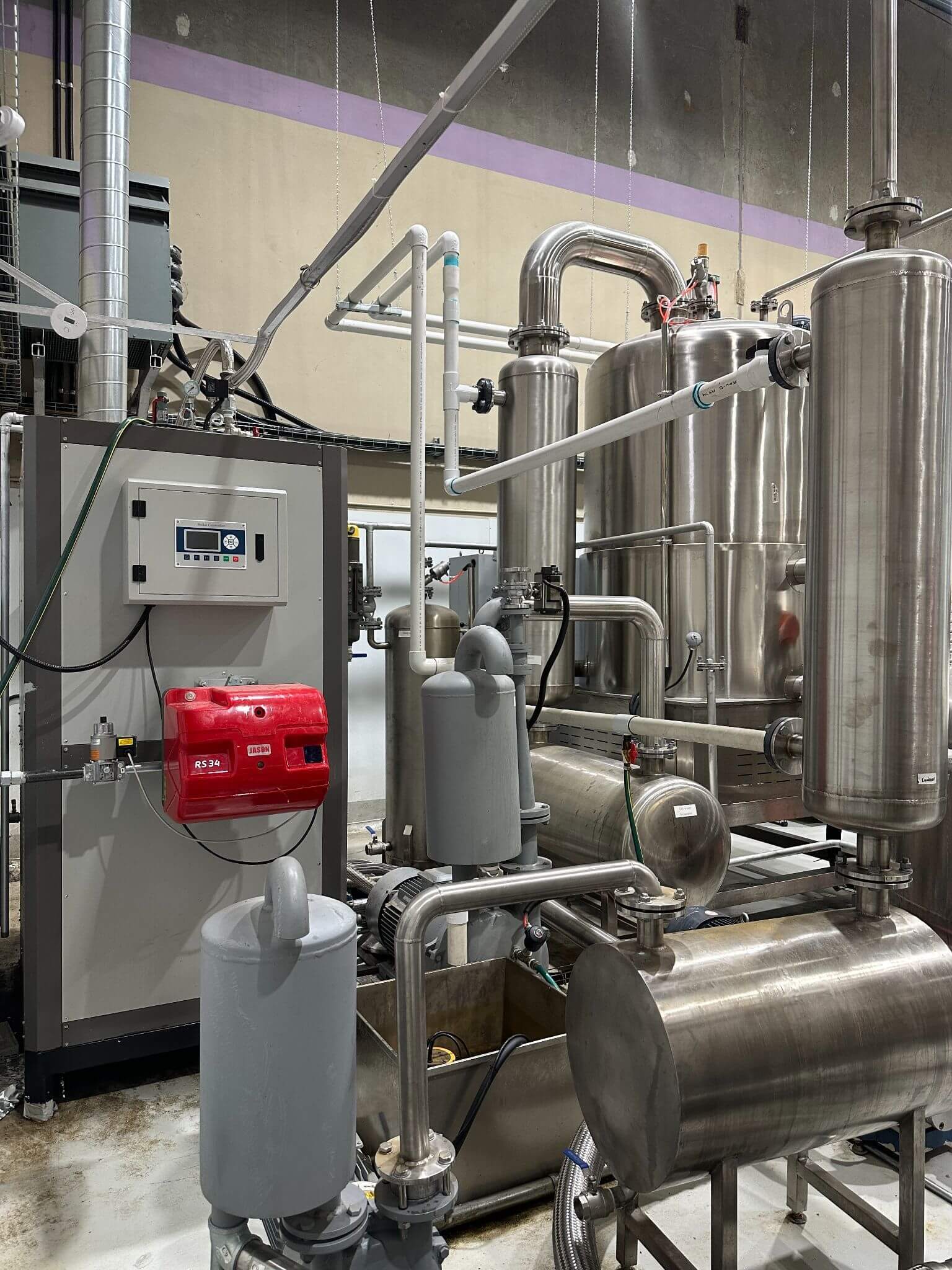

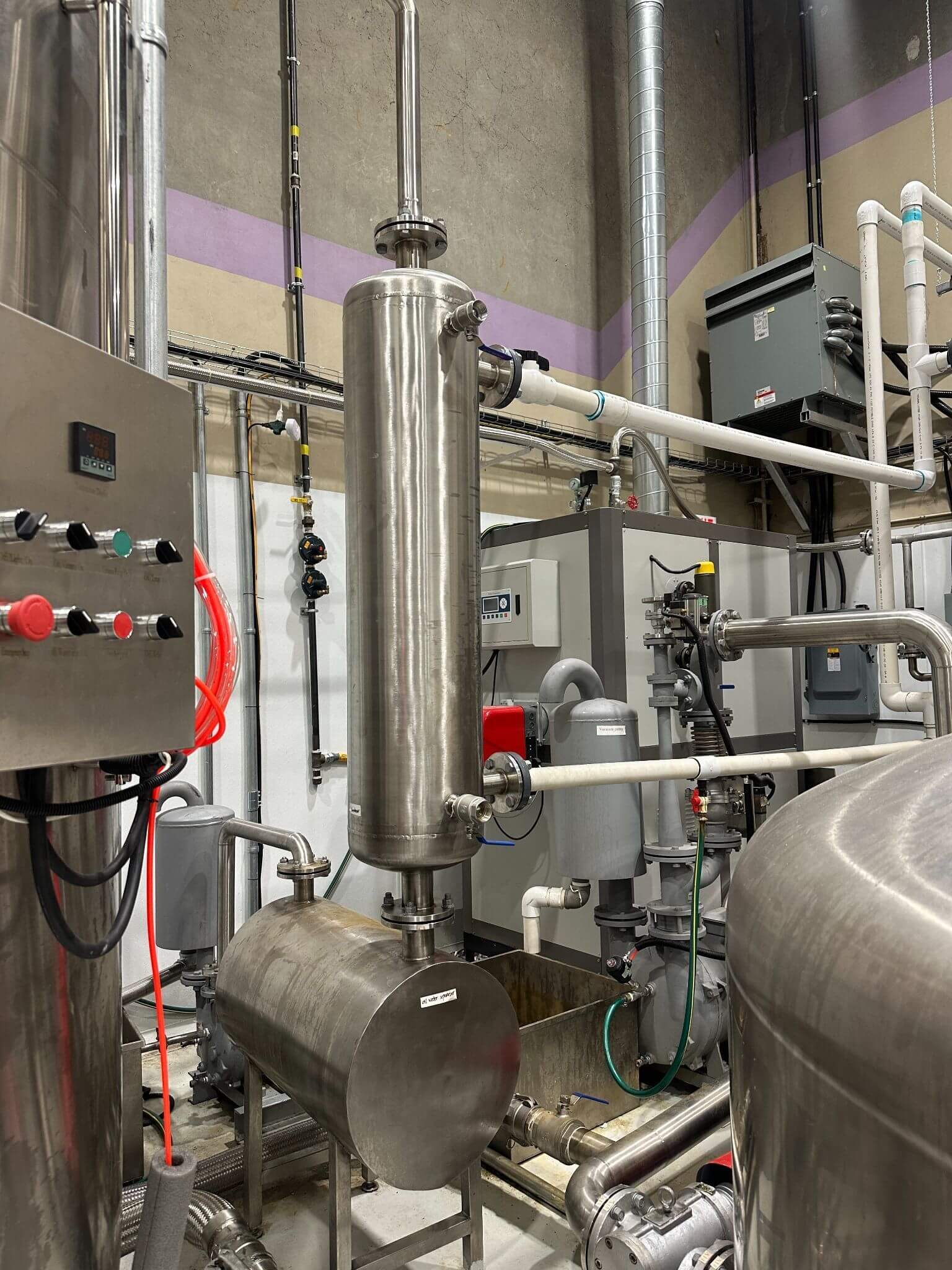

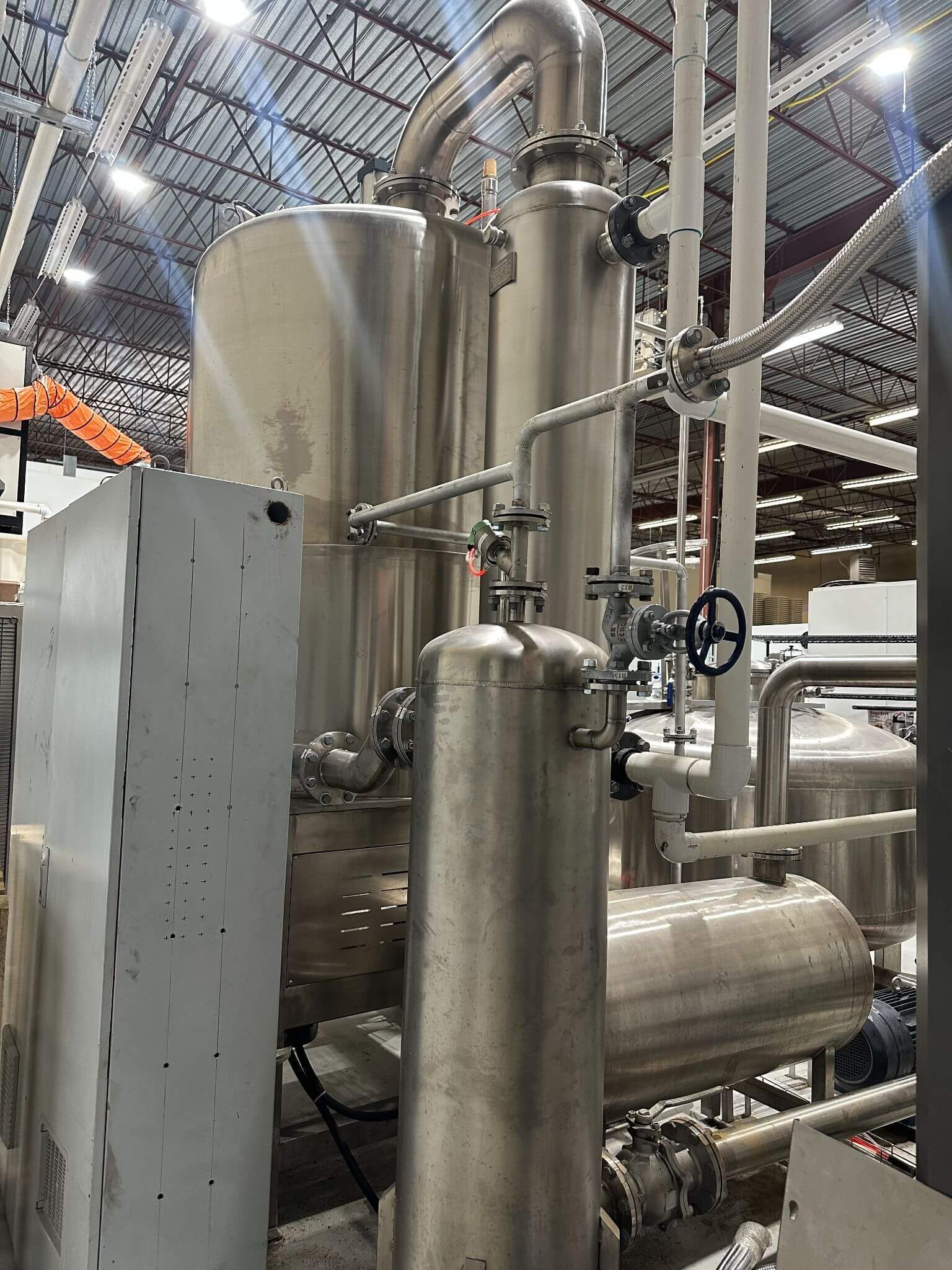

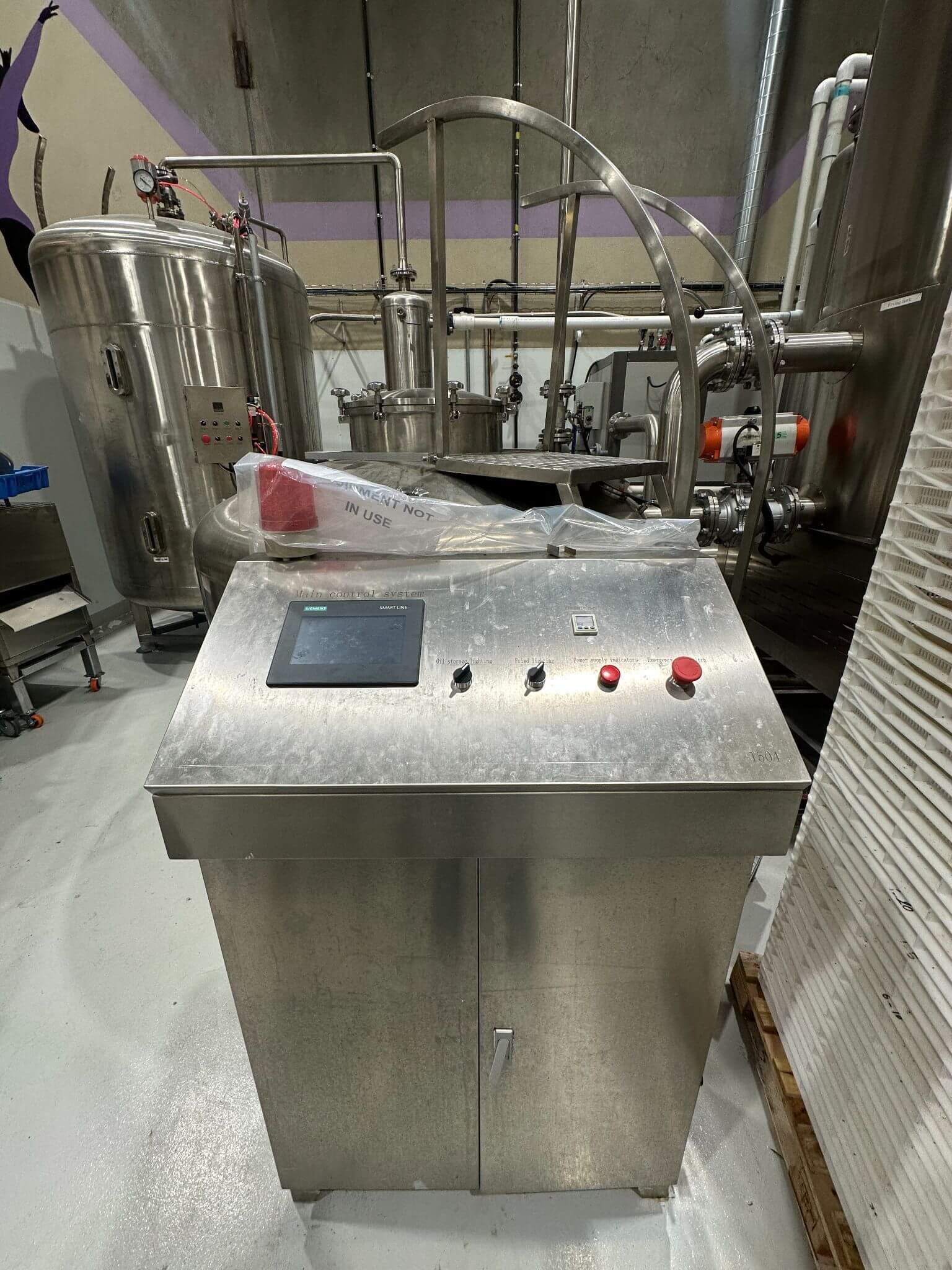

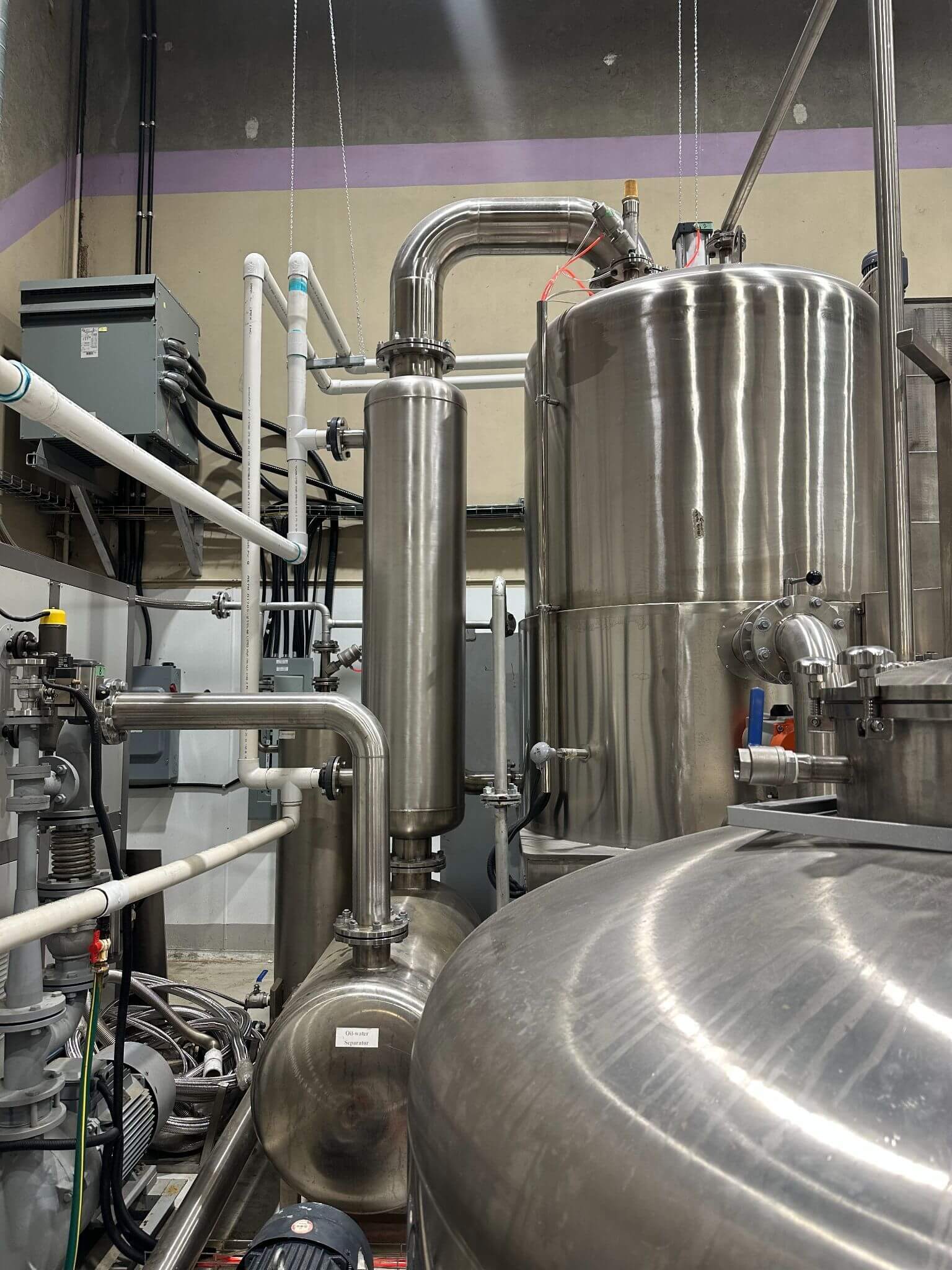

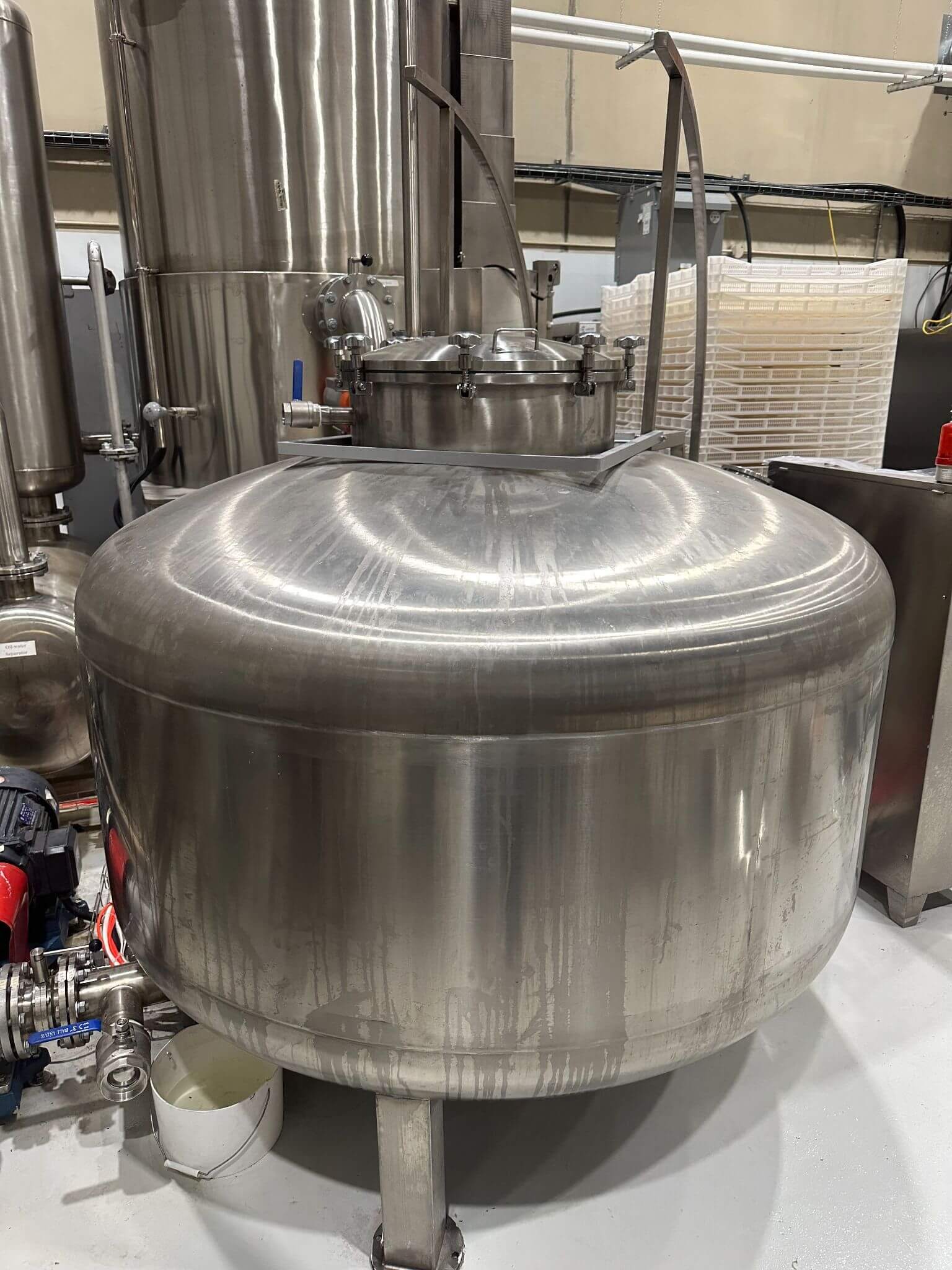

This system includes four major parts: the LXZK 300 Vacuum Low Temperature Frying Machine, a Vacuum Washing Oil Tank, a Steam Generator, and a Tilting Device. All components feature all stainless steel construction.

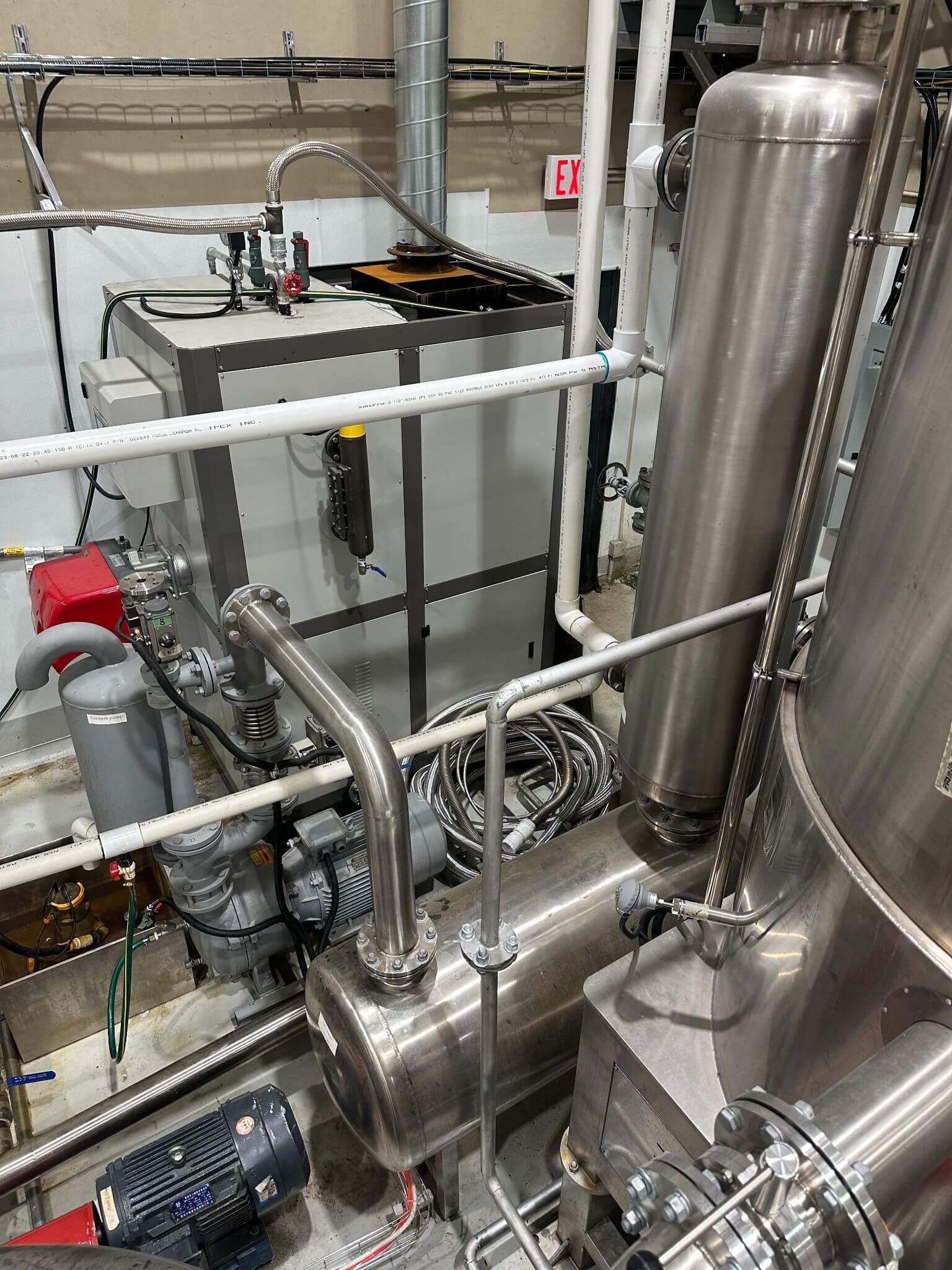

The system utilizes a steam-based heating system with a total power consumption of 28kW. The vacuum pump specifically requires 14kW (split into 11kW + 3kW). The unit operates on 220V/3PH/60HZ.

Each basket measures 1,200 x 580 mm (~47.2 x 22.8 inches). These industrial fryers are built to handle large-scale production for items such as proteins and snack foods.
