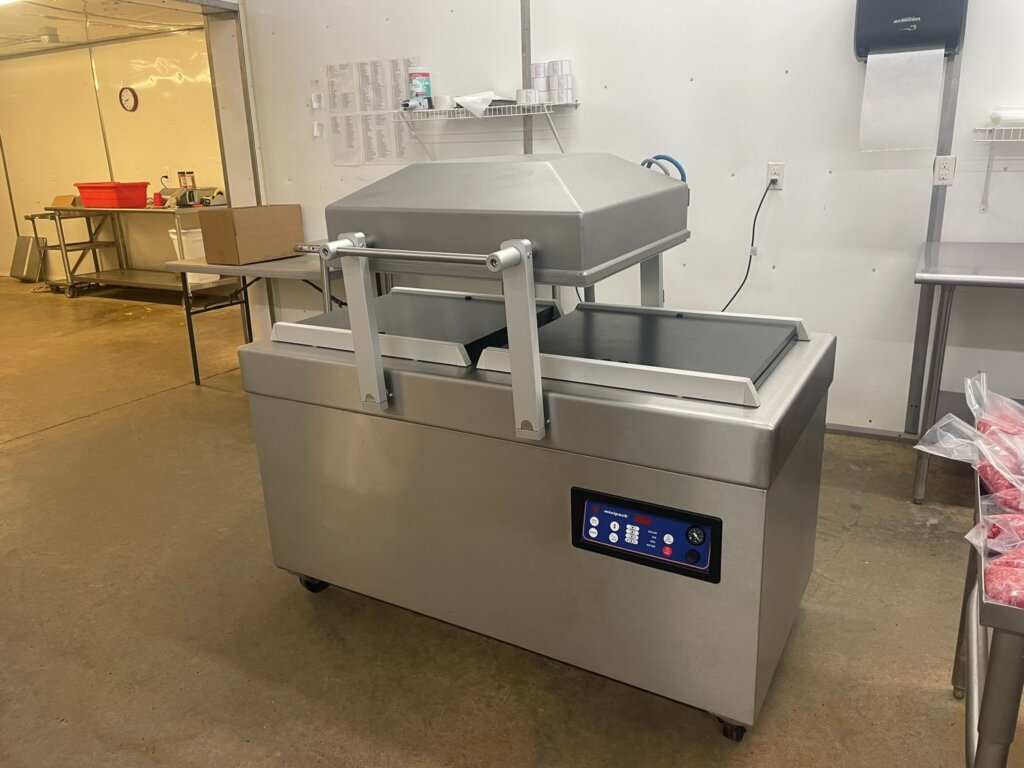

Minipack MVS 620 Double Vacuum Chamber Sealer

The chamber dimensions for this unit are 26.5" (W) x 23.5" (L) x 10.0" (H). This all-stainless steel construction is designed for industrial food processing applications. Please contact our team if you have further questions regarding the specific footprint of this machine.

This model features a Busch R5 oil rotary pump with 5 HP power. The pump provides free air displacement of approximately 100m³/h (50 Hz) or 120m³/h (60 Hz). It is capable of performing up to 3 cycles per minute.

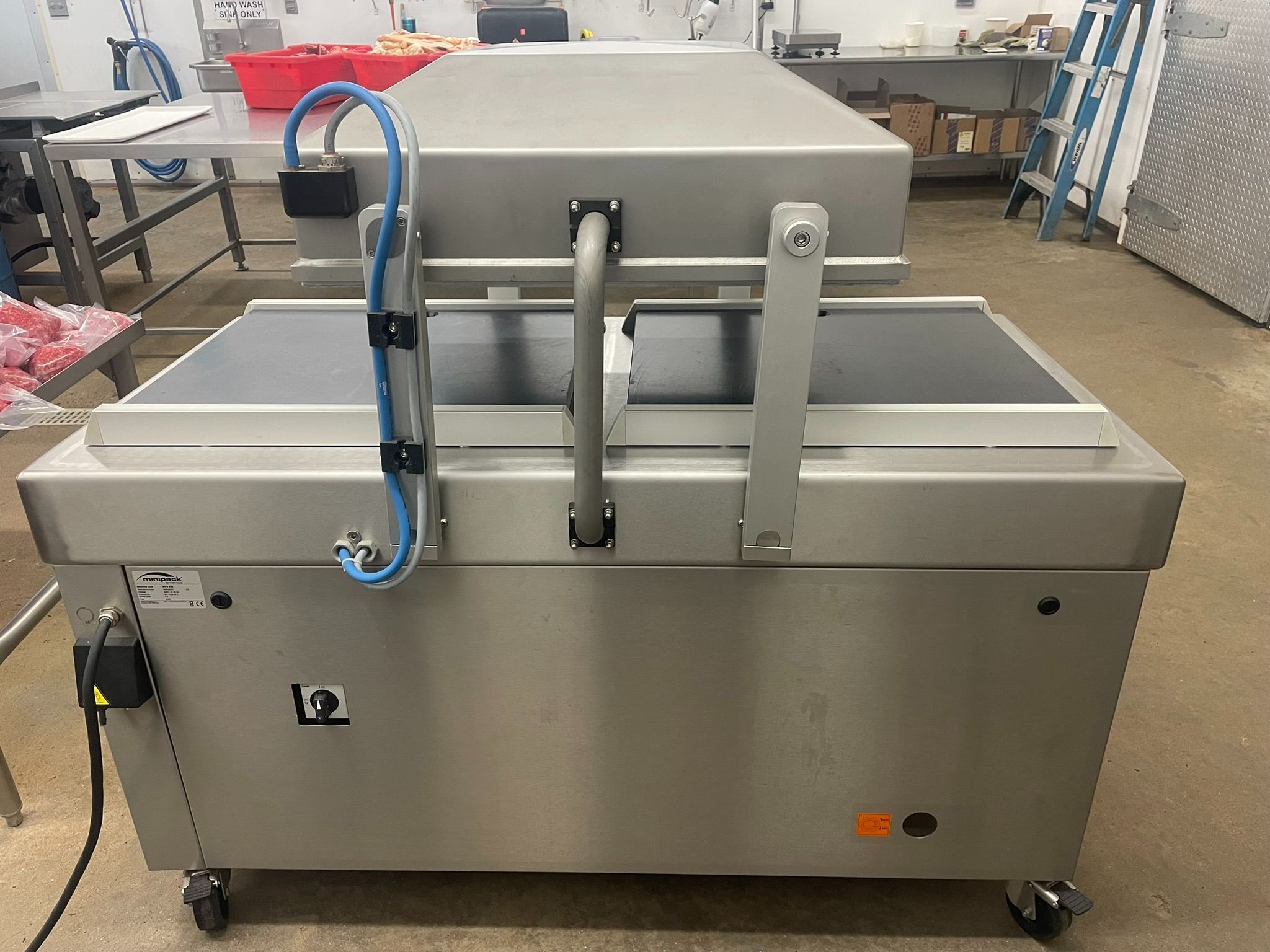

The unit includes two seal bars per chamber located at the front and back. Each seal bar measures 24.5" in length and they are spaced about 20" apart. These features allow for consistent sealing of products during high-volume production.

The machine requires a 220V/3PH/60HZ power supply at 2.9 kW and 24 A. This industrial vacuum chamber sealer is built with all stainless steel construction to meet the demands of commercial food processing environments.

This machine is currently listed as open in our inventory. Please contact M&M Equipment Corp for a quote or to discuss how this specific unit can fit into your production line.
