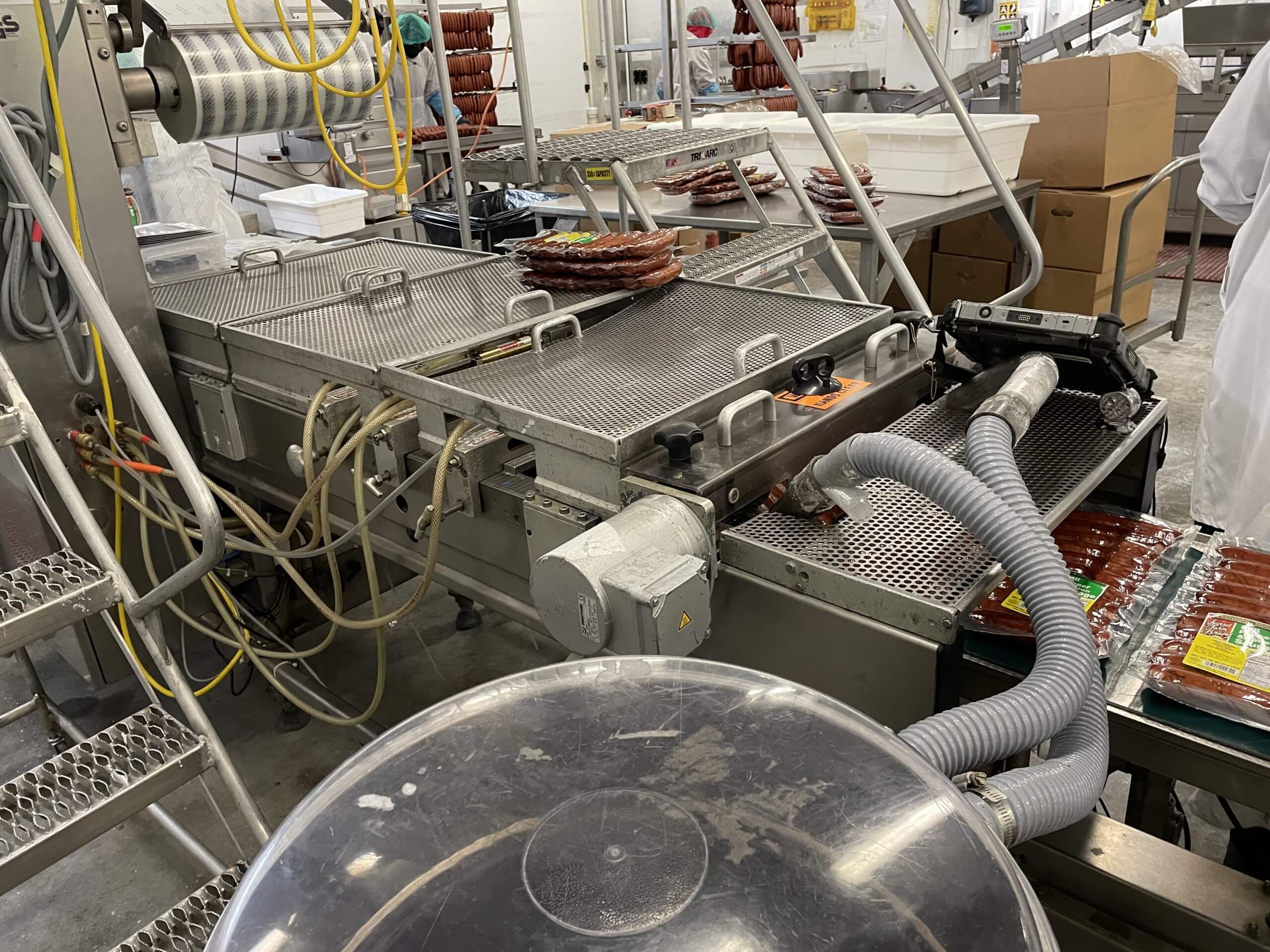

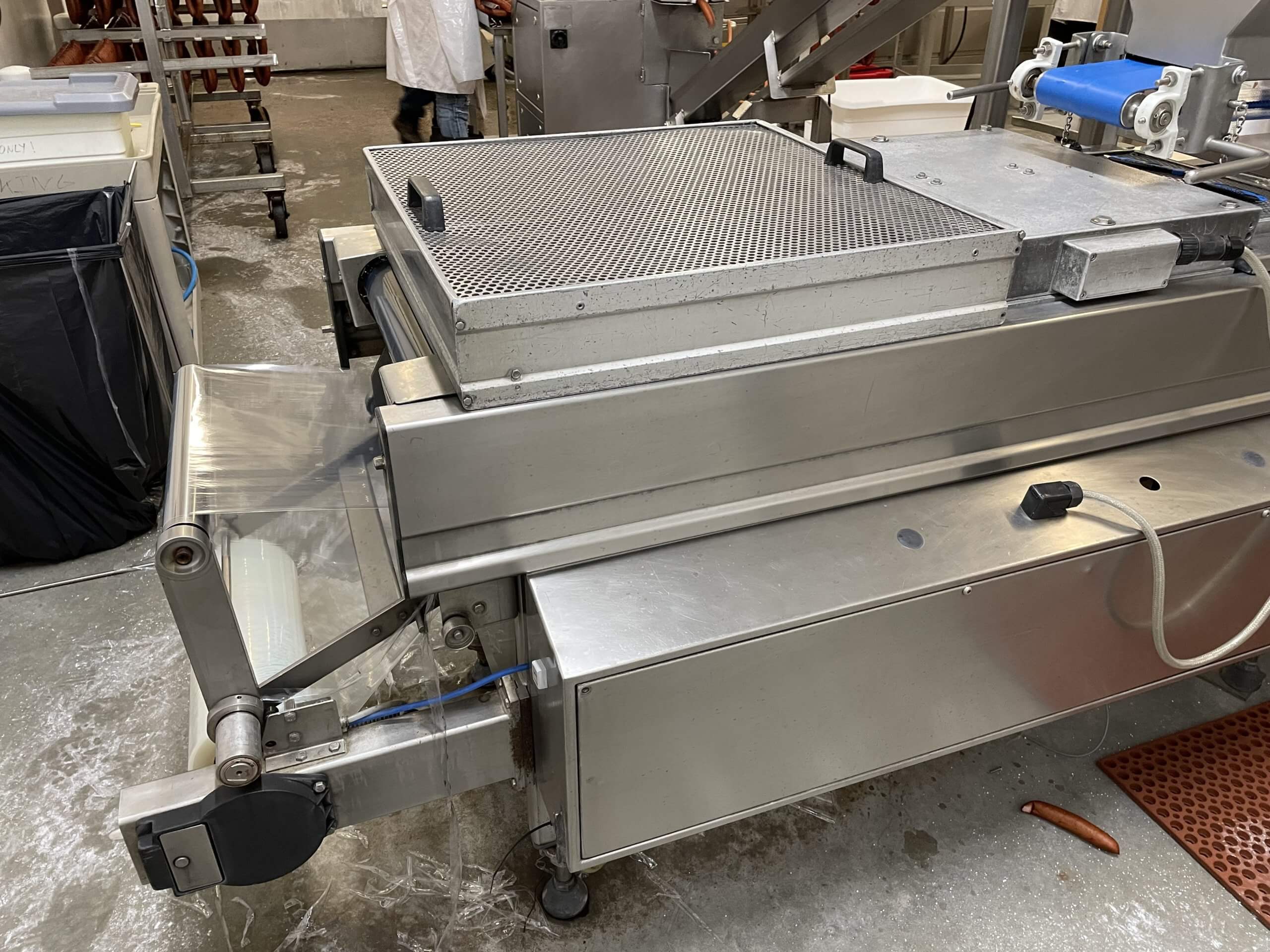

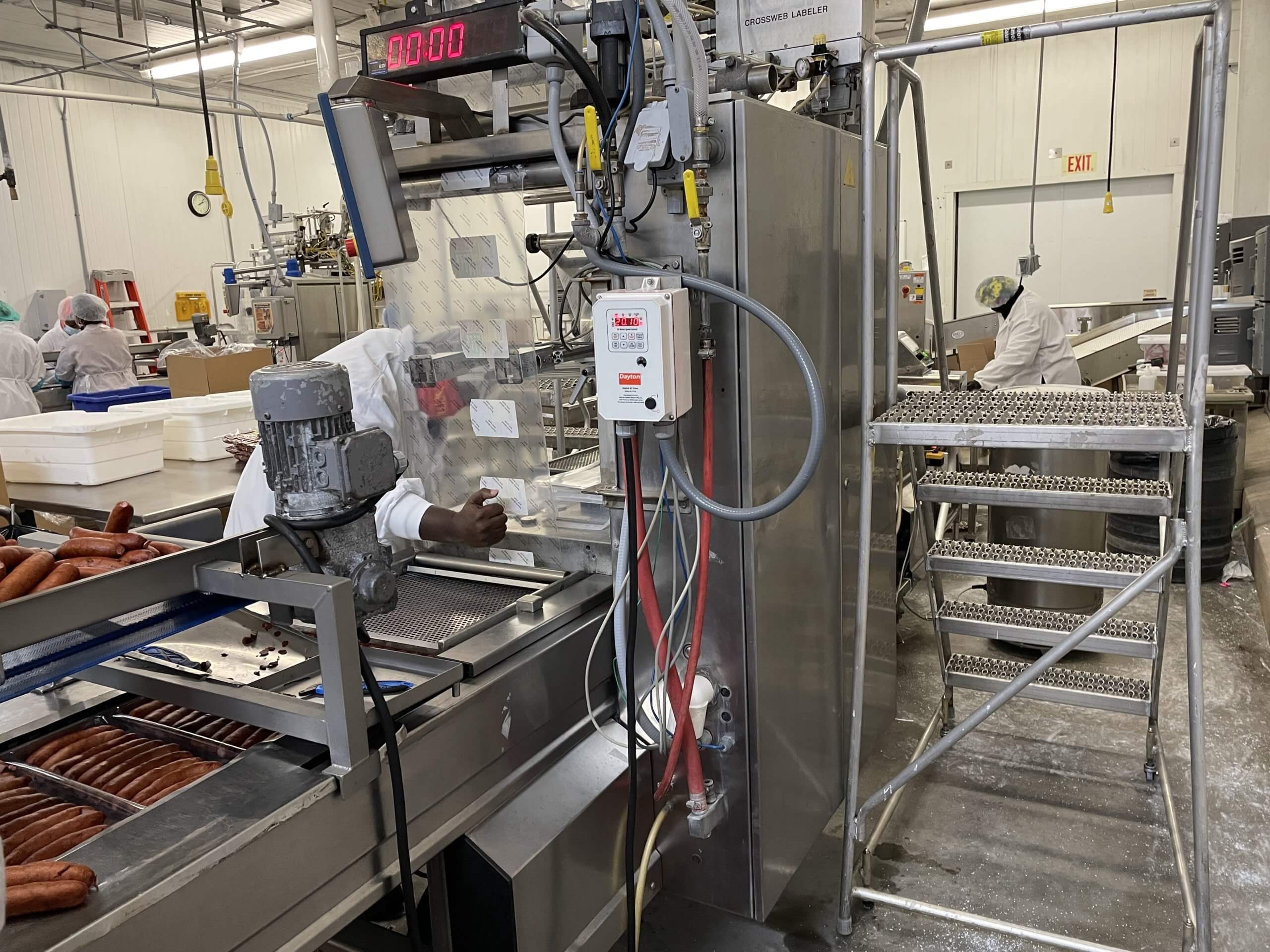

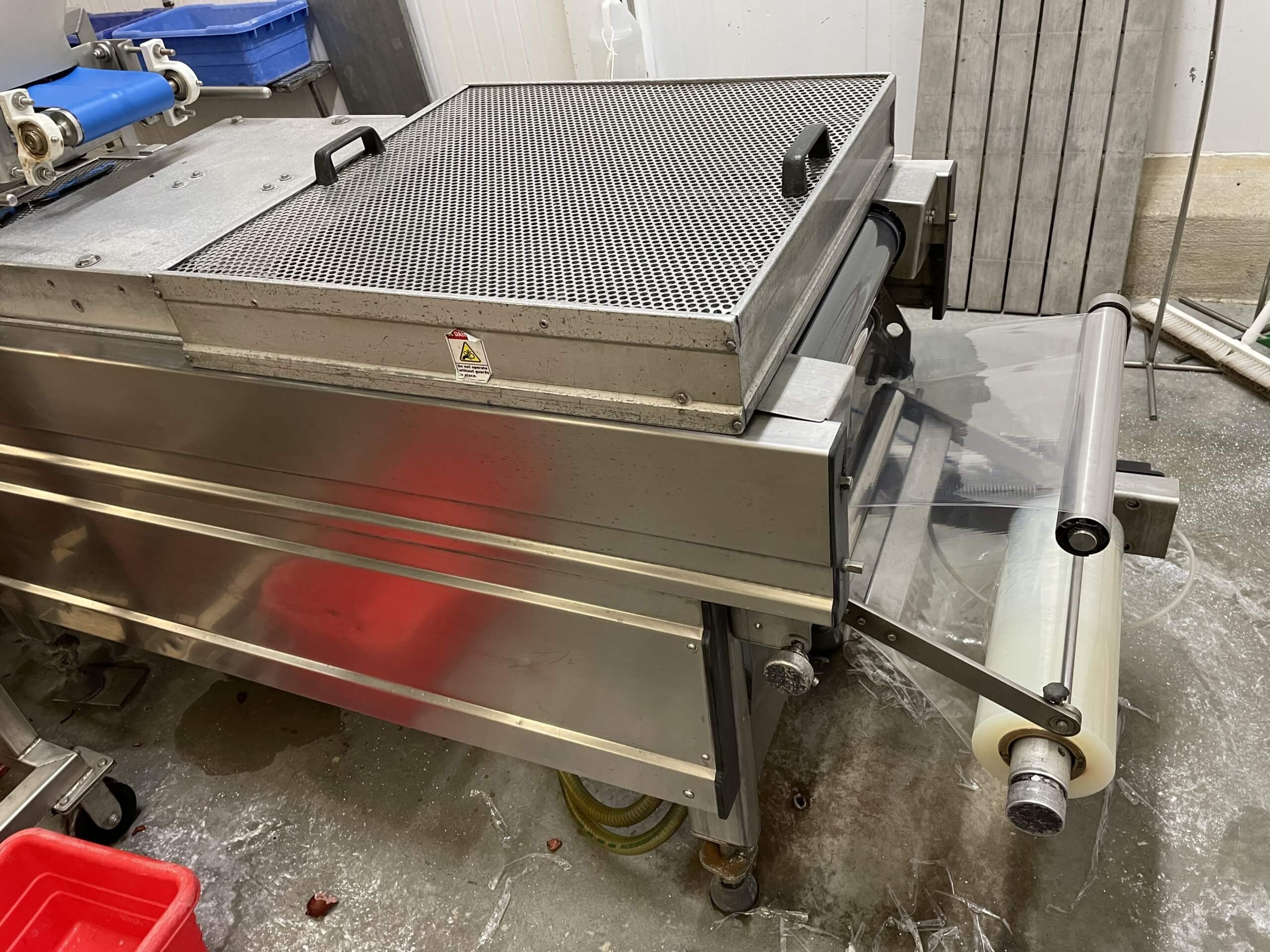

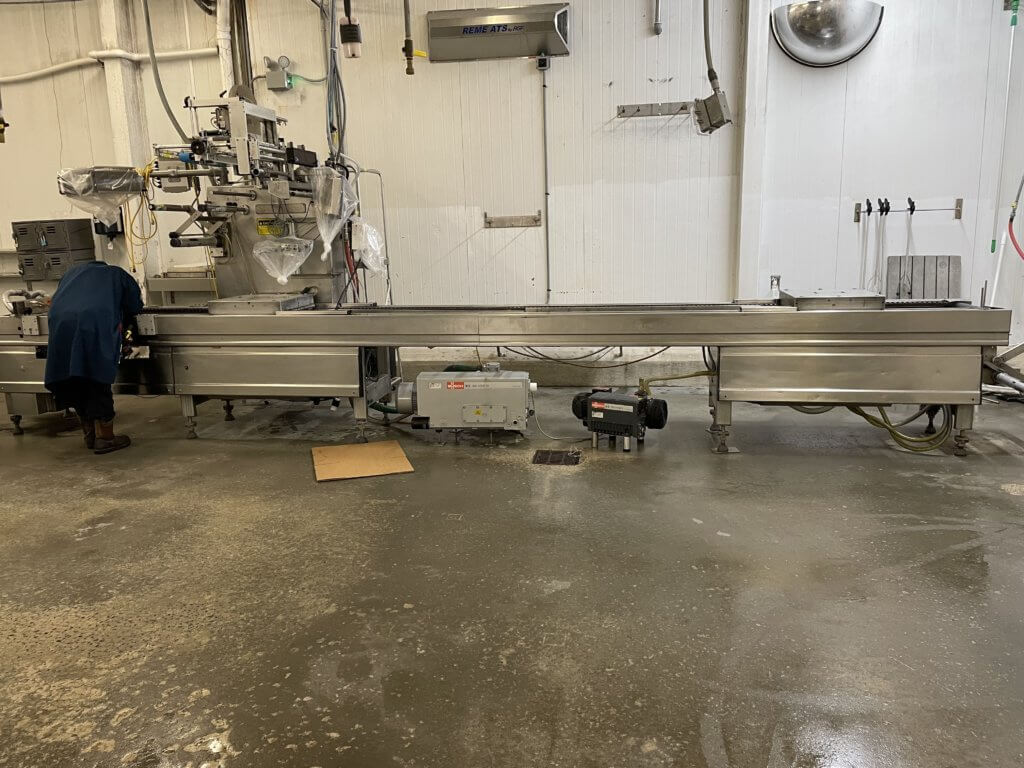

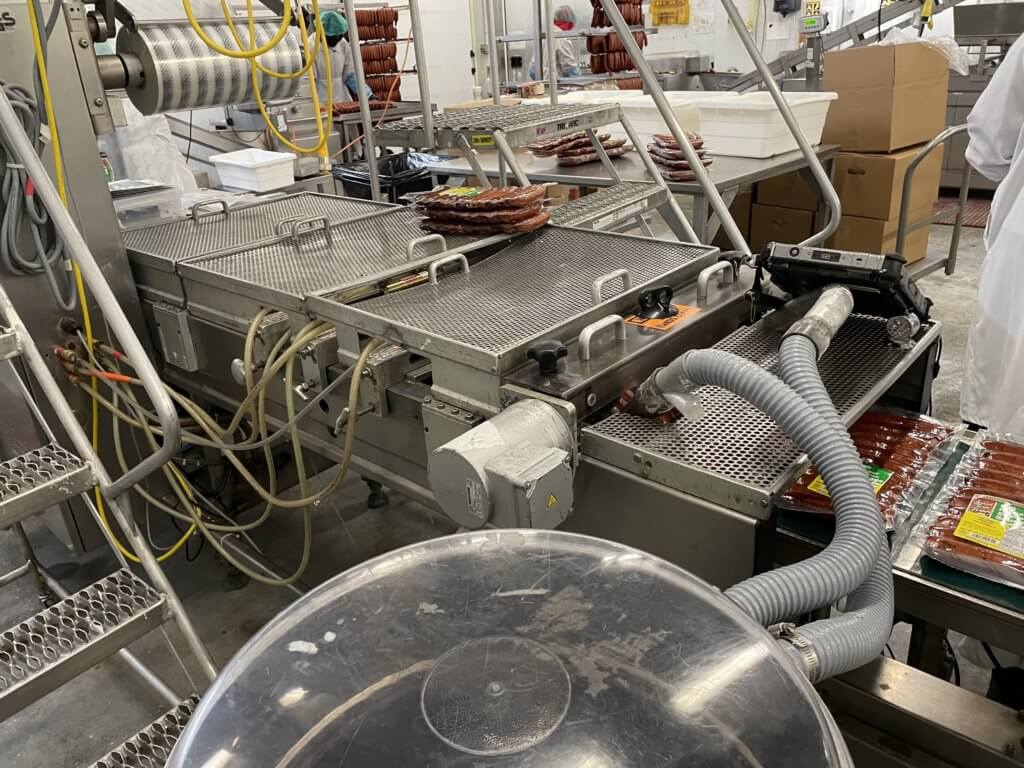

Multivac R 530 Rollstock Packaging Machine

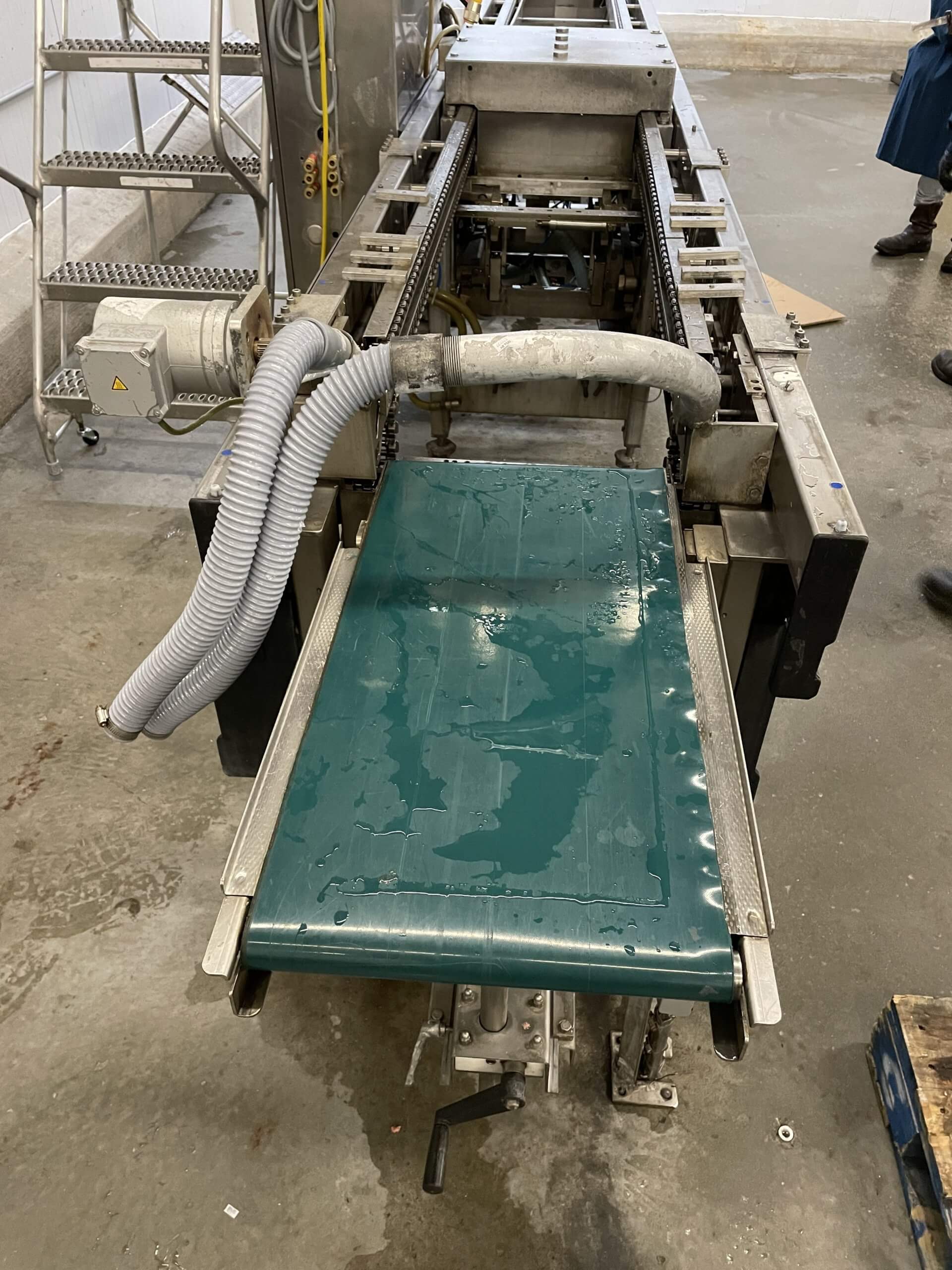

This machine features all stainless steel construction, a 420mm web width, 520mm advance, and 19mm edge trim. It includes a 130mm die depth, 3x QRP cross cutting knives, rotary cassette longitudinal cutting knives, a trim canister, and an 800mm discharge conveyor. The unit operates on 240V/3PH/60HZ power.

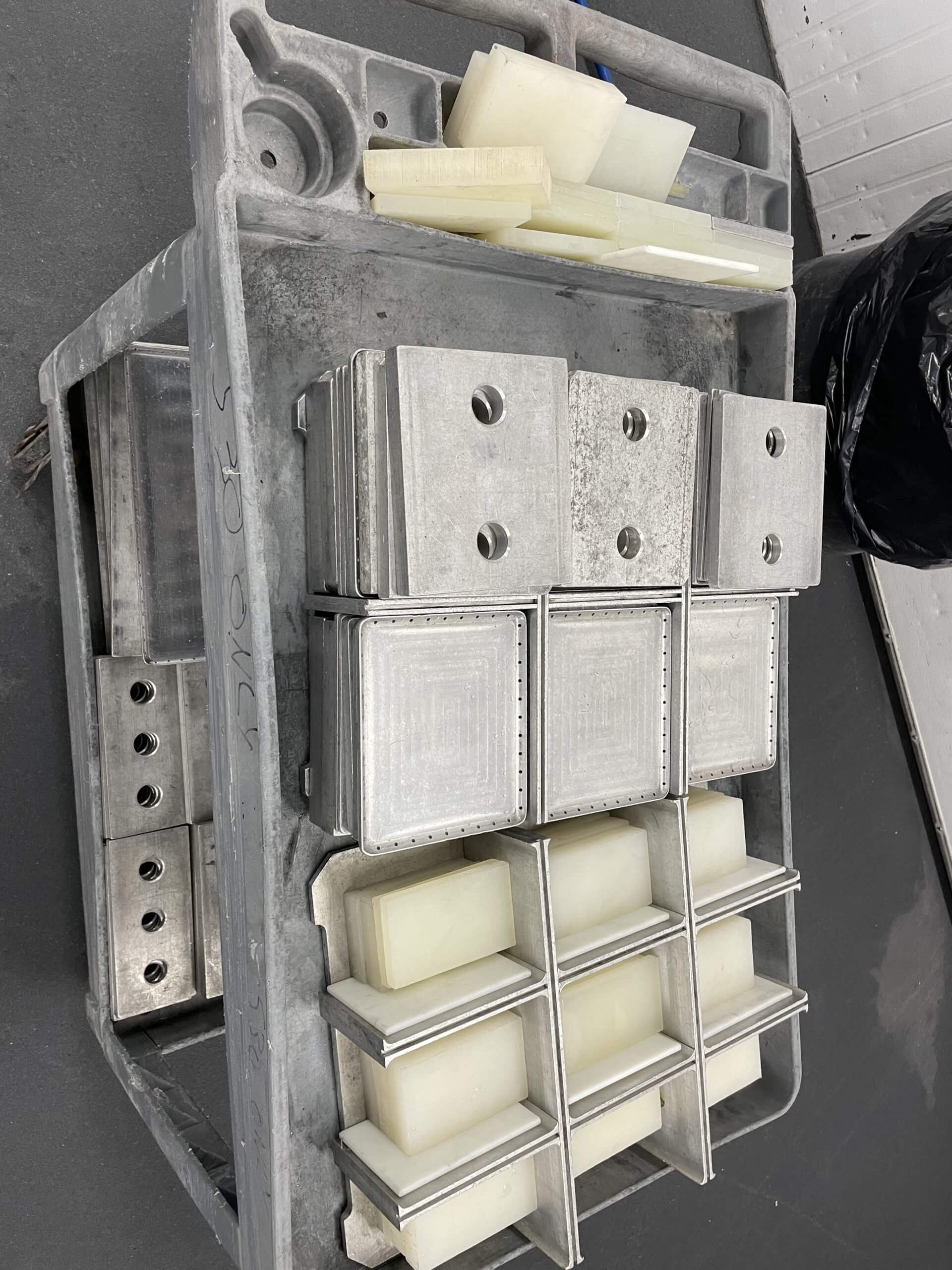

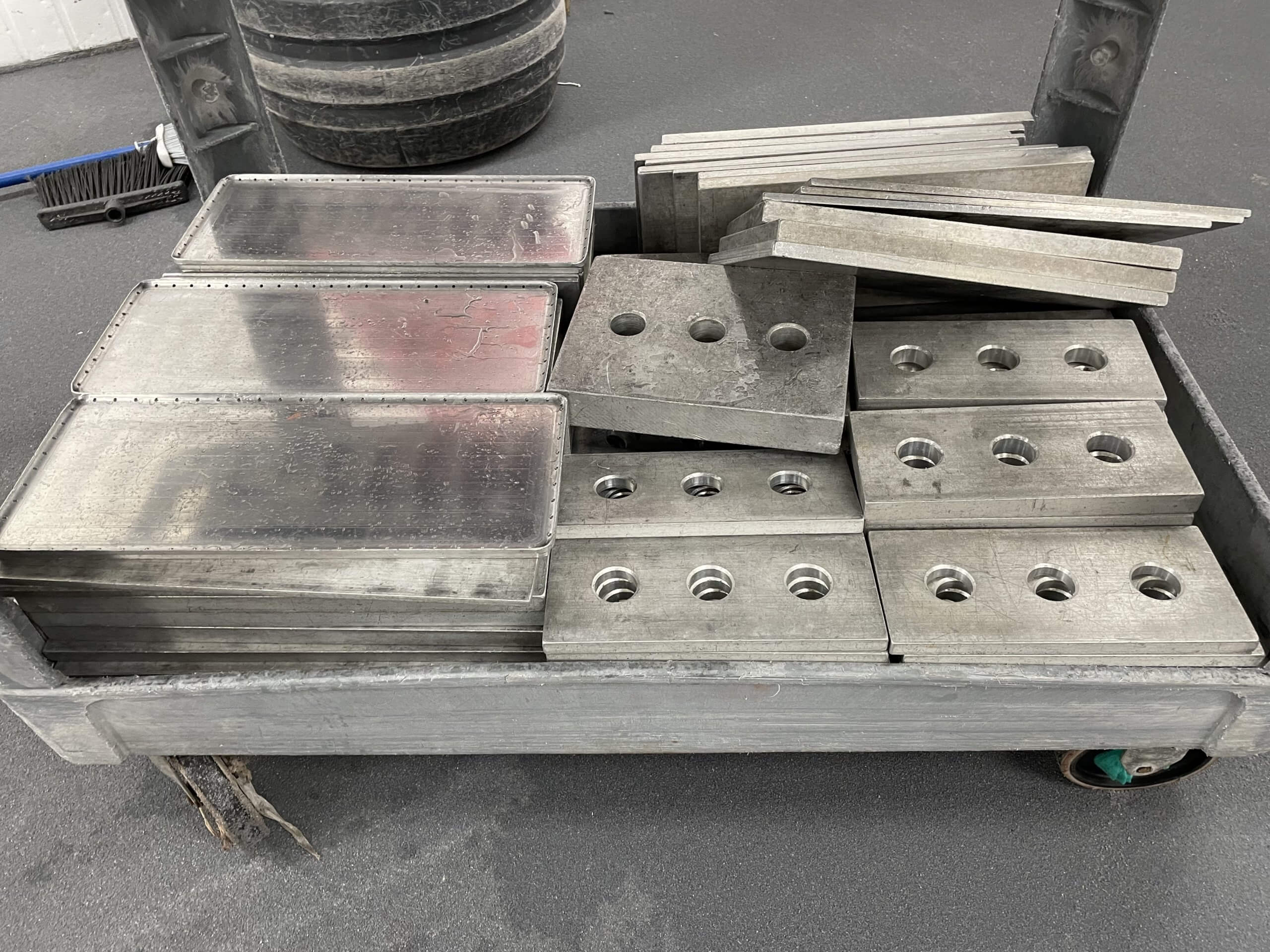

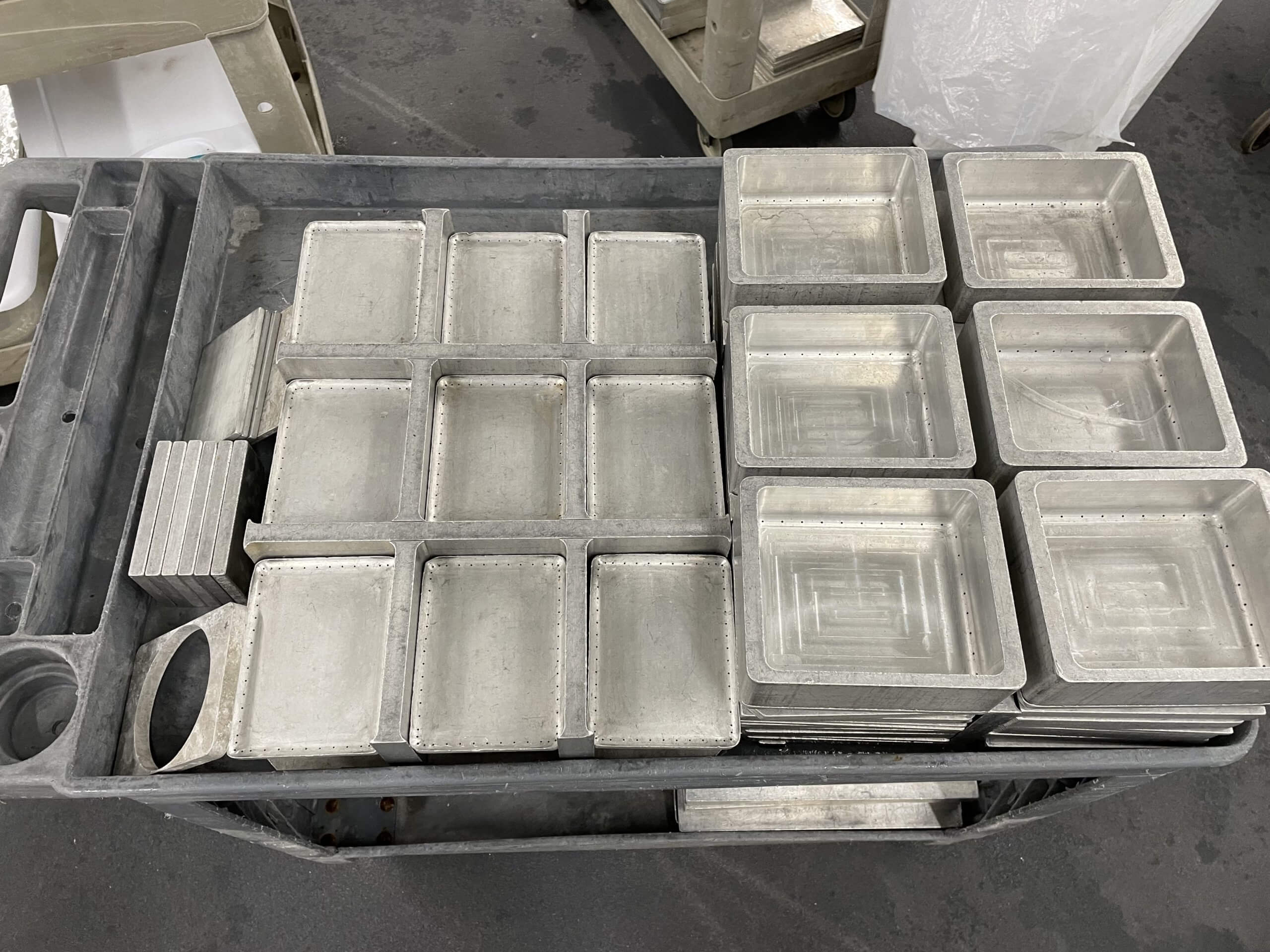

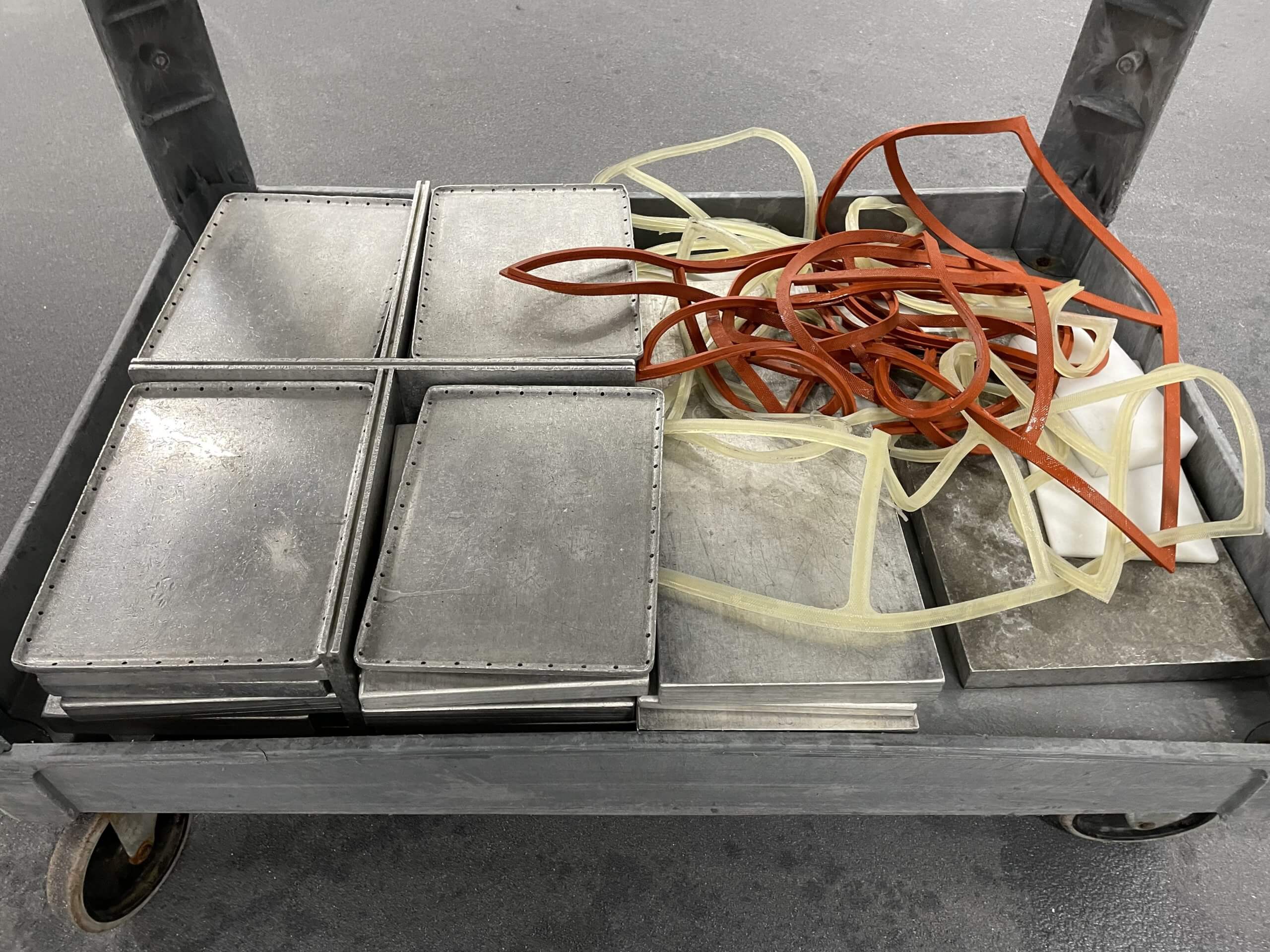

The machine offers six Vario configurations with specific package and forming dimensions. For example, Vario 1 provides a package size of 401 x 260 mm while Vario 6 results in a 133.67 x 173.33 mm package. Each configuration is designed for surface seal applications to accommodate different production needs.

The list of items not included with this machine consists of label applicators, the inkjet assembly, vacuum pumps, and the loading conveyor along with its VFD. Please contact M&M Equipment Corp for a quote to discuss these missing components or your specific production requirements.

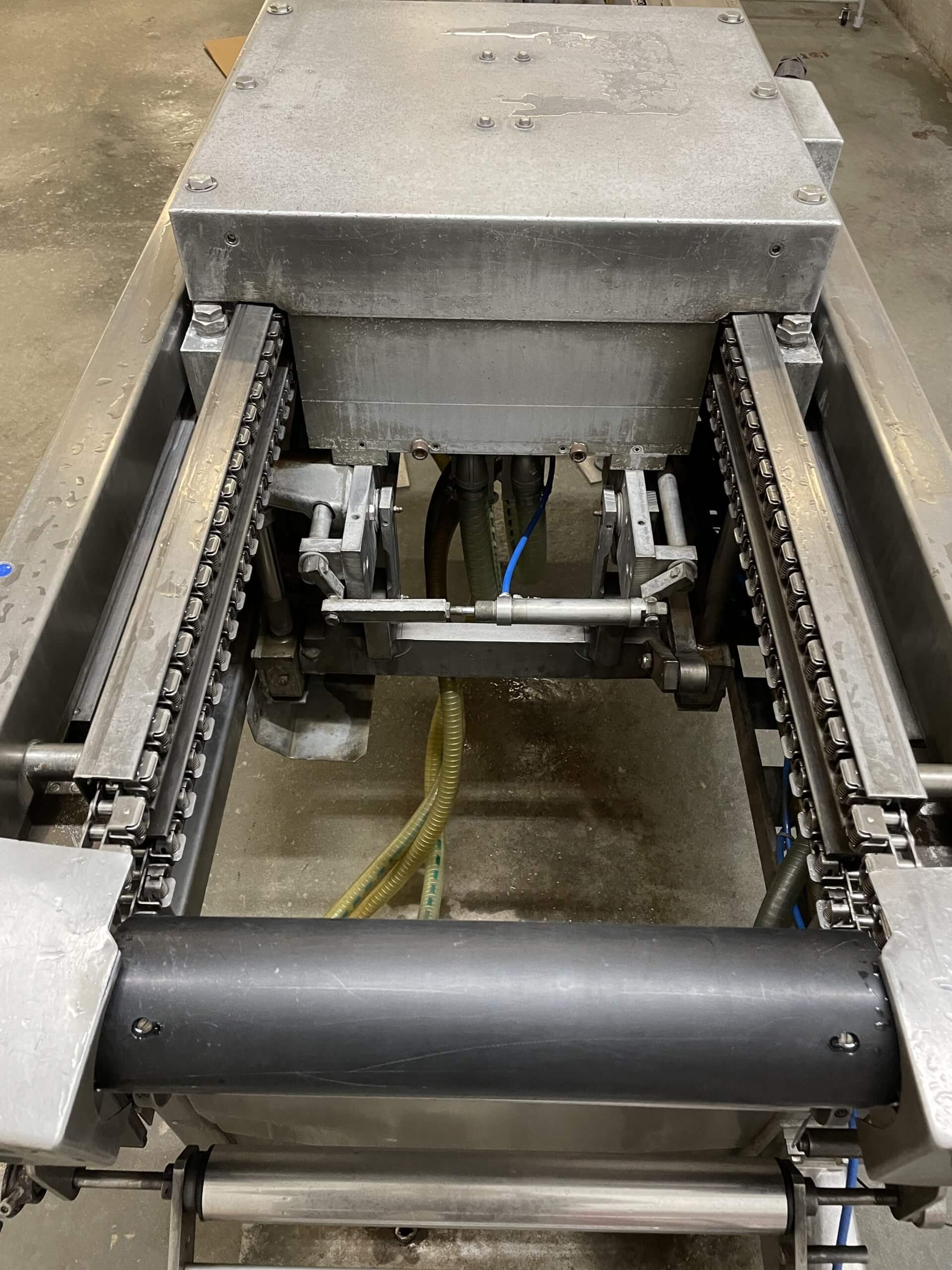

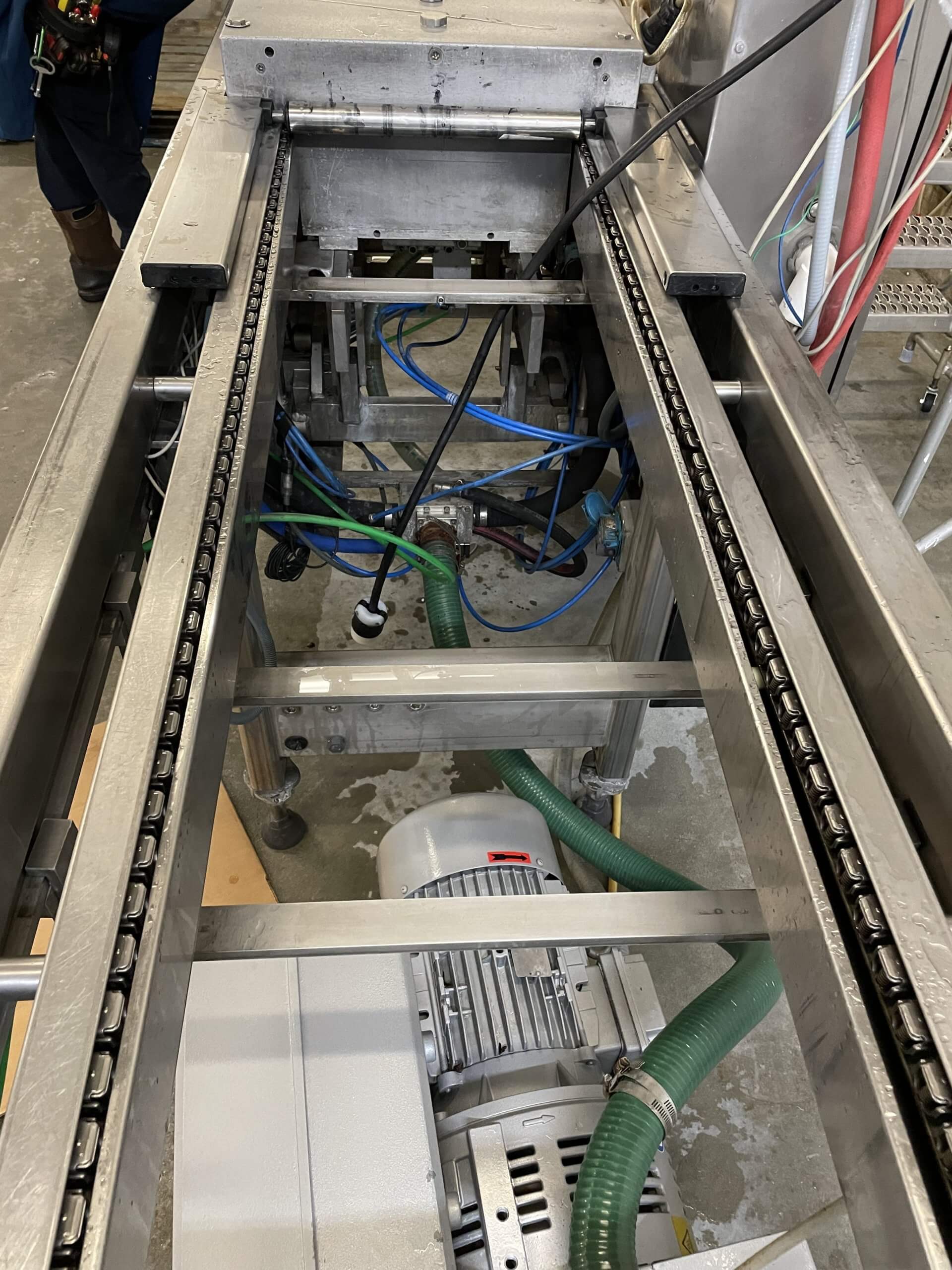

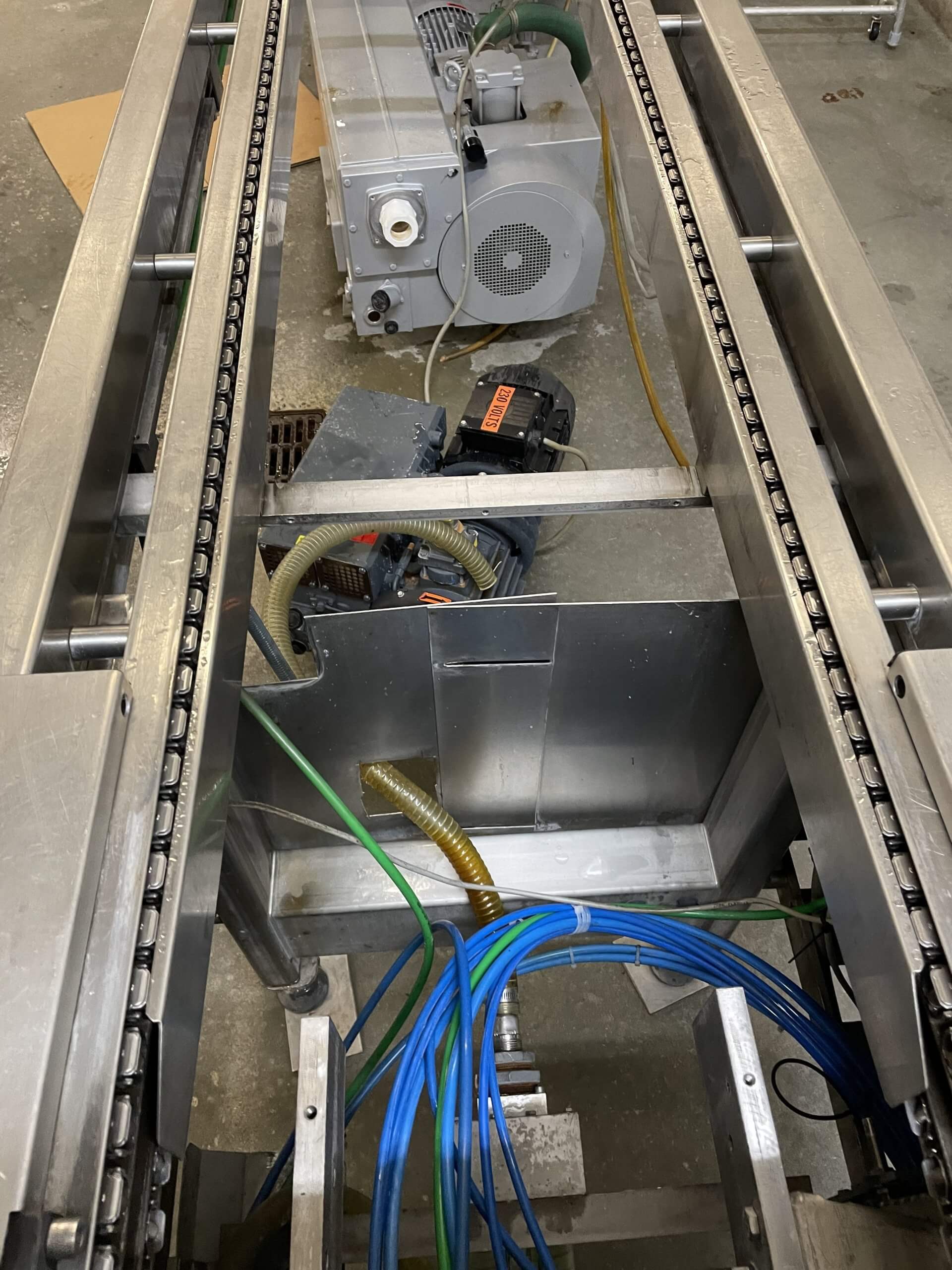

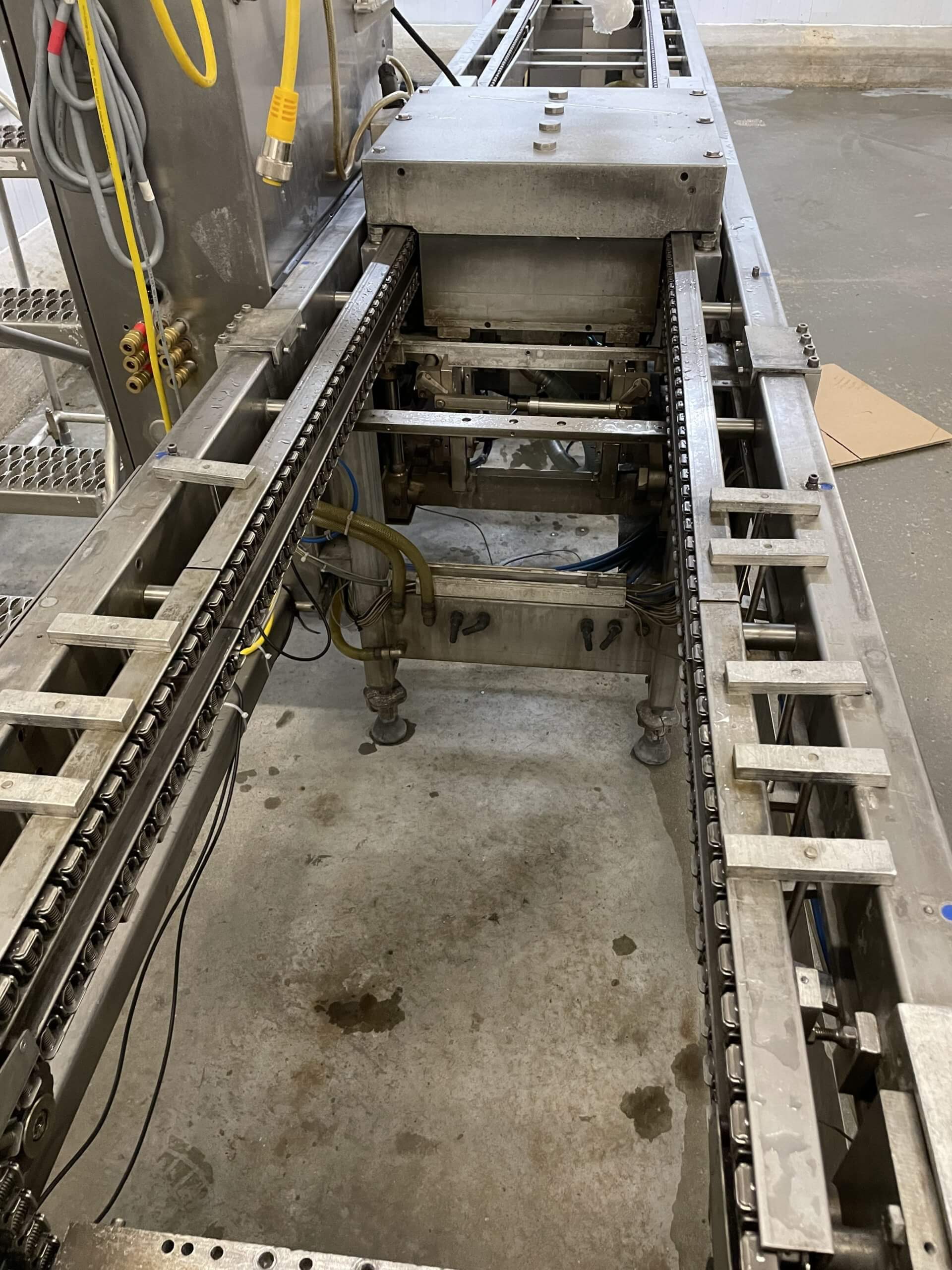

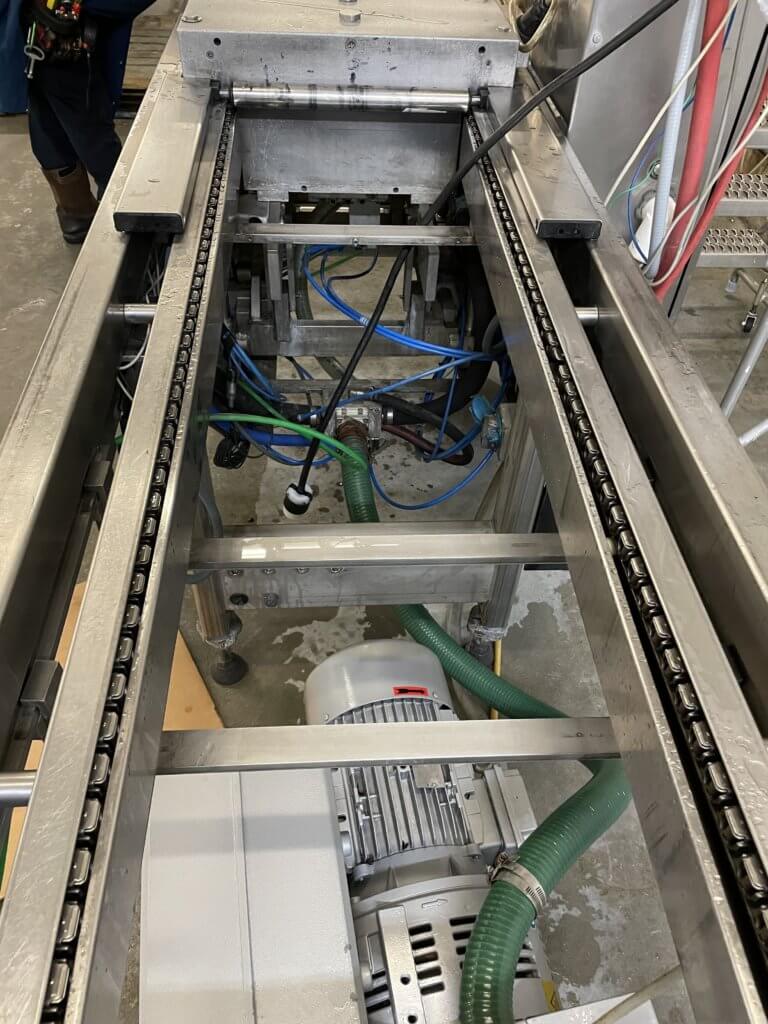

The gripper chains on this unit were replaced on 3/20/2021. This machine is currently listed as open for inquiry. Please contact our team to discuss the specific details and availability of this Multivac R 530.

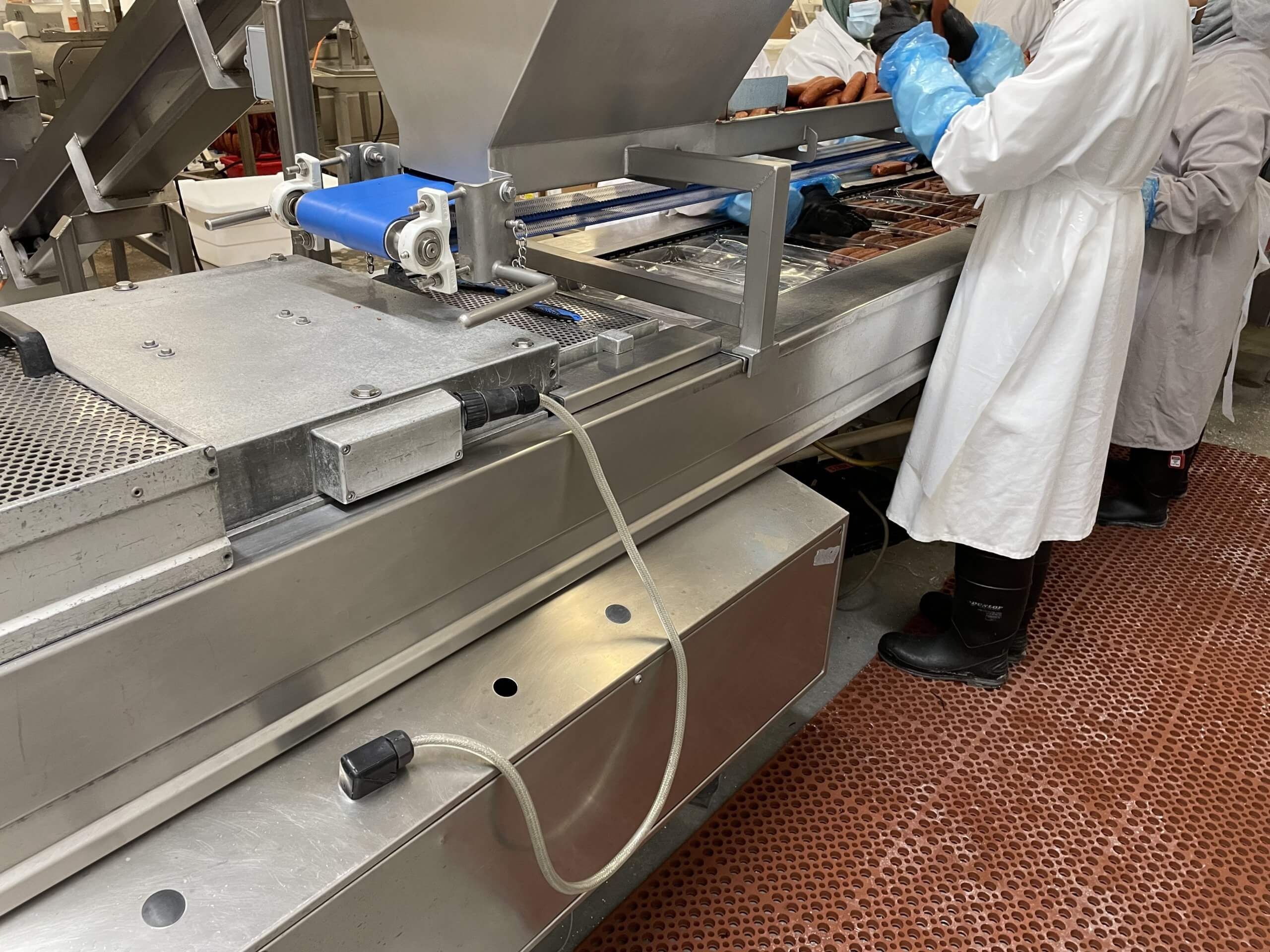

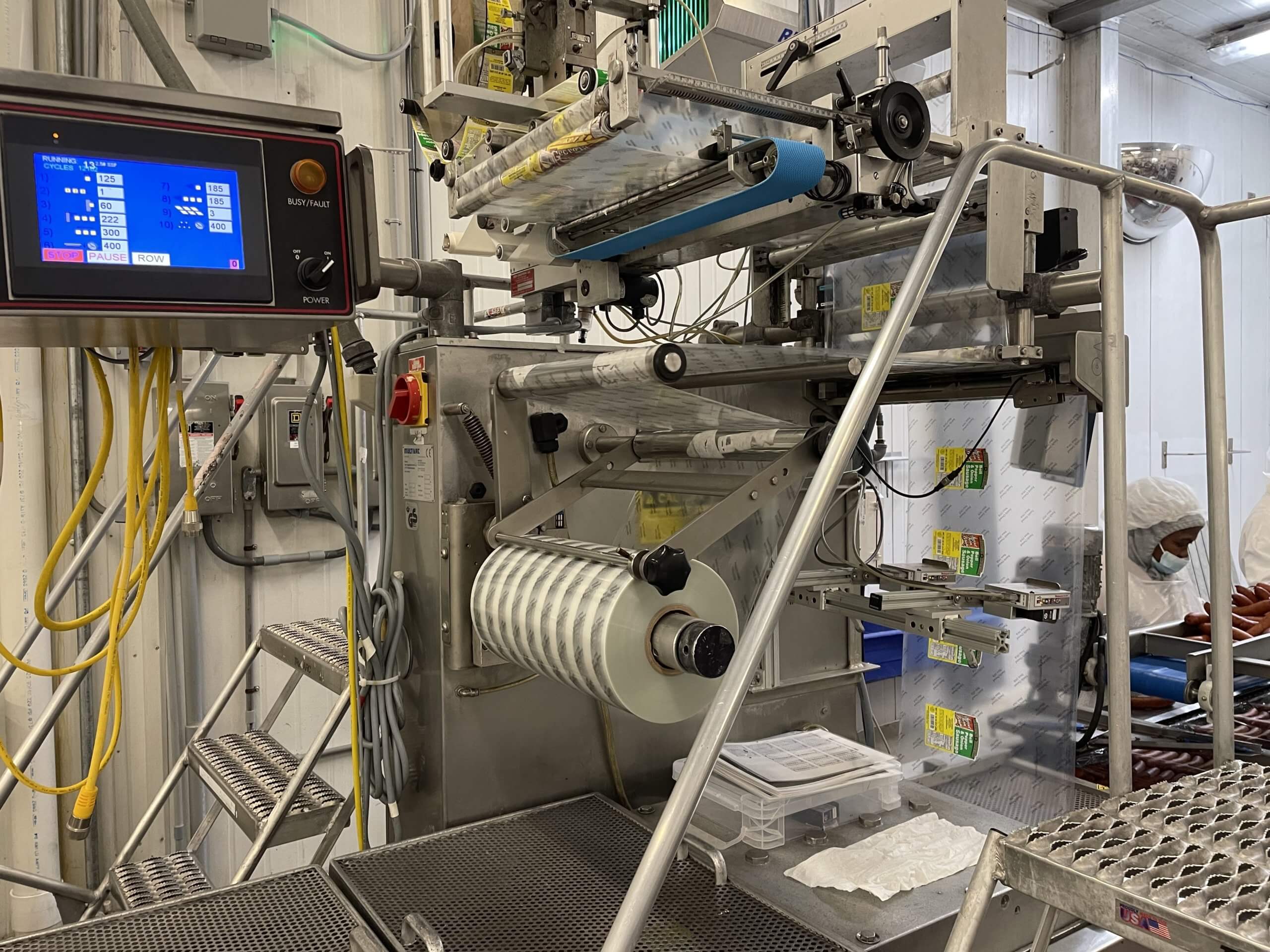

This machine was retrofitted in 2007 for use with top web printed film PEC. It is designed for industrial rollstock packaging applications across various industries, including meat, poultry, and dairy processing.
