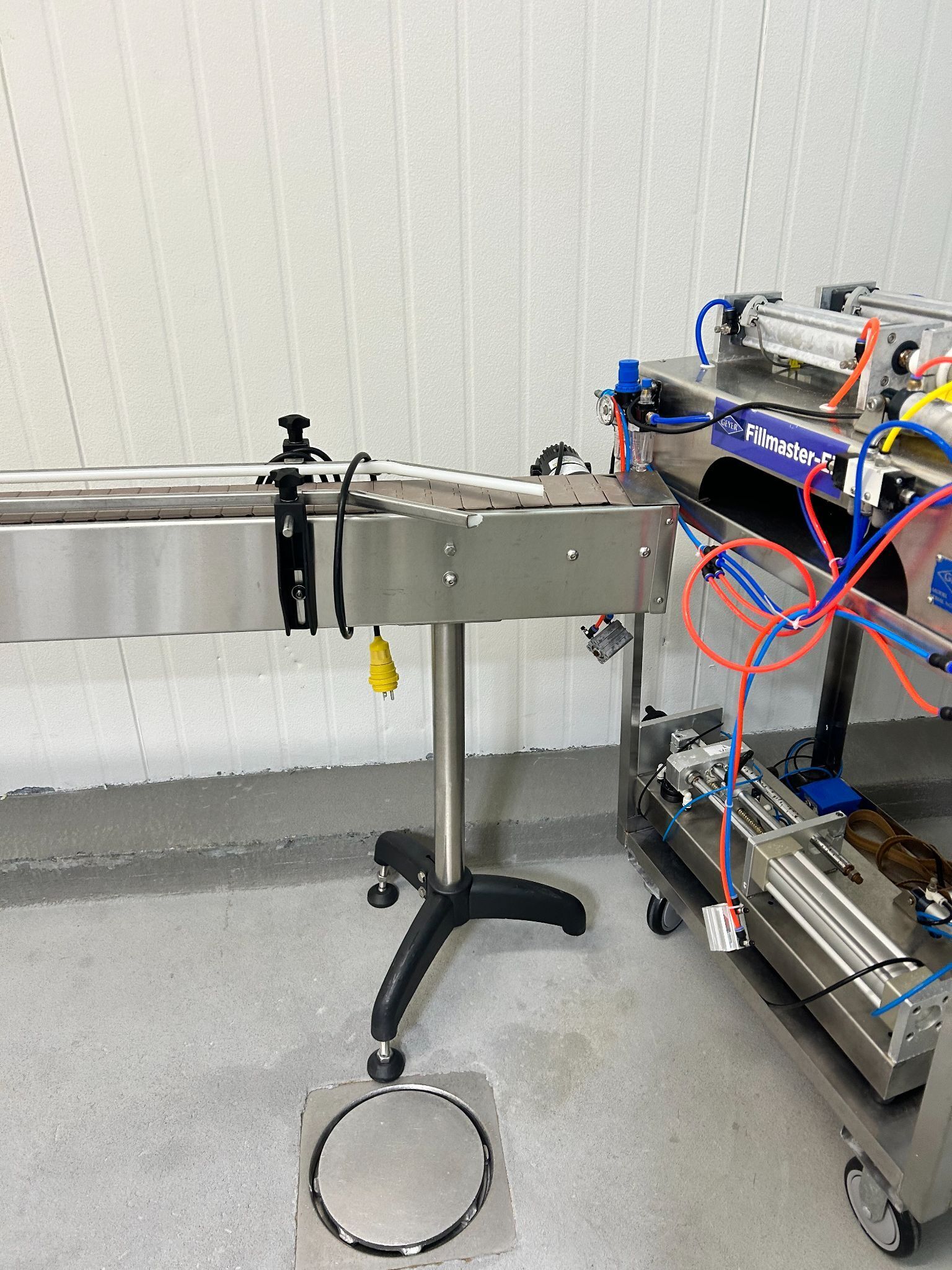

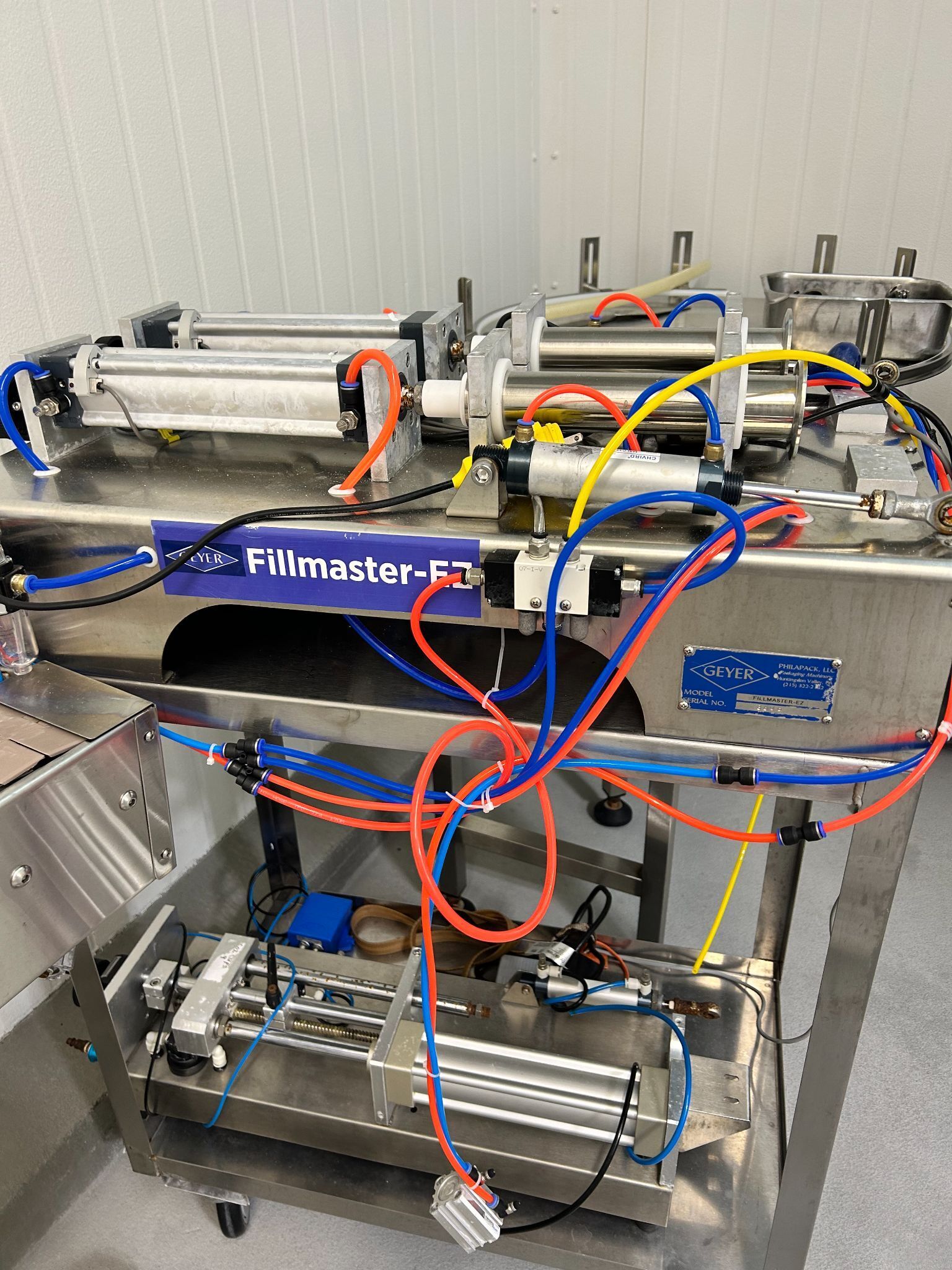

PHILAPACK FILLMASTER 5000 Piston Filler

The Philapack Fillmaster 5000 features all stainless steel construction and includes a 25 gallon conical hopper. This industrial filler is designed to handle various products in a commercial food processing environment. Please contact M&M Equipment Corp for a quote regarding this specific unit.

This machine contains (4) 8 fl. oz. capacity cylinders and pistons. It also features (4) positive cut-off filling nozzles to ensure accurate portioning during operation. These components help maintain consistency in your production line.

The utility requirements for this unit are 5-7 cfm @100 psi. The system utilizes an air filter-regulator-lubricator and air cylinders to drive both the pistons and the valve rotor.

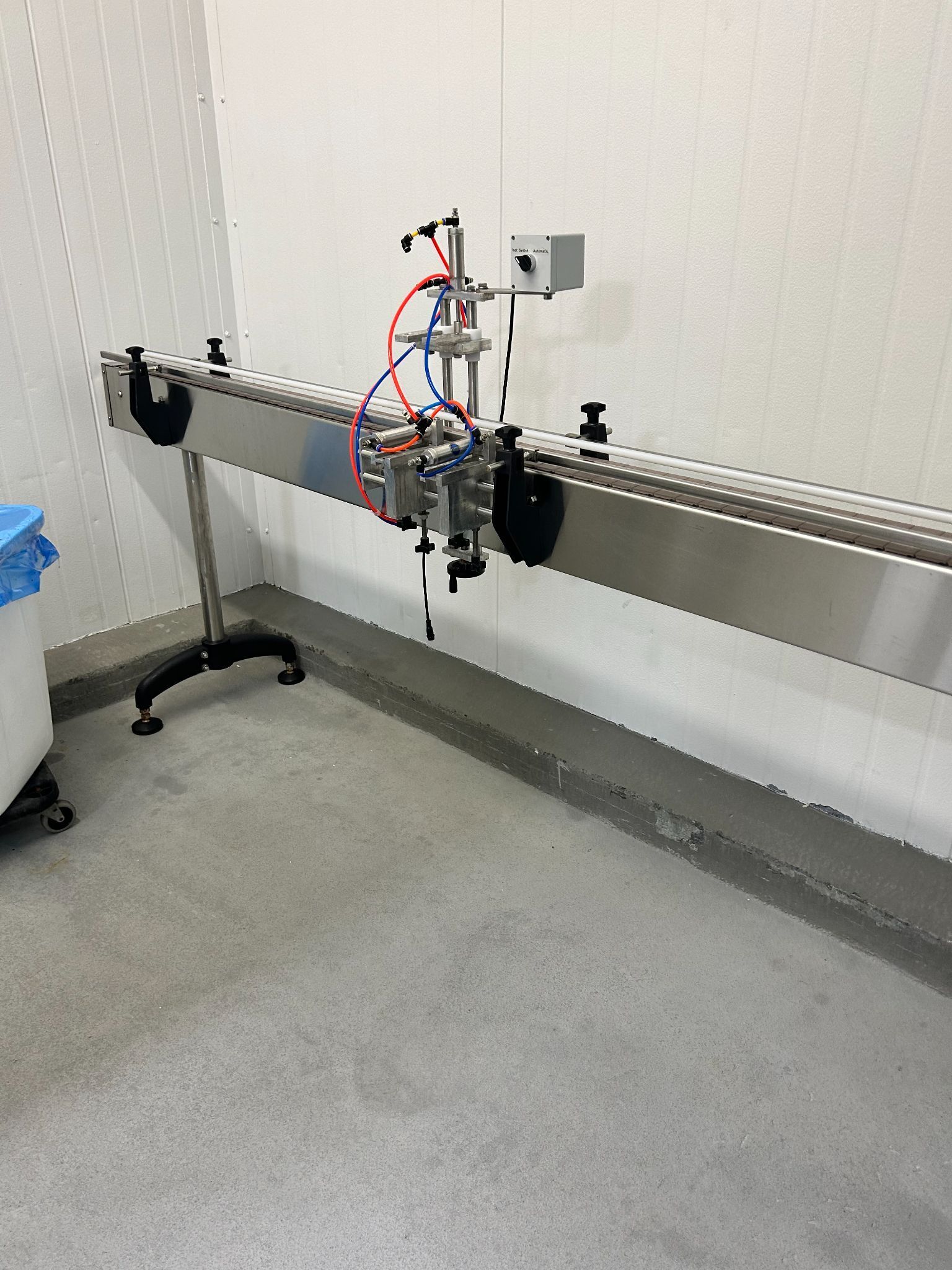

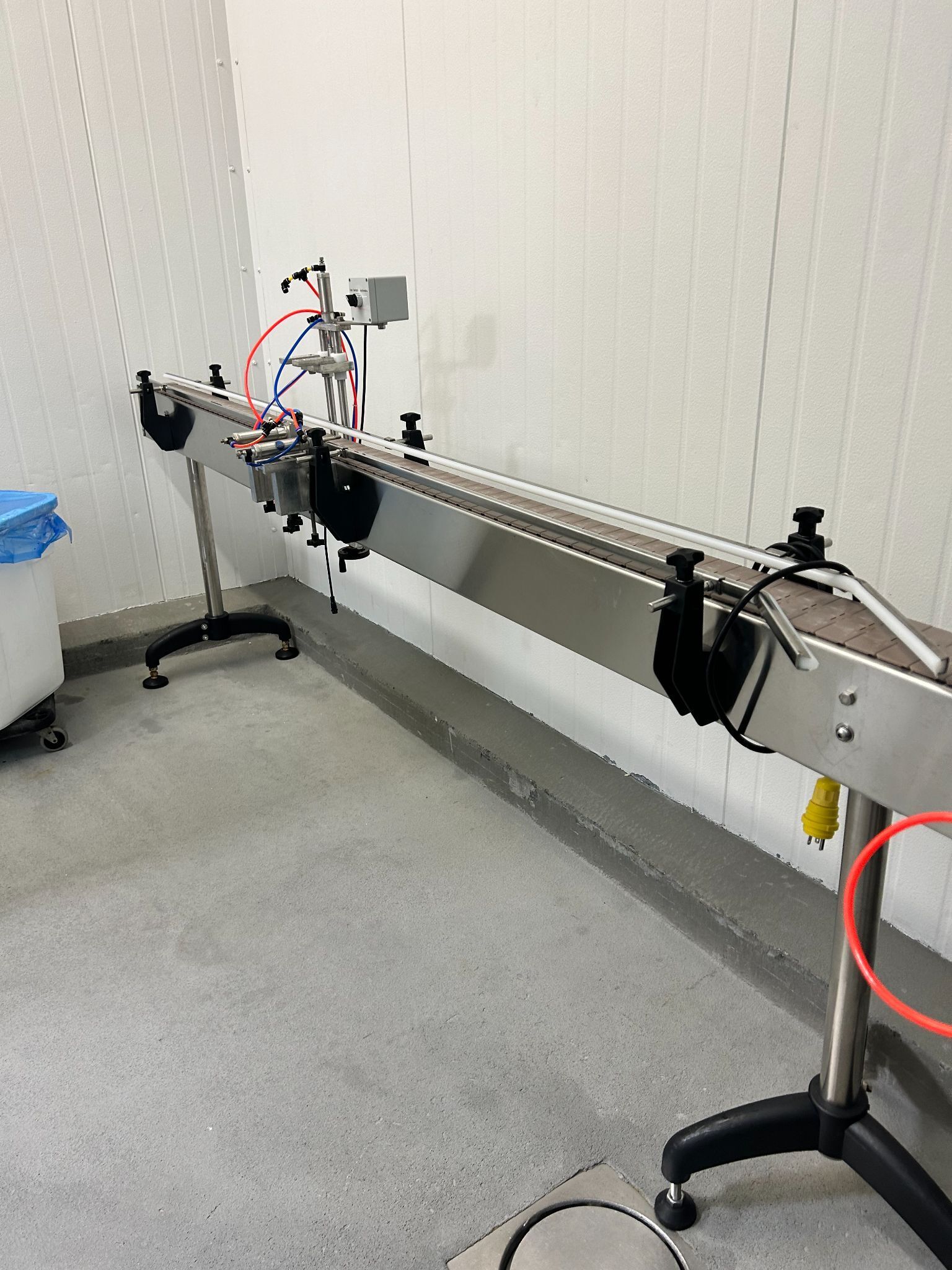

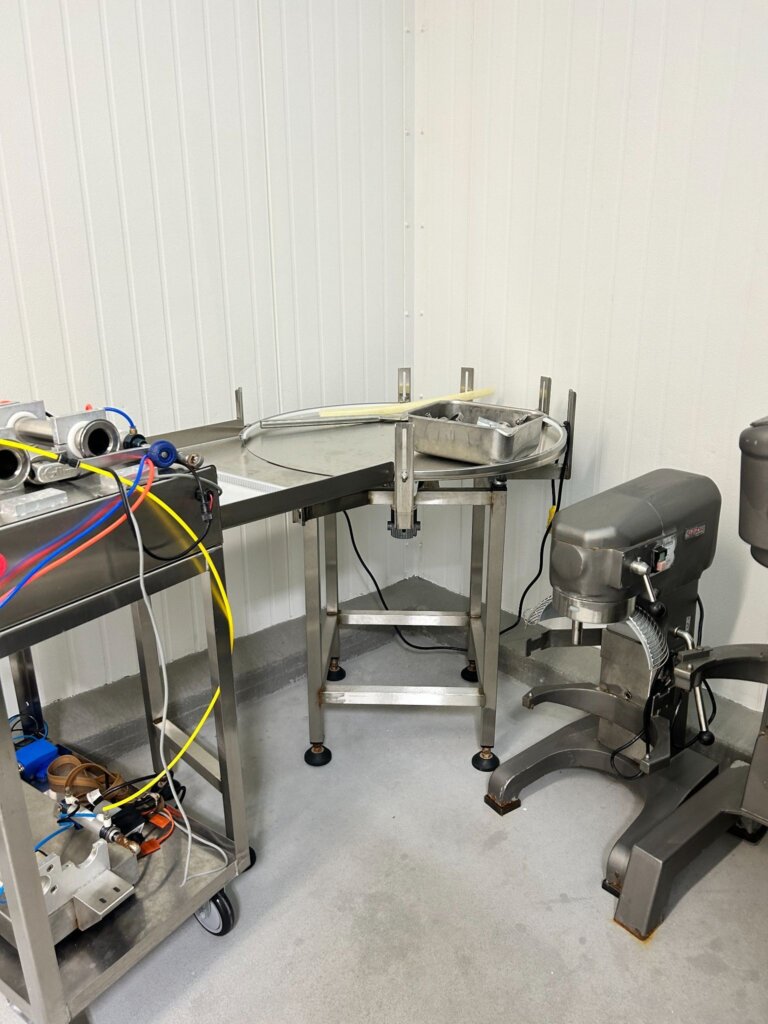

The system includes a rotary feed table with a 36" dia. disc, an automatic container indexing mechanism, and a micro-fill adjustment. It also features a 10ft x 4 1/2" wide stainless steel conveyor with a wash down drive.

The unit includes a diving nozzle mechanism for bottom up fill and a 3 way valve with PEEK valve rotor. These features support the processing of various materials in bakery, dairy, and meat production facilities.
