Proxes Mixing Tank

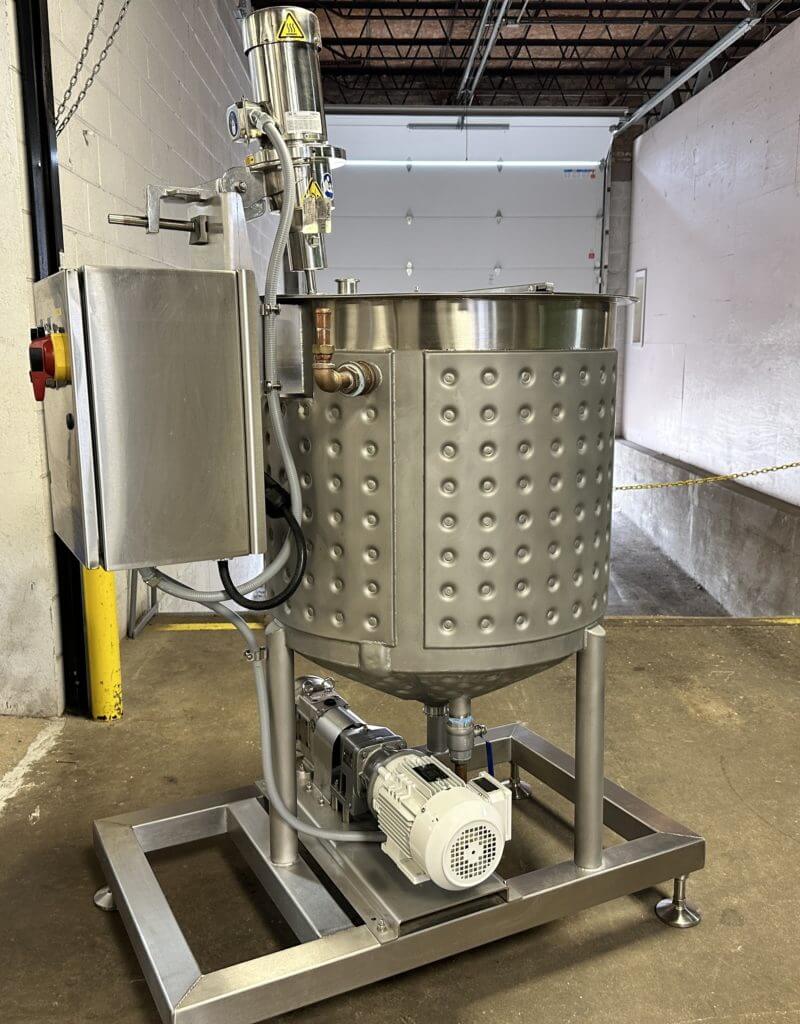

This tank features a 100 gallon (350 Liter) capacity. The unit has a 30" diameter and is 28" deep with a straight wall and a 5" deep cone bottom. It includes a 2-1/2" center outlet for operation. Please contact our team to discuss the specific dimensions and layout fit for your facility.

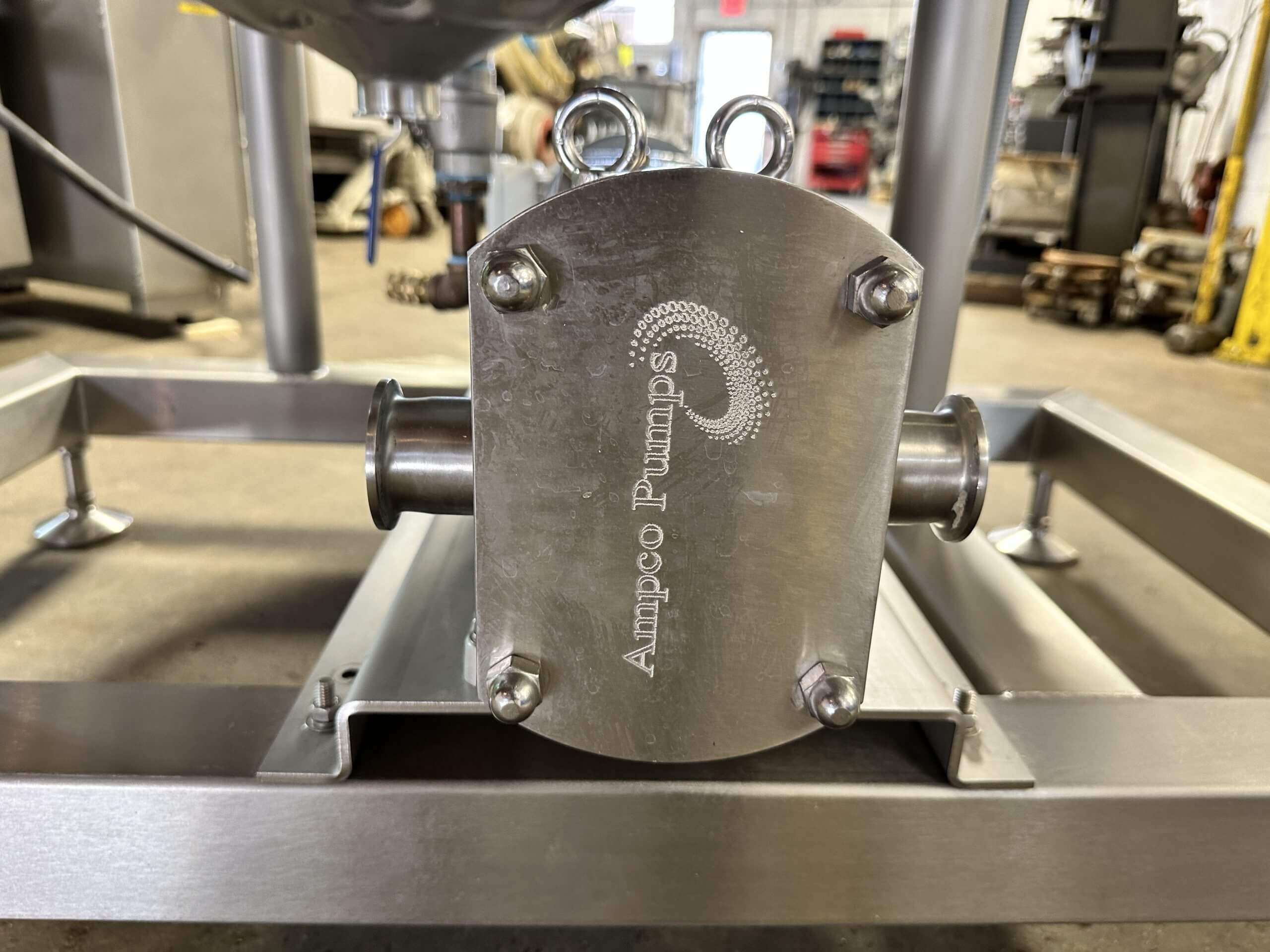

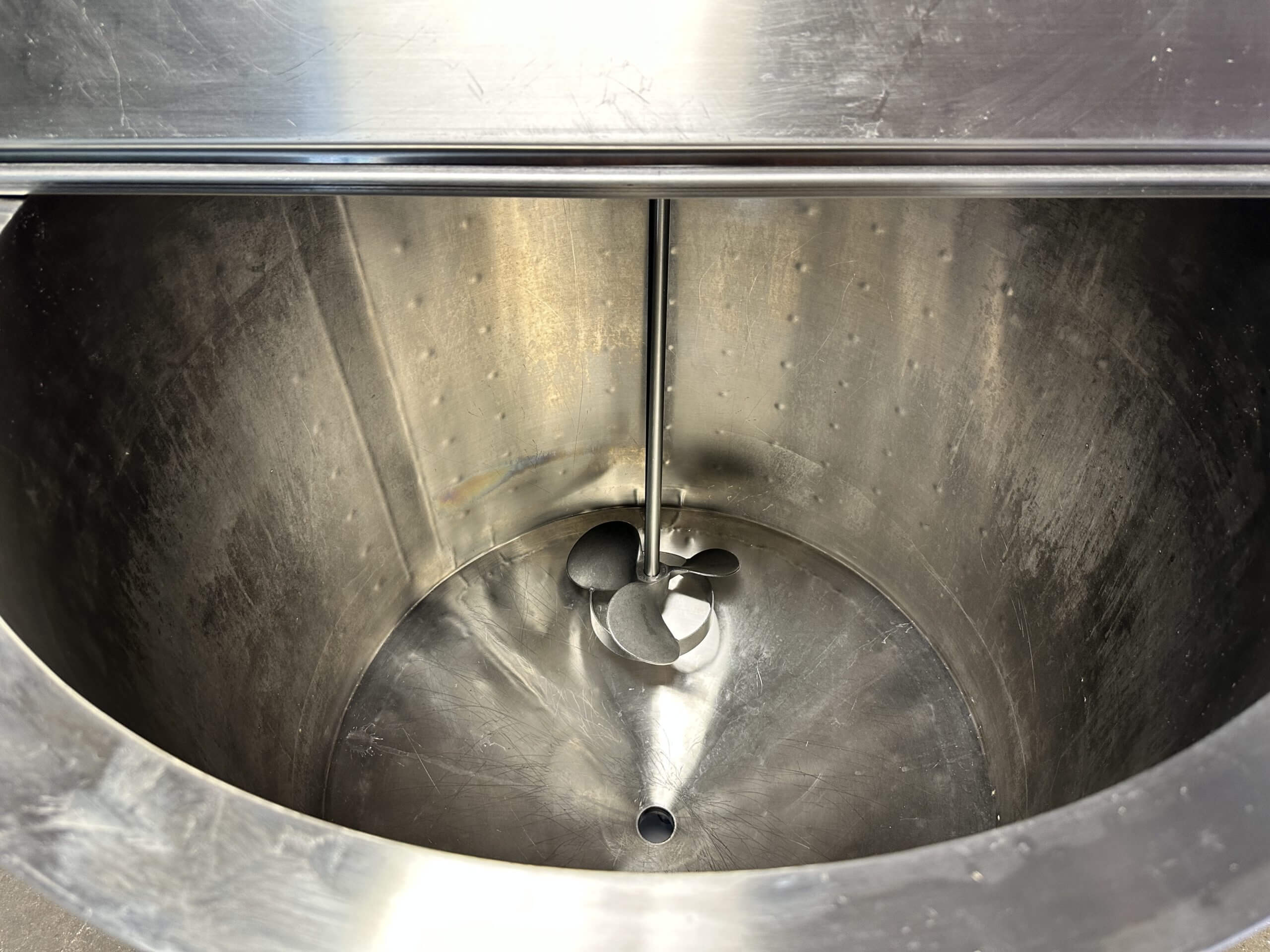

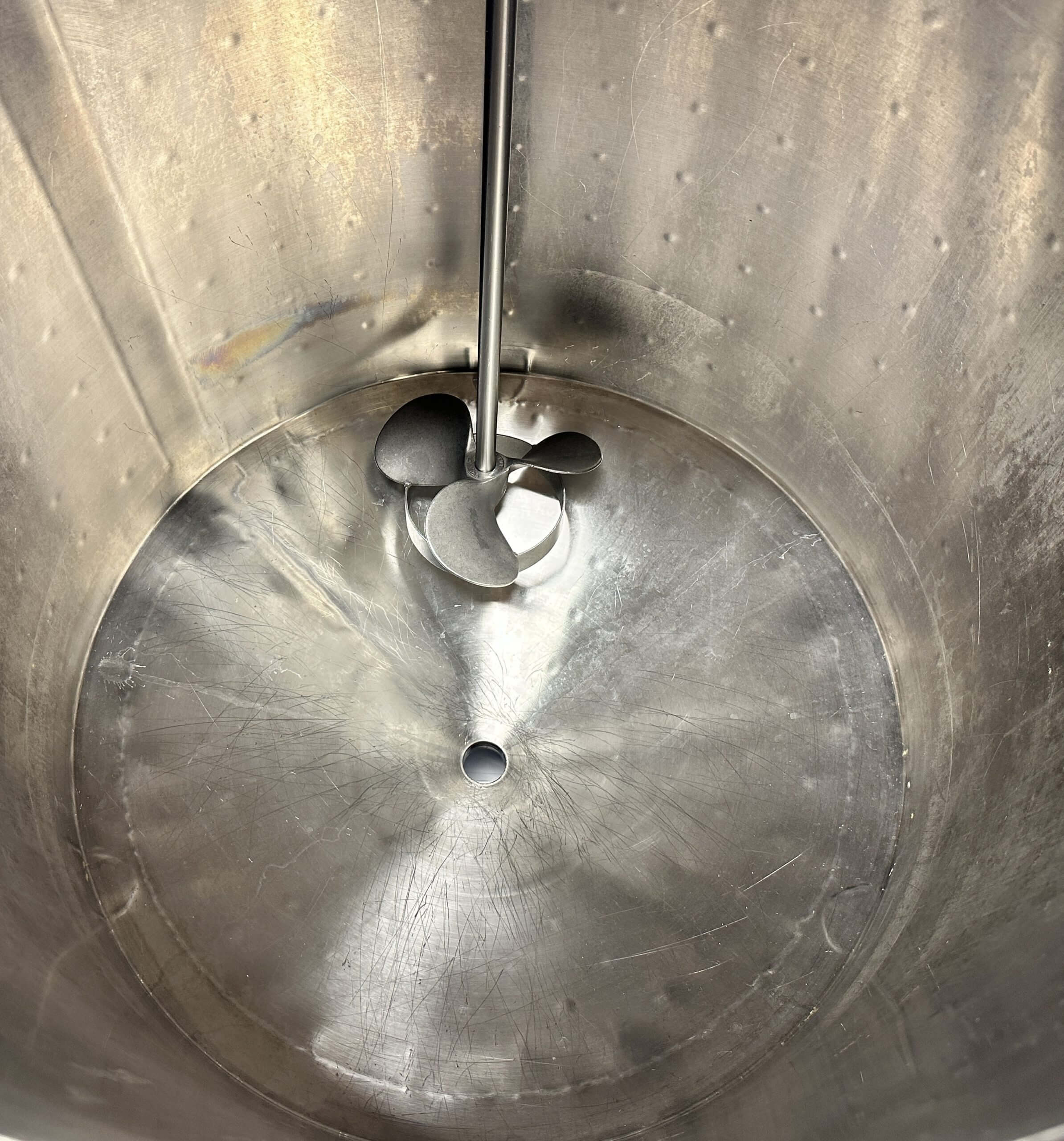

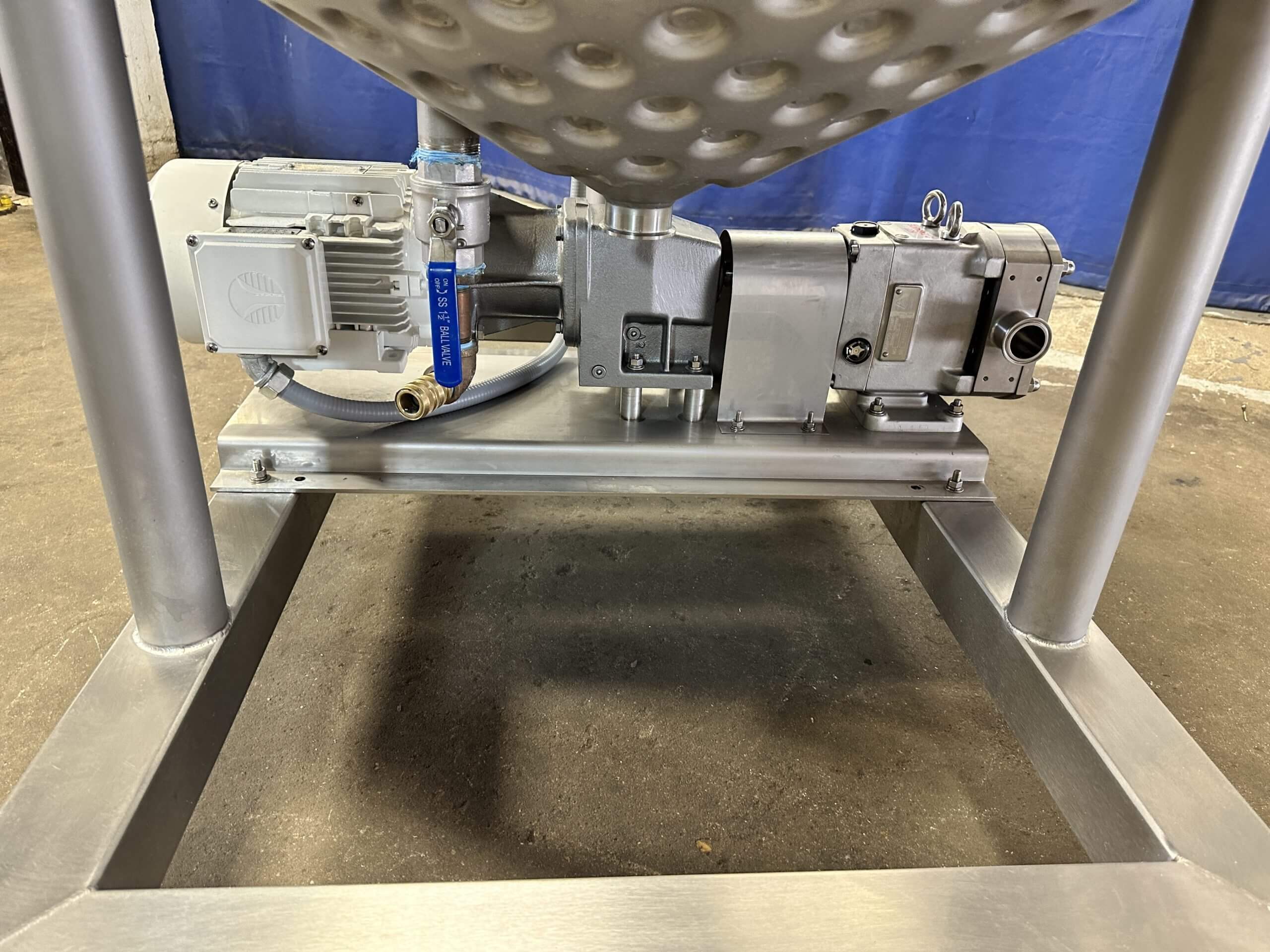

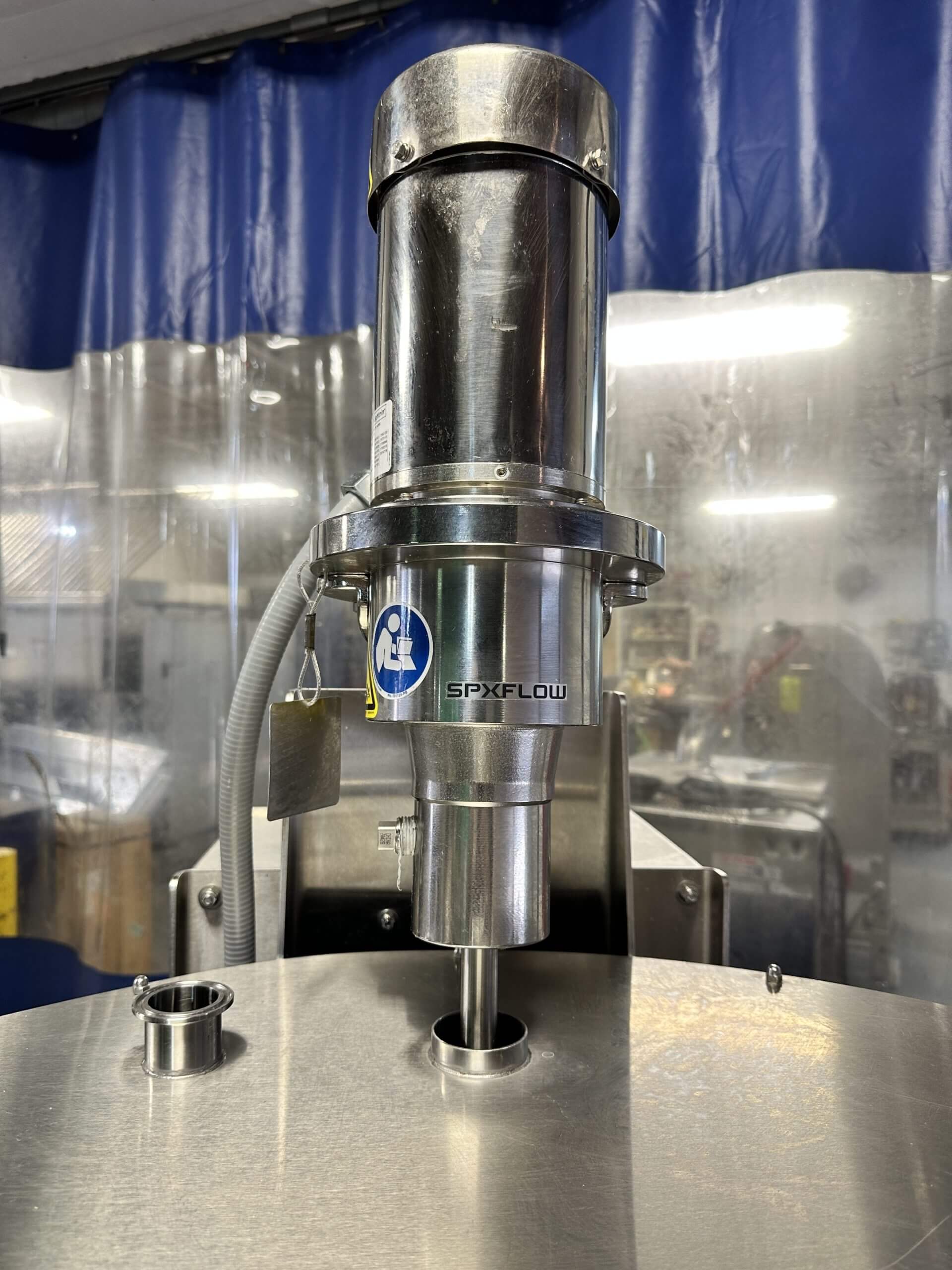

The system is equipped with an SPX, Mdl. MSP1 vertical mixer featuring a 3 blade propeller. For discharge, it includes a bottom mounted Ampco transfer pump powered by a 1.5 hp Techtop drive motor and Nord gearbox.

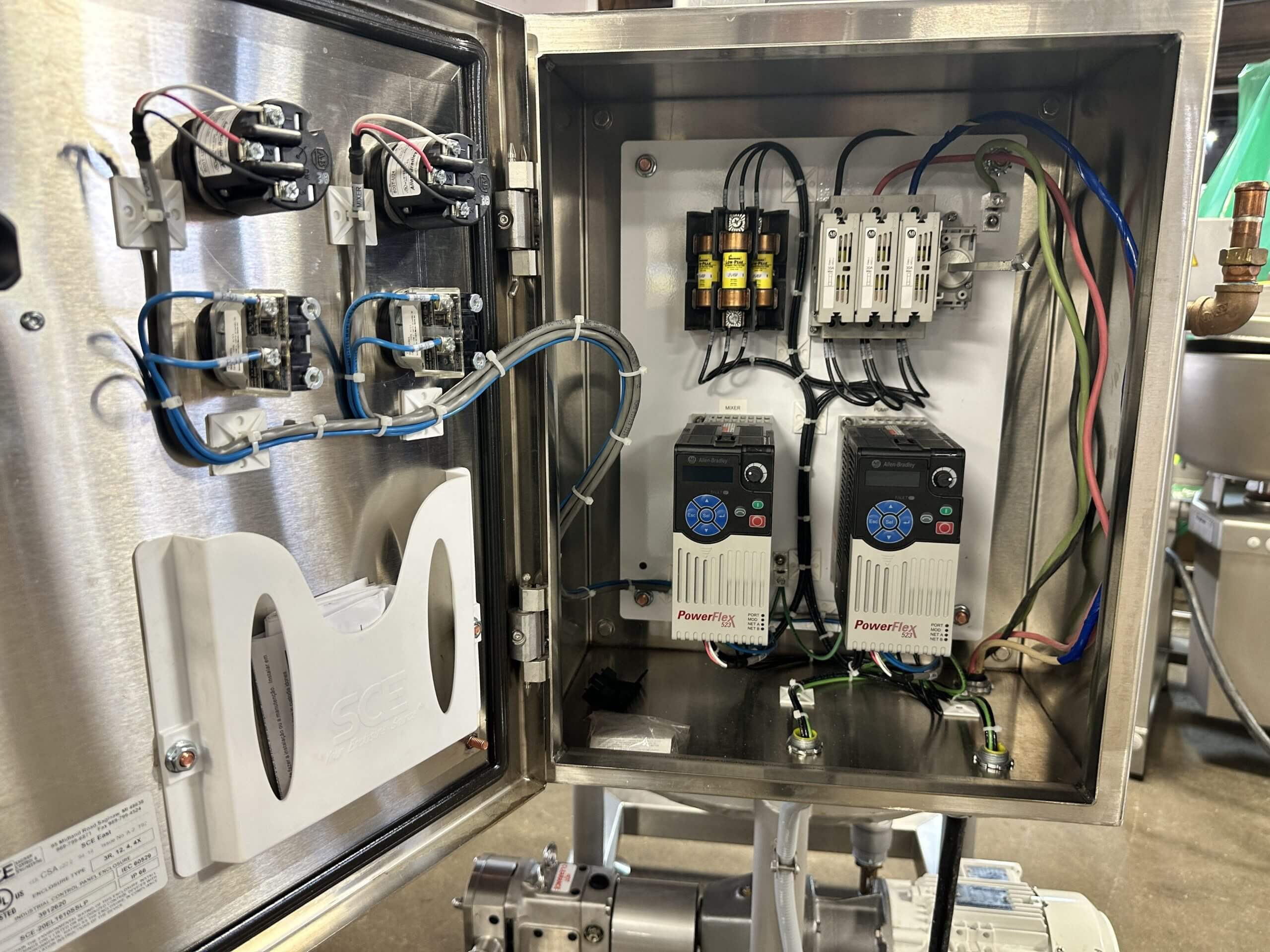

The unit operates on 440V/3PH/60HZ power. It features a stainless steel mounted control panel that utilizes dual Allen Bradley Powerflex 523 controllers to manage the equipment's operations.

Yes, the tank is designed with a dimpled jacket. This configuration allows for the circulation of either chilled or heated water to maintain precise temperatures during your food processing operations.

This specific unit is currently listed as closed. Please contact M&M Equipment Corp directly to discuss our current inventory and request a quote for other available industrial tanks that meet your production needs.
