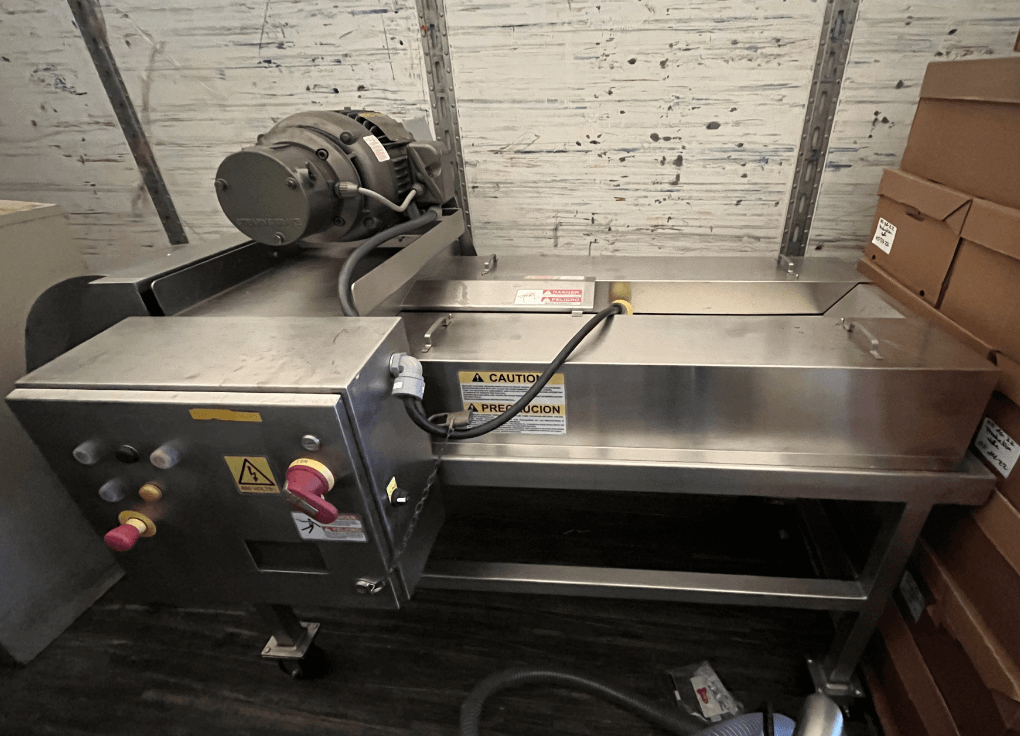

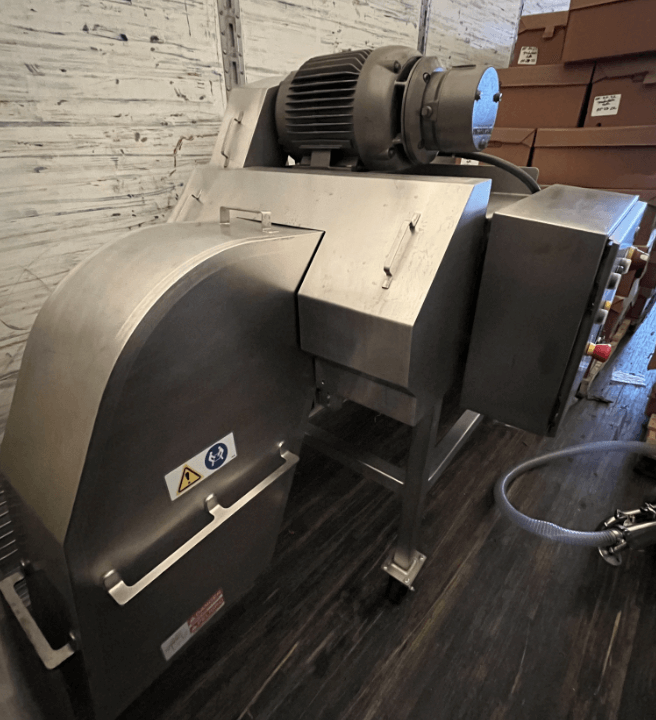

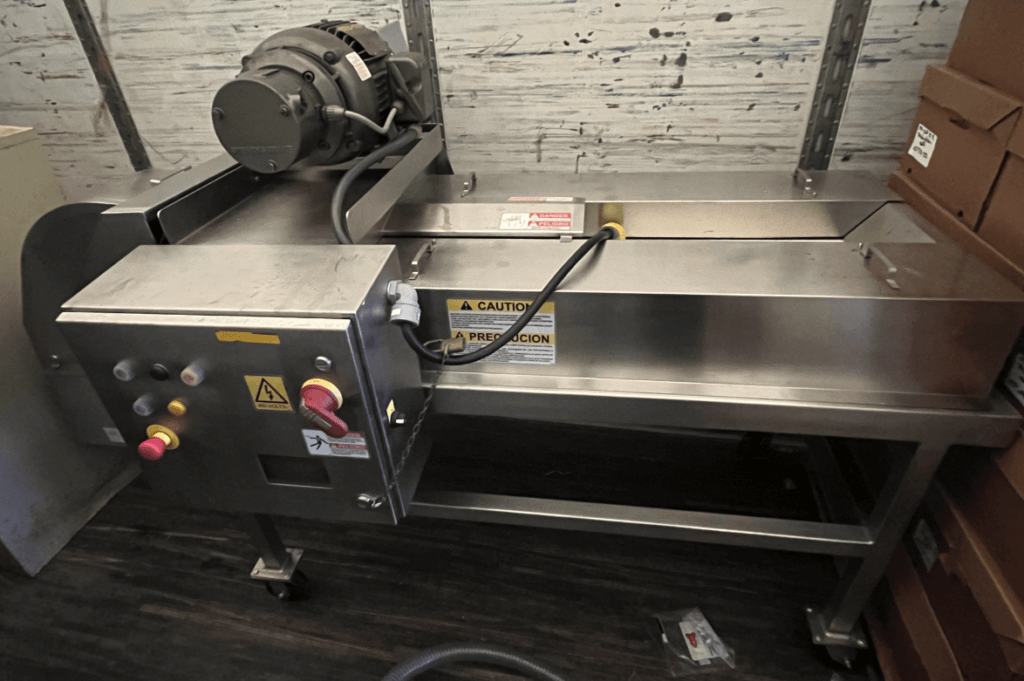

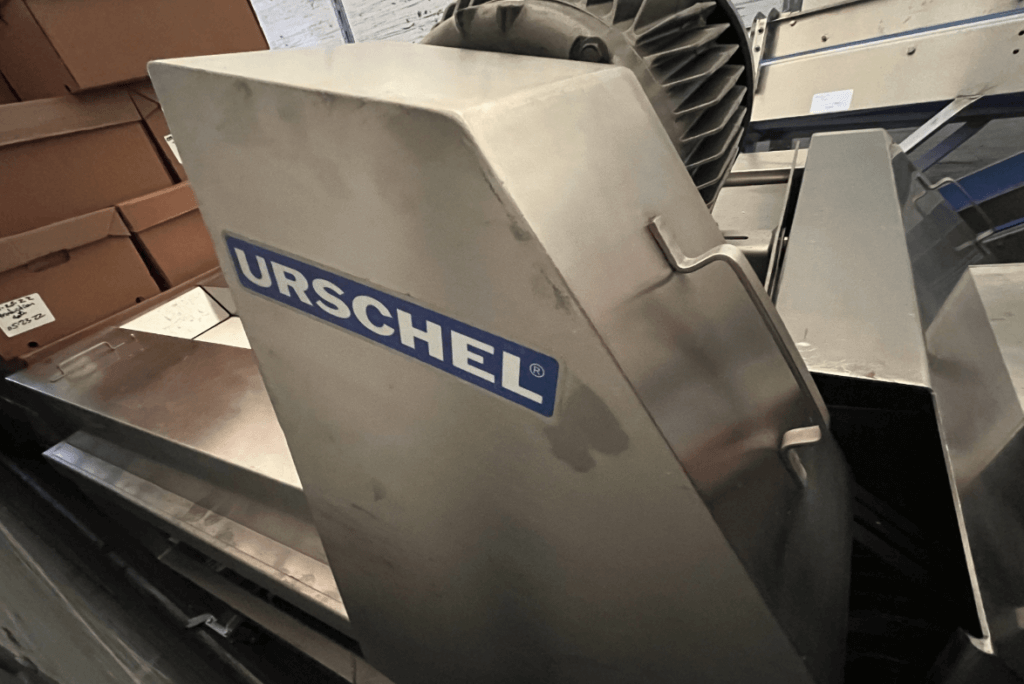

Urschel J9A Dicer
The Urschel J9A Is a versatile machine designed For Dicing or Strip cutting a variety of products including fresh & tempered Meats, Poultry and vegetables. The J9A operates continuously at high production capacities. Many sizes Strip Cuts are possible by combining various spindles & circular knife spacers. Circular Knife Cuts range from 3/16″ to 3″ with Crosscut Knife Cuts From 3/16″ to 3″. Maximum Infeed thickness is 3/8″. Length and thickness of strips cuts depend on the thickness of the product. Built-in 9-1/2 ” W x 40″ L neoprene Infeed conveyor belt. 11″ x 18-1/2″ S/S Discharge Chute. 15″ stainless steel discharge height frame, mounted on casters. 5 HP drive motor, 230/460V/3PH/60HZ.
Machine Includes the following:
CORD CONNECTOR, 90 DEG, ASSY, .75″-.88″
SPINDLE ASSEMBLY, CIRCULAR, 1/4″, J9-A
KNIFE, CIRCULAR, 4″, WIDE SERRATIONS
FEED PLATE, 1/4″, SS
FEED ROLL, 1/4″, SS, 5.6″ DIAMETER
SHEAR PLATE ASSEMBLY, 1/4″, SOLID EDGE
SPINDLE ASSY, CROSSCUT, 1/4″,12 KN, J9-A
Specifications
| Model | J9A |
| Item No. | 8659 |
| Manufacturer | Urschel |
| Condition |
Used
|
| Related Industries | Beef and Pork Pet Food Equipment Poultry Vegetable |
| Equipment Categories | Dicers |
| Brochure/Manual | Download |
