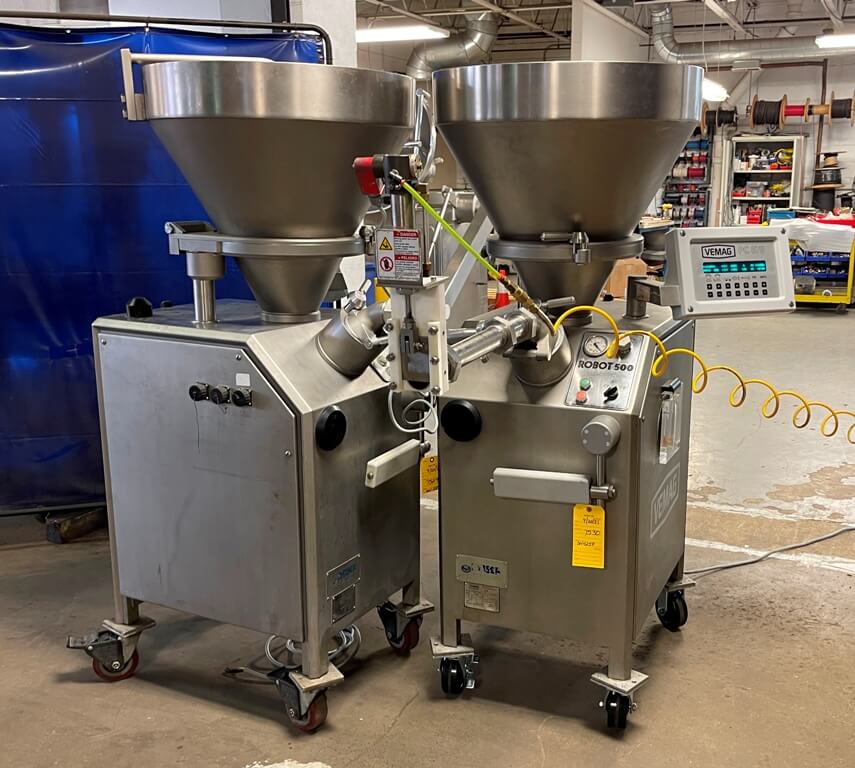

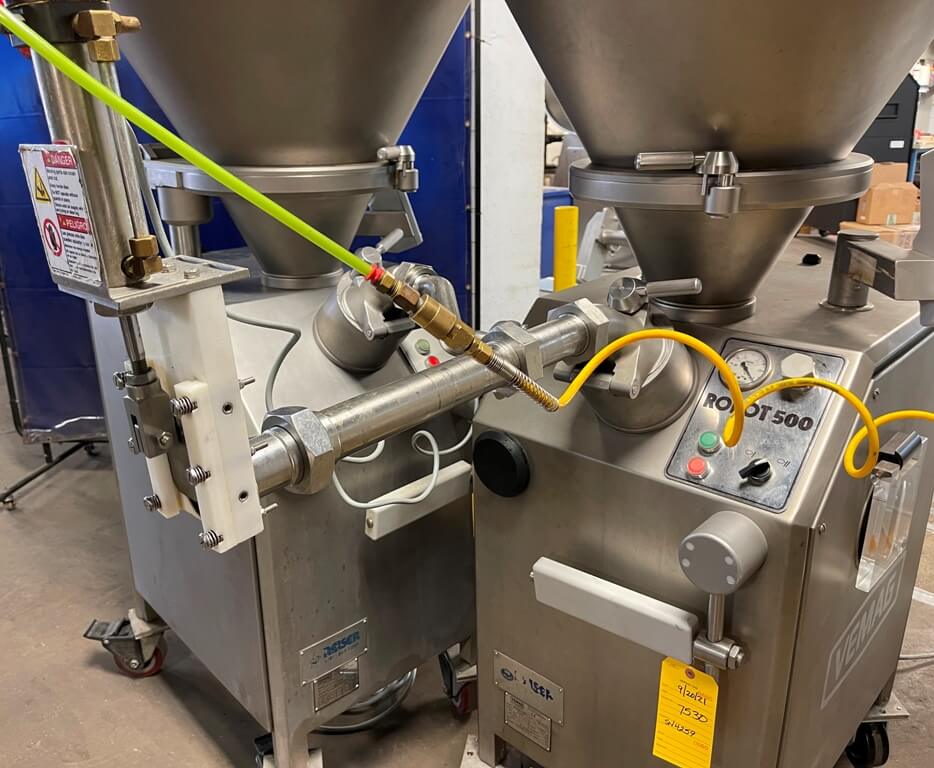

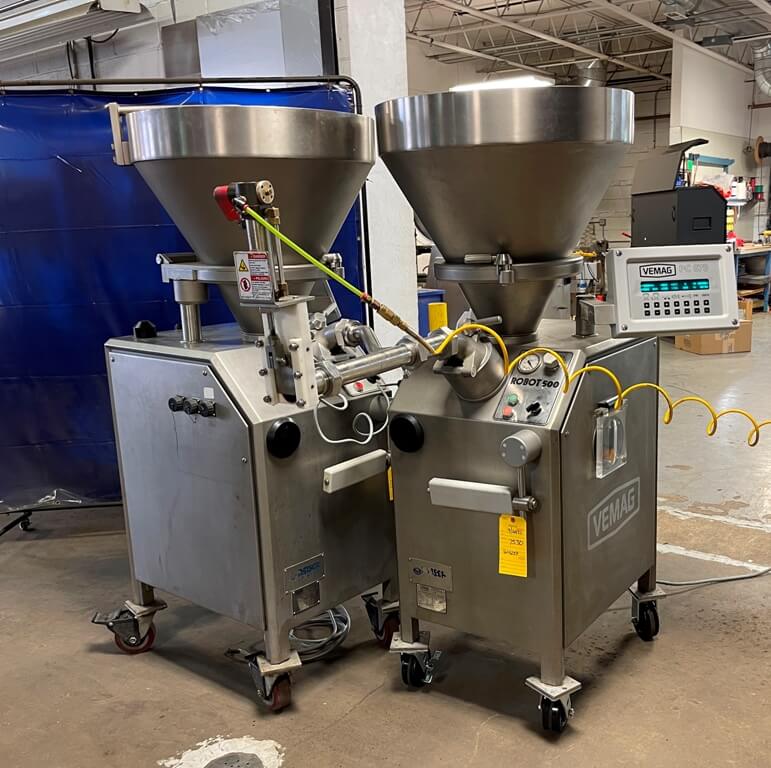

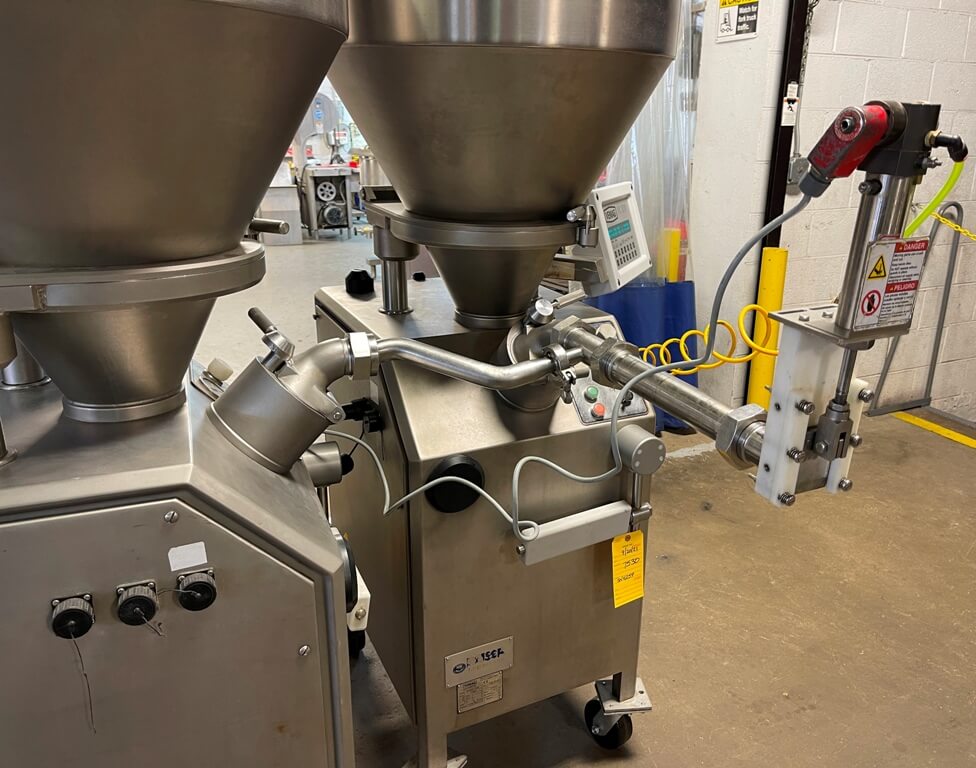

Vemag 500 Co-Extrusion System

This system produces an endless assortment of filled taquitos, tamales, and other filled ethnic foods. By using two Vemag 500 vacuum fillers in tandem, the equipment ensures accurate portion size and weight for these products. An optional cutting device can also be utilized to cut the finished product into uniform lengths with open ends.

The equipment features a fill rate of up to 2,500 kg/h and a portion speed reaching up to 450 portions per minute. It is equipped with a 110 liter capacity hopper and includes 48 mm pitch double screws for the operation.

The first Vemag unit supplies the product's outer shell, which is typically a dough product. The second Vemag unit then provides the filling, which is accurately positioned within that shell. This dual-machine configuration allows for consistent production of filled items in industrial food processing environments.

The system operates on 220V/3ph/60Hz and requires 17.8 Amps. It features a PC 878 Digital control panel to manage the operation of the vacuum stuffers.

Yes, you can view more information regarding this equipment via the link here: Vemag Robot 500 Bakery Brochure.
