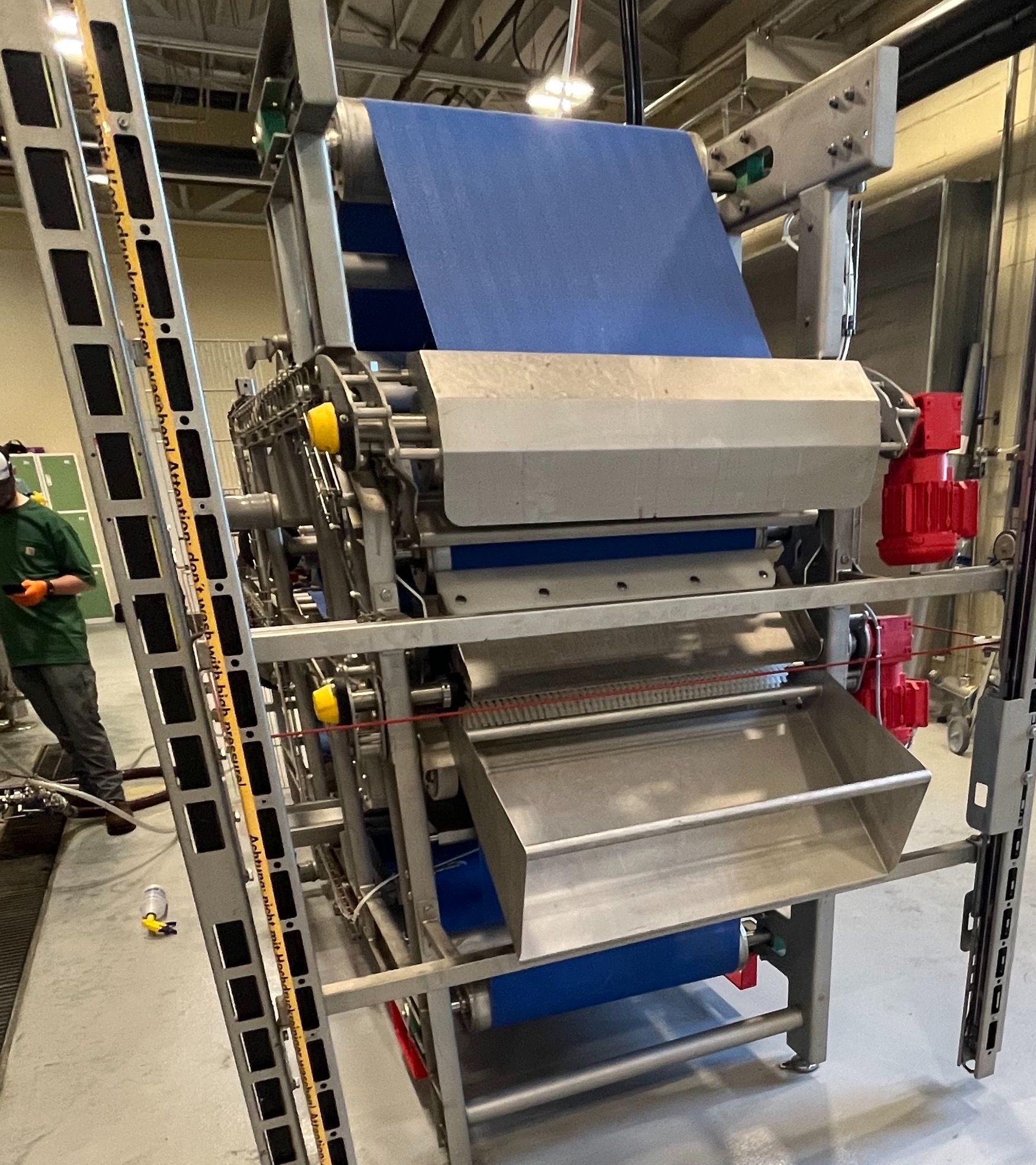

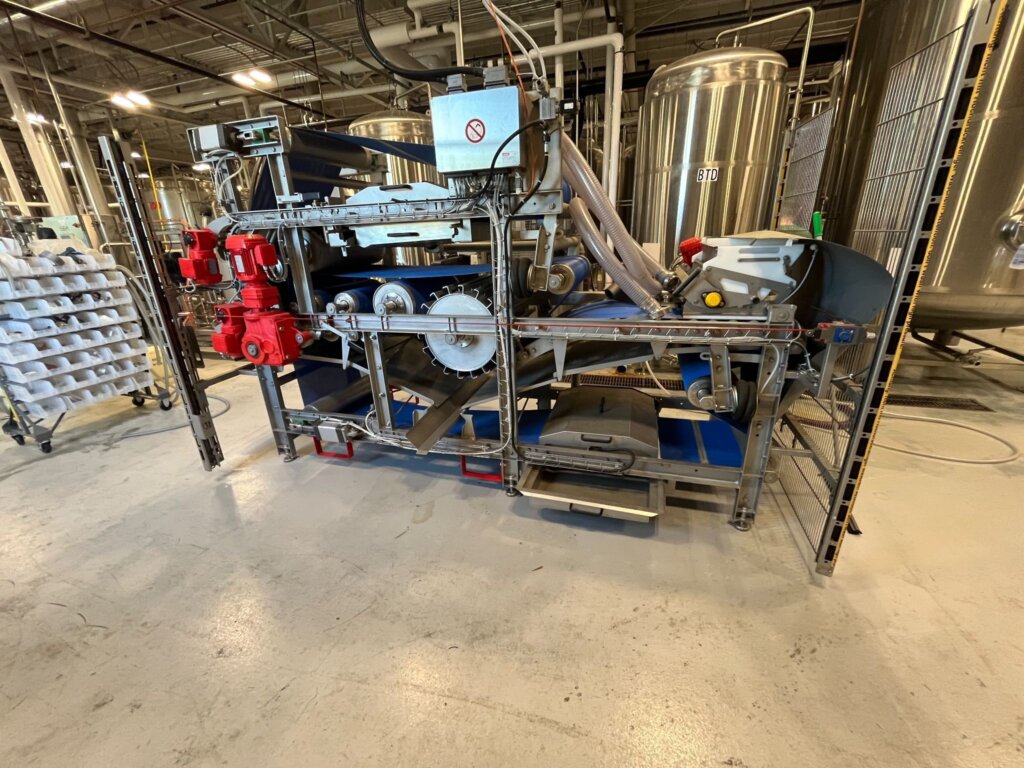

VORAN ZBP660 TWIN BELT PRESS

The Voran ZBP660 is a stainless steel AISI 304 twin continuous belt juice extraction system. It includes a pneumatic belt tensioner, automatic belt control, and a high-pressure belt cleaning brush system. For consistent results, the machine features an adjustable metering box for uniform mash feed and a pneumatic pomace scraper discharge.

This industrial unit has a nominal capacity of up to ~3,000 kg/h. It is capable of achieving a juice yield of up to 80%. This makes it suitable for large-scale fruit processing operations requiring high-volume extraction.

The machine measures approximately 3,680 mm L x 1,750 mm W x 2,160 mm H. It weighs approximately 2,200 kg. These specifications define its footprint within a commercial production facility.

The unit operates on a 3.5 kW 400 V 50 Hz 3-phase drive. The system features an adjustable belt width ranging from 220 to 440 mm with a 660 mm belt.

The machine features integrated juice and wastewater outlets equipped with DN25/DN70 connections. These components are designed to facilitate easy integration into existing industrial food processing workflows for downstream filtration or packaging.
