ALL PAC MACHINERY MAS -26 SS SHRINK BUNDLER

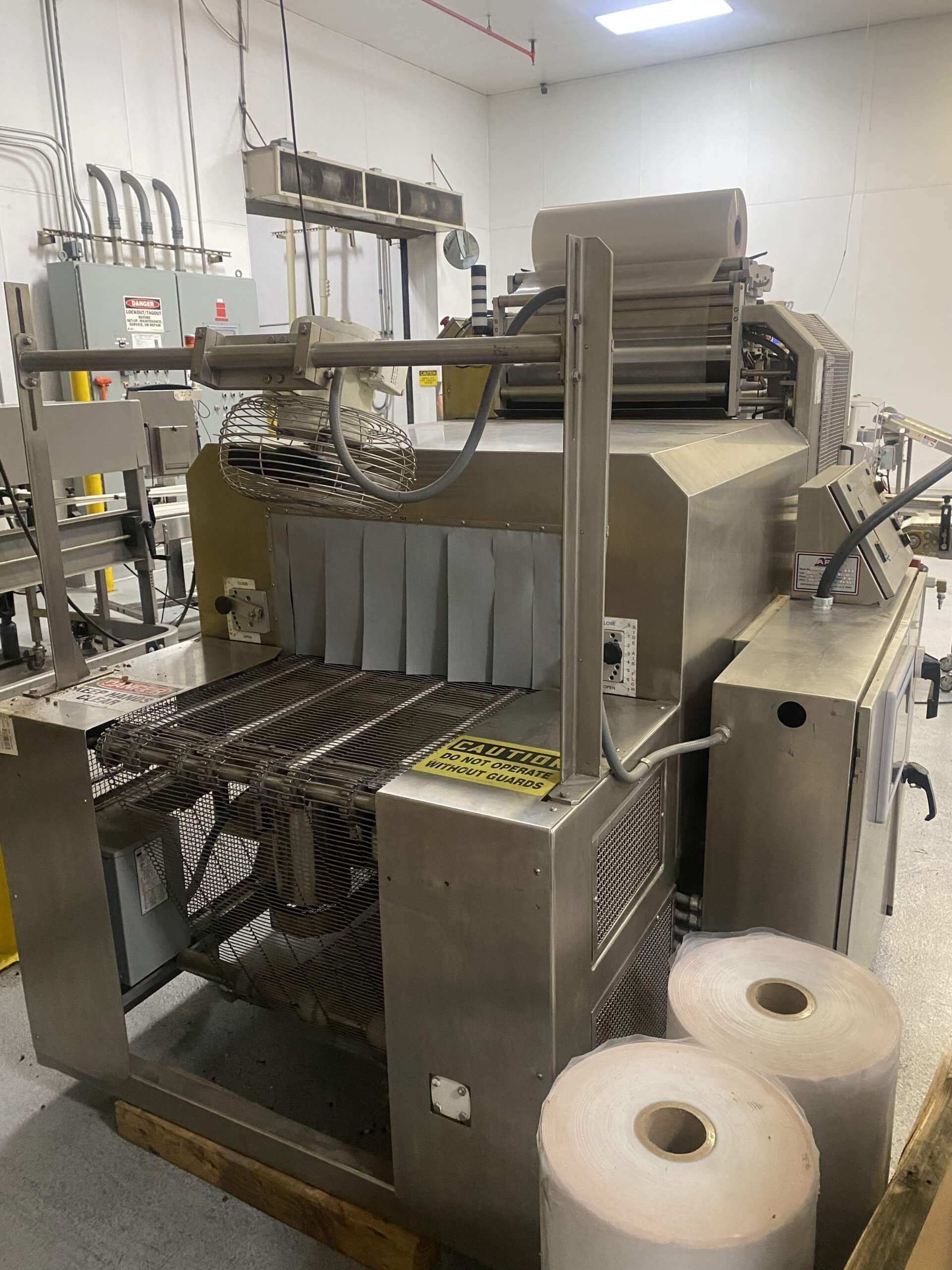

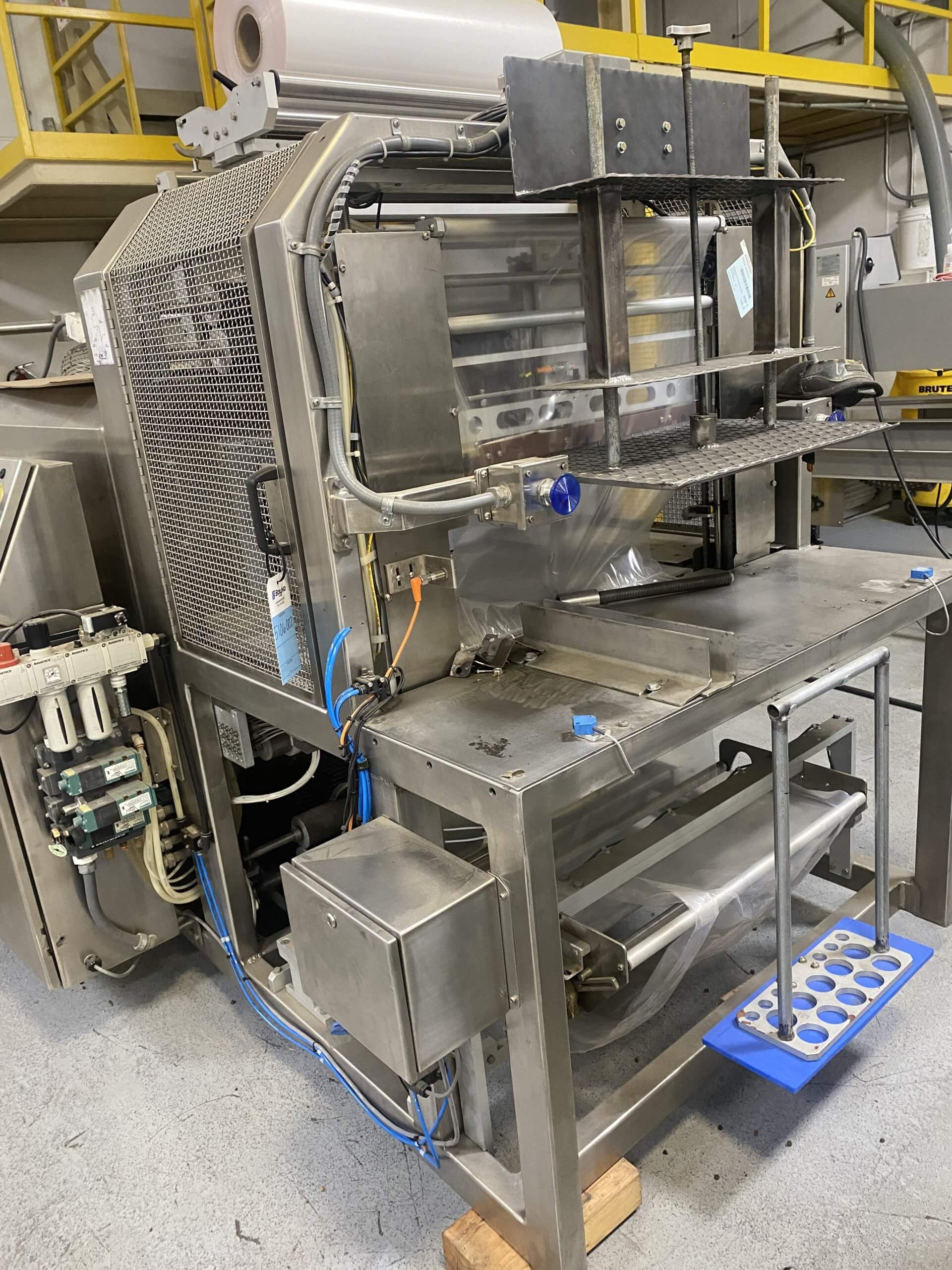

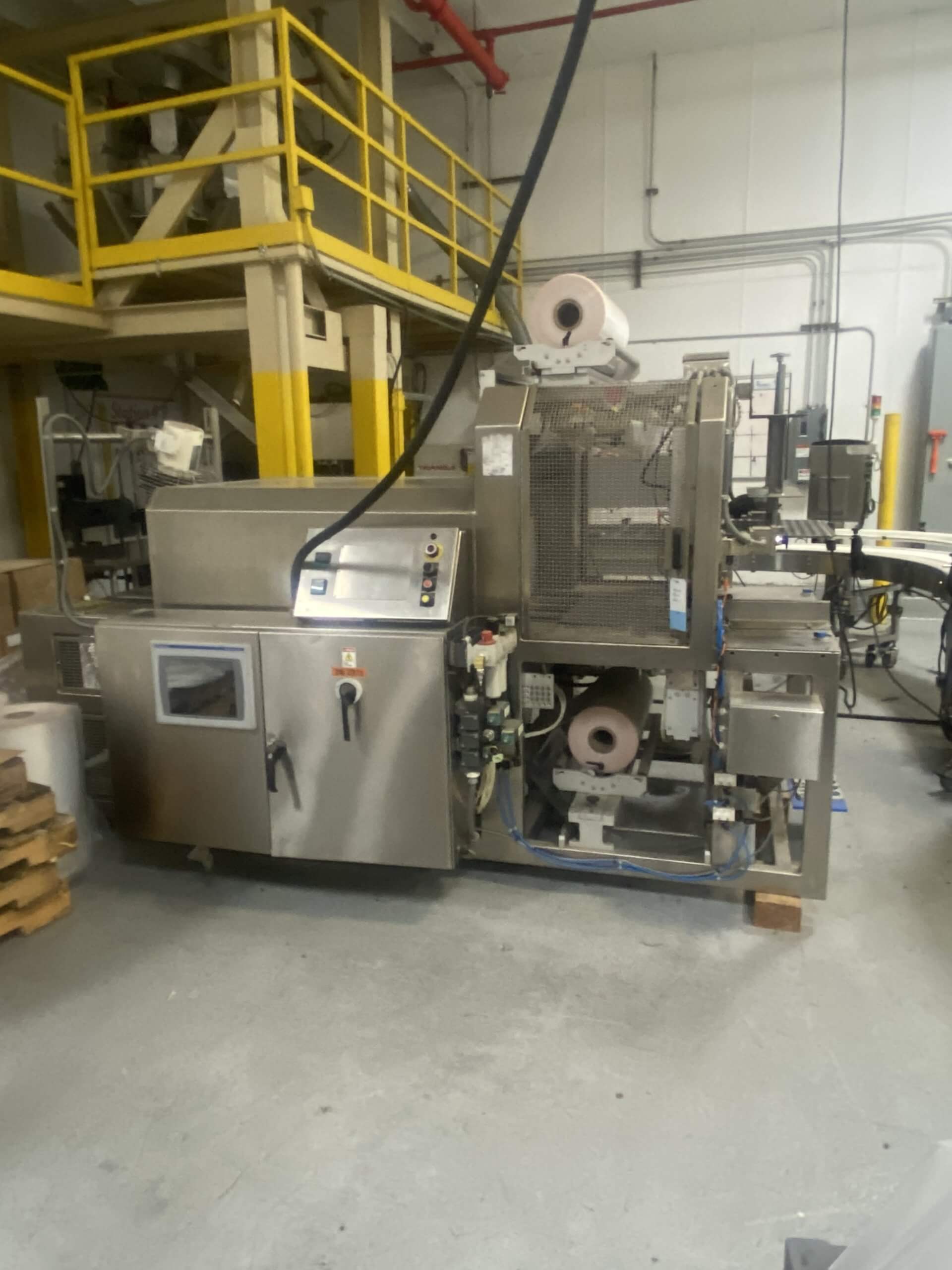

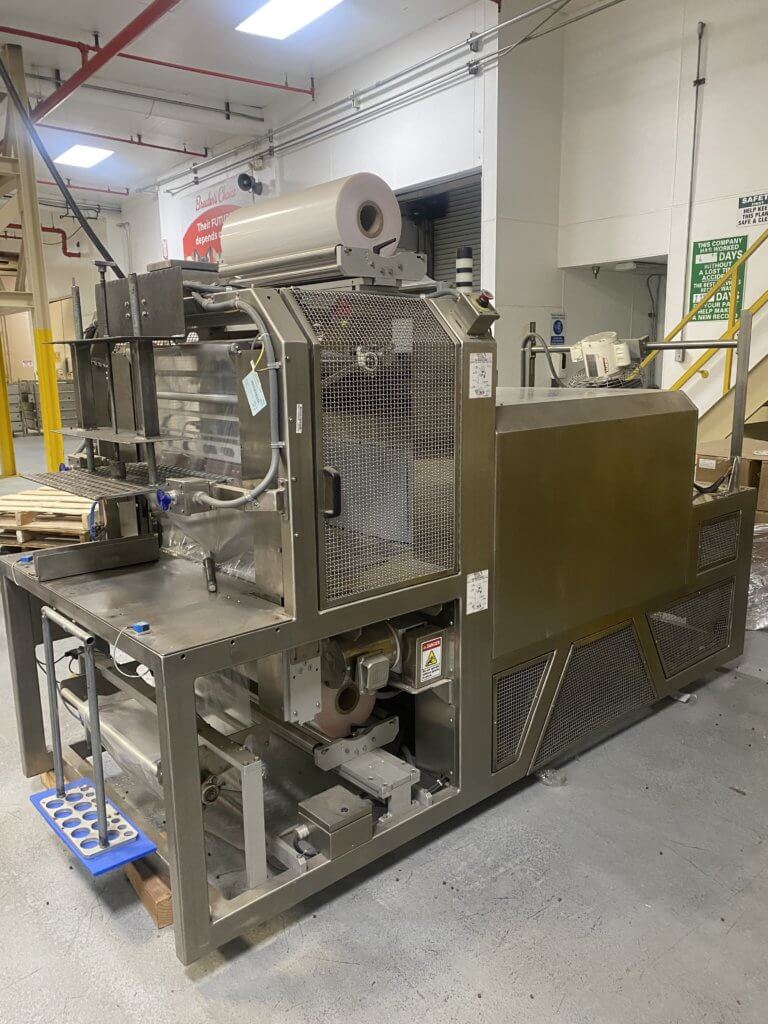

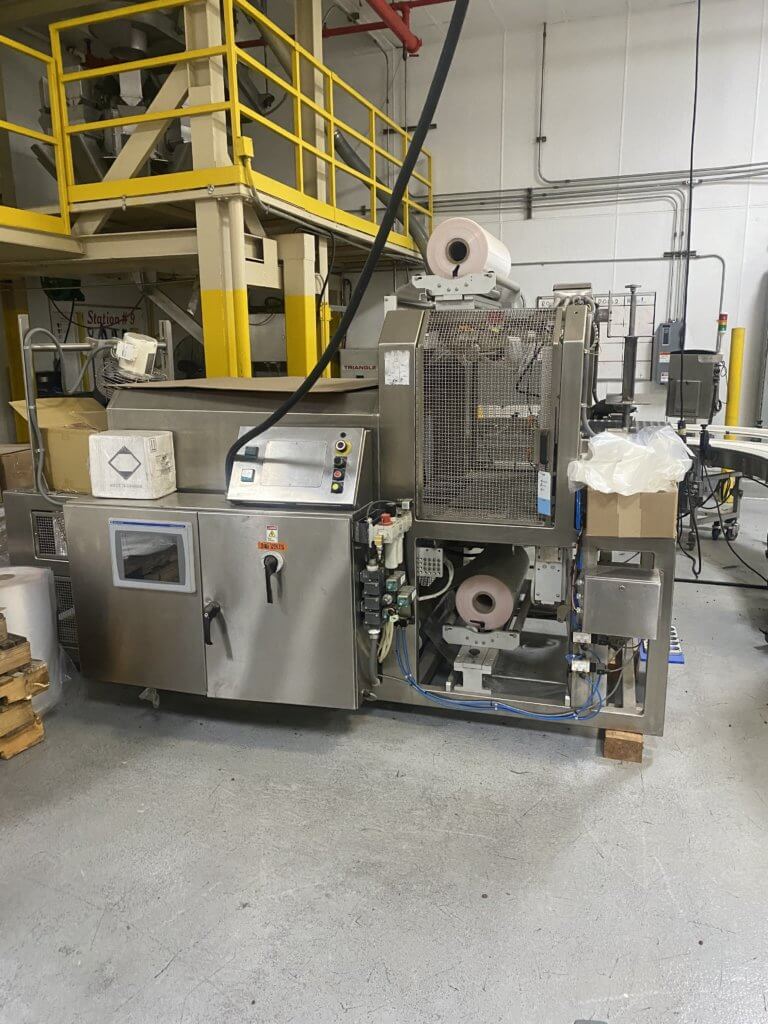

ALL PAC MACHINERY MAS -26 SS SHRINK BUNDLER. Allen Bradley PanelView Plus 1250 touchscreen control. Set up for a 90-degree product infeed. Intermittent motion cross seal bar, 27.5 in. wide, with 6 in. long x 14 in. wide product hold down. SS wire belt for heat tunnel 96 in. long x 24 in. wide x 37 in. tall. SS heat tunnel 48 in. long, aperture 28 in. wide x 13.5 in. tall. Ambient cooling fan after heat tunnel. Film rolls stand for top and bottom. 30 in. wide film feed rollers. Digital heat controls for tunnel and seal bar. Manual controls include cycle start, cycle stop, manual close, and e-stops. Light tree function indicator. Heavy duty SS tubular frame, on legs. 240V/3PH/60HZ.

REQUEST A QUOTE

Have Similar Machine?

Specifications

Model	MAS-26 SS
Item No.	9027
Manufacturer	All Pac Machinery
Condition	Used
Related Industries	Bakery Beef and Pork Cannabis Cheese & Dairy Processing Pet Food Equipment Poultry Sausage Seafood Vegetable
Equipment Categories	Over Wrap Machines Packaging Equipment

About this machine

FAQ's

What control system does the All Pac Machinery MAS-26 SS Shrink Bundler utilize?

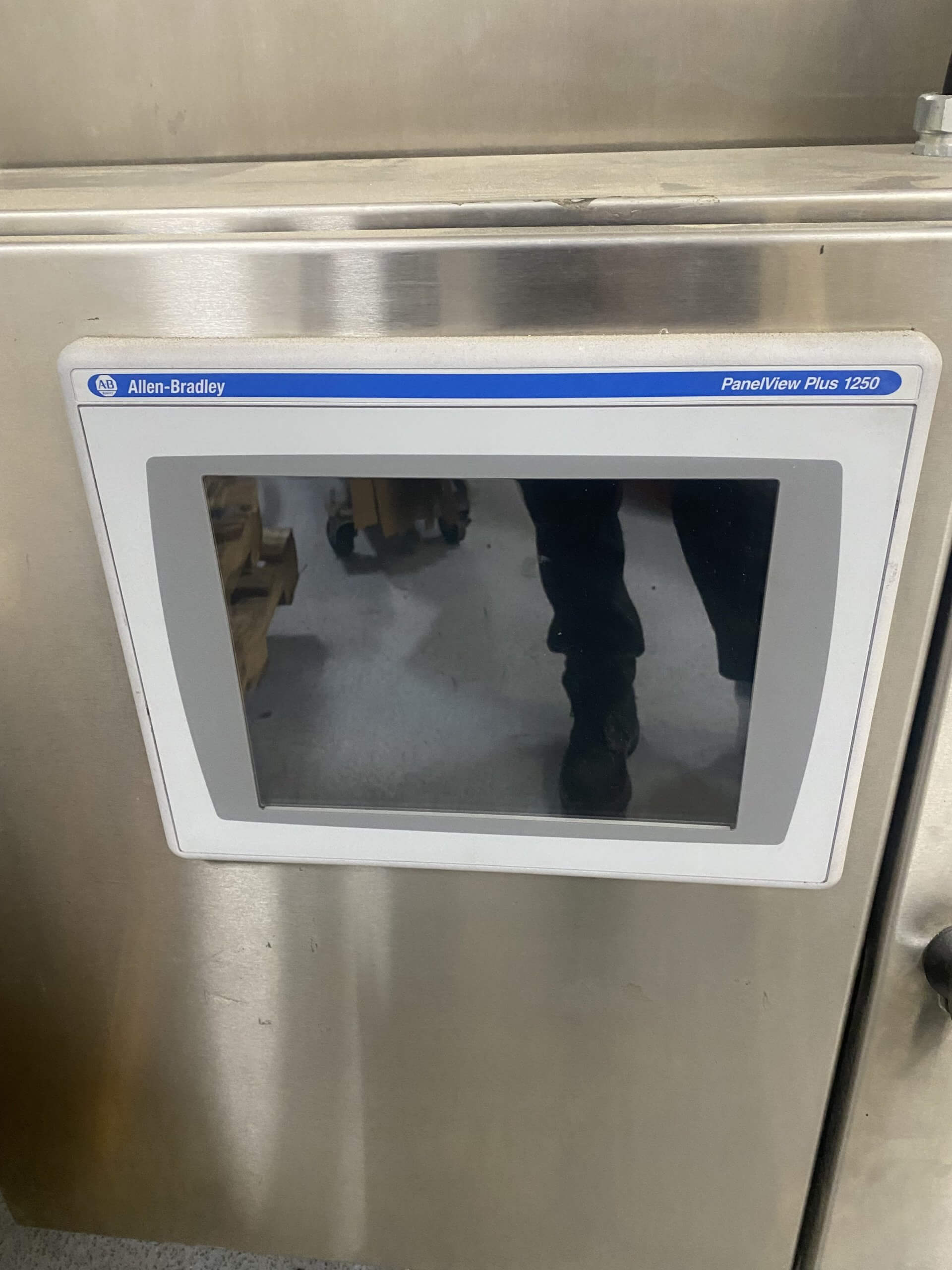

The machine features an Allen Bradley PanelView Plus 1250 touchscreen control. This interface provides digital heat controls for both the tunnel and seal bar. Additionally, manual controls are available for cycle start, cycle stop, manual close, and e-stops. A light tree function indicator is also included to assist operators.

What are the dimensions of the heat tunnel and its associated components?

The stainless steel heat tunnel measures 48 inches long with an aperture of 28 inches wide by 13.5 inches tall. The accompanying SS wire belt for the heat tunnel is 96 inches long, 24 inches wide, and 37 inches tall. It is supported by a heavy-duty stainless steel tubular frame on legs.

What are the specifications for the seal bar area?

The machine features an intermittent motion cross seal bar that is 27.5 inches wide. This area includes a product hold down measuring 6 inches long by 14 inches wide. The unit is specifically set up for a 90-degree product infeed to facilitate the packaging process.

What are the electrical requirements for this shrink bundler?

This equipment requires 240V/3PH/60HZ power for operation. Please contact M&M Equipment Corp for a quote regarding specific pricing and availability for this unit.

What film handling features are included on the MAS-26 SS?

The system includes film rolls stands for both top and bottom applications. It is equipped with 30-inch wide film feed rollers to manage the material. An ambient cooling fan is positioned after the heat tunnel to assist in the cooling process.
