GROEN DTA3-60-60 Tilt Kettles

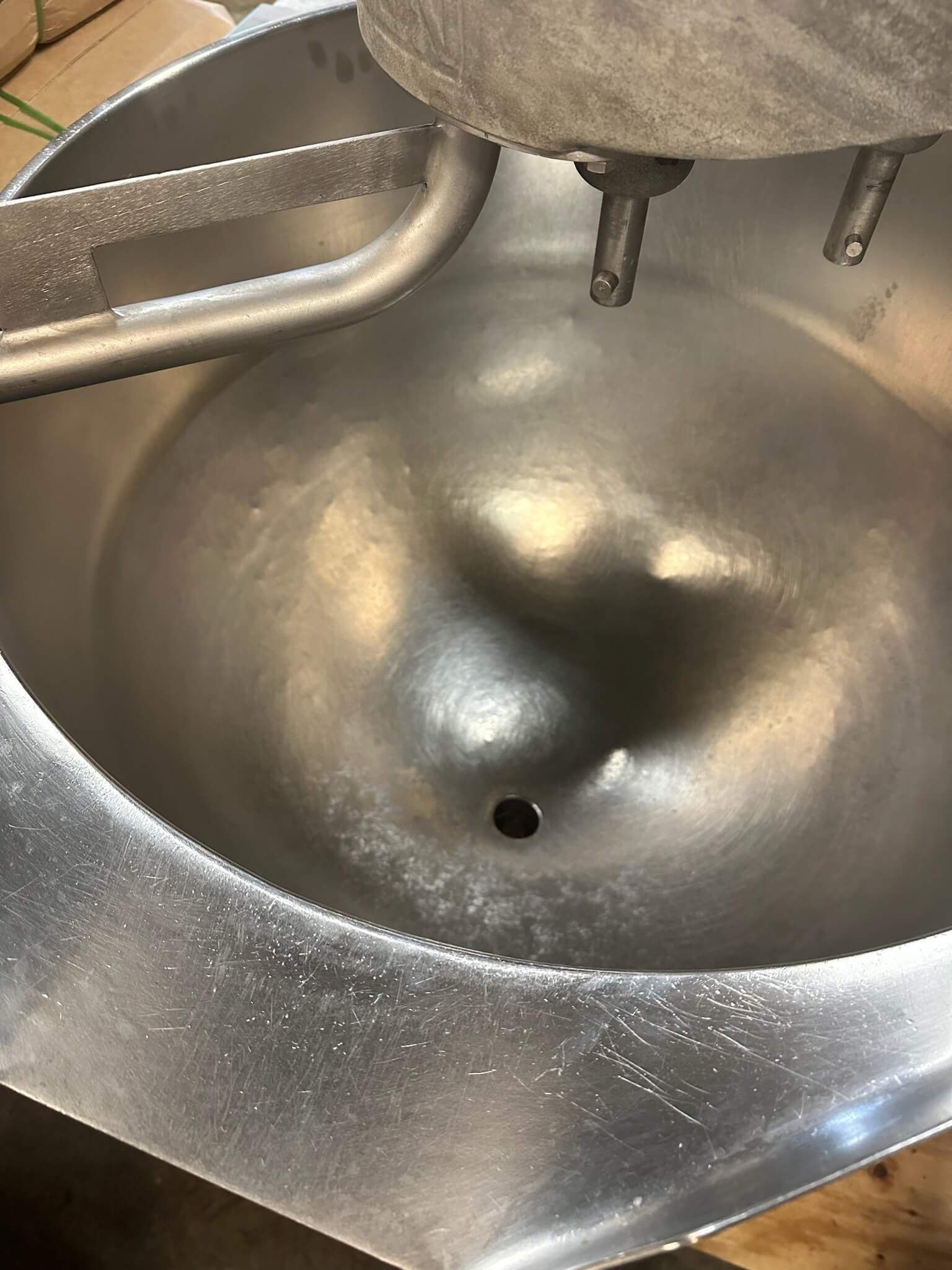

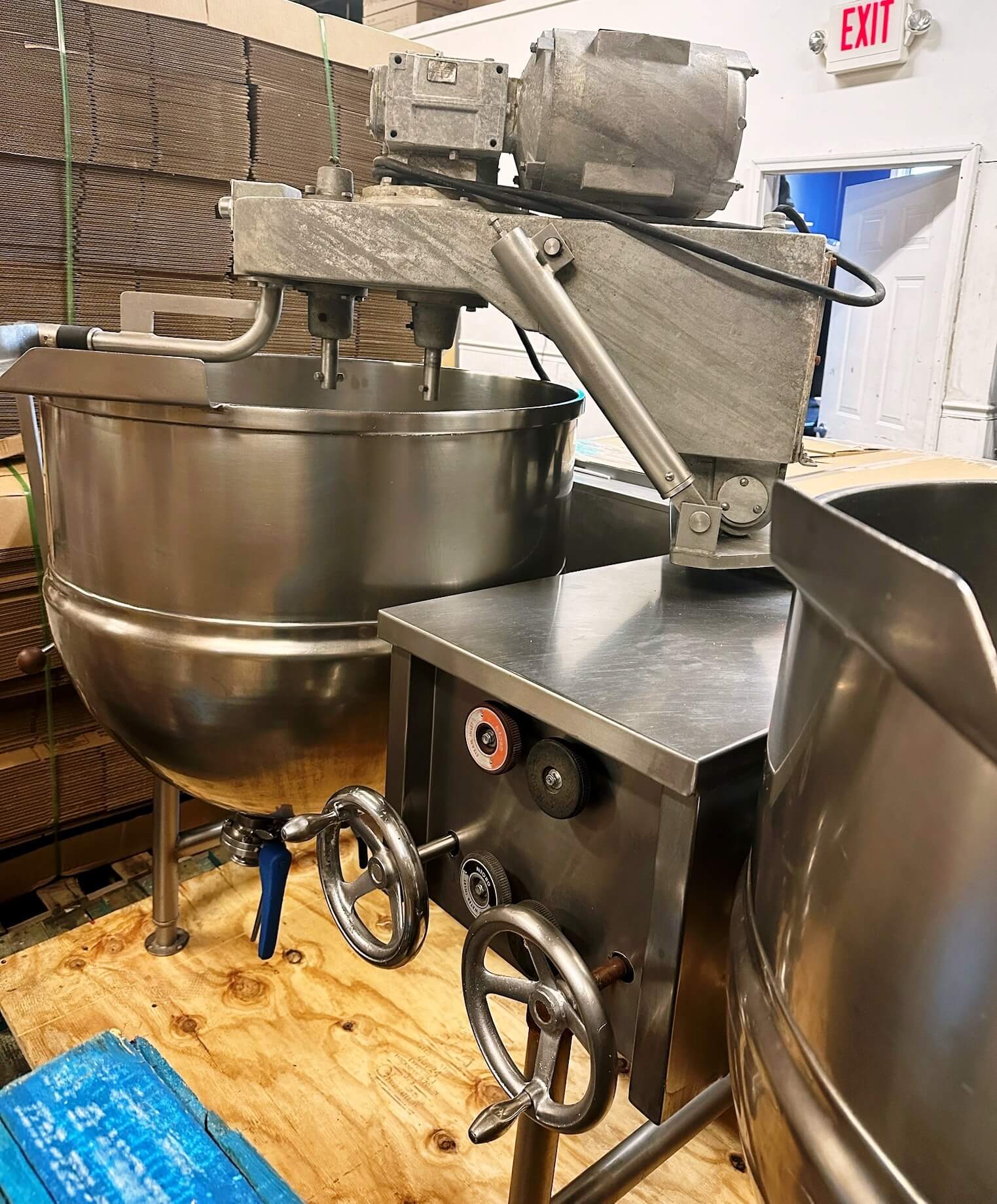

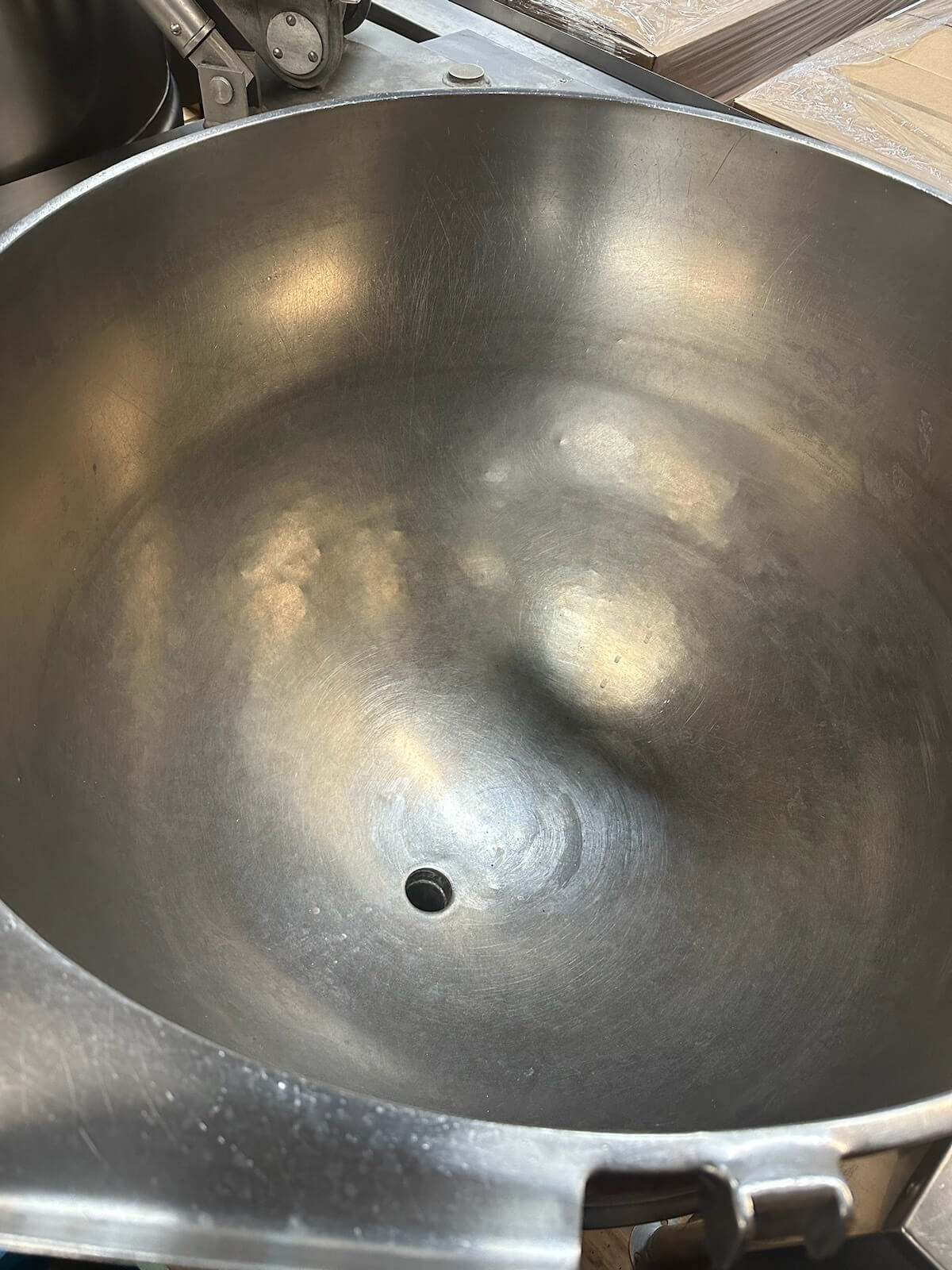

GROEN DTA3-60-60 Tilt Kettles. Dual Groen 60 Gallon Stainless Steel Twin Agitated Tilt Kettles. Jacket Rated 25 Psi @ 300 Degrees F. 304 Stainless Steel Construction, 30” x 20” deep bowl with Pouring Lip. National Board #96617. Bottom Center Stainless Steel Ball Valve. Swivel Dual Motion Agitator With 16-plastic Scrapers And Bar Type High-Speed Secondary Agitator. 1 hp drive motor, 208V3PH/60HZ. 2-speed Gearhead Motor 60/120 Output Rpm. Manual hand crank tilt (No Covers), Mounted on Stainless Steel Stand.

CLOSED / SOLD

Have Similar Machine?

Specifications

Model	DTA3-60-60
Item No.	8411
Manufacturer	Groen
Condition	Used
Related Industries	Beef and Pork Pet Food Equipment Poultry Sausage Seafood
Equipment Categories	Kettles

About this machine

FAQ's

What are the primary construction materials and dimensions for the GROEN DTA3-60-60 Tilt Kettles?

These units feature 304 Stainless Steel construction with a 30" x 20" deep bowl. Each of the twin kettles has a capacity of 60 Gallons and includes a pouring lip. The system is mounted on a stainless steel stand for industrial use.

What agitation systems are included in this dual-kettle setup?

Each kettle features a swivel dual motion agitator equipped with 16 plastic scrapers and a bar type high-speed secondary agitator. This design ensures effective mixing for large-scale food processing applications.

What are the motor specifications and electrical requirements for these kettles?

The equipment is powered by a 1 hp drive motor running on 208V3PH/60HZ. It includes a 2-speed gearhead motor providing an output of 60/120 RPM to facilitate consistent processing.

What are the jacket ratings and discharge features for the GROEN DTA3-60-60?

The jackets are rated at 25 Psi @ 300 Degrees F. For discharging products, the unit is equipped with a bottom center stainless steel ball valve.

How does the tilting mechanism function on this model?

This model features a manual hand crank tilt system for emptying the kettles. Please note that these units are listed without covers.
