Hamilton CW Tilting Kettle

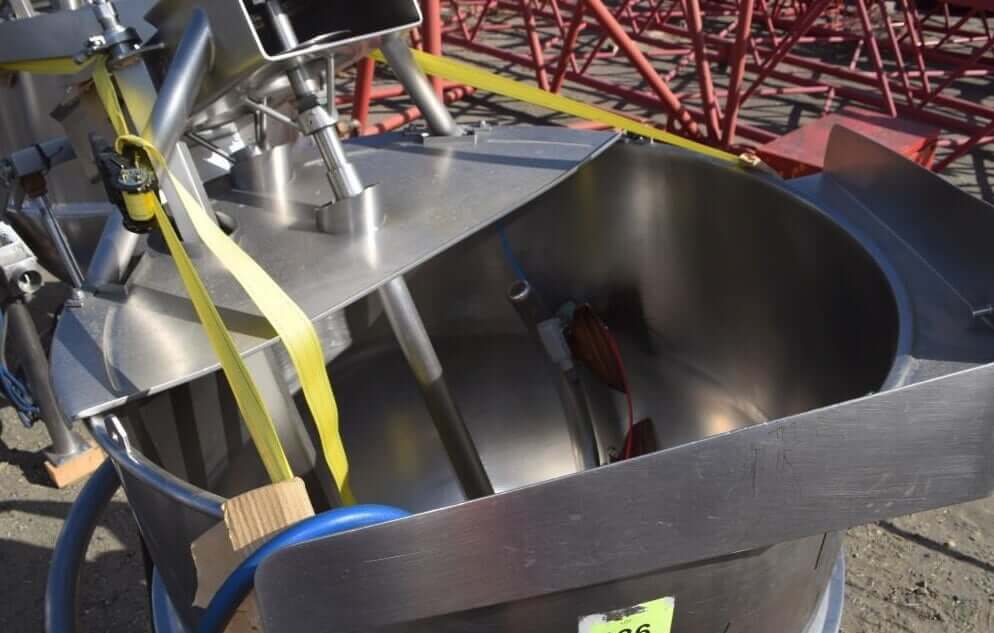

This unit features a 150 Gallon capacity with 316 Stainless Steel construction. The kettle measures approximately 44" in diameter by 40" deep. It includes an open top jacketed hemispherical bottom made of 304 Stainless steel, which is rated for 100 psi at -20 to 328 degrees F.

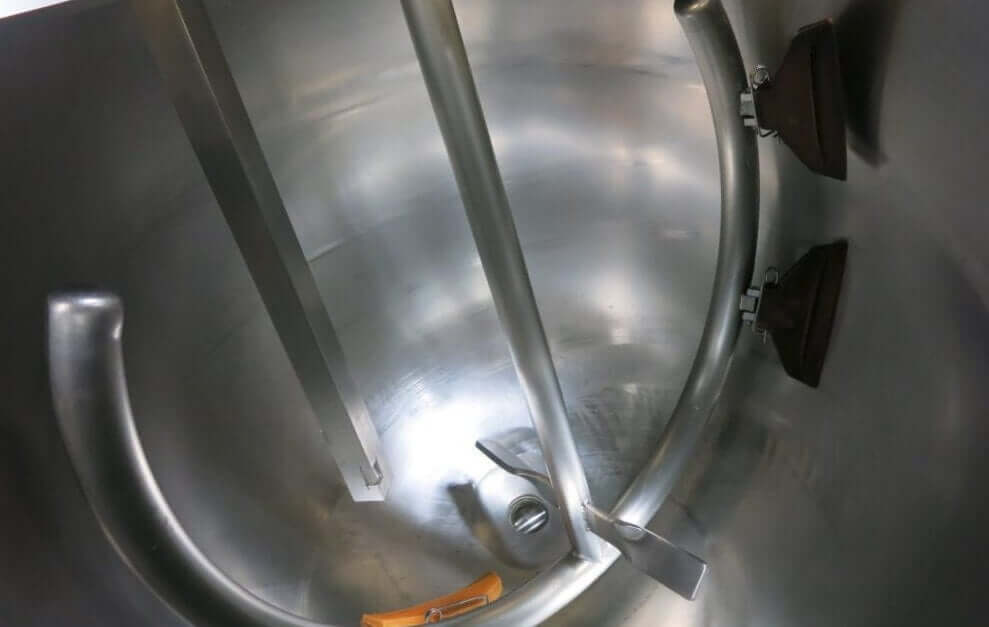

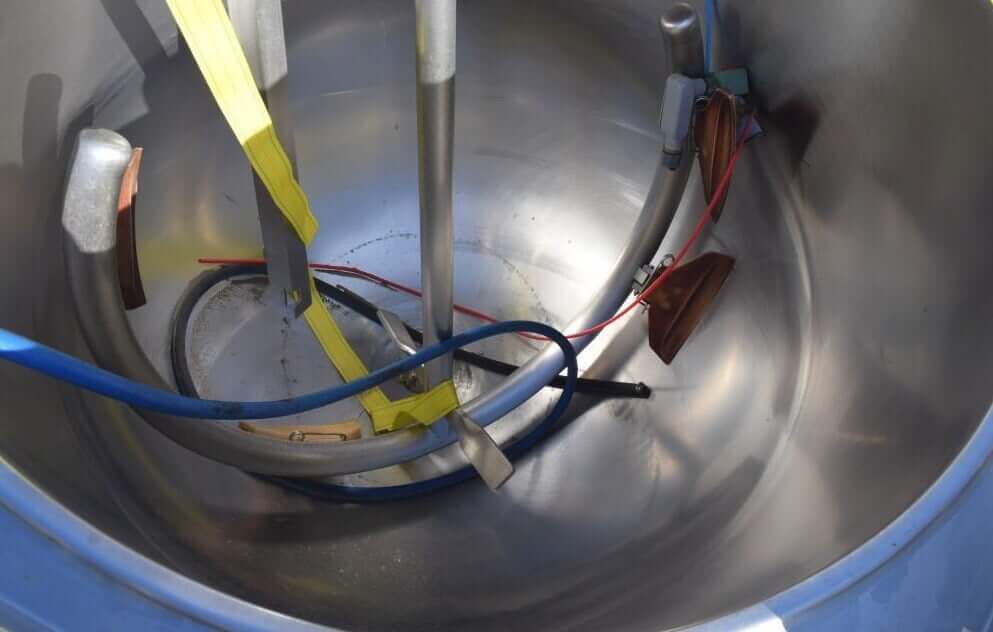

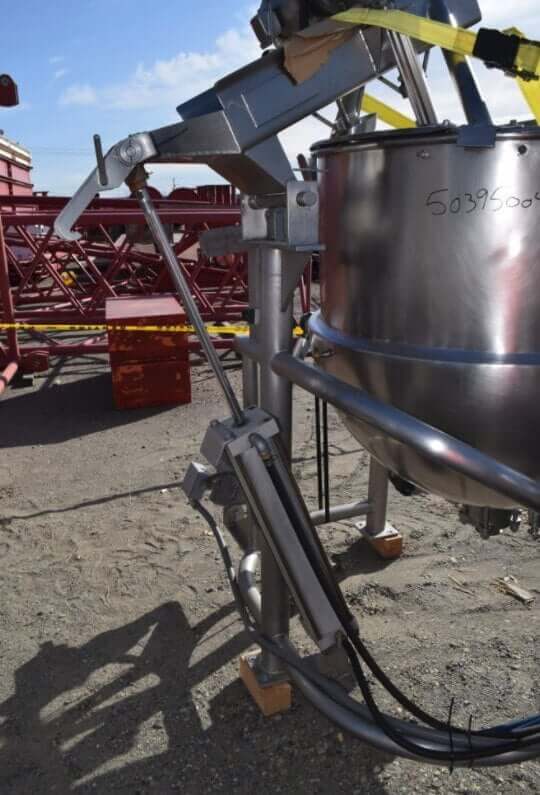

The machine includes an angled anchor style agitator with scrapers and a motorized bowl tilt. An air-operated agitator tilt is also included for operation. The unit features a pouring lip and a 3" center bottom outlet equipped with a valve.

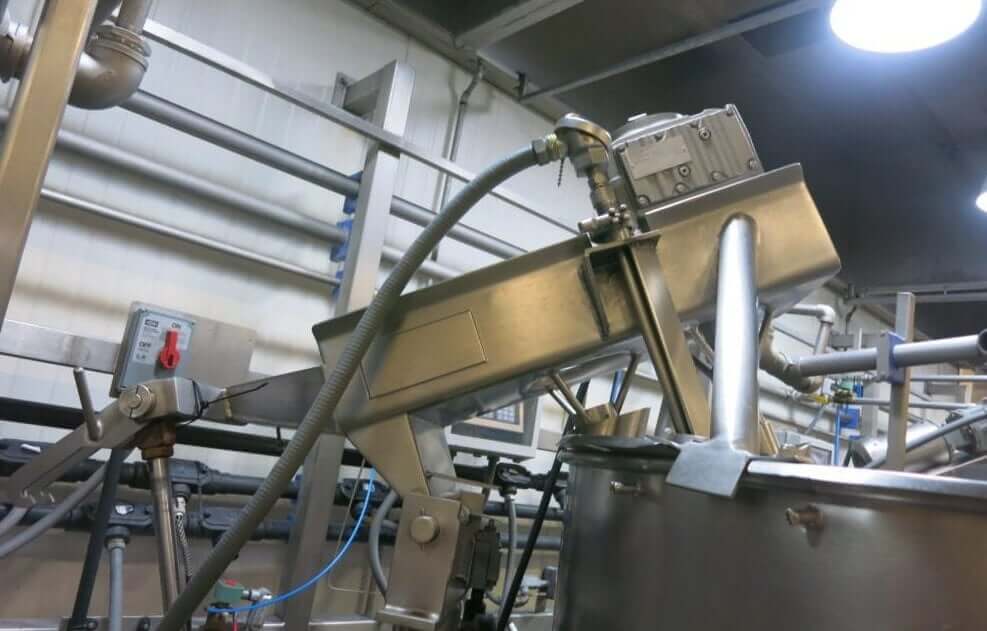

The agitator is driven by a 3 hp, 3/60/208-230/460 volt, 1750 rpm gear motor. The gear ratio is approximately 44.32 to 1. Please note that there is no gearbox tag present on the equipment.

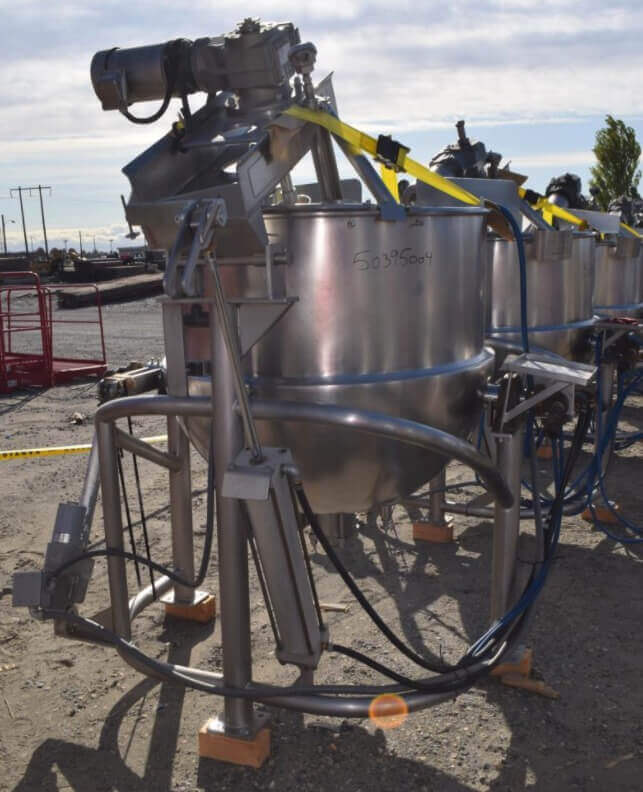

Yes, this kettle is mounted on a stainless steel frame with three legs. It is designed for industrial applications such as food and sauce production, dairy processing, and pet food manufacturing.

This Hamilton CW Tilting Kettle is currently listed as closed. Please contact our Skokie, Illinois team or request a quote directly from the product page to discuss your specific processing needs and current inventory.
