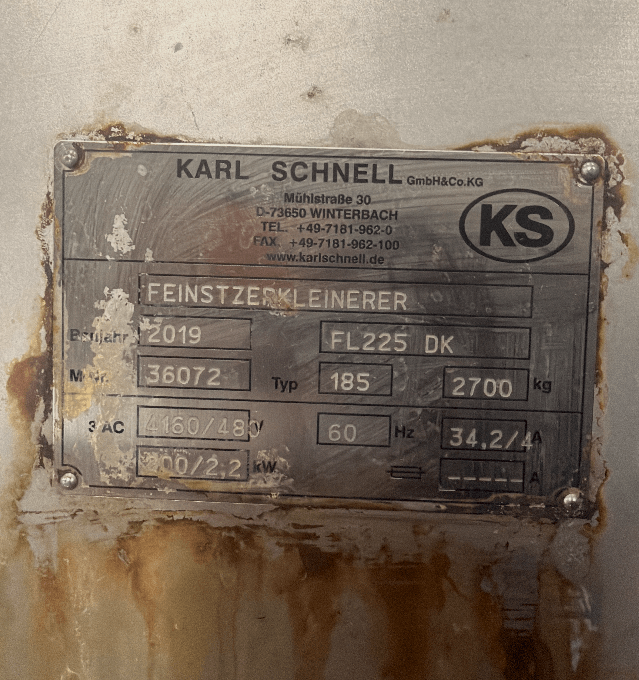

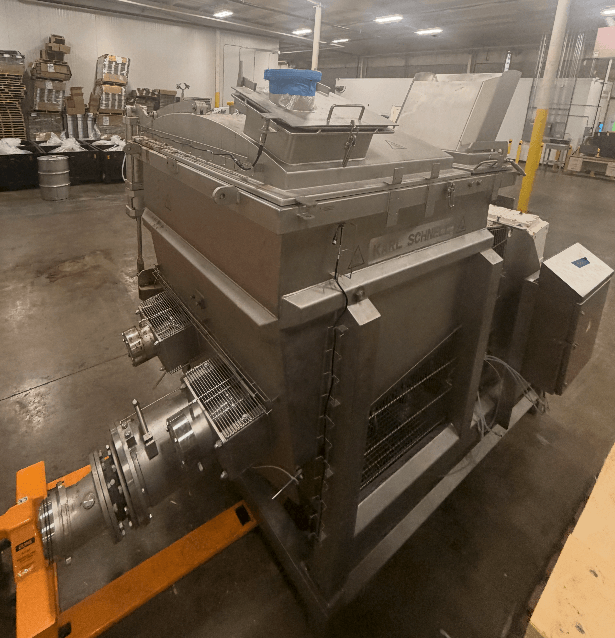

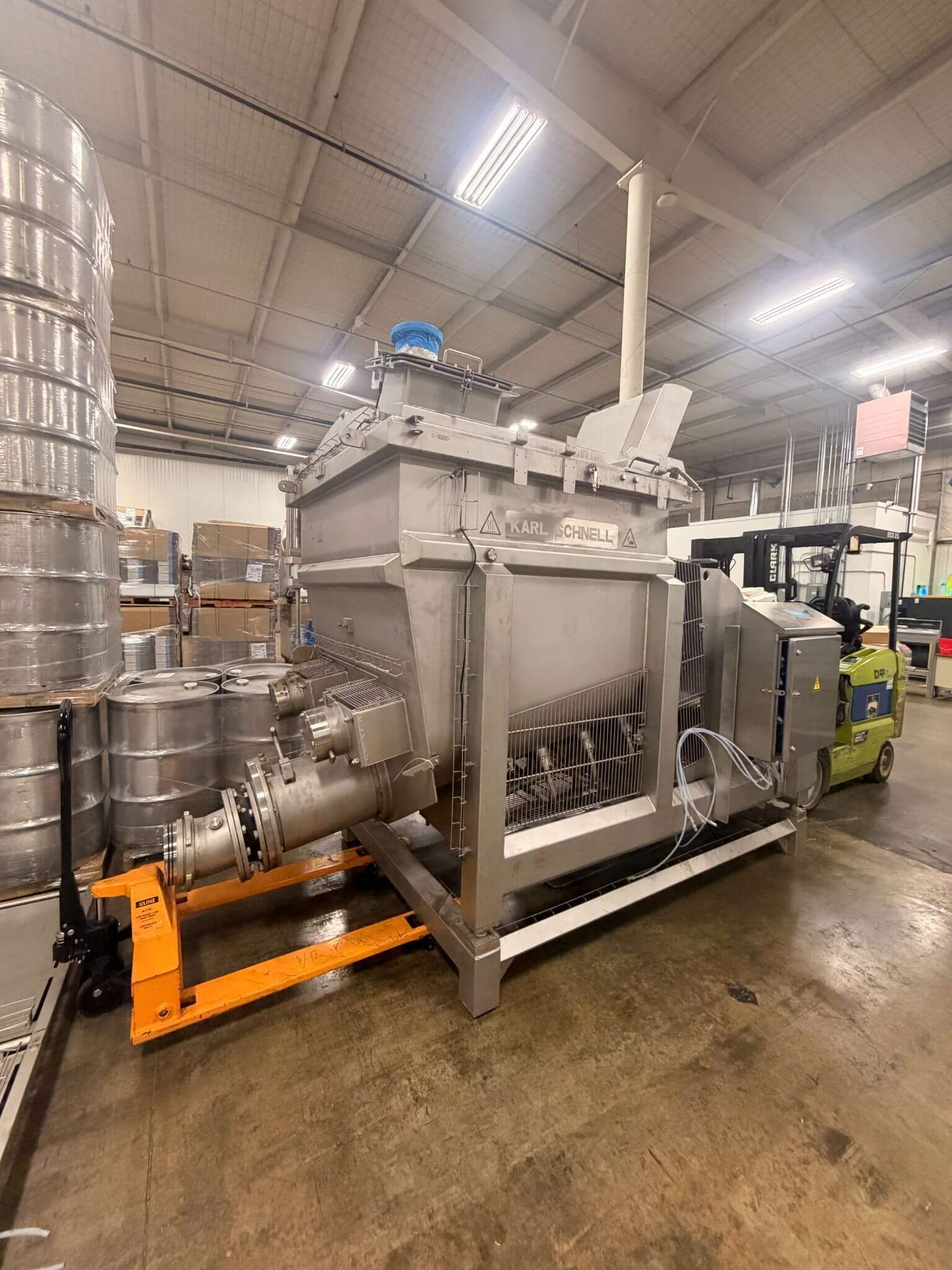

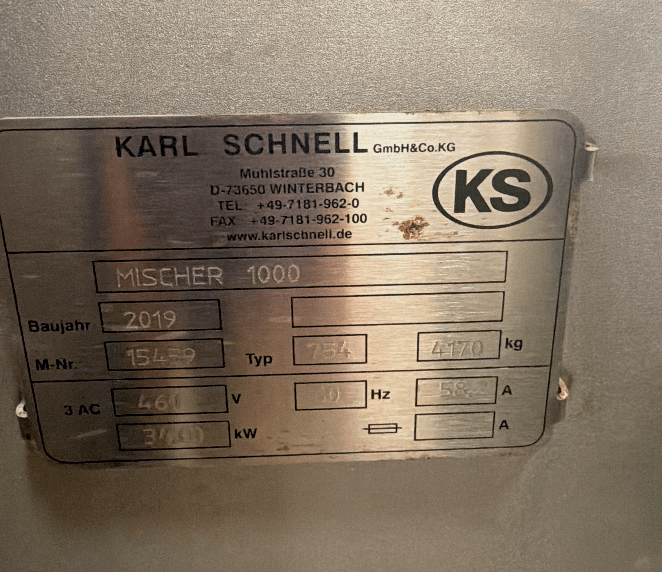

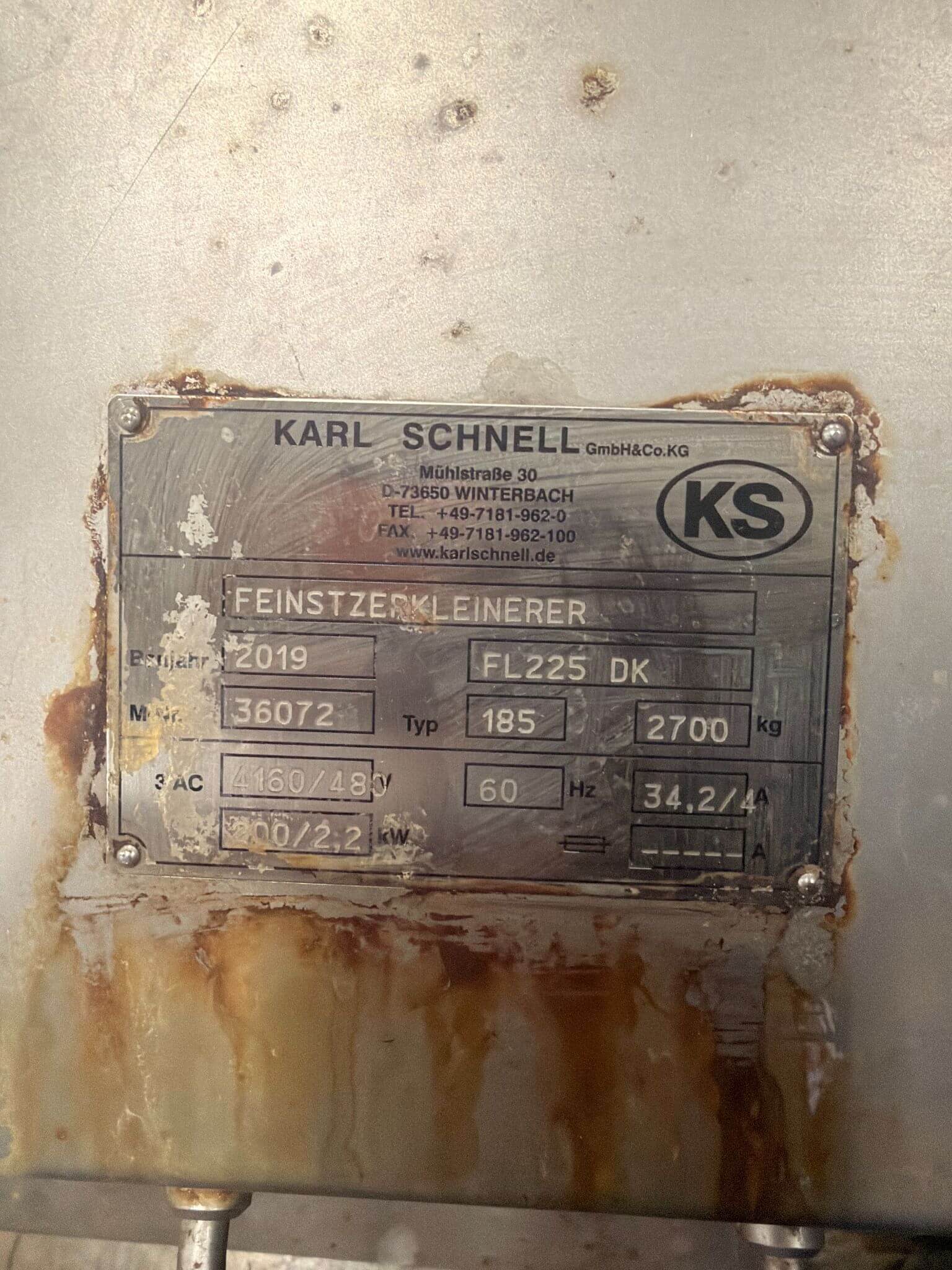

KARL SCHNELL MIXER 1000 WITH FL225 DK EMULSIFIER

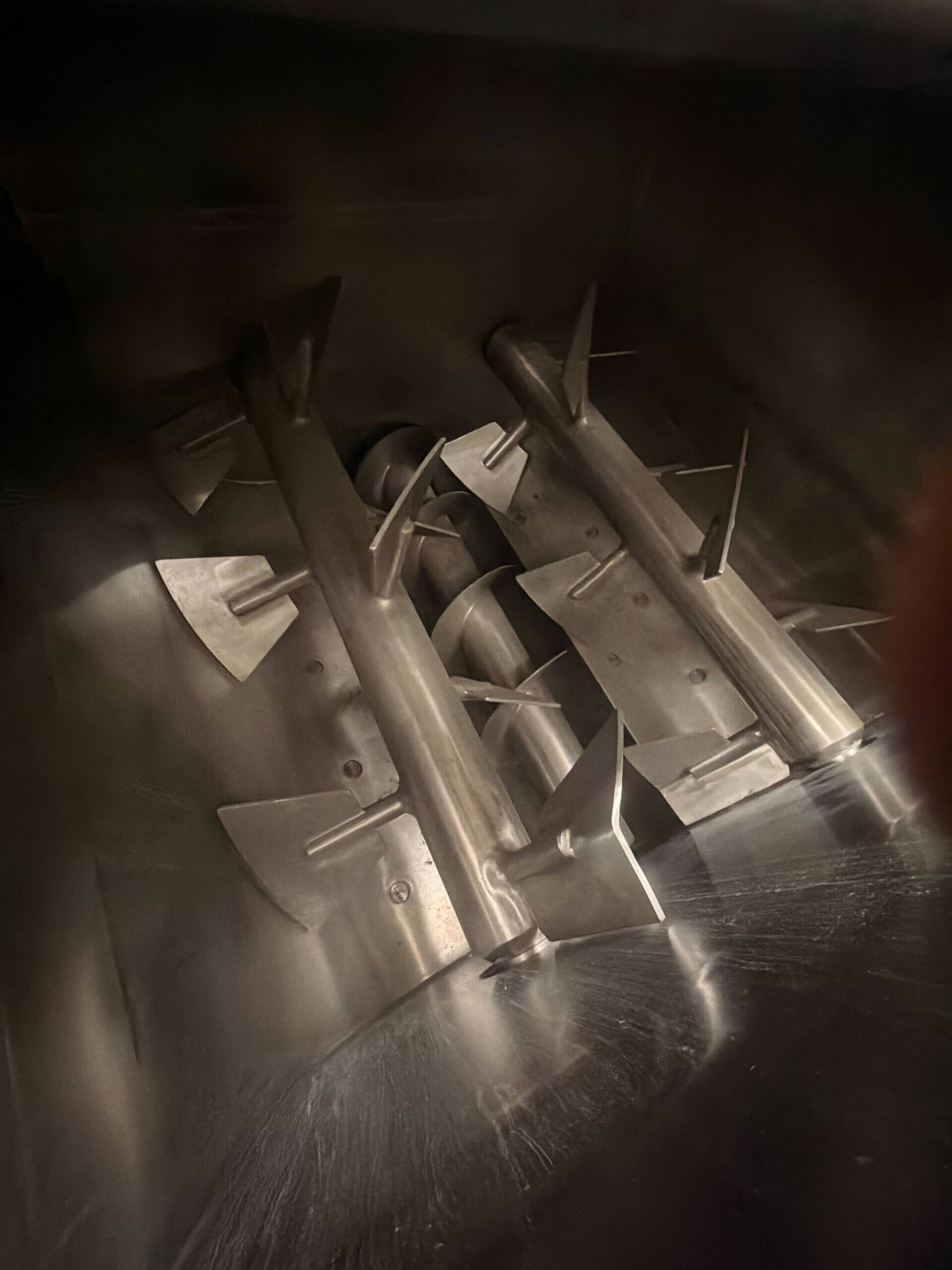

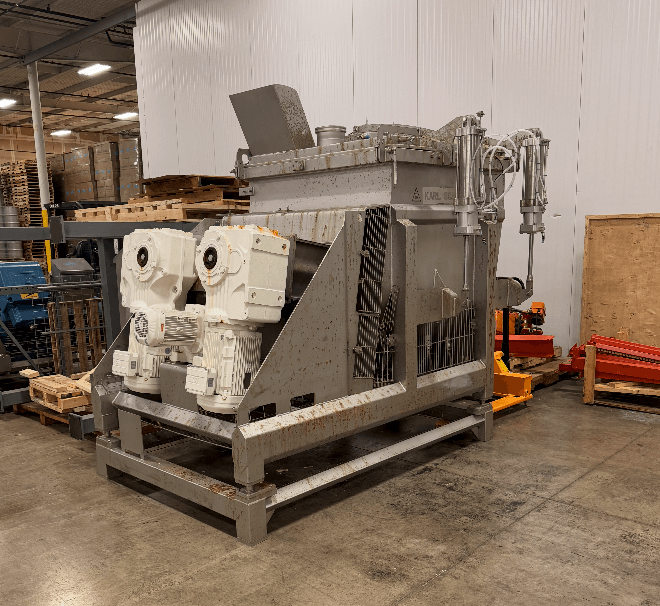

This machine features a maximum throughput of 15,000 kg/hr. It has a 1,000L capacity twin-shaft mixer design and can produce fine emulsions at a rate of up to 12,000 kg per hour depending on the cutting head and viscosity.

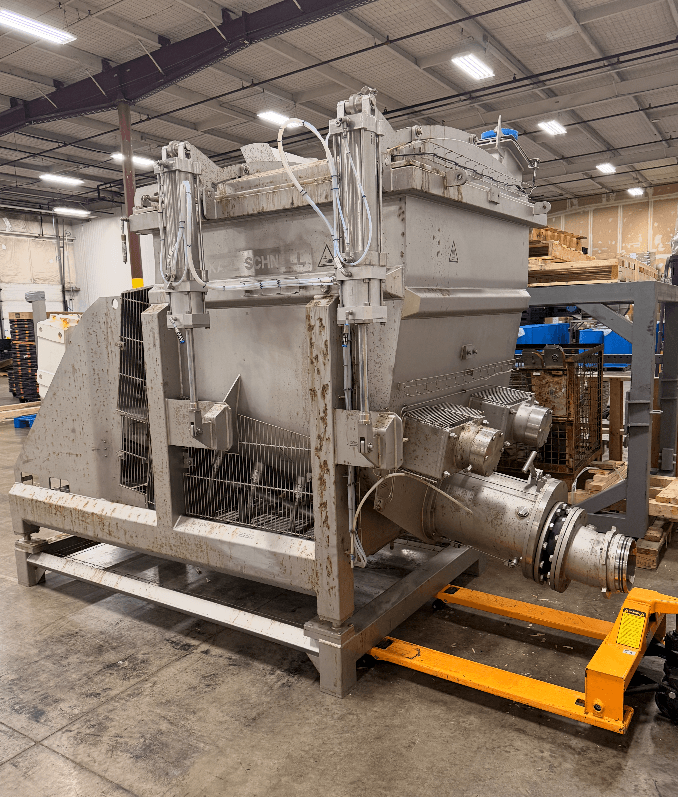

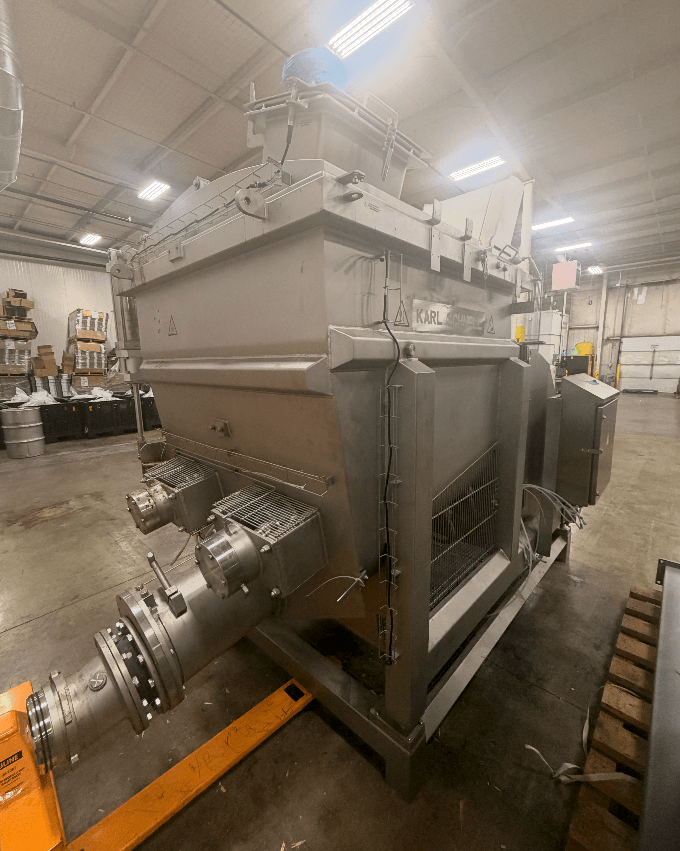

The unit features a single discharge screw with a 360 mm diameter. The screw has a pitch of 300 mm and a flight thickness of 4 mm, leading to an outlet pipe with a 100 mm diameter.

The machine processes material at temperatures ranging from -18°C to -10°C. It includes steam injection via a 16-nozzle R2" inlet with a condensate outflow and a dedicated water connection.

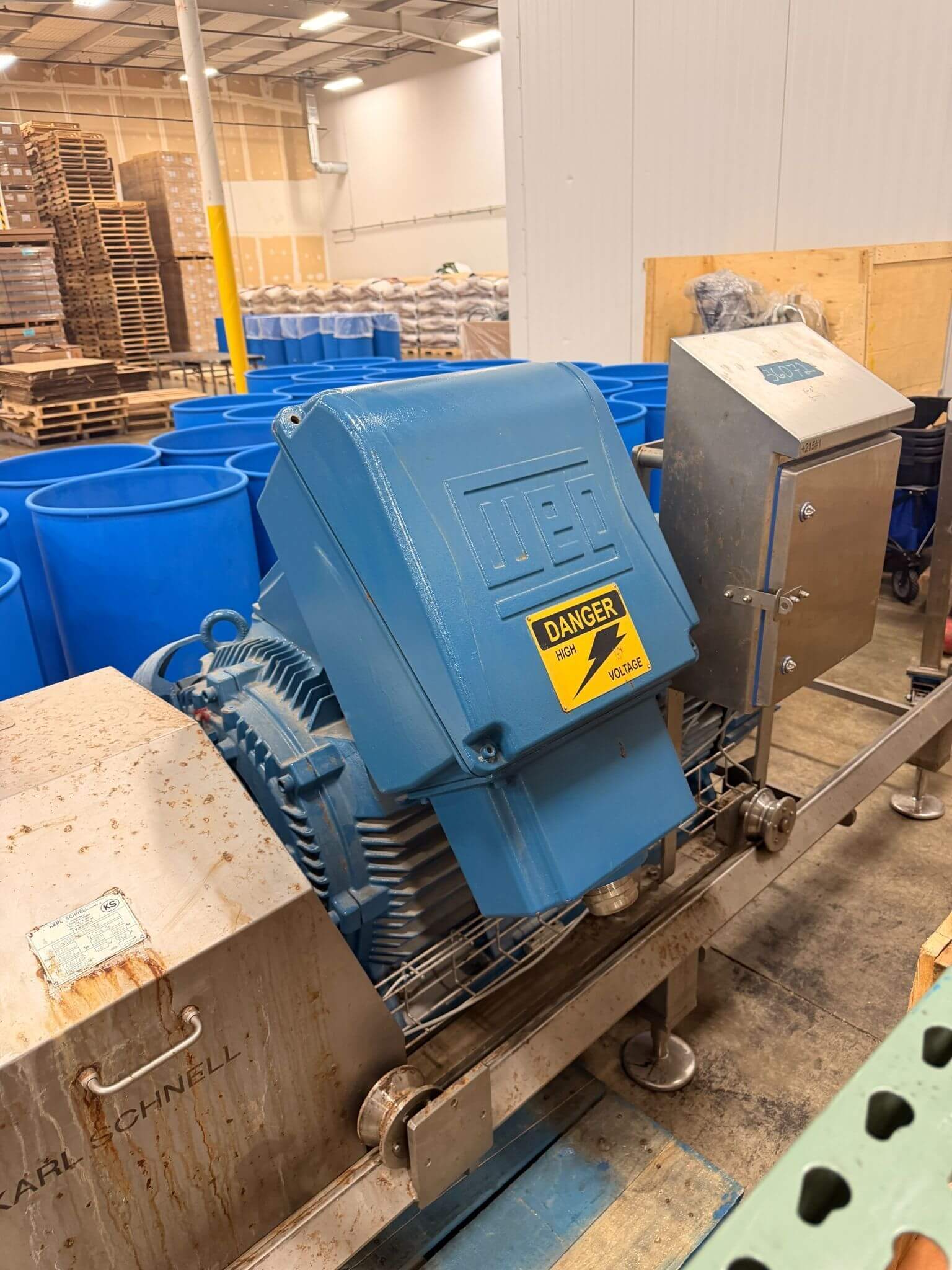

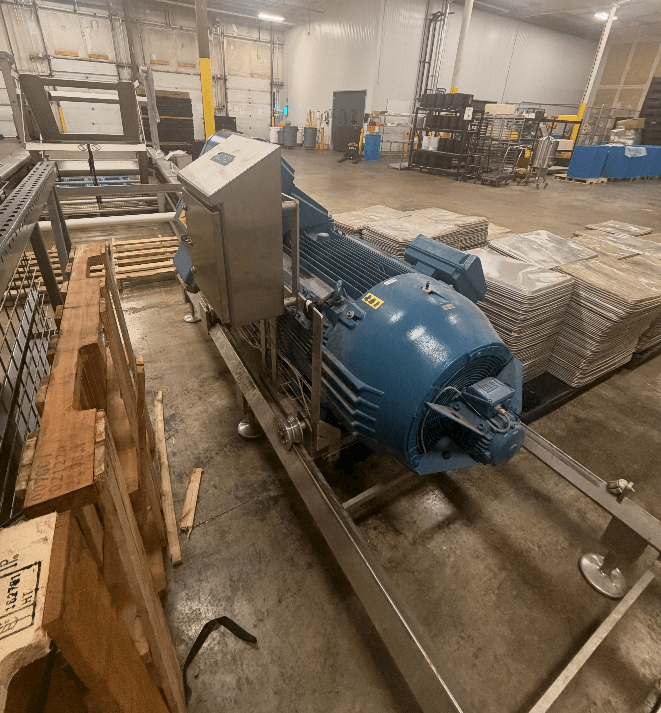

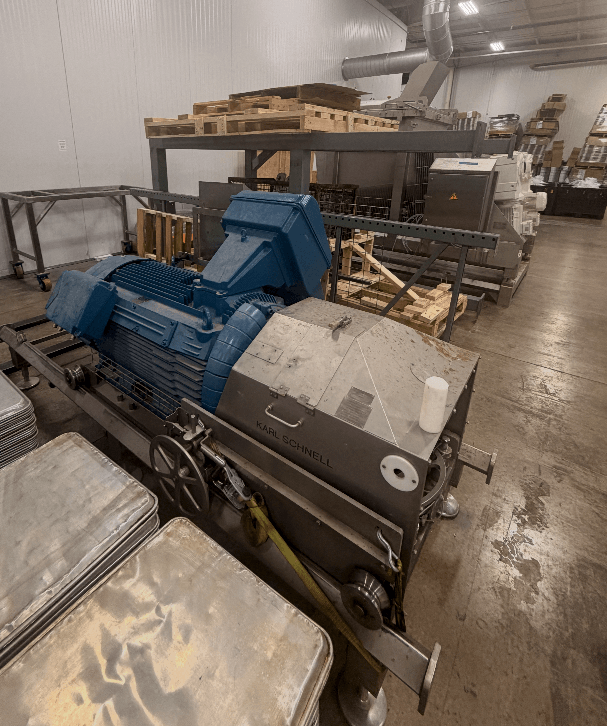

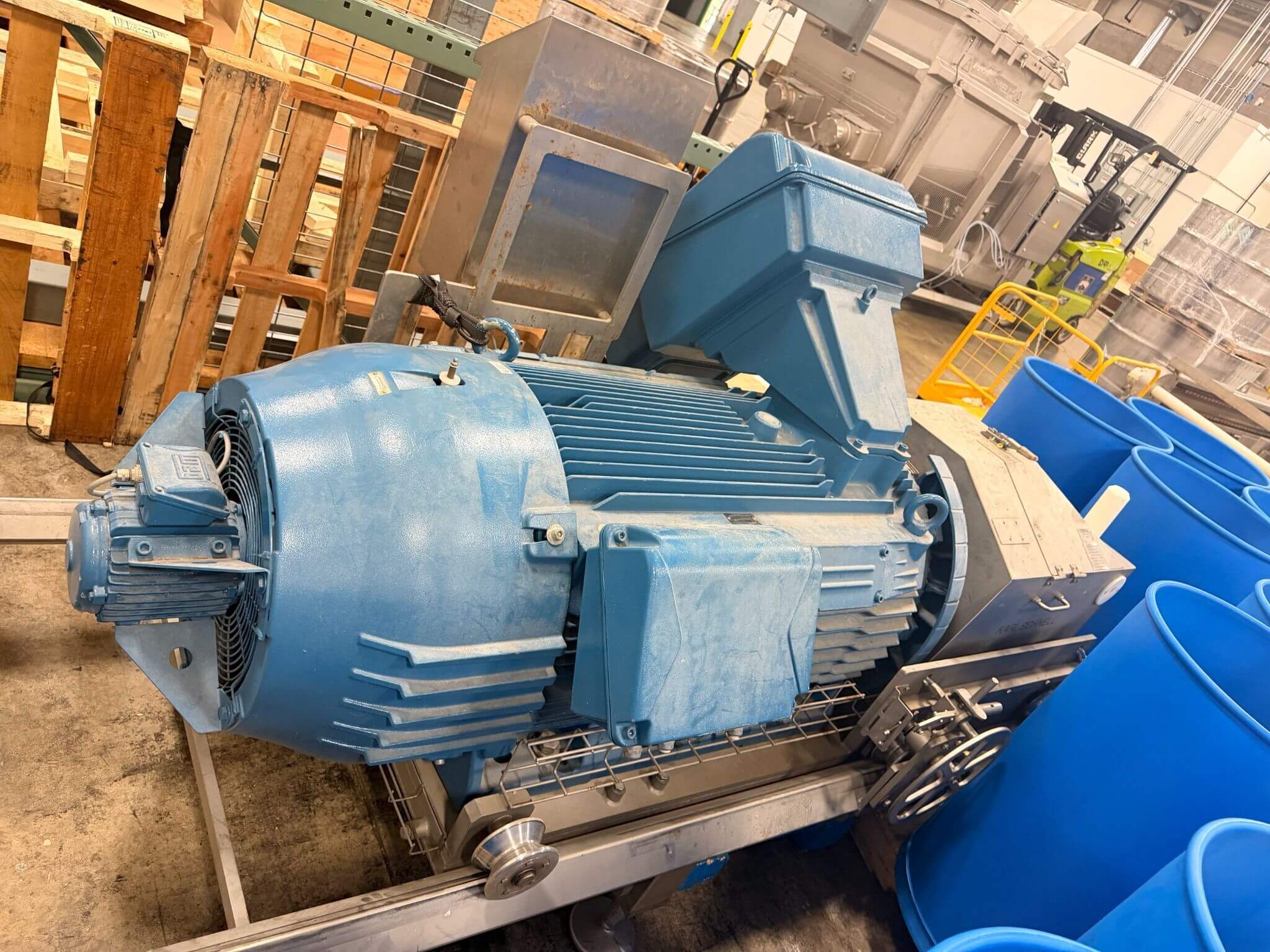

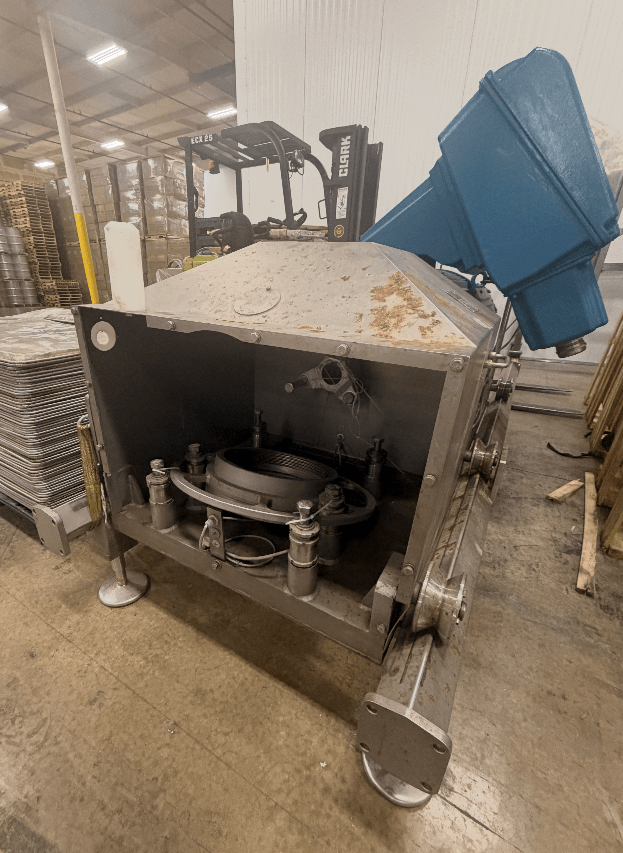

This model is equipped with a 268 horsepower emulsification motor. It also features a 15-8-12 Roto-Plate cutting system to ensure consistent results in large-scale food processing.

The machine operates on 460V/3Ph/60Hz. Safety and operational features include a manhole lid with a pneumatic cylinder, safety interlocks, and integrated load cells for in-bin weighing.
