LETCO 100 Gallons Reactor

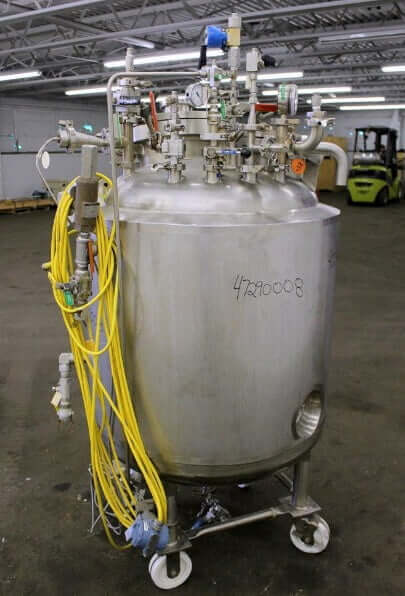

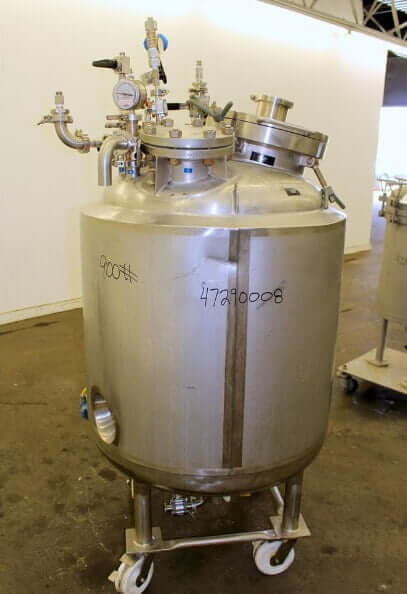

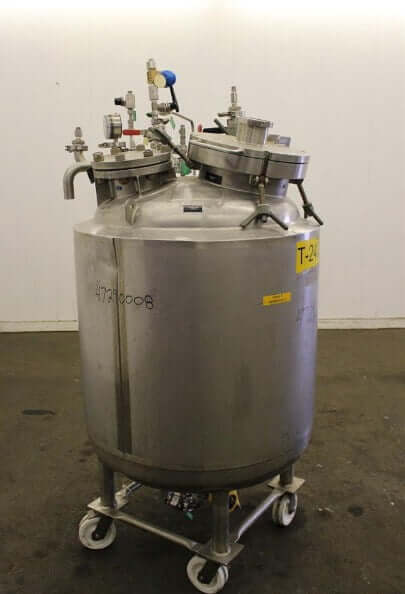

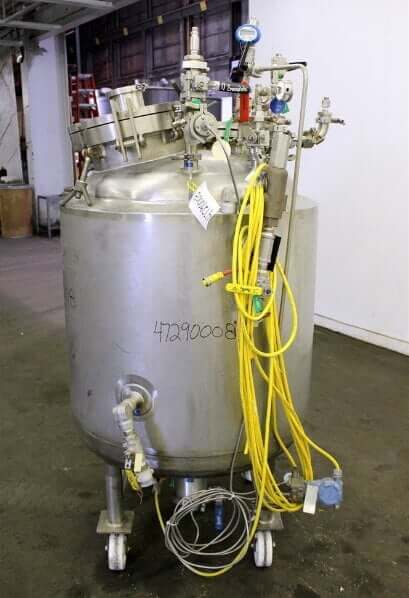

This reactor is constructed from 316L Stainless Steel with a vertical design. It features a 30" diameter and a 32" straight side, including dished top and bottom sections. The unit includes a 316L stainless steel half-pipe coil jacket. Please contact M&M Equipment Corp for specific details regarding the layout or configuration of its components.

The internal tank is rated for 50 psi/full vacuum at temperatures ranging from -20 to 250 degrees F. Additionally, the 316L stainless steel half-pipe coil jacket is rated for 90 psi between -20 and 250 degrees F. These specifications ensure it meets industrial requirements for various food processing applications.

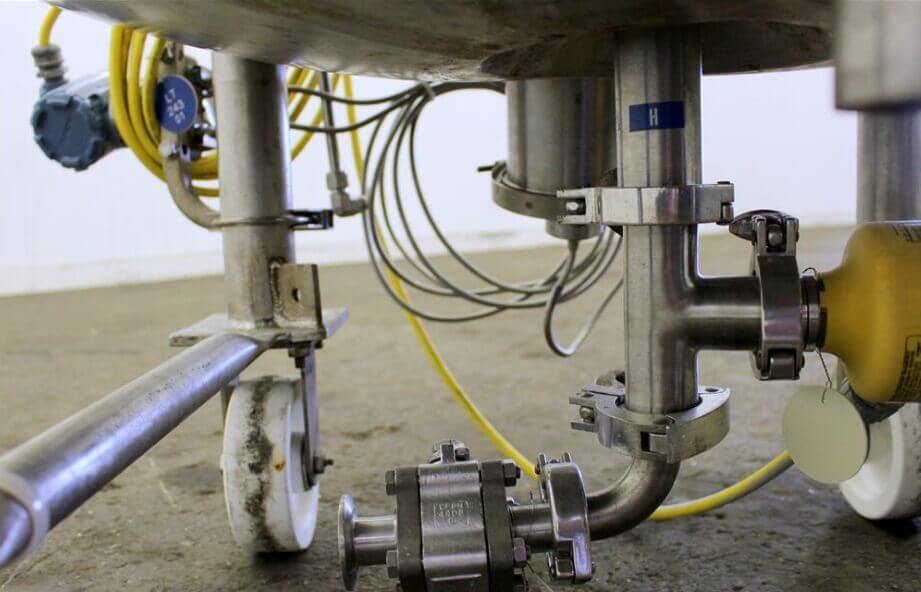

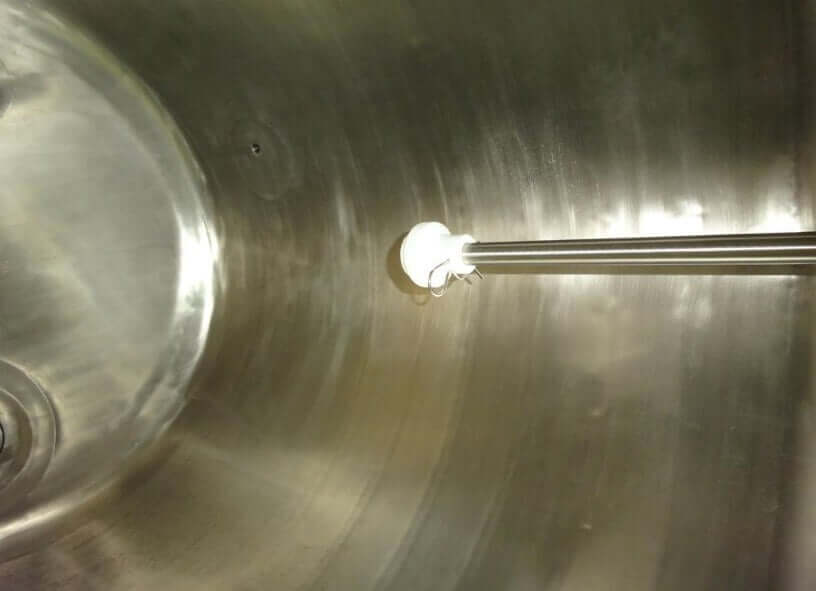

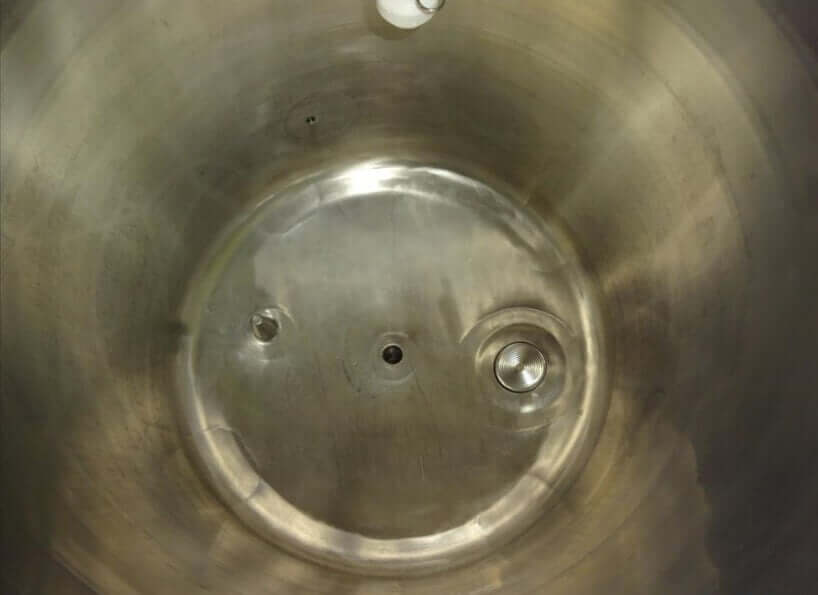

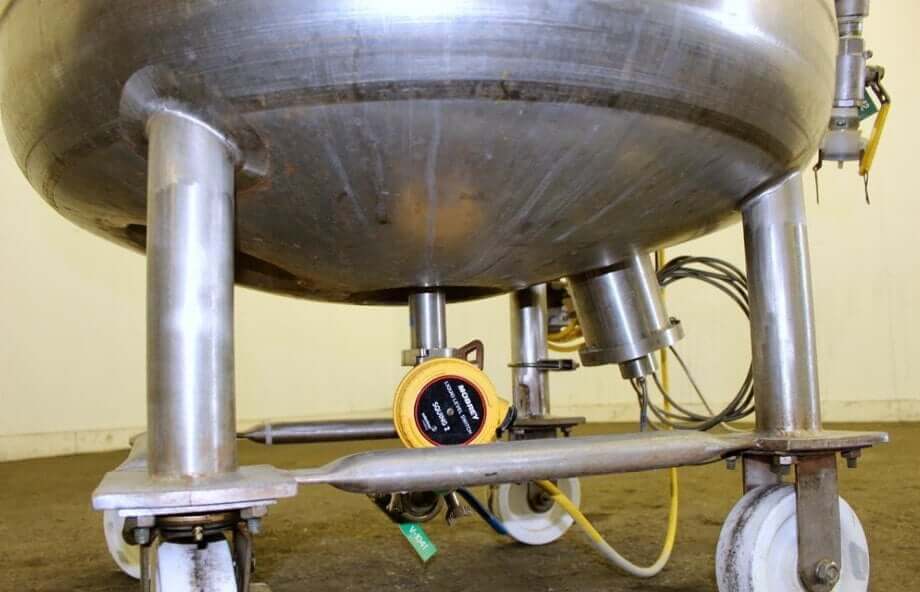

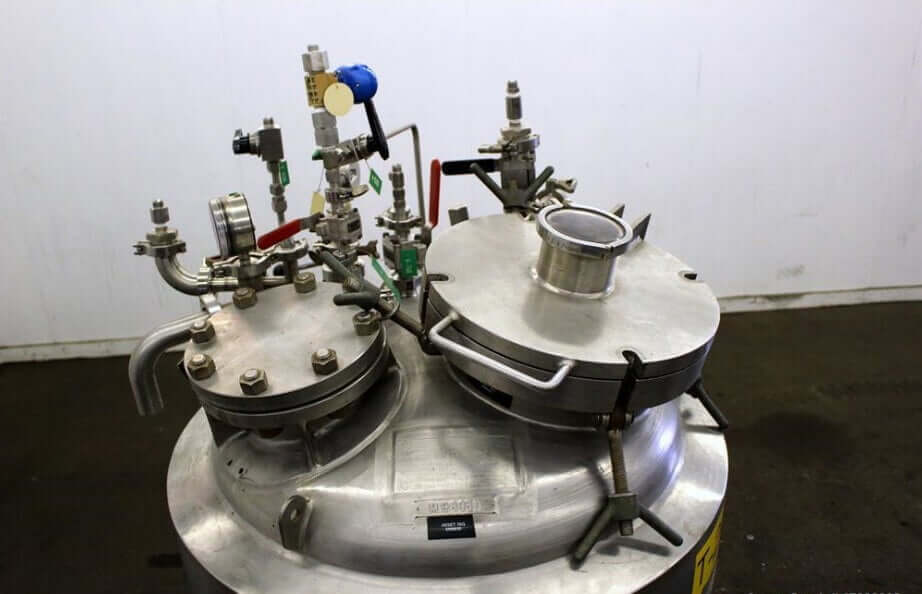

The top of the vessel includes one 12" hand hole with a 4" sight glass on a hinged cover, one 6" opening, one 3" opening, and five 1-1/2" openings. There is also an approximately 1-1/2" center bottom outlet for product discharge. One spray ball is included in the configuration.

Yes, this unit is designed specifically for industrial food and beverage applications such as poultry, seafood, and pet food production. It functions as a sanitary vessel used to mix, condition, and hold products during recipe development or large-scale production runs in commercial plants.

This unit is currently listed as closed. Because our inventory changes frequently, please contact M&M Equipment Corp with your specific process requirements. Our team can provide information on current availability and pricing for this or other similar industrial reactors.
