Precision Stainless 500 Liter Reactor

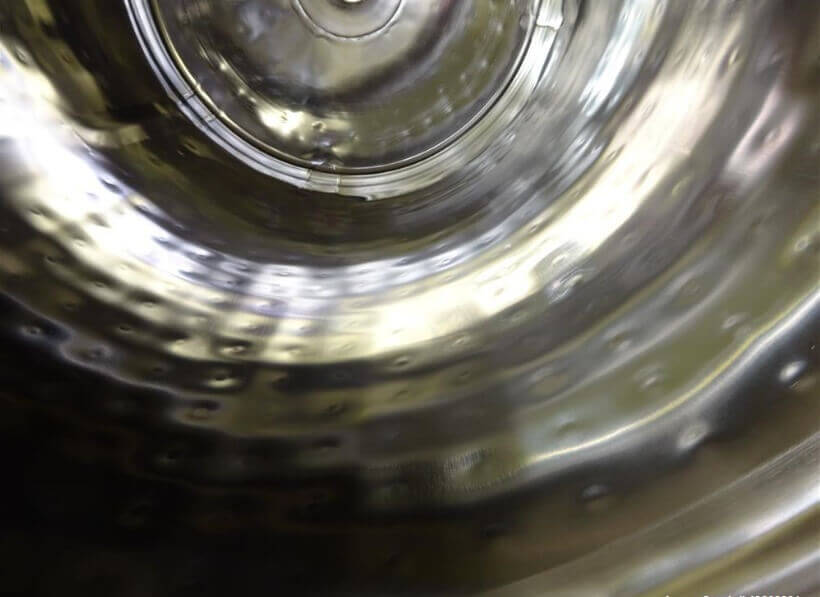

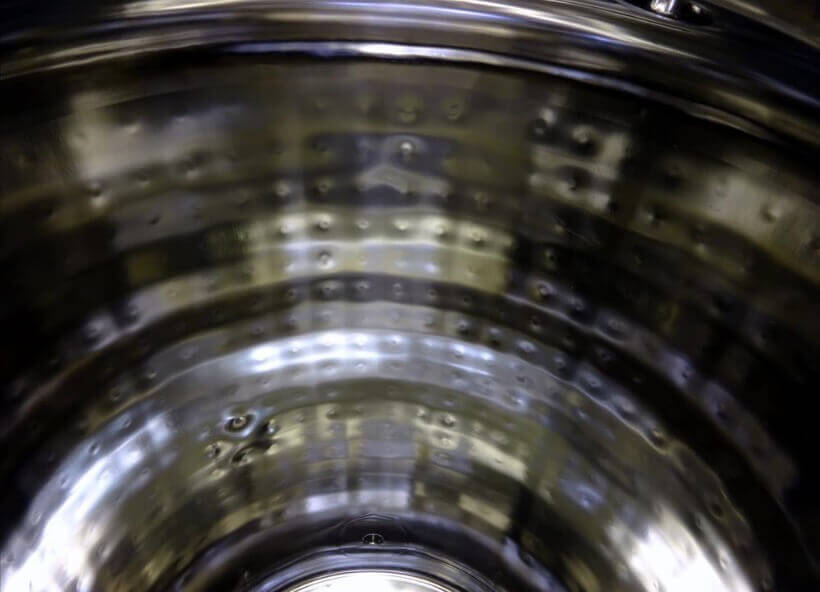

This reactor is constructed from 316L Stainless Steel with a vertical design. It features an approximate 30" diameter and 40" straight side with dished heads. The dimple jacket is made of 304L Stainless steel. Please contact M&M Equipment Corp for specific inquiries regarding additional material specifications not listed here.

The interior is rated for 50 psi/FV at -20 to 350 degrees F. The 304L Stainless steel dimple jacket is rated for 120 psi at -20 to 350 degrees F. These specifications are designed for industrial food processing applications.

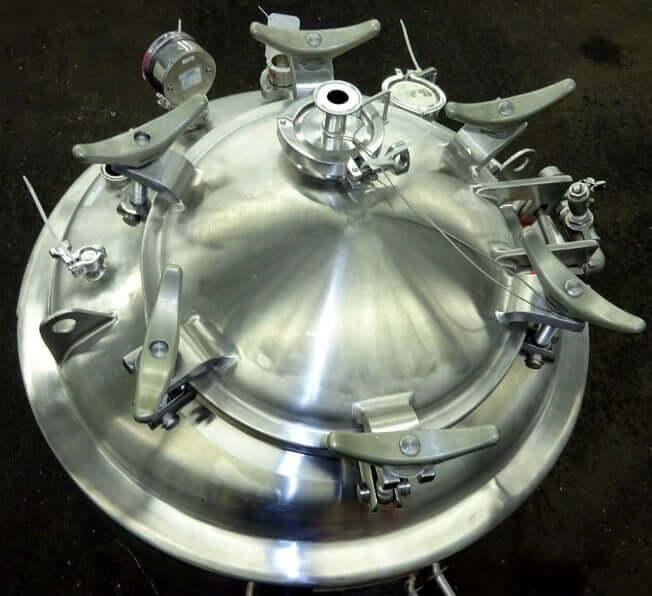

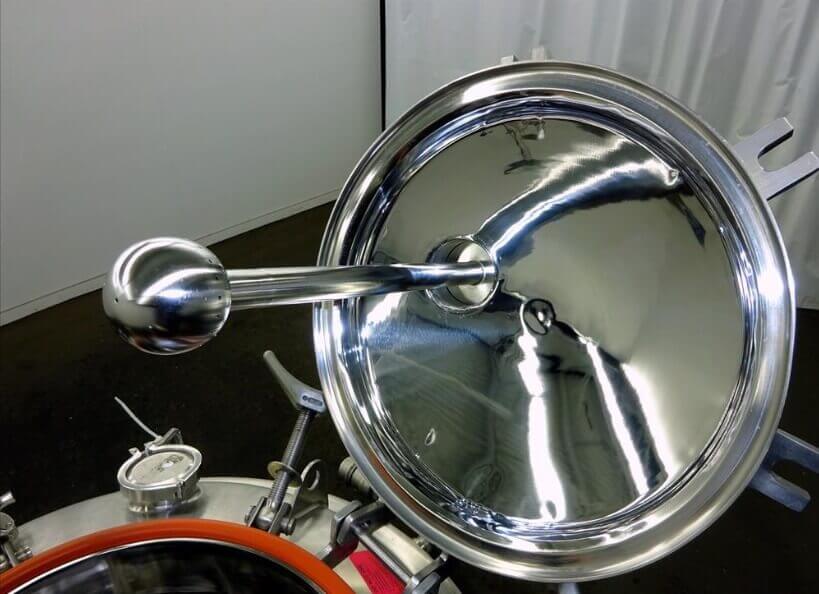

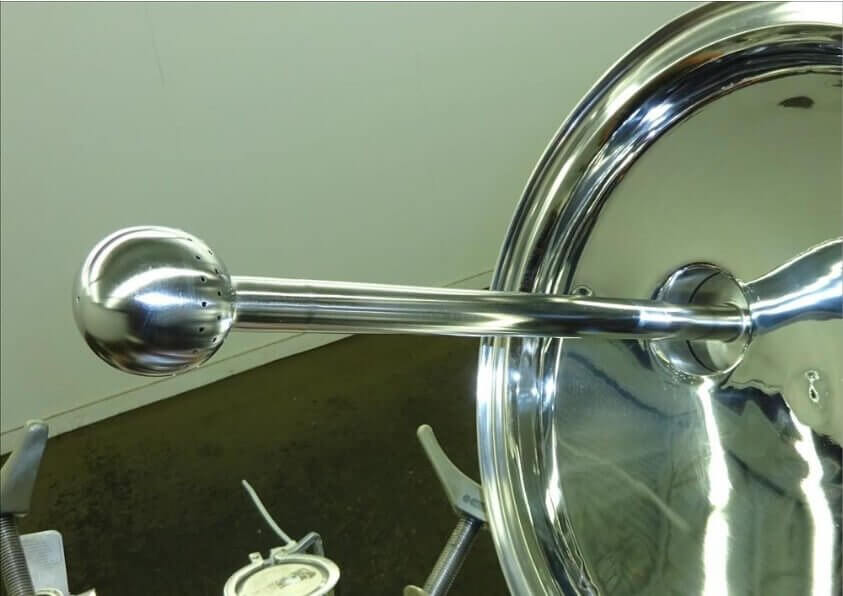

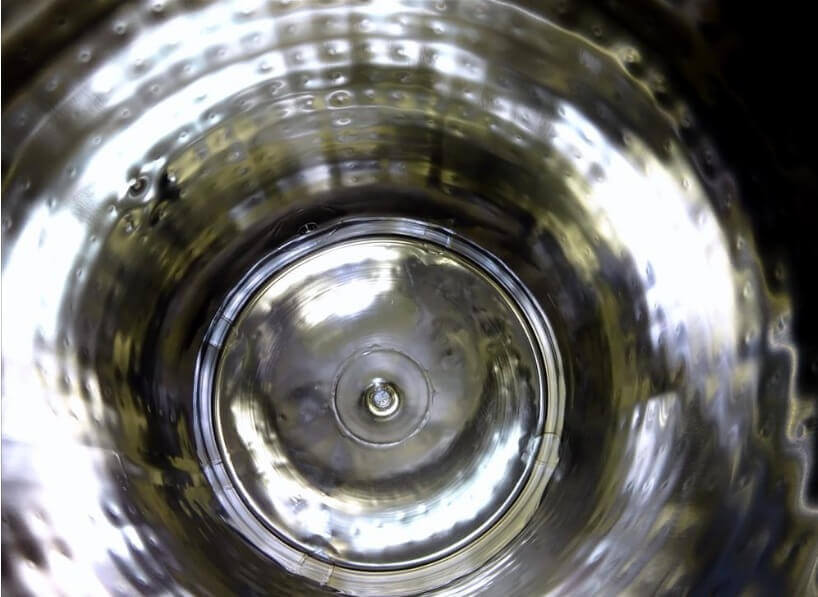

The top of the vessel includes one 16" manway with a cover, one 3" opening, and three 1-1/2" openings. It also features an internal spray ball for processing. A 1-1/2" center bottom outlet is provided for drainage.

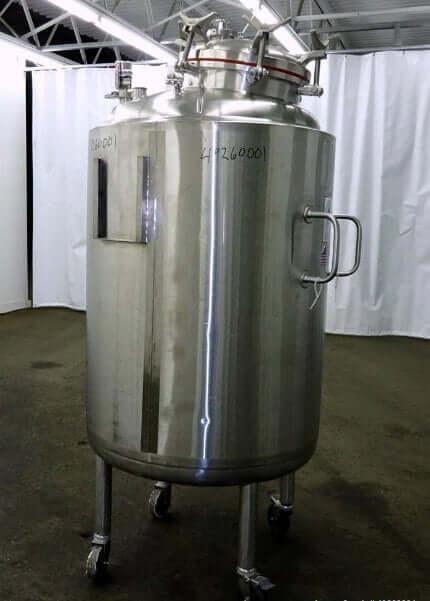

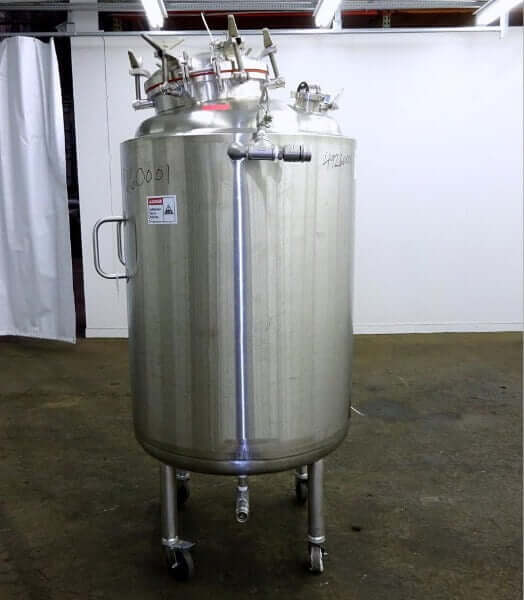

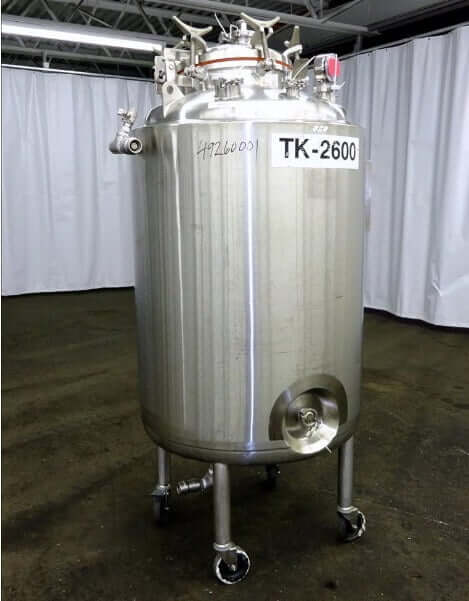

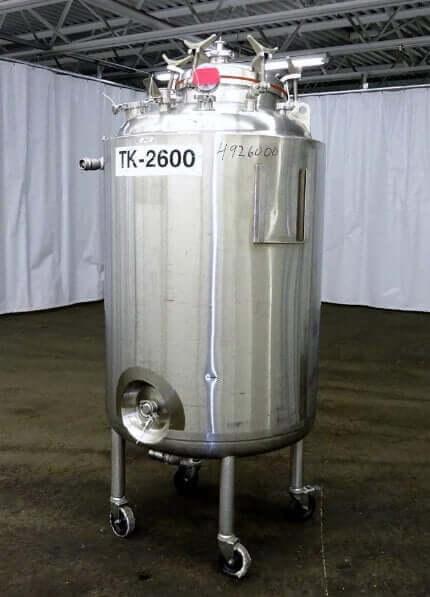

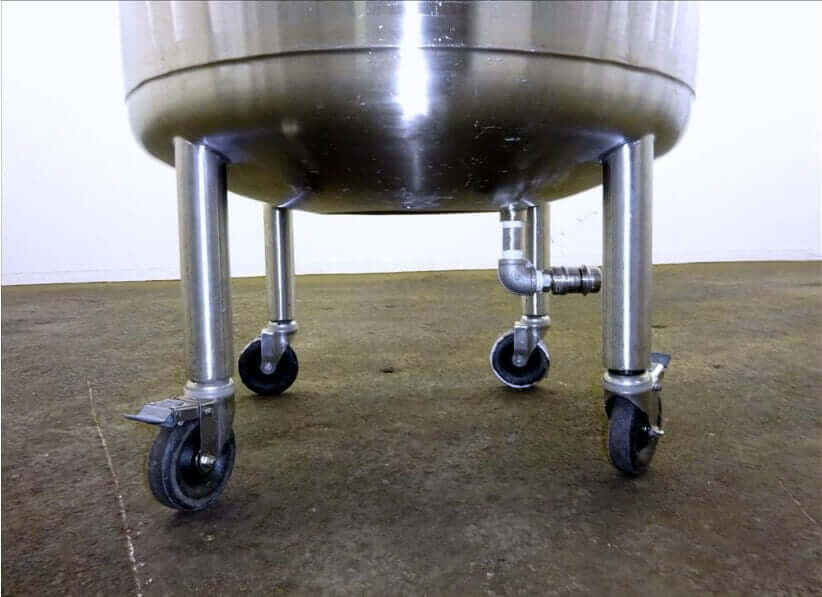

This unit is mounted on four legs equipped with casters to facilitate movement within a production plant. It is designed specifically for industrial food and beverage operations, such as those in the poultry, seafood, or pet food industries.

This specific unit is currently listed as closed. Because our inventory changes frequently, please contact M&M Equipment Corp with your specific process requirements to receive a quote and information on current availability for similar industrial reactors.
