Miura LX-200 SG 07 Boiler
Miura LX-200 SG 07 Boiler

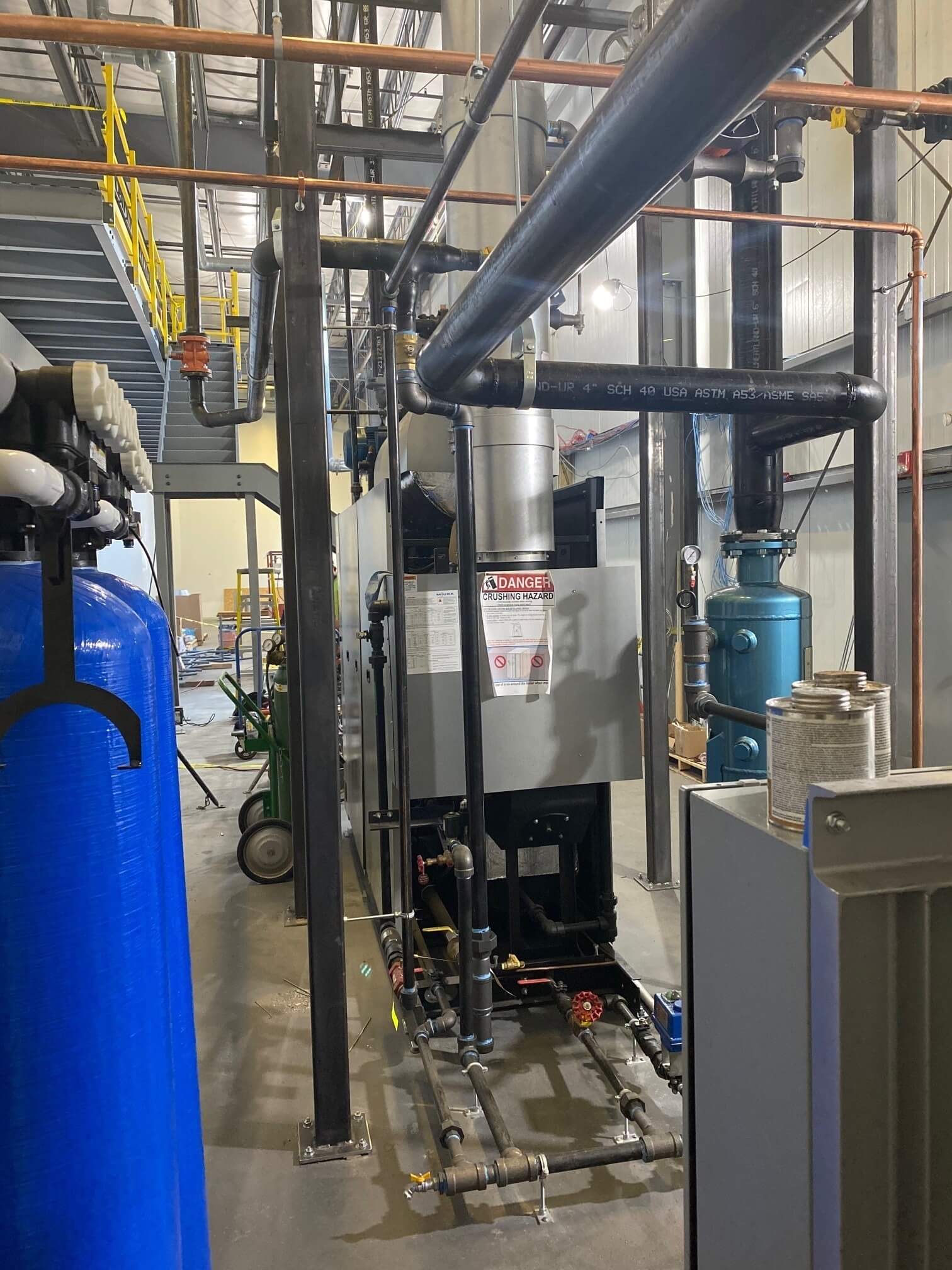

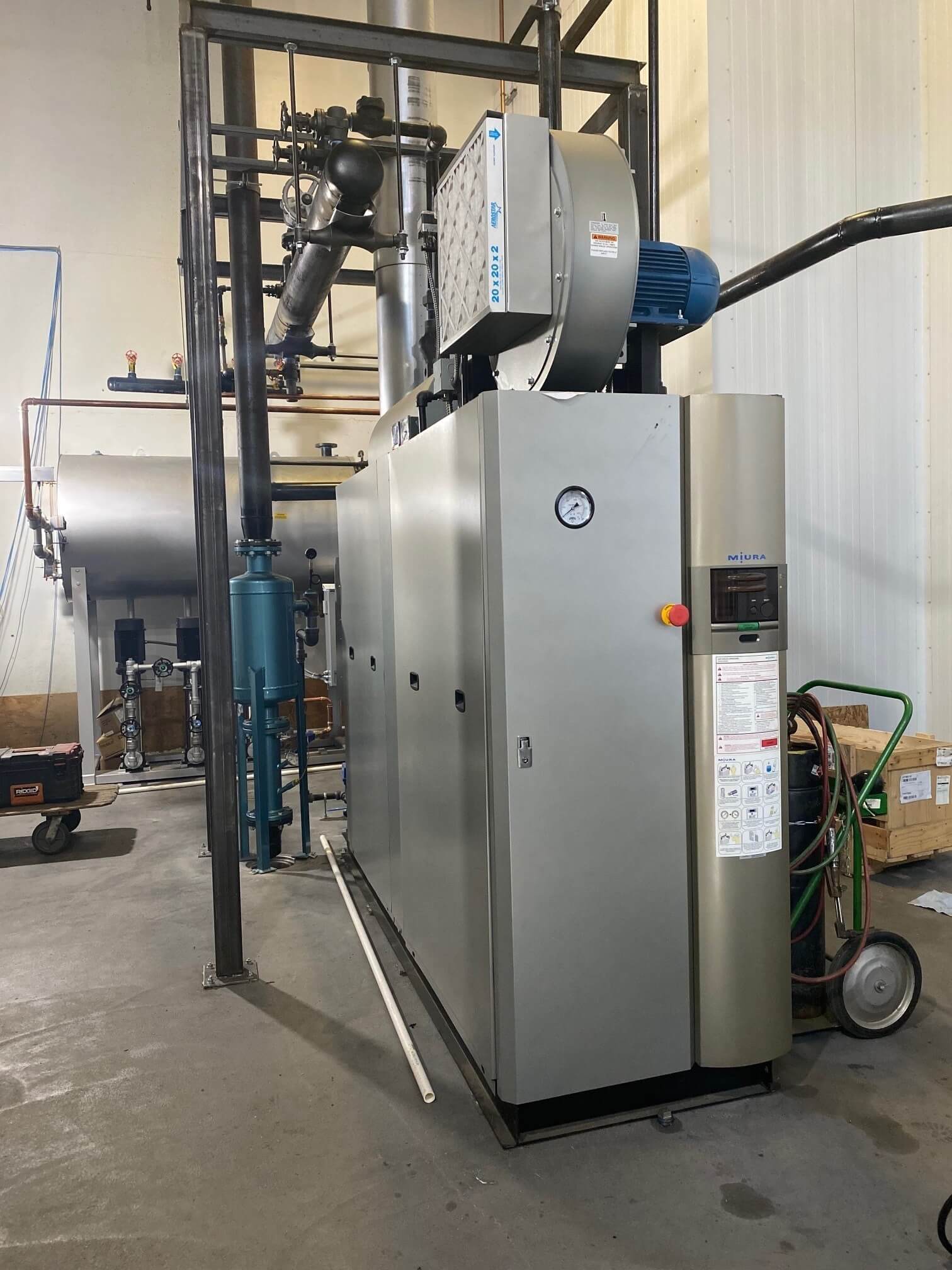

Miura LX-200 SG 07 Boiler. Natural Gas Fired Steam Boiler. Utilization horsepower 200, heating 496 sqft. heating surface, , maximum pressure 170 psi, design temperature 400 degrees F., maximum steam steaming capacity 6914 Lbs./hour. Maximum input 8300 x 1,000 BTU/hour, minimum input 2500 x 1,000 BTU/hour. Blowdown separator- 2″ inlet, 5″ vent, 1-1/4″ cooling valve. Fully integrated Duplex water softener. Includes 20 hp blower, 5 hp feedwater pump, 460V/3PH/60HZ. Brand New, in original shipping crate. Picture is the same boiler installed at the facility.
