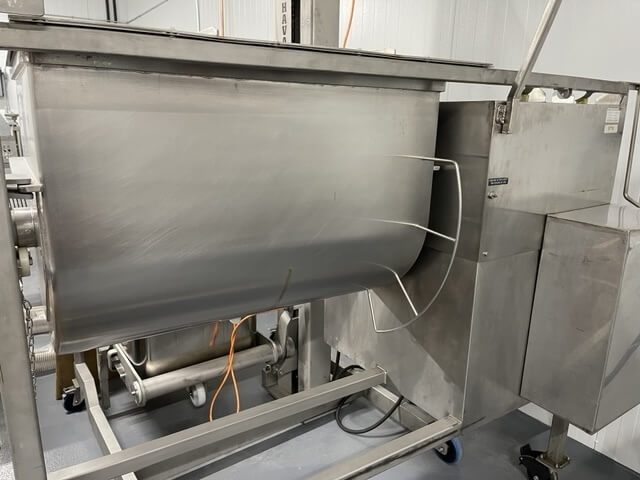

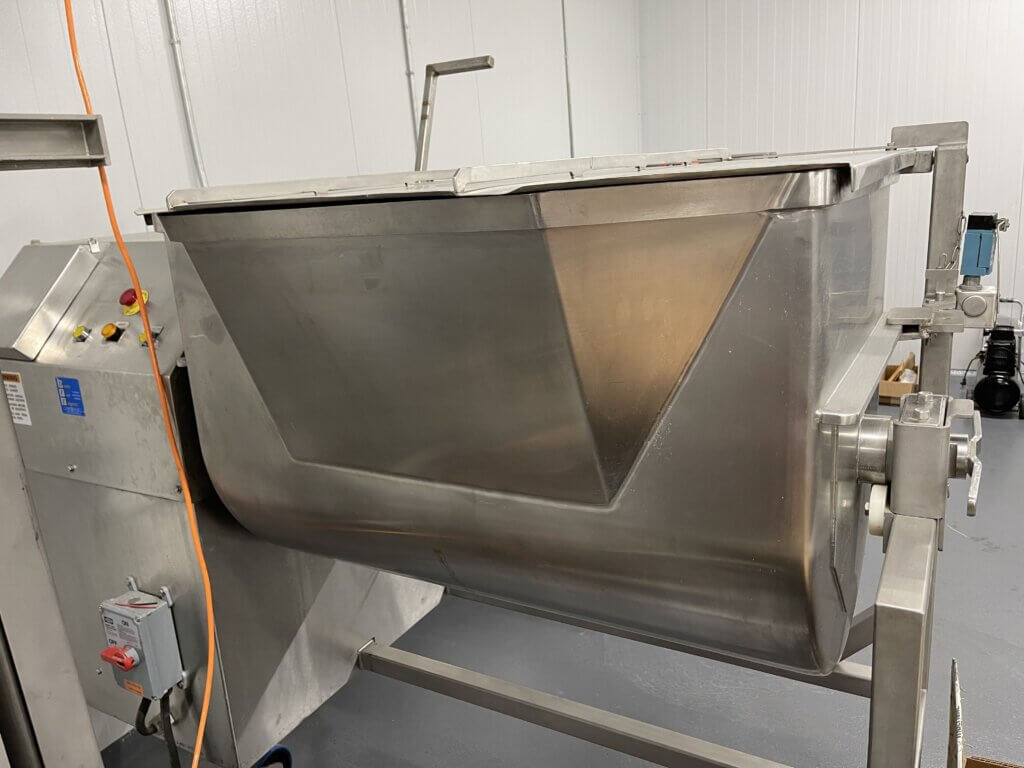

NEW DANIELS DMX 600LB QUAD MIXER

This unit features a 7.5 HP Mixing Motor and a 1/2 HP Hopper Dump Gear Motor. It operates on 230V/3ph/60Hz power. The machine includes an outer sweep arm and inner paddle that rotate in opposite directions to ensure thorough mixing of ingredients.

The mixer features stainless steel construction, including a stainless steel lid. It is designed with an easy-to-remove paddle system and includes a hopper drain plug for ease of cleaning in processing environments.

The unit is equipped with two safety switches, an emergency stop button, and four swivel locking casters for mobility. An LED timer displays both hours and minutes to help production teams manage batch timing during the mixing process.

The mixer provides forward and reverse mixing capabilities along with a four position dump. The design allows for consistent blending of materials like meat, dough, or sauces before they move to downstream forming or depositing lines.

The unit includes an 11' Frame Extension with a 64.5" Load. Please contact M&M Equipment Corp for specific details regarding the overall footprint or additional dimensions not listed in the specifications.
