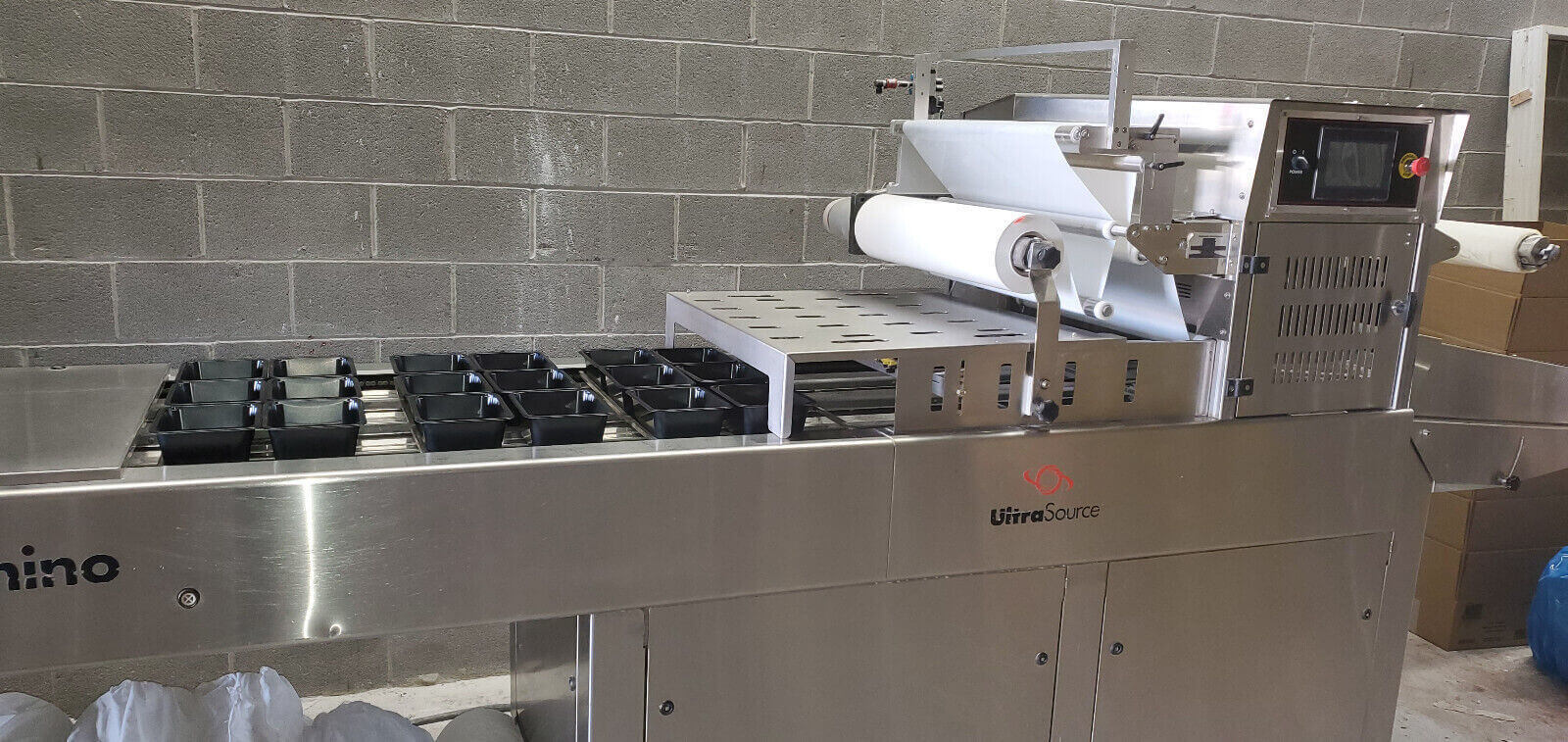

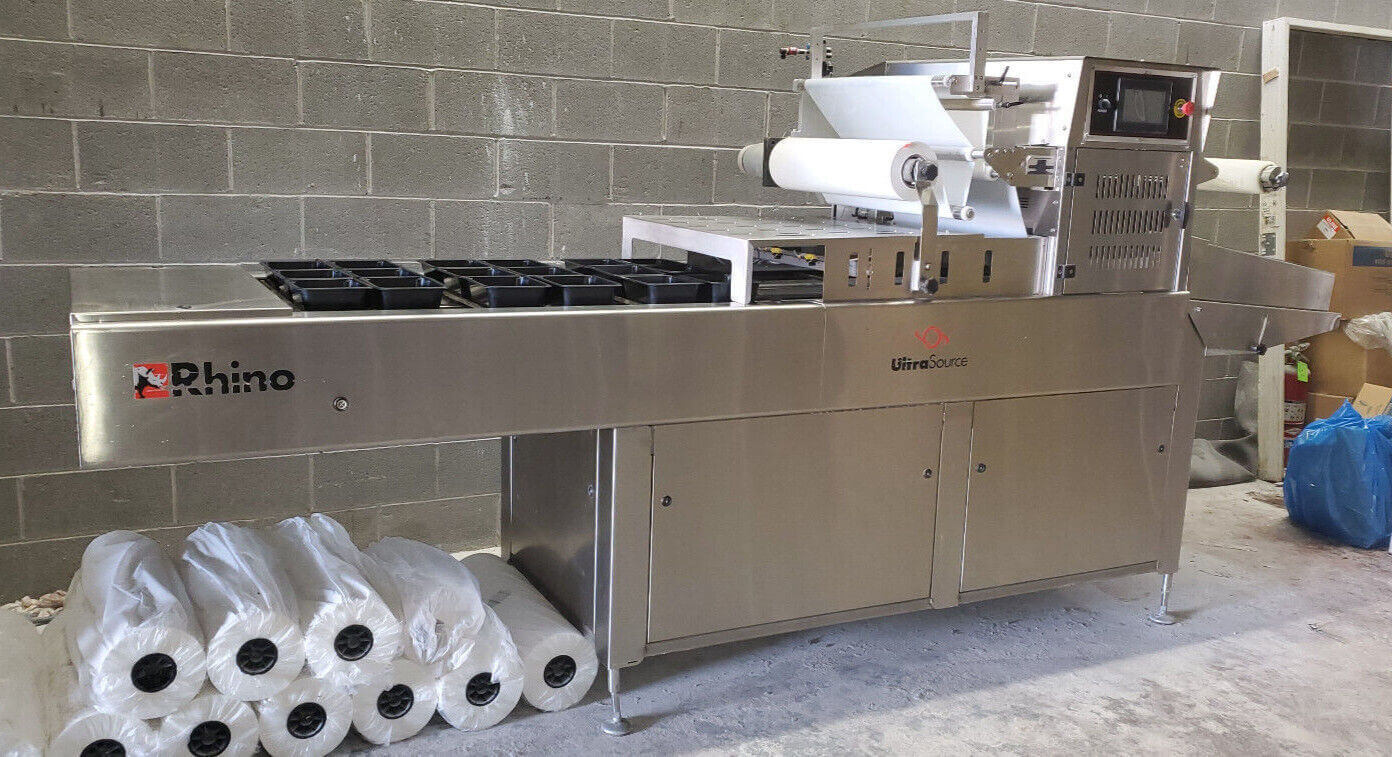

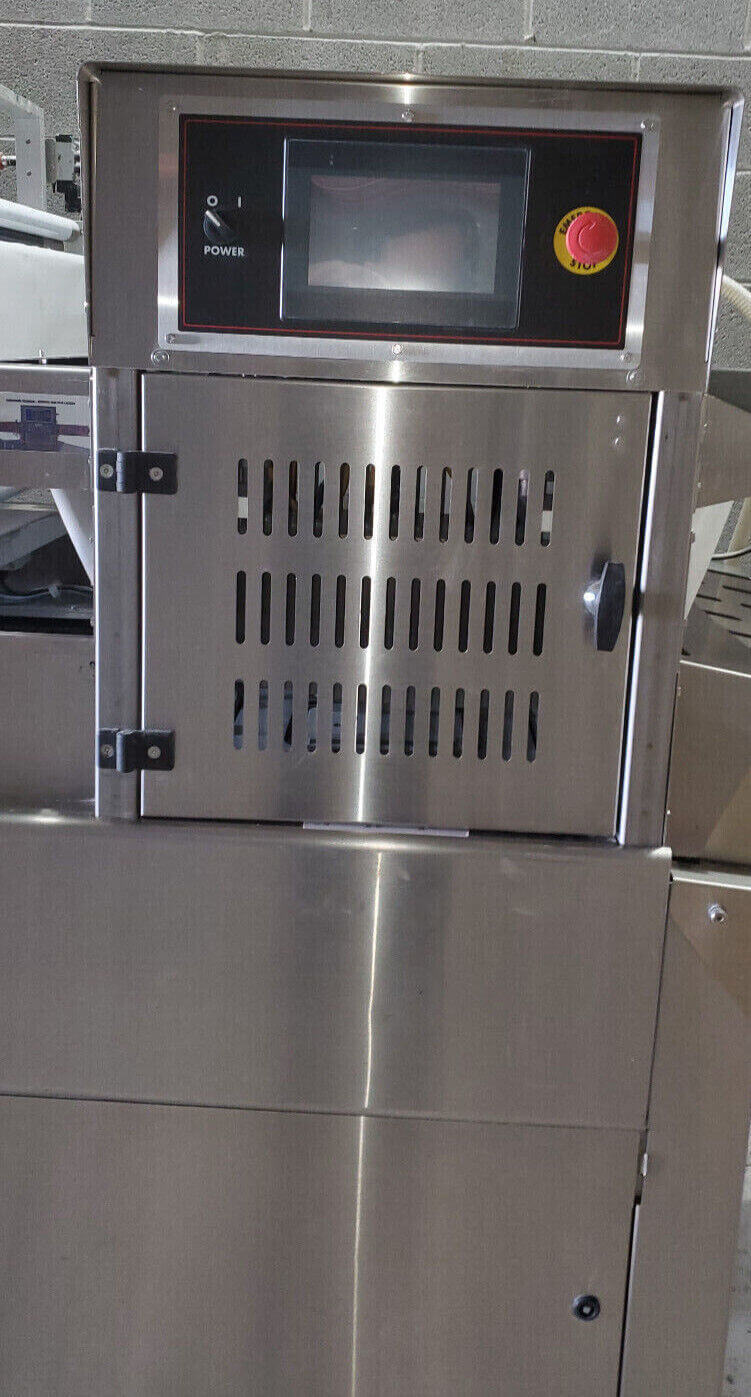

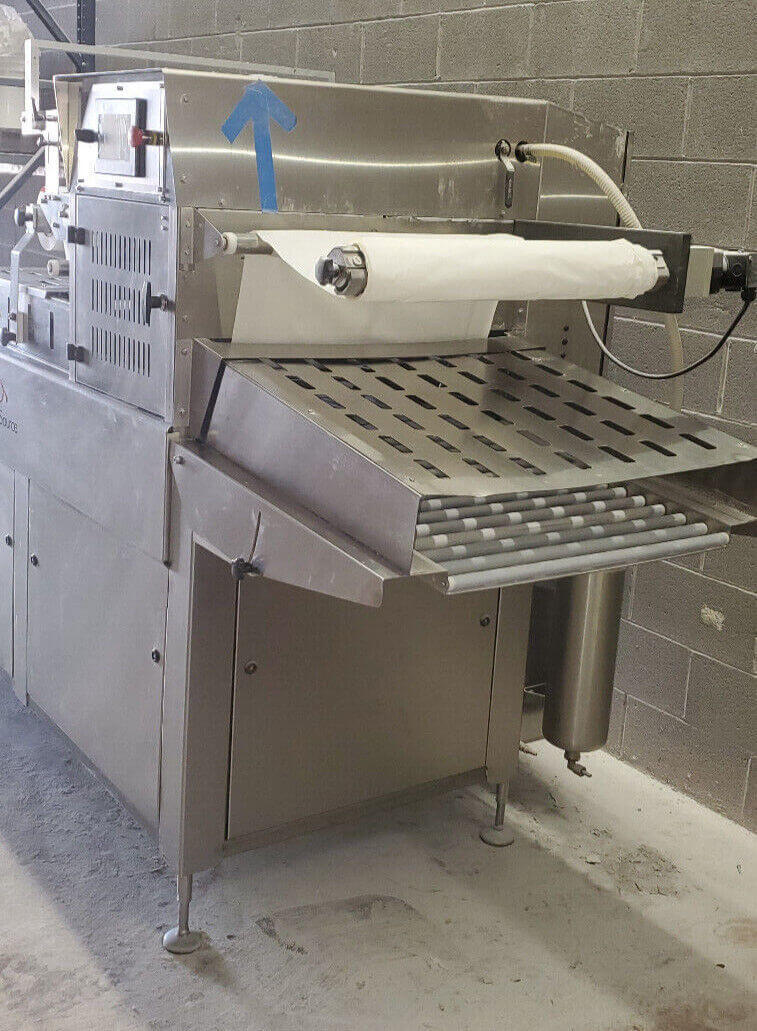

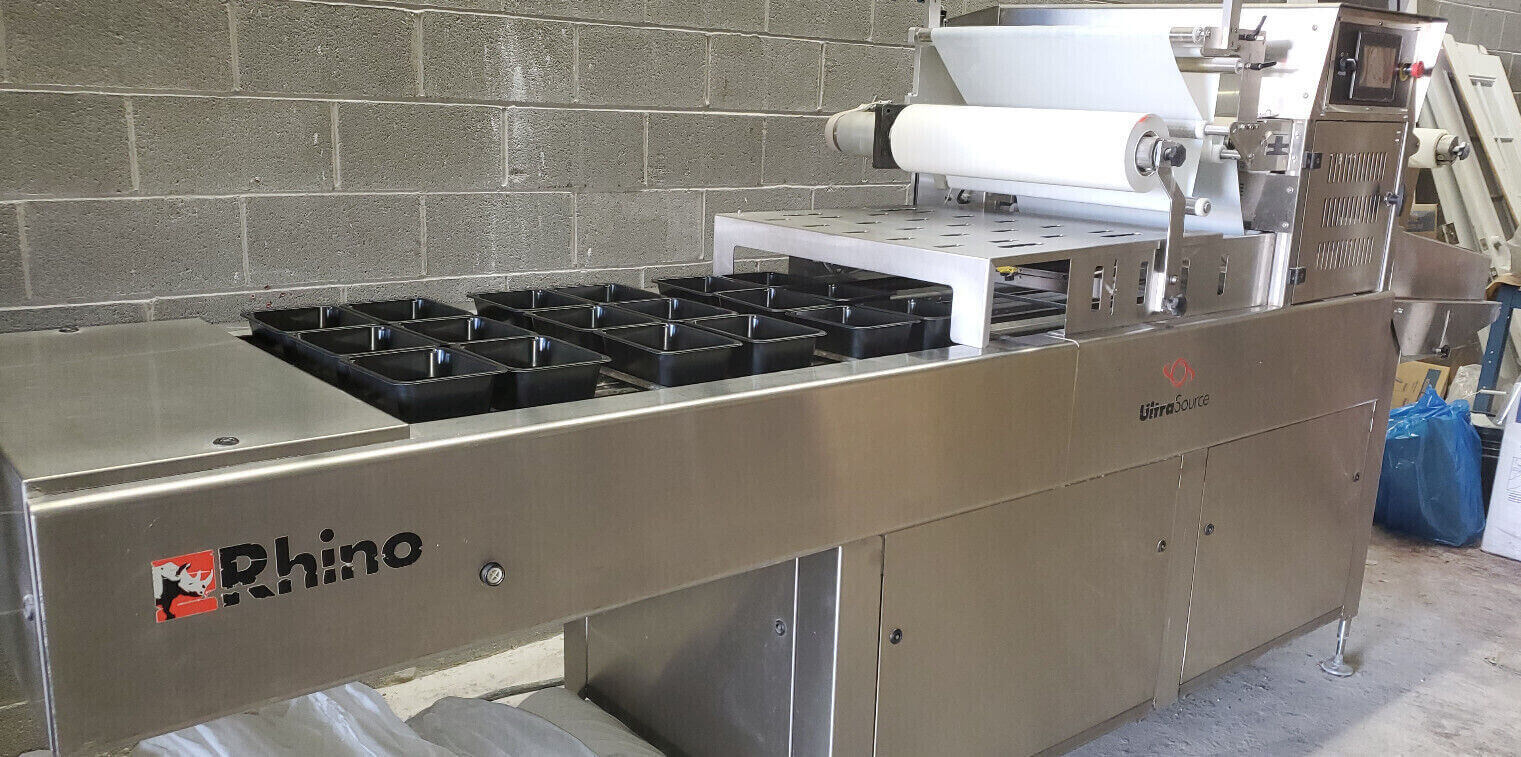

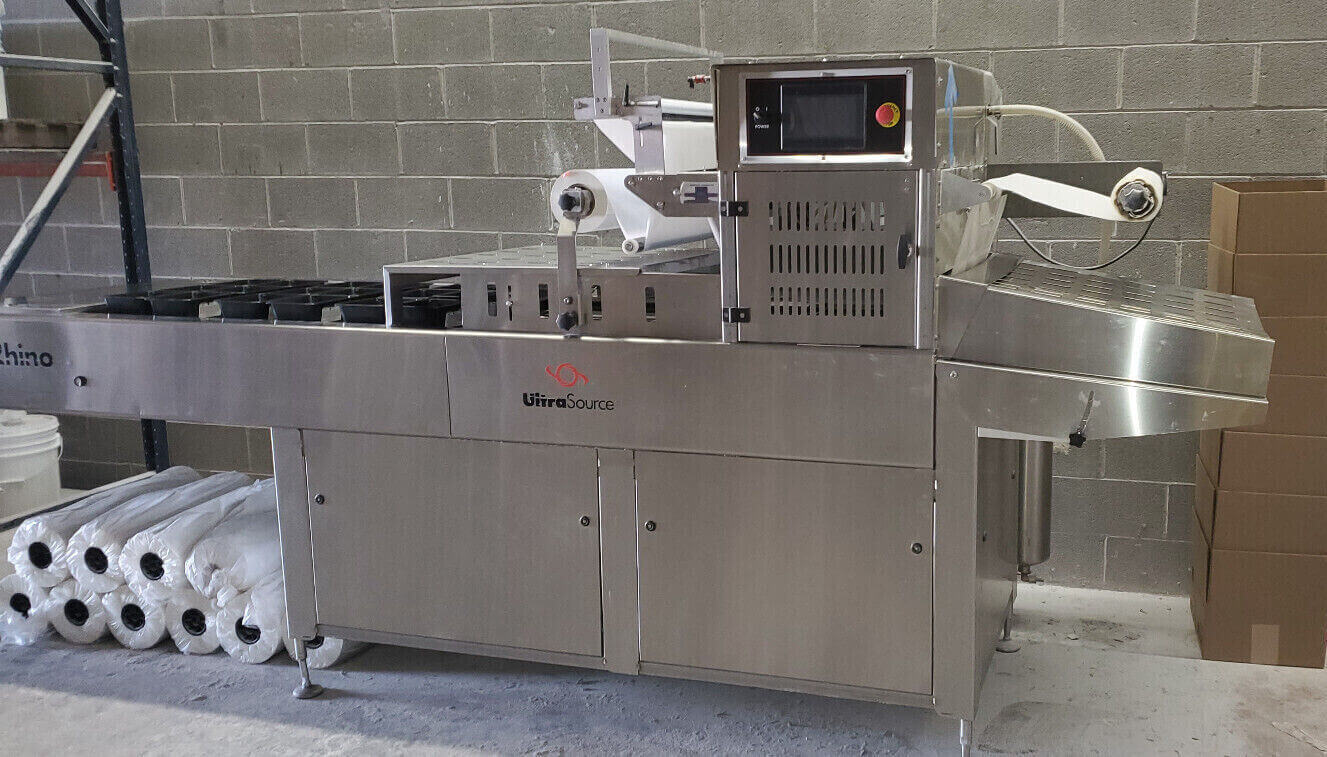

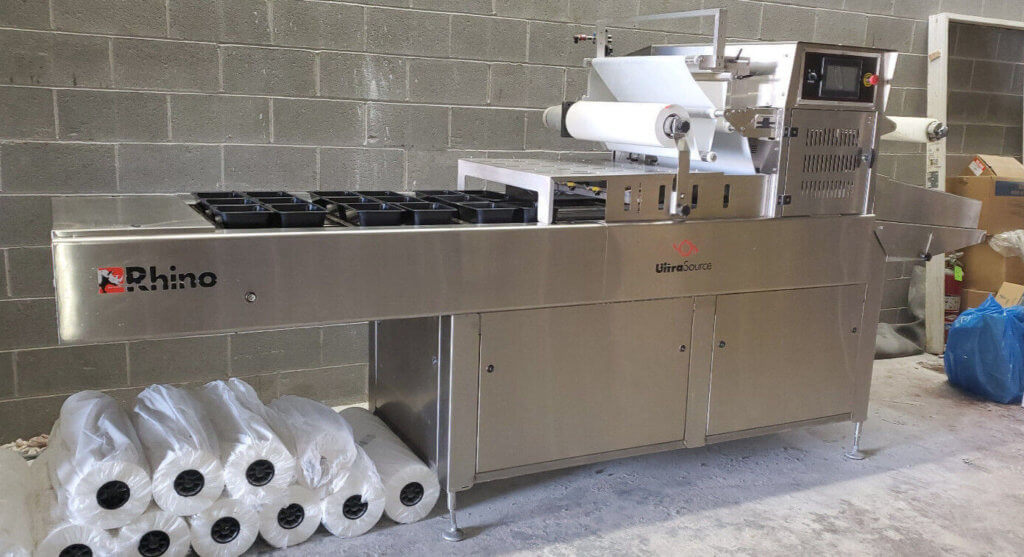

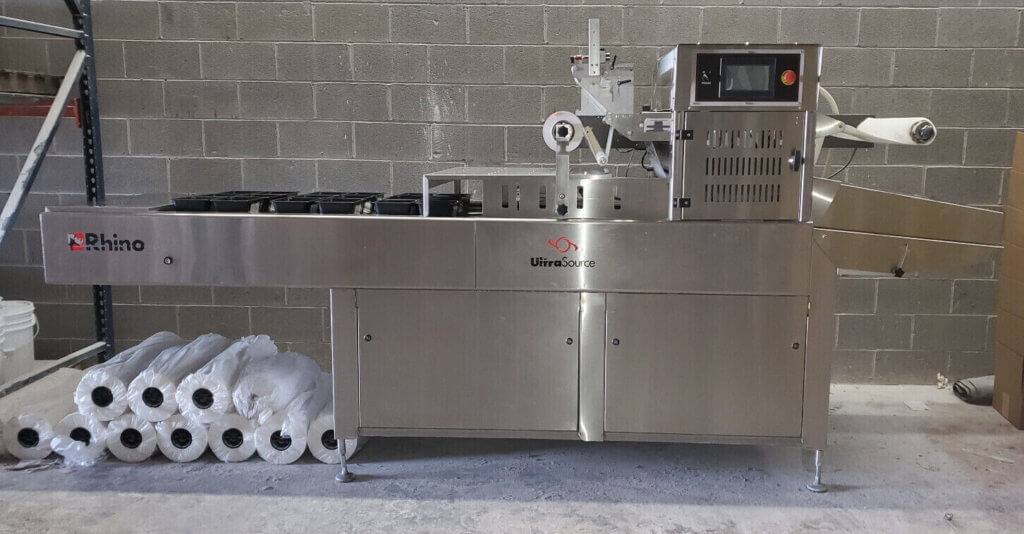

Ultrasource Rhino 10 Tray Packaging Machine

Ultrasource Rhino 10 Tray Packaging Machine. All stainless steel construction, Mitsubishi 6″ color touchscreen, film unwind system, 3 up tooling set, up to 10 cycles per minute (seal only), maximum tray size of 22.8″ x 12.4″ x 4.7″, 3HP vacuum pump, 230V/3PH/60HZ. Requires 120 psi compressed air.

This Rhino 10 Automatic M.A.P. Food Tray Sealer is a versatile, inline tray sealer with modified atmosphere packaging included. Ideal for small to medium-sized commercial production environments; it is constructed of stainless steel and anodized aluminum and is built to operate in wash down environments. Its inline guide rails are fully adjustable and accommodate bowls, trays, cups,and more. The wide sealing area accommodates three rows of #3 size trays that are advanced by a stepper motor into the sealing mold, sealed and then automatically discharged. The Rhino 10 seals up to ten cycles per minute or seven M.A.P. cycles per minute. Tooling change-over is fast and easy, requiring a single tool to accomplish product changeovers in less than 15 minutes. Comes with three different tray tool sizes along with a complete spare parts kit and twelve film sealing rolls. Custom tray molds may be required for your specific application at a separate cost from the manufacturer.

Specifications
