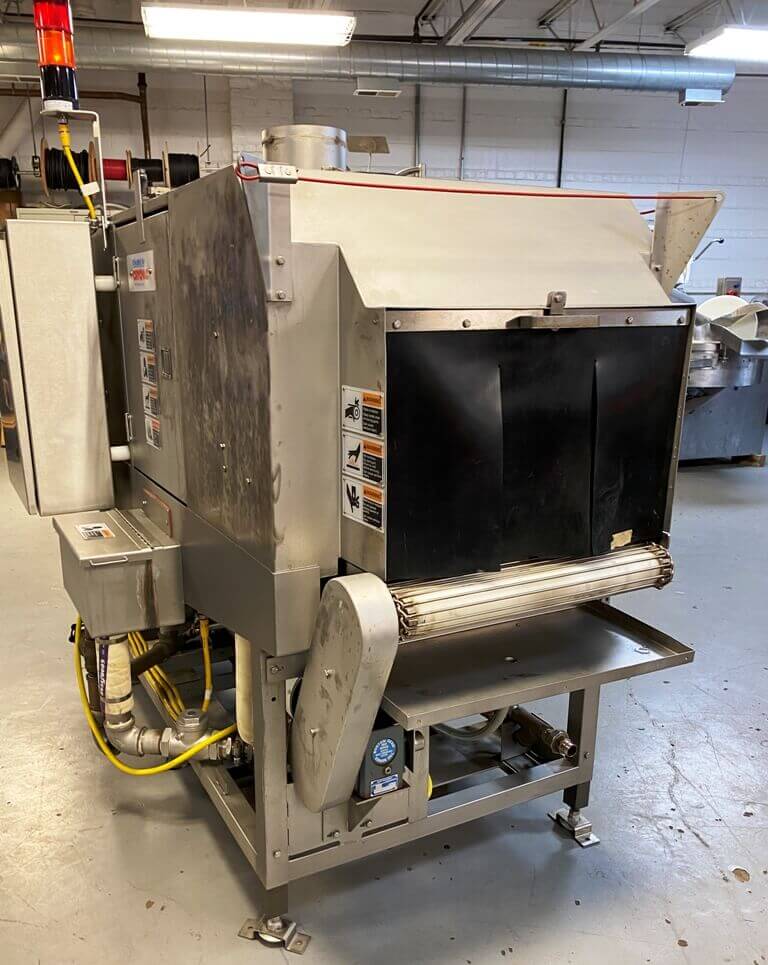

Cryovac ST101 Shrink Tunnel

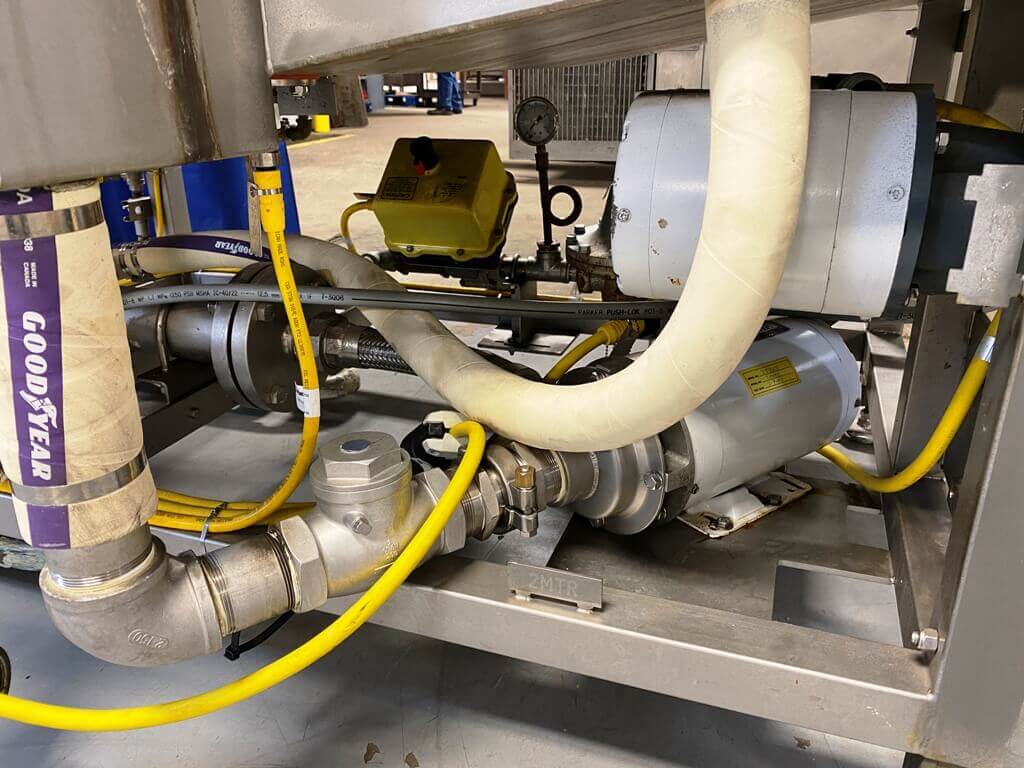

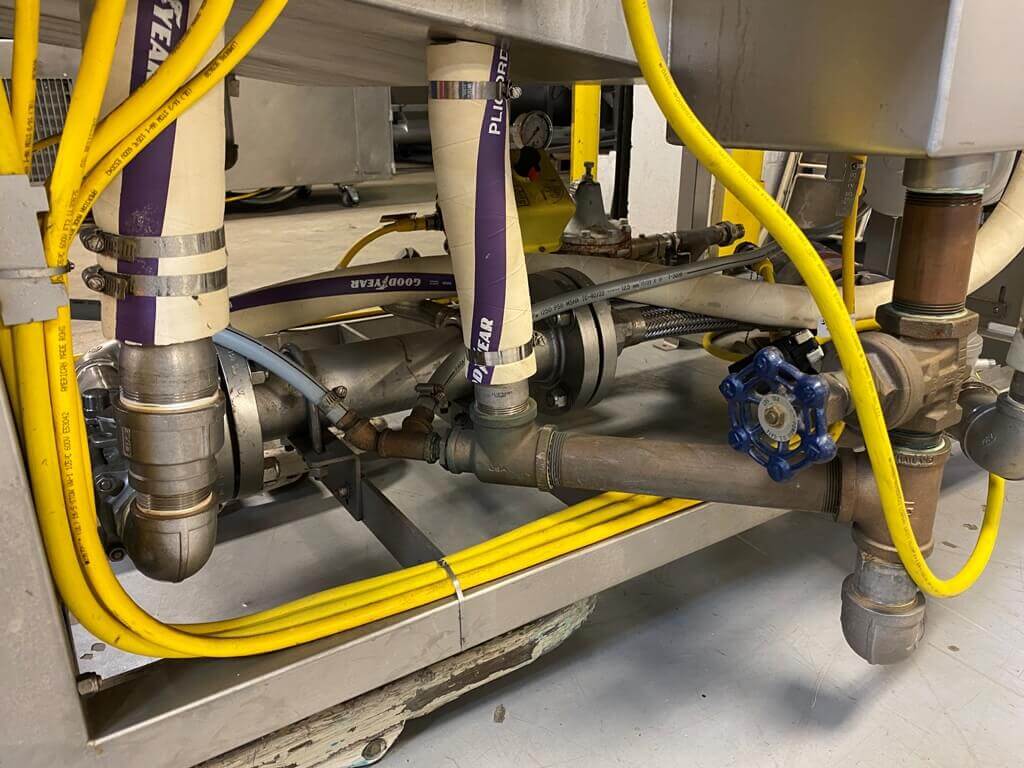

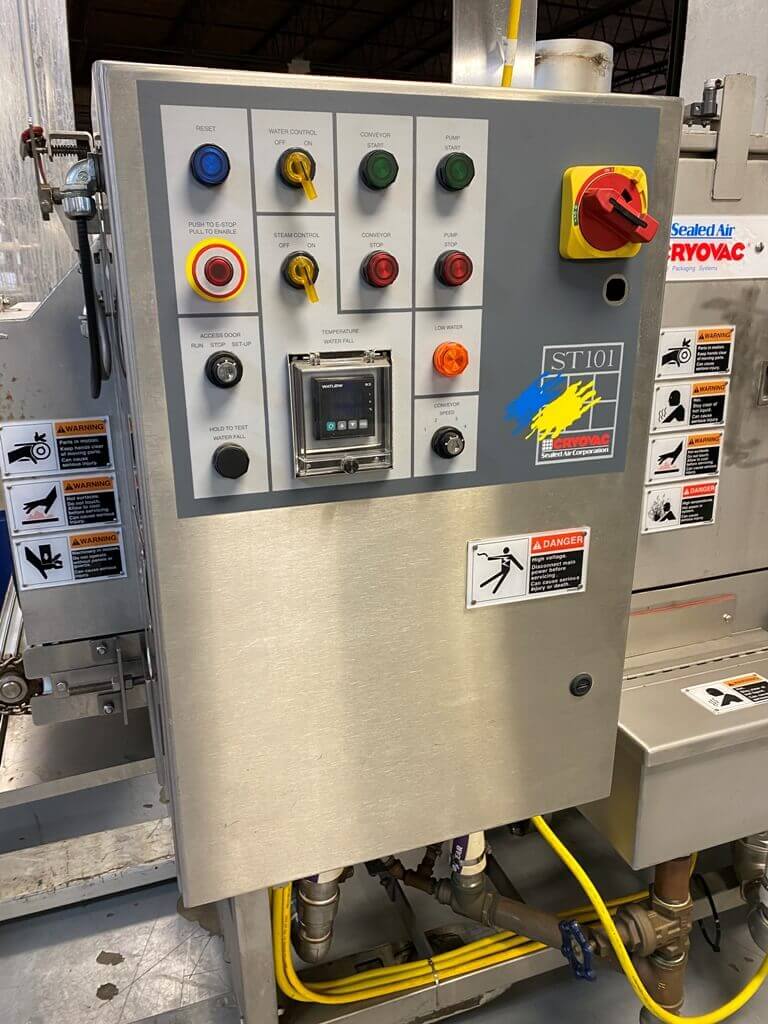

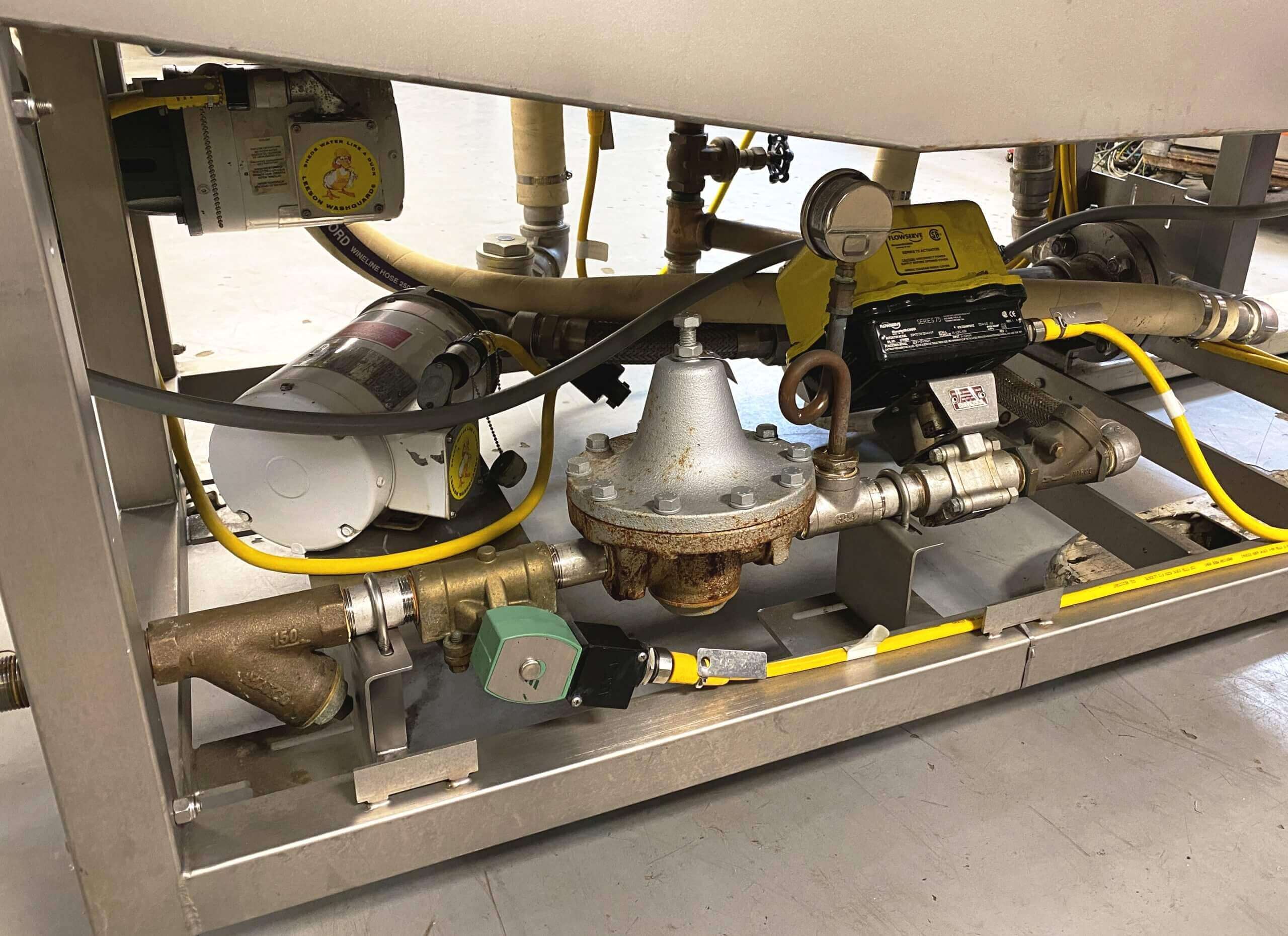

Cryovac Hot Water Shrink Tunnel. Accomplishes optimum shrink at water temperature 185-200 F. Right hand product flow. 24″ wide stainless-steel Flex grid conveyor belt. Operates at 54’/minute. Watlow digital controller. ¼ hp drive motor. Bottom water spray utilizing a 2 hp Leeson Washguard motor water re-circulation pump. 480V/3PH/60HZ, 5 Amps. Requires ½” water line. Live steam injection with 1″ pipe to provide 40 Lbs. 8” diameter exhaust, 200-300 CFM.

CLOSED / SOLD

Have Similar Machine?

Specifications

Model	ST101
Item No.	6738
Manufacturer	Cryovac
Condition	Used
Related Industries	Beef and Pork Cheese & Dairy Processing Poultry Sausage Seafood Vegetable
Equipment Categories	Shrink Tunnels
Brochure/Manual	Download

About this machine

FAQ's

What are the operating specifications for the Cryovac ST101 Shrink Tunnel?

This unit operates at a water temperature of 185-200 F to achieve optimum shrink. It features a 24" wide stainless-steel Flex grid conveyor belt with right hand product flow and a speed of 54_’/minute. The system includes a Watlow digital controller, a 1/2 hp drive motor, and a 2 hp Leeson Washguard motor water re-circulation pump for the bottom water spray.

What are the utility requirements for this Cryovac ST101 unit?

The machine requires 480V/3PH/60HZ, 5 Amps power and a 1/2" water line. Additionally, it features live steam injection with a 1" pipe to provide 40 Lbs of exhaust through an 8" diameter vent at 200-300 CFM.

What specific materials and components are used in the construction of this shrink tunnel?

The Cryovac ST101 features a stainless-steel Flex grid conveyor belt. It is equipped with a Watlow digital controller for operation and utilizes a Leeson Washguard motor for the water re-circulation system.

Is there a manual or brochure available for the Cryovac ST101?

Yes, you can view more information regarding this equipment here: Cryovac ST101 Shrink Tunnel Brochure. This resource provides additional details for your review.

Is the Cryovac ST101 currently available in your inventory?

This item is currently listed as Closed. Please contact M&M Equipment Corp to discuss current availability and request a quote for this specific model or similar equipment for your food processing line.

What Our Customers Say

There’s a difference between good and GREAT service; M&M Equipment is that difference. Their work with us is and has always been one of sincerity, honesty, and…

Abe Mendal Operations Manager | M Pet Group

I have bought and sold numerous pieces of equipment of the years from M&M and have found Marty and Marc to be a great source of information to lead…

Jeffrey Saval President | Deli Brands of America

I have been using M&M Equipment through different employers for the last 20 years. They are always my first call when looking to buy or sell equipment. Their knowledge…

Ted Fisher Maintenance Director | Frontiere Natural Meats

Request Quote

Cryovac ST101 Shrink Tunnel

Specifications

Need something out of the box? Custom size, different material or bigger order?

FAQ's

Similar Products

FRIMAQ MI ELECTRIC SHRINK WRAP...

STAINLESS SHRINK TUNNEL

STAINLESS SHRINK TUNNEL

VC999 ST-6 SHRINK TUNNEL

SUPERVAC AT8 ED Shrink Tank

SUPERVAC AT8 ED Shrink Tank

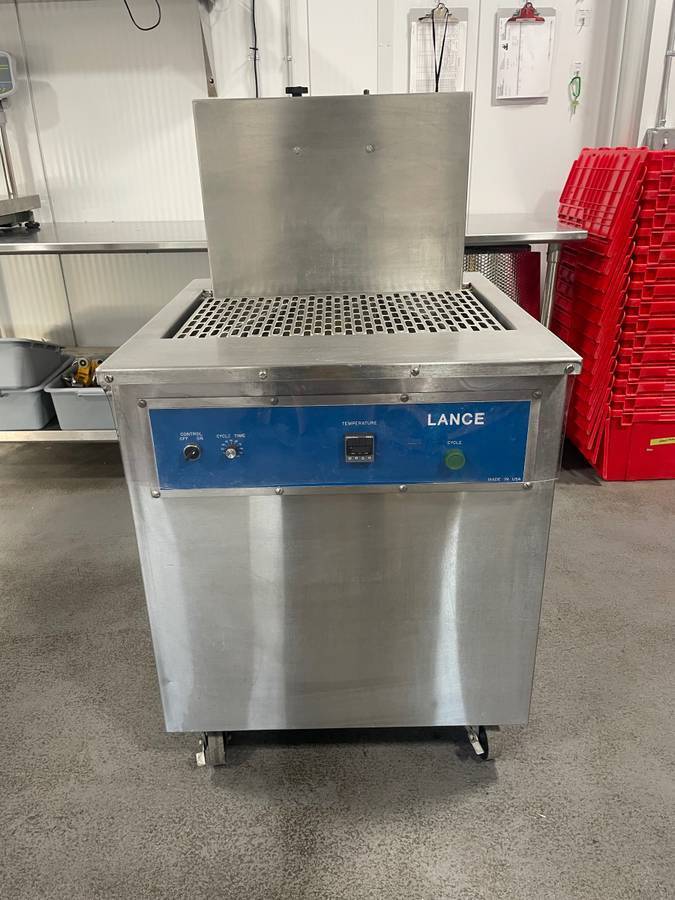

Lance LST-20 Shrink Tank
